Complete 2008 Chevrolet Silverado Stereo Wiring Color Codes Guide

For immediate troubleshooting, locate the BCM (Body Control Module) fuse panel under the dashboard–remove the lower trim panel by prying the clips near the driver’s knee bolster. The radio harness connects to terminals A6 (orange) for constant 12V, A7 (pink) for ignition-switched power, and C2 (gray) as the ground. Verify continuity with a multimeter before bypassing factory wiring.

Aftermarket adapters like Metra 70-1858 or Scosche GM02B simplify connections but require splicing into the ISO harness. The data bus wire (yellow/black stripe) carries Class II serial communication–severely disrupting it triggers OnStar errors and dashboard warning lights. Isolate this wire if retaining factory features.

Factory amplifiers mount behind the rear seat cushion. Access them by folding the seat forward and removing the plastic retainers. The subwoofer output (purple/black stripe) feeds directly from the head unit; test with a 10-ohm dummy load if bass cuts out intermittently. Replace degraded speaker wires with 18-gauge OFC copper to prevent signal loss.

For OEM navigation units, the VIN-matched calibration file must be reflashed via GM’s TIS2Web if the touchscreen freezes. Harness pinouts differ between non-Bose (simple 4-speaker setup) and Bose-equipped models (6-channel amplifier). Cross-reference resistor values on the speaker wires: Bose systems use 2-ohm impedance, non-Bose use 4-ohm.

Steering wheel controls interface via the SWC wire (light blue). If buttons fail, replace the 56-pin connector under the glovebox–pins 34 and 35 often corrode. Use dielectric grease on reconnections to prevent future oxidation.

Chevy 2008 Audio System Connection Guide

Start by locating the factory harness behind the dashboard’s center console–pinouts for this model cluster into three primary groups: power leads (constant 12V, ignition-switched, ground), speaker outputs (front/rear left/right), and auxiliary feeds (amplifier trigger, mute control, illumination). Use a multimeter to verify each circuit; the ignition wire (typically orange with black stripe) should show 12V only when the key is in the RUN position, while the yellow memory feed maintains voltage at all times. Match these to aftermarket head unit harnesses labeled ISO 10487 or equivalent–adapter plugs like Metra 70-2003 streamline this pairing without splicing.

Troubleshooting Common Pitfalls

• No audio output? Confirm the amplifier’s remote turn-on wire (blue/white) connects to the deck’s corresponding lead–OEM setups often disable audio if this signal fails.
• Static or distortion? Re-route speaker wires away from power cables and engine bay sources; twist pairs every 6 inches to minimize interference.
• Backlighting issues? The dimmer circuit (gray/violet) requires a 10kΩ resistor if the aftermarket unit lacks native dimming support.

1. Disconnect the negative battery terminal before handling any connections to prevent short circuits.
2. Label all wires with masking tape and description–OEM color codes (e.g., light blue = left front speaker) often differ from aftermarket standards.
3. Test each function incrementally: power, speakers, steering wheel controls, then auxiliary devices.

For retained steering wheel button functionality, integrate a Pac SWI-RC or Axxess ASWC-1 adapter–both map OEM button resistances to aftermarket decks’ protocols. Avoid generic “SCOSCHE” adapters; they frequently lack GM-specific voltage thresholds, causing inconsistent detection.

Finding the OEM Audio Connector in Your 2008 Chevrolet Truck

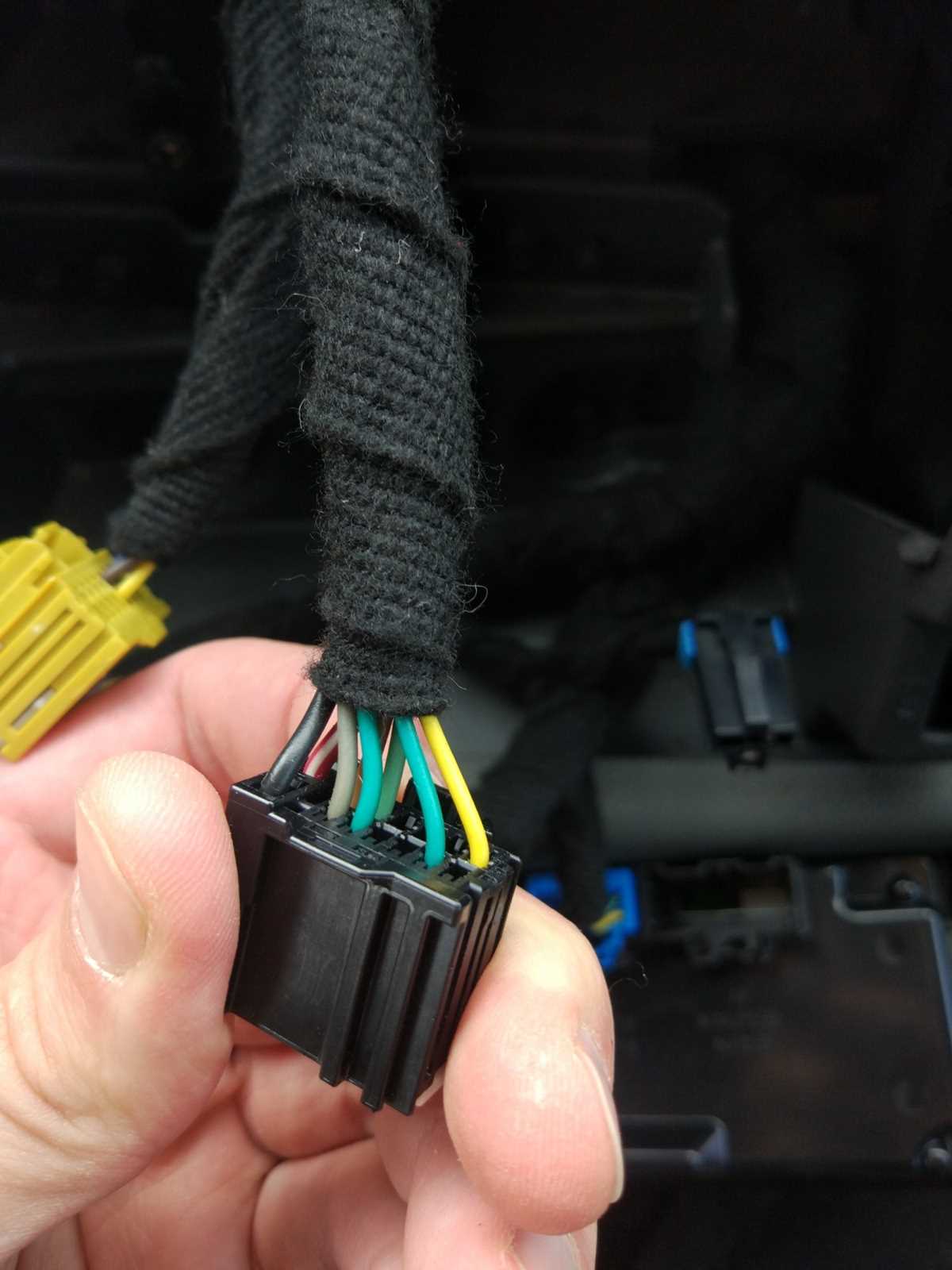

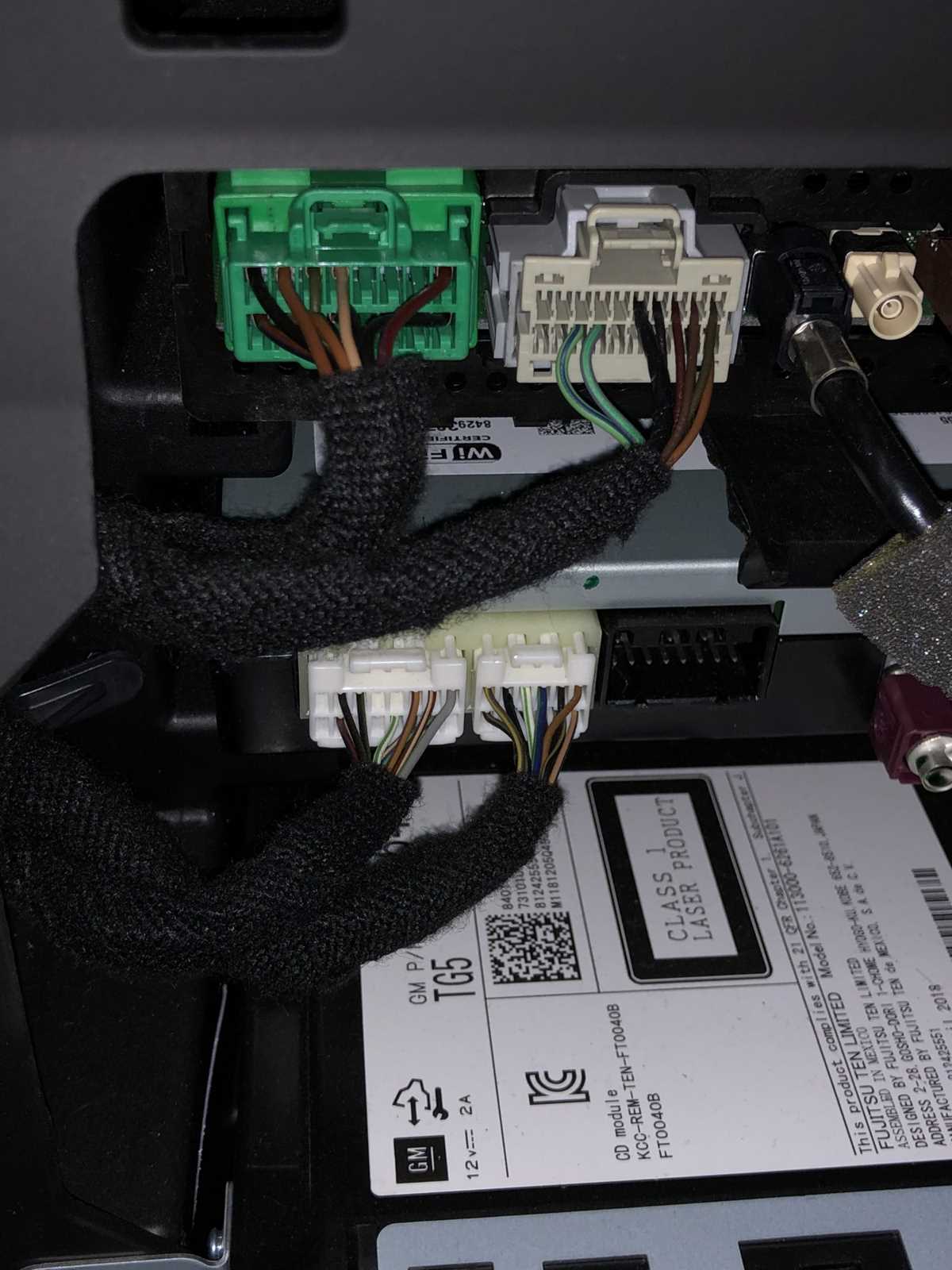

Begin by removing the center console trim panel beneath the climate controls. Use a flathead screwdriver to pry the panel gently, starting at the lower edge–plastic clips secure it without screws. Once detached, locate the rectangular black plug directly behind the factory head unit; it sits on the right side connected to the back of the audio system with 12-pin and 8-pin harnesses. The larger connector handles power, ground, and speaker outputs, while the smaller one manages amplifier controls and illumination.

Wire Color	Function	Harness Pin
Yellow	Battery (+12V)	12-pin, Pin 6
Black	Ground	12-pin, Pin 4
Dark Blue/White	Front Right (+)	12-pin, Pin 10
Gray	Front Left (+)	12-pin, Pin 5
Green/Black	Rear Right (+)	12-pin, Pin 12
Violet	Rear Left (+)	12-pin, Pin 3

Additional Tips

If the harness isn’t immediately visible, check for zip ties securing it to the HVAC duct–cut these carefully. For extended cab models, the connector may be slightly lower due to the rear seat wiring loom. Always disconnect the negative battery terminal before handling live circuits to prevent short circuits or airbag deployment faults.

Decoding Factory Audio Harness Color Codes and Purposes

Start by locating the primary 12-pin connector at the back of the OEM sound unit–this is your roadmap. The yellow wire (constant +12V) retains memory settings even when ignition is off, while the red wire (switched +12V) activates only when the key is in the accessory or run position. Connecting these backward will drain the battery overnight.

Ground connections are non-negotiable. The black wire must attach to bare metal chassis or a dedicated ground point–resist the urge to splice it with other wires. Poor grounding causes distortion, popping, or complete audio dropout. Factory harnesses often include a brown wire as a secondary ground; confirm with a multimeter (0 ohms to chassis) before trusting it.

Speaker Outputs: Left and Right Channels

• Front Left (+): Light green
• Front Left (-): Gray
• Front Right (+): Dark gray
• Front Right (-): Dark green
• Rear Left (+): Light blue
• Rear Left (-): Light brown
• Rear Right (+): Purple
• Rear Right (-): Pink

Use a 9V battery to test speaker wires–briefly touch leads to + and – wires. A faint pop confirms correct polarity. Reversed polarity flips the stereo image but won’t damage components.

Factory amplifiers (if equipped) use a dark blue/white stripe wire for the remote turn-on signal. This triggers external amps when the head unit powers up. Missing this connection leaves aftermarket subwoofers silent. For systems without amplified outputs, the gray/black stripe and green/black stripe wires carry low-level preamp signals–these require shielded cables if extending beyond 18 inches.

Illumination control (orange wire) dims dash lights in sync with headlights. Bypassing it (splicing to constant +12V) keeps the display at full brightness, which may annoy nighttime drivers. Some trim levels include a violet wire for antenna power–leaving this disconnected turns off the automatic antenna on vehicles with hardtop designs.

1. Verify all connections with a test light before securing with crimp caps.
2. Never assume wire colors carry the same function across model years–1999-2006 use one scheme, while 2007+ often swap gray and green pairs.
3. Resist soldering until all wires are confirmed; a single misroute can blow fuses or damage the mainboard.

Troubleshooting Mismatched Harnesses

Aftermarket adapters occasionally omit or mislabel wires. If the tan wire (vehicle speed sensor input) disappears, speed-sensitive volume won’t adjust. For steering wheel controls, the white/black and yellow/black wires must link to the correct resistor values–incorrect pairing renders buttons non-functional or erratic.

Step-by-Step Guide to Integrating a New Audio System with Factory Harness Connections

Disconnect the vehicle’s battery terminal to prevent short circuits during installation. Identify the factory connector behind the stock radio–typically a 12-pin or 24-pin plug with labeled pins for power, speaker outputs, and antenna control. Use a multimeter to verify pin functions if labels are unclear. Match the aftermarket unit’s harness to the vehicle’s wiring by splicing compatible wires: yellow (constant 12V), red (switched 12V), black (ground), and individual speaker wires (often gray, white, purple, or green).

Preparing the Interface Adapter

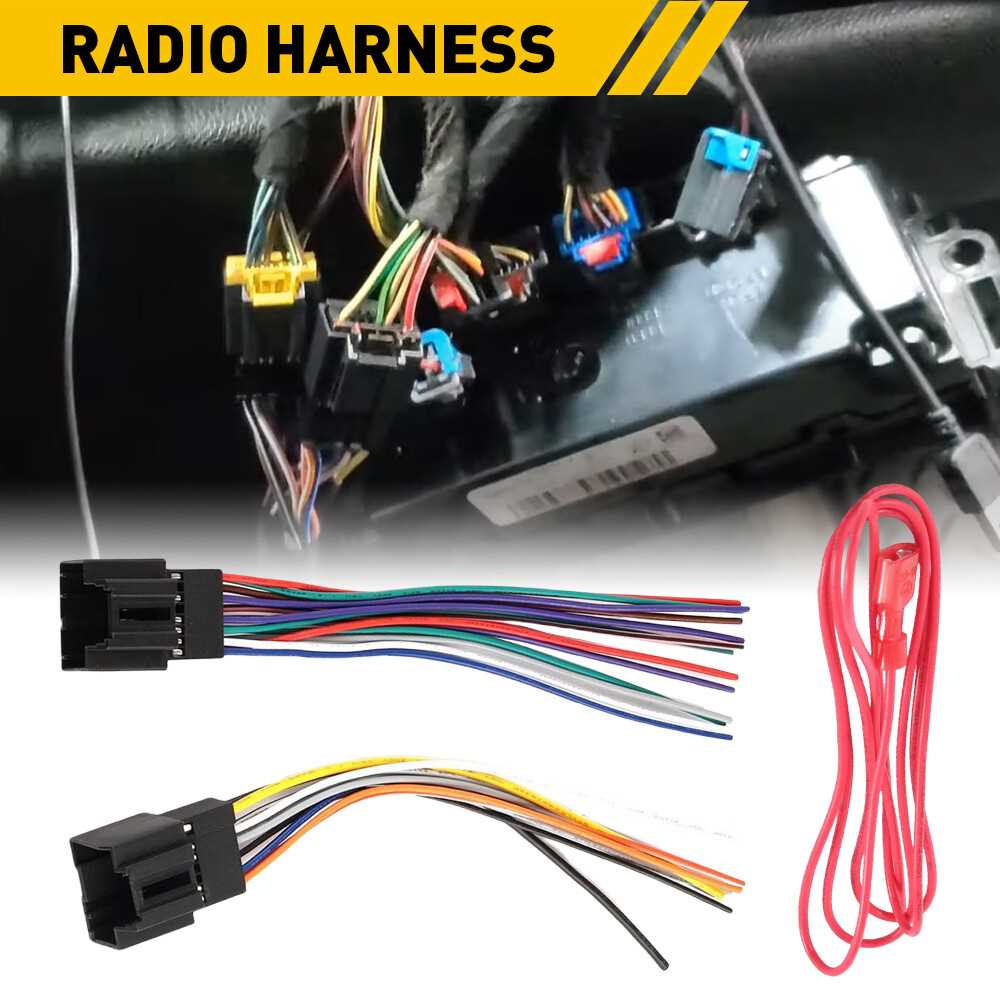

Acquire a vehicle-specific harness adapter instead of cutting factory wires–this ensures reversible installation and retains steering wheel controls if applicable. Align the adapter’s OEM connector with the vehicle’s plug and the aftermarket harness with the adapter’s pins. Secure connections with solder or crimp connectors, then insulate each joint with heat-shrink tubing or electrical tape. For systems requiring amplifier integration, locate the factory amp (often behind rear seats) and bypass it if the new unit has built-in amplification.

Test all connections before final assembly. Reconnect the battery and turn the ignition to accessory mode to check power delivery–ensure the new unit powers on without flickering or resetting. Verify each speaker by playing a tone through the head unit: front left (negative lead may have a stripe), front right, rear left, and rear right. Listen for distortion or imbalance, indicating incorrect polarity or a faulty connection. If steering wheel controls are desired, install a separate interface module (e.g., ASWC-1) between the factory connector and new harness.

Route excess wiring away from moving parts, sharp edges, and heat sources. Use cable ties to secure loose wires along existing vehicle harnesses. Reinstall the dash trim carefully, ensuring no wires are pinched–this prevents rattles, electrical shorts, or damage during vehicle operation. If the antenna signal is weak, check the connection at the factory plug (often a thin coax cable) and verify the aftermarket unit’s antenna input is properly configured for either powered or non-powered systems.

For configurations with backup cameras or auxiliary inputs, confirm the factory harness includes these signals. If missing, run new wires from the rear of the vehicle to the head unit, using a relay for parking brake detection (required for video functionality in some regions). Complete the installation by testing all features–CD playback, Bluetooth pairing, USB ports, and navigation (if equipped)–before closing the dashboard. Document any modifications made to the wiring for future reference or troubleshooting.
