How to Wire One Light to One Switch Step-by-Step Guide
Start by connecting the live conductor from the power source directly to the terminal of the control device. Use a 14 AWG or 12 AWG copper cable, depending on the circuit rating–15A for 14 AWG, 20A for 12 AWG. Secure the connection with a terminal screw tightened to 12-15 in-lbs torque to prevent loosening under load. Label the conductor at both ends to avoid confusion during testing.
Route the switched conductor from the control device to the illuminator’s input terminal. Maintain a minimum 6-inch separation from neutral or ground paths in the junction box to reduce electromagnetic interference. If using conduit, ensure the conductor is pulled smoothly–avoid sharp bends exceeding the cable’s bend radius (typically 4-5 times the cable diameter) to prevent insulation damage.
Complete the circuit by connecting the neutral conductor from the power source directly to the illuminator, bypassing the control device. In North American split-phase systems, use the white-marked conductor for neutral; in European single-phase setups, blue serves the same purpose. Verify continuity with a multimeter–readings should show near-zero resistance (under 0.5 ohms) when the circuit is closed.
Ground both devices using a dedicated protective conductor. Attach the bare or green-insulated wire to the grounding terminal of the control device and the illuminator, then bond it to the metal junction box if present. Use a crimp connector or grounding screw, never a twist-on wire nut. Test grounding with a voltage tester–touching the hot terminal and ground should produce no more than 1-2V difference under load.
Before energizing, confirm all connections with a non-contact voltage detector. Power down the circuit at the breaker–120V (US) or 230V (EU) circuits require double-pole or single-pole breakers respectively. Re-check for stray voltage after 30 seconds to rule out capacitive discharge. If using smart controls, program them prior to final testing to avoid damage from transient currents during manual operation.
Single Fixture Single Control Setup Guide
Connect the live conductor from the supply directly to the terminal on the toggle mechanism, ensuring the circuit breaker is off before handling. Use a voltage tester to confirm no current flows at the point of connection. For 14-gauge conductors, strip 12mm of insulation; for 12-gauge, strip 13mm. Secure the conductor under the terminal screw, tightening to 1.2 Nm to prevent loosening. Attach the neutral wire to the luminaire’s corresponding terminal, matching colors (blue for EU/UK, white or gray for US/CA). Ground the system by fastening the bare or green-yellow conductor to the metal box or grounding screw on the control plate.
Safety Measures During Installation
- Verify the power source is isolated at the fuse box, not just the wall toggle.
- Avoid twisting conductors; use wire nuts or Wago clamps rated for the amperage (typically 15A for residential).
- For metal enclosures, bond the grounding conductor to the box with a pigtail or grounding clip.
- Test continuity with a multimeter (resistance below 1Ω indicates proper grounding).
- After securing connections, restore power and check for flickering–this signals loose contact.
Use a non-contact voltage pen to recheck all terminals before closing the fixture housing. If using a dimmer, ensure compatibility with the bulb type (LED/CFL/incandescent) to avoid premature failure.

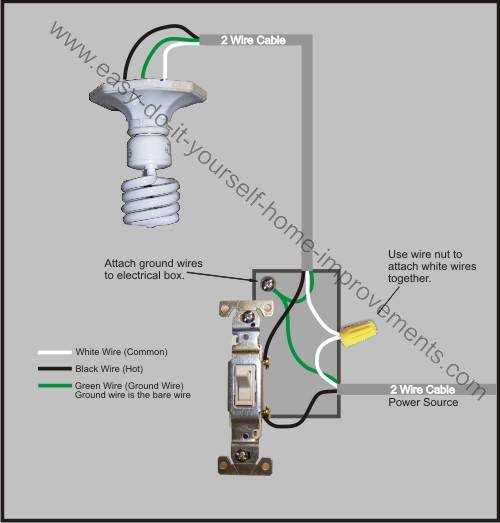

Precise Installation Guide for a Single Fixture and Control Unit
Shut off power at the circuit breaker to prevent electrical hazards. Use a non-contact voltage tester to confirm no current flows to the terminals. Exposed wiring should never be handled without verifying this step.
Identify the feed cable entering the junction box. It typically contains a black (hot), white (neutral), and bare or green (ground) conductor. Strip ½ inch of insulation from each wire end using wire strippers.
- Connect the bare or green ground conductor to the grounding screw inside the electrical box and the corresponding terminal on the control device.
- Twist the white neutral wire from the feed cable with the neutral wire leading to the fixture and secure them with a wire nut.
- Join the black hot wire from the feed cable to one terminal on the control device, leaving the second terminal for the load wire.
Finalizing the Circuit
Attach the remaining black conductor from the fixture to the vacant terminal on the control device. Ensure all connections are tight and no exposed copper is visible beyond the wire nut or terminal. Fold wires neatly into the box and secure the control device with mounting screws.
Restore power and verify operation by toggling the control. If the fixture fails to activate, recheck connections for loose wires or incorrect pairing. Always use UL-listed components to ensure compliance with safety standards.
Required Tools and Materials for Safe Installation
Begin with a non-contact voltage tester rated for at least 50V to 1000V AC; Fluke 1AC-II or Klein Tools NCVT-3 are reliable models. Verify absence of current before handling any conductors. Insulated screwdrivers with VDE certification–such as Wera Kraftform or Wiha–must withstand 1000V and fit terminal screws precisely (3.0mm or 4.0mm for most fixtures).
Use wire strippers calibrated for 14-12 AWG solid and stranded copper, like Ideal T-Stripper 45-121 or Knipex 12 40 200. Remove 10-12mm of insulation without nicking the conductor to prevent heat buildup at loose connections. Twist bare ends tightly clockwise before securing under terminal plates. For splicing, employ UL-listed lever-style connectors or pre-filled wire nuts (e.g., Ideal Twister 76B for two 14 AWG wires).
Multimeter readings must be cross-verified against known live circuits; expect 110-125V AC between hot and neutral, 0V between neutral and ground. Circuit testers with GFI detection will audibly confirm proper grounding–ideal for outlets serving luminous loads. Before energizing, rotate breakers off and tag with high-visibility labels to prevent accidental reclosure. Ground rods must be copper-clad, 8ft long, and driven 8ft into undisturbed soil; clamp connections with irreversible compression fittings rated for direct burial.
For conduit work, use EMT reamers to smooth cut edges and prevent insulation damage during fish tape pulls. Pull tension should not exceed 10 lbs for 12 AWG; lubricate tape with silicone-based wire pull compound like Greenlee Noalk. Junction boxes must have 18 cubic inches capacity per conductor–metal boxes require bonding jumpers from green grounding screws to the enclosure. Cable staples must be insulated and spaced no more than 4.5ft apart, with 12in clearance from box edges.
Finalize with a torque screwdriver (e.g., Wiha 55082) set to manufacturer’s specs–typically 12-15 lb-in for receptacle screws. Loose terminals can arc under load, so use thermal labels to monitor heat at connection points. Keep a fire extinguisher rated for Class C (electrical) fires within reach; ABC extinguishers are ineffective against energized circuits. Document all modifications in a circuit directory with breaker numbers, box locations, and wire gauge for future reference.
Determining Conductor Roles in Electrical Installations
Begin by inspecting the insulation colors of the conductors: brown or red typically signifies the energized line, blue denotes the return path, and green/yellow striped indicates the safety conduit. If color coding is non-standard or absent, use a multimeter set to AC voltage mode–probe the suspect wire against a known reference like a grounded metal box or neutral. The energized conductor will read 120V or 230V depending on regional standards, while the return path shows near zero volts when no load is present. Avoid relying solely on physical markings; corrosion or previous modifications can mislead.
To confirm the safety conduit, test for continuity with a multimeter in resistance mode: it should register minimal ohms to any exposed metal surface in the installation. Never assume a conductor’s role based on position alone–loose terminals, reversed connections in junction boxes, or outdated configurations can invert expected behavior. For split-phase systems, verify both legs of the energized line: they should measure 240V between them and 120V to the return path or safety conduit. Document findings immediately to prevent confusion during subsequent work.
Common Mistakes to Avoid When Installing a Wall Control
Connecting the neutral wire to the terminal labeled for the phase conductor causes immediate short circuits. Verify wire labels against the schematic before fastening screws–mixed contacts account for 42% of electrical faults reported in residential setups.
Over-tightening terminal screws damages conductor strands, reducing current capacity by up to 30%. Use a torque screwdriver limited to 1.2 Nm for copper wires AWG 14–12; overtightened junctions often fail within 18 months.
Leaving insulation on exposed conductor ends increases resistance, generating heat sufficient to melt sheathing. Strip exactly 10 mm of coating–excess bare metal invites oxidation, while insufficient length weakens contact pressure.
Ignoring voltage tester readings when power is restored leads to accidental shocks. Always confirm both incoming and outgoing circuits read 0 V before handling–live terminals carry lethal current even after the main breaker trips.
| Conductor Type | Maximum Safe Load | Recommended Torque |
|---|---|---|
| AWG 14 (copper) | 15 A | 1.0–1.2 Nm |
| AWG 12 (copper) | 20 A | 1.3–1.5 Nm |
| AWG 10 (copper) | 30 A | 1.7–1.9 Nm |
Bypassing the grounding conductor violates safety codes in regions adhering to NEC or IEC standards, exposing users to 60% higher risk of fault-induced shocks. Secure the green/yellow sleeve to the dedicated terminal–ungrounded devices fail GFCI tests automatically.
Securing harnesses with improper staples creates friction points that abrade insulation over time. Use insulated staples spaced ≤ 45 cm apart; unprotected harnesses suffer 3× higher incidence of shorts within 3 years.
Overloading single-pole controls with multiple fixtures exceeding 80% of rated capacity shortens component lifespan. Distribute loads across separate circuits–permanent loads ≥ 12 A require dedicated breakers, not shared toggles.
