Complete Guide to Wiring a 1 Ohm Subwoofer Amplifier Schematic

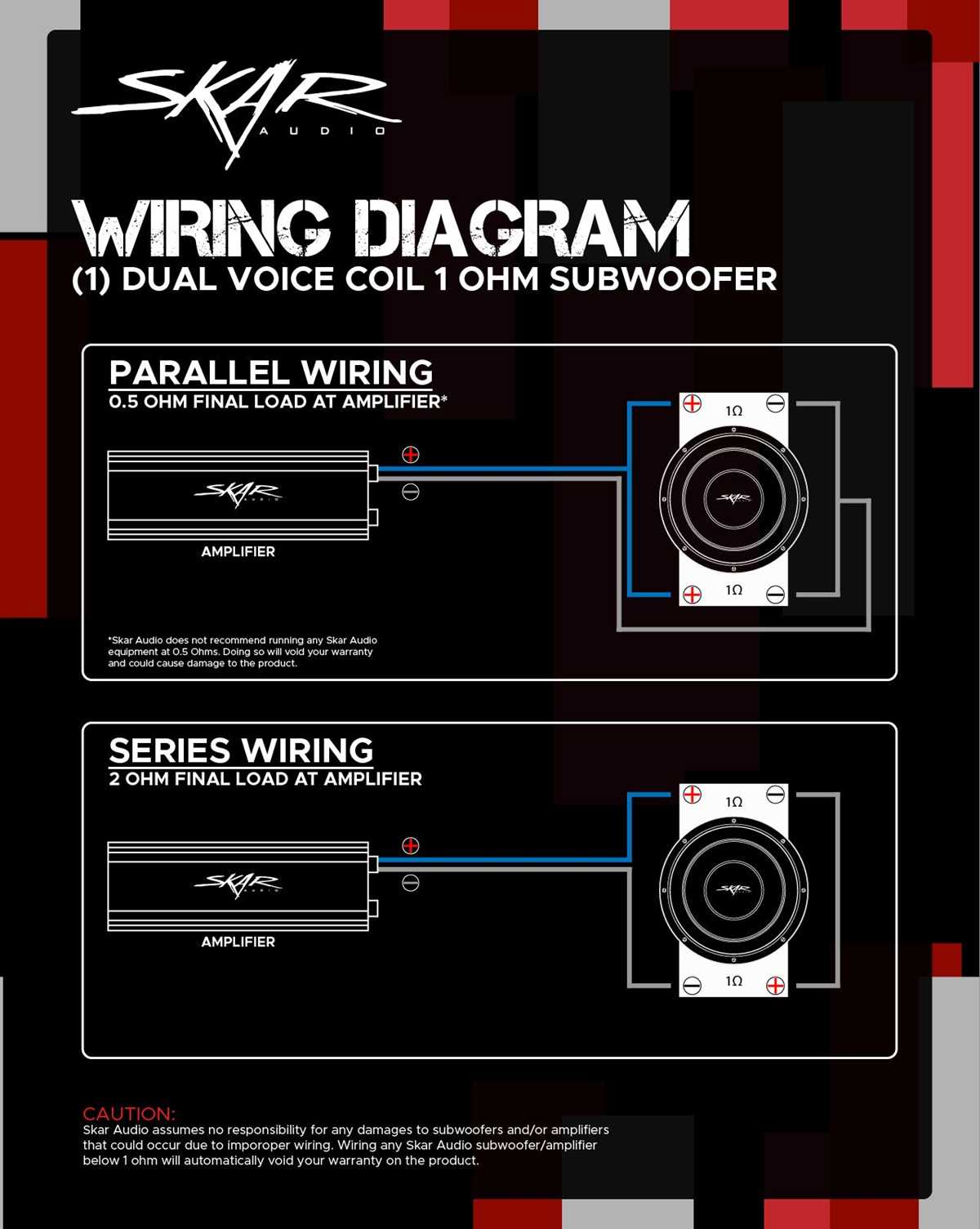

Use a dual voice coil subwoofer for 1-ohm stability. Connect both coils in parallel to achieve the target load while maintaining amplifier compatibility–critical for Class D monoblocks rated at 2,000 watts RMS. Verify the maximum current draw of your power source; 1,500-watt systems demand a 120-amp alternator and 4-gauge oxygen-free copper wiring to prevent voltage sag under peak loads.

Avoid series-parallel setups. They complicate resistance calculations and risk uneven power distribution. Instead, confirm the amplifier’s minimum impedance spec (often 1 Ω stable) before wiring. If the manual lists 2 Ω as the lowest safe load, bypass this configuration entirely–forced low resistance will overheat output transistors, triggering thermal shutdown within minutes.

Route power cables at least 2 inches away from RCA and speaker wires to eliminate signal interference. Secure grounding at the battery’s negative terminal, never chassis metal–the voltage drop across welded joints introduces distortion. For dual-battery setups, isolate the secondary battery with a relay to prevent parasitic drain during engine-off operation.

Test the completed setup with a multimeter: probe the subwoofer terminals to confirm the calculated impedance (0.5 Ω for dual 1 Ω coils in parallel). If readings fluctuate, inspect for loose crimps or corroded connectors–even 0.2 Ω resistance can destabilize the amplifier’s feedback loop. Adjust gain in small increments, using a sine wave test tone at 40 Hz to prevent cone over-excursion before enclosure tuning.

Single-Impedance Audio System Connections: Step-by-Step Configuration

Connect speakers in parallel to achieve a stable 1-Ω load for high-current setups, ensuring each voice coil is directly tied to the amplifier’s output terminals. Use 4-AWG oxygen-free copper cables for main power lines to minimize resistance losses–thinner gauges risk overheating under sustained loads. Verify terminal polarity before securing connections; reversed leads will cancel low frequencies and stress components.

Mount a 200-ampere fuse within 18 inches of the battery to prevent catastrophic failure. Avoid flexible wire looms if current exceeds 150 amperes; opt for rigid busbars instead. Ground the enclosure to the chassis using star washers and torque to 25 lb-ft to eliminate ground loops. Measure impedance at the amplifier terminals with a multimeter–aim for ±0.1 Ω of target to confirm correct configuration.

Bridging multiple channels alters impedance requirements–consult the device’s specifications sheet. For instance, two 4-Ω drivers bridged on a stereo unit typically present 2 Ω; four 4-Ω loads in parallel halve again. Overlooking this adjustment will trip protection circuits or damage output stages. Use a thermal probe on output transistors during initial testing; sustained temperatures above 85°C indicate inadequate cooling or excessive load.

Here’s a checklist for final validation:

• Confirm wire gauge matches current draw (use online calculators).
• Check all terminal screws are tightened to manufacturer torque specs.
• Power on without signal; listen for abnormal hum or hiss.
• Gradually increase volume while monitoring for distortion or clipping.
• Inspect connections after 30 minutes of playback for heat or loosening.

Replace any corroded ring terminals immediately–even minor oxidation at this resistance level introduces measurable signal loss. Label each connection with heat-shrink tubing or tags to simplify future adjustments. Store spare fuses and jumpers in the installation kit; high-current faults often burn multiple components simultaneously.

Selecting the Optimal Cable Thickness for Low-Impedance Speaker Systems

The 0 AWG copper cable is the minimum for subwoofers drawing 1000 watts RMS at 1-volt load configurations. Thinner cables like 2 AWG introduce measurable power loss–up to 7% voltage drop over 15 feet–reducing transduction efficiency and dynamic headroom. For dual-voice-coil drivers wired in parallel, halve the current rating: 0 AWG supports 300 amperes, while 4 AWG caps at 135 amperes, insufficient for high-compression bass.

Voltage sag becomes critical below 12.6V system voltage. A 300-watt continuous load requires 25 square millimeters of cross-sectional area (4 AWG) to sustain 14.4V charging levels. Most factory alternators output 80-120 amperes; aftermarket high-output models (200+ amperes) demand 1/0 AWG or thicker to prevent voltage collapse during peak transients. Battery placement matters: relocating the power source within 6 feet of the amplifier allows downgrading to 2 AWG without performance penalties.

• Single 12-inch subwoofer (500W RMS): 4 AWG minimum, 2 AWG recommended
• Dual 12-inch subs (1000W RMS): 1/0 AWG mandatory
• Four 10-inch subs (1500W RMS): 250 kcmil or dual 1/0 AWG runs

Tinned copper outperforms pure copper for marine or humid environments. Oxygen-free copper (OFC) offers 2% lower resistance per meter than standard annealed copper, relevant for runs exceeding 20 feet. Aluminum conductors require 1.6x the cross-sectional area for equivalent performance–avoid unless substituting 4/0 AWG aluminum for 1/0 AWG copper in budget-constrained builds.

Fusing must match cable ampacity: 200-ampere fuse for 1/0 AWG, 300-ampere fuse for 250 kcmil. Mid-run distribution blocks halve cable fatigue; install a second block for independent subwoofer pairs. Terminal connectors should use crimped and soldered joints for stranded cables; bolt-down terminals suffice for solid-core installations. Heat-shrink tubing prevents oxidation at termination points.

Shielded twisted-pair cables reduce RF interference in sensitive low-frequency signals. Ground wires should mirror power cable thickness to the chassis ground point, ideally within 18 inches of the amplifier’s ground post. Avoid daisy-chaining grounds–use a dedicated star grounding scheme with all returns converging at a single busbar.

Measure voltage under load: a 0.5V drop between battery and amplifier terminals indicates undersized cables. For bi-amped setups, dedicated 2 AWG runs to each channel prevent power starvation. Vehicle-specific considerations include routing cables away from exhaust headers (minimum 3-inch clearance) and securing with nylon loom to prevent abrasion.

Step-by-Step Series vs Parallel Connections for Ultra-Low Resistance Loads

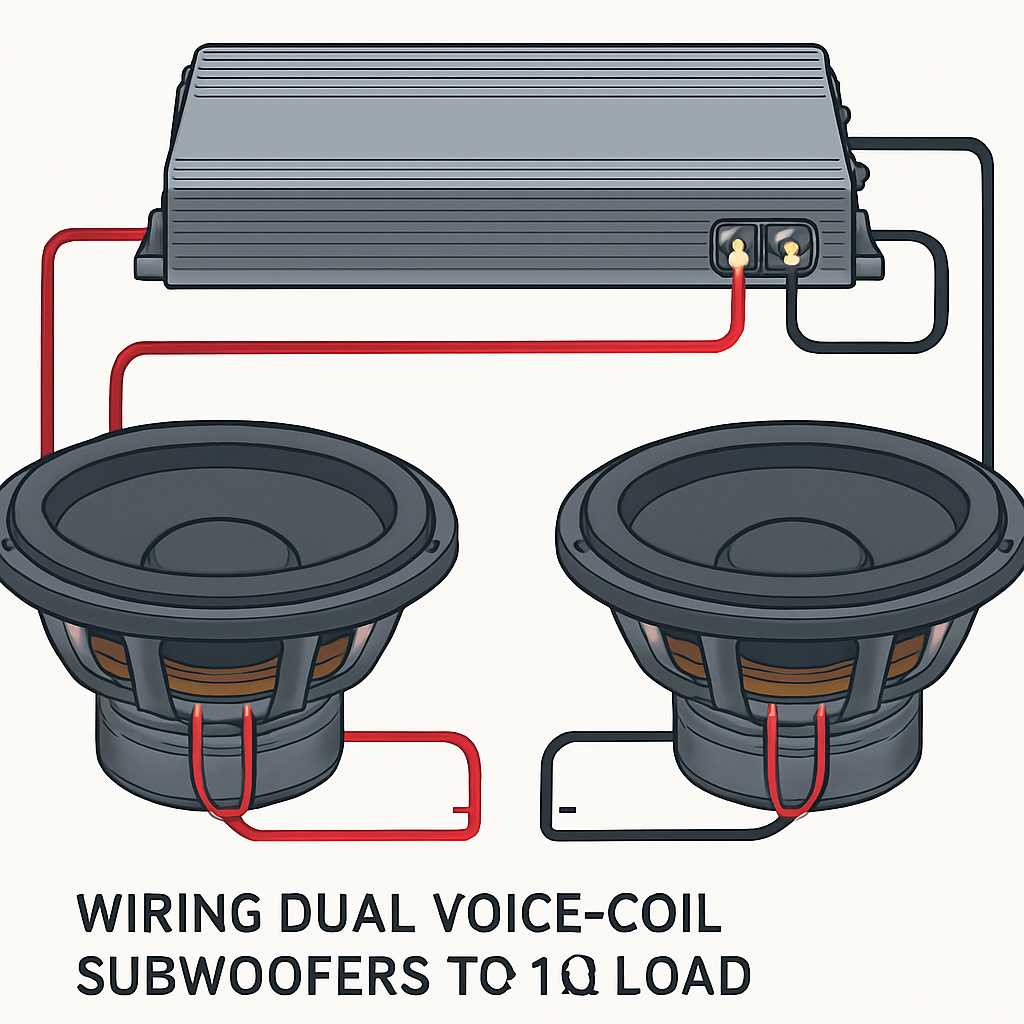

For sub-4-ohm stability, wire dual 2-voice-coil subwoofers in parallel: connect both positive terminals to the amplifier’s positive output and both negatives to the negative output. This halves the load impedance (e.g., two 2-ohm coils become a 1-ohm final load), maximizing current delivery while keeping damping factor above 100–critical for tight bass response in sealed enclosures. Measure with a multimeter after soldering; deviations over ±0.1Ω indicate faulty connections. Use 8-gauge oxygen-free copper wire for lengths under 5 feet; upgrade to 4-gauge if exceeding 8 feet to prevent voltage drops exceeding 0.5V under full power. Avoid strip-and-twist joints; crimp with sealed butt connectors and solder for corrosion-proof joints, especially in trunk installations.

Series connections demand precise component matching: pair identical speakers (±0.2Ω tolerance) to prevent frequency response tilts. Combine a 4Ω midrange with a 4Ω tweeter in series for an 8Ω load, but never exceed the amplifier’s minimum stable impedance–most class D monoblocks shut off below 1Ω. For dual 1-ohm subs, series wiring doubles the load (2Ω), reducing thermal stress on amplifier MOSFETs by 30% vs parallel, extending lifespan. Install a 100A fuse within 18 inches of the battery and route wires through firewall grommets with nylon sleeves to prevent chafing; neglecting this causes 12V short circuits that destroy amplifiers in

Optimizing Dual Subwoofer Configurations for Single-Channel Power Units at Low Impedance

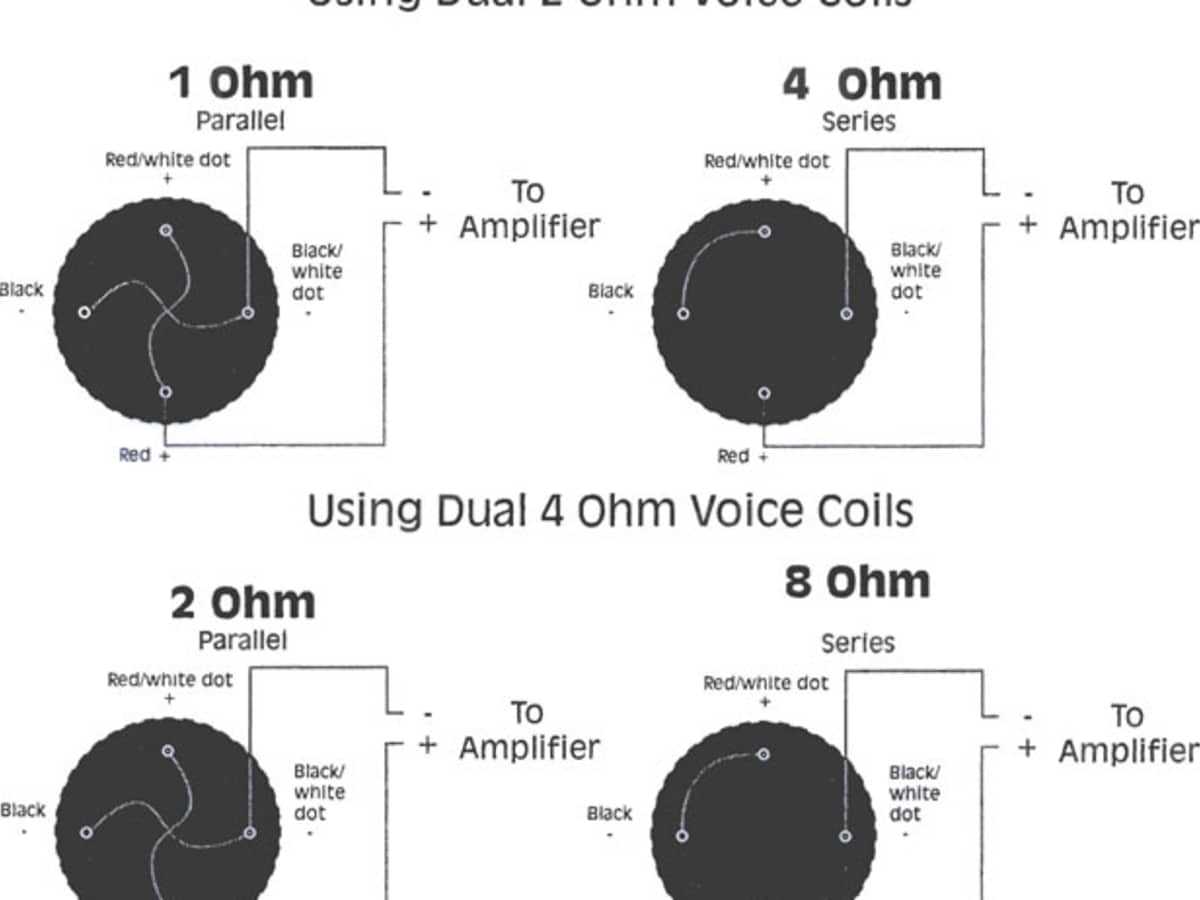

Connect subwoofers in parallel to match a 1-ohm load when using a high-current monoblock powerstage. Verify each driver’s minimum impedance rating before pairing–most dual 2-ohm voice coils tolerate parallel bridging, but single-voice-coil variants require careful impedance summation. Measure total resistance with a multimeter after soldering connections to confirm the target load; a deviation above 1.2 ohms risks clipping, while values below 0.8 ohms may trigger thermal shutdown.

Use 4-gauge oxygen-free copper cables between the amplifier’s output terminals and subwoofer terminals, ensuring terminal lugs are crimped with a hydraulic tool and soldered for corrosion resistance. Route cables away from engine compartments and sharp edges, securing them with nylon clamps every 12 inches to prevent vibration-induced shorts. Avoid twisting multiple cables together–each conductor should maintain a dedicated path to preserve current capacity.

Select a monoblock unit rated for stable operation at 1 ohm continuous duty; power ratings often inflate at higher impedance, so prioritize certified RMS figures over peak values. Install a 200-amp fuse within 6 inches of the battery, and ground the amplifier to a chassis point with a dedicated 4-gauge wire–shared grounds with other electronics induce noise and reduce performance. Distortion levels below 0.3% at full excursion indicate proper matching.

Balance enclosure volume to avoid mutual impedance swings–two 1-cubic-foot sealed boxes draw consistent power, whereas ported designs may require individual amplifiers if tuning frequencies clash. Test system response with a sine-wave sweep at 20 Hz intervals, noting any compression or unusual resonance; if one subwoofer dominates output, recheck terminal connections for cold solder joints or corroded surfaces.
