How to Wire a 110v Male Plug Step by Step Guide with Diagram
Connect the hot wire (black or red) to the brass screw–this is terminal A on a NEMA 5-15 or 5-20 outlet. Ground (bare or green) goes to the green screw or U-shaped slot, terminal G. Neutral (white) attaches to the silver screw on the opposite side, terminal W. Verify polarity with a multimeter: 117–125VAC between hot and neutral, 0V between neutral and ground.
For 15A circuits, use 14 AWG copper wire; 12 AWG for 20A. Strip insulation to 5/8″ (±1/16″) for secure screw-clamp contact. Twist strands clockwise before wrapping clockwise around screw shafts to prevent fraying. Torque terminals to 12 in-lbs; overtightening cracks nylon housings.
Avoid back-stab connections–they fail under cyclic loads. If retrofitting, pigtail splices with wire nuts rated for 600V (UL 486C) and wrap with electrical tape. Polarized two-prong adapters require neutral continuity: test for 1–2 ohms between input prong and output screw.

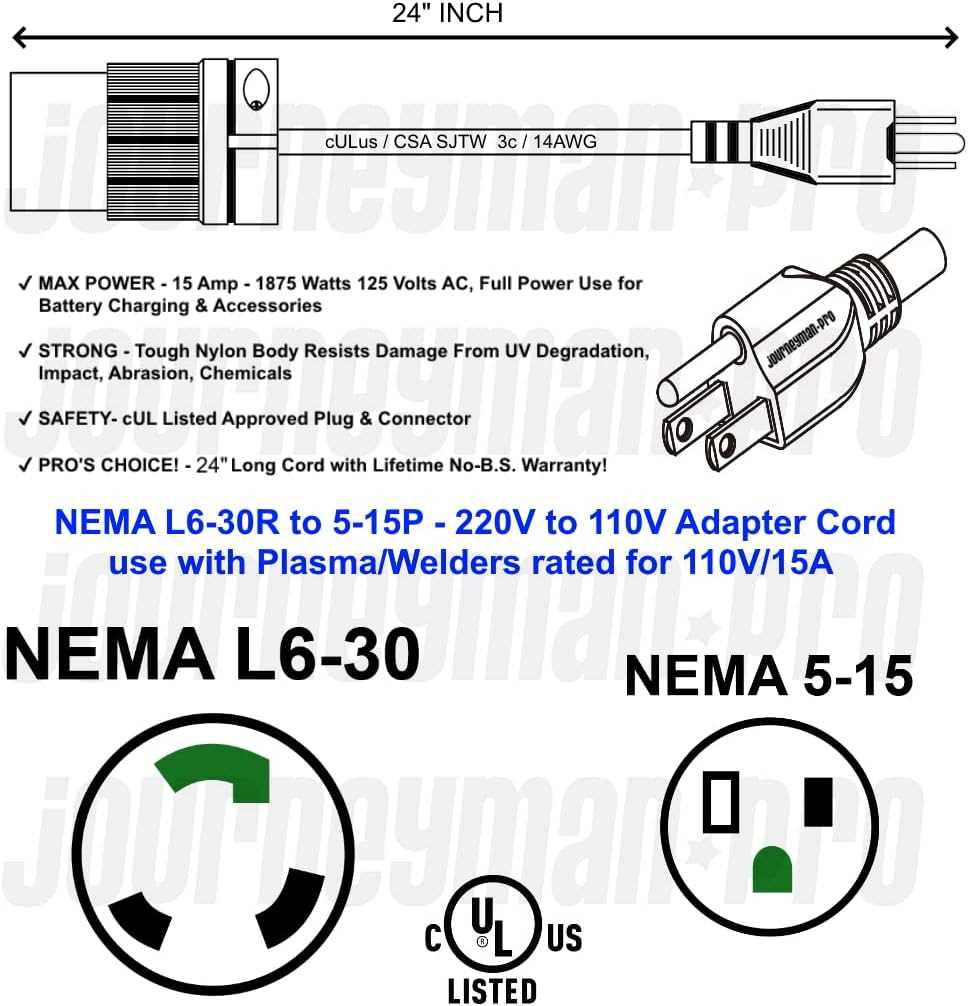

Check local codes for AFCI/GFCI requirements. NEMA 5-20 outlets (T-slot) accept both 5-15 and 5-20 plugs; ensure receptacle rating matches breaker ampacity. For split circuits, isolate travelers with colored tape (red for switched hot) and label breaker panel.

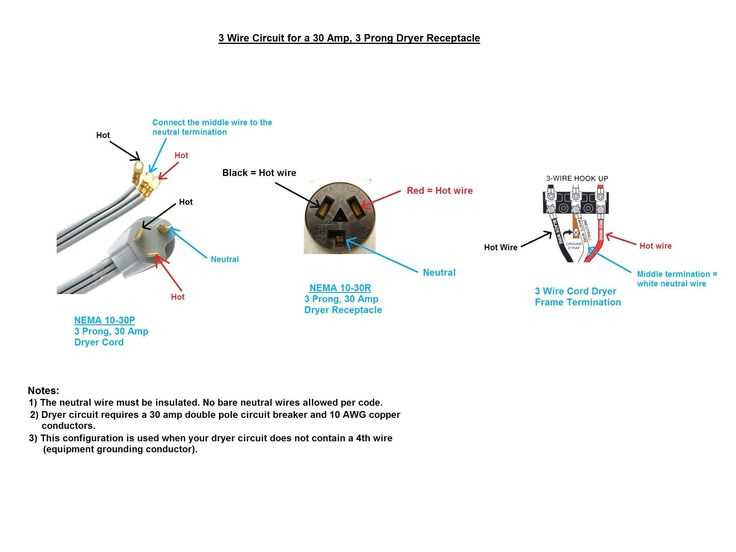

Non-grounded outlets may require GFCI protection with “No Equipment Ground” stickers. Replace brittle insulation (observed as cracking at bends) immediately–it indicates overheating. For three-wire 240V configurations, consult NEC Article 406 for dual-voltage diagrams.
Connecting a Standard 15-Amp Household Connector
Ensure the power source is completely off at the breaker before starting. Use a multimeter to confirm no current flows through the outlet–zero volts between hot (brass screw) and neutral (silver screw) proves safety for handling.
Strip exactly 5/8″ (16 mm) of insulation from each conductor wire. Too short risks poor contact; too long may cause shorts. Twist stranded copper clockwise to prevent fraying before attaching to terminal screws.
Match wire colors to terminals:
- Black/red (line): Brass screw – carries voltage
- White/light (return): Silver screw – completes circuit
- Green/bare (ground): Green hexagonal screw – safety path
Secure wires tightly under screws–no exposed copper should remain visible. Loose connections create resistance, heat, and potential fire hazards. Wrap wires clockwise around screws for optimal grip when tightening.
For polarized connectors, maintain strict alignment:
- Narrow prong (hot) → Brass terminal

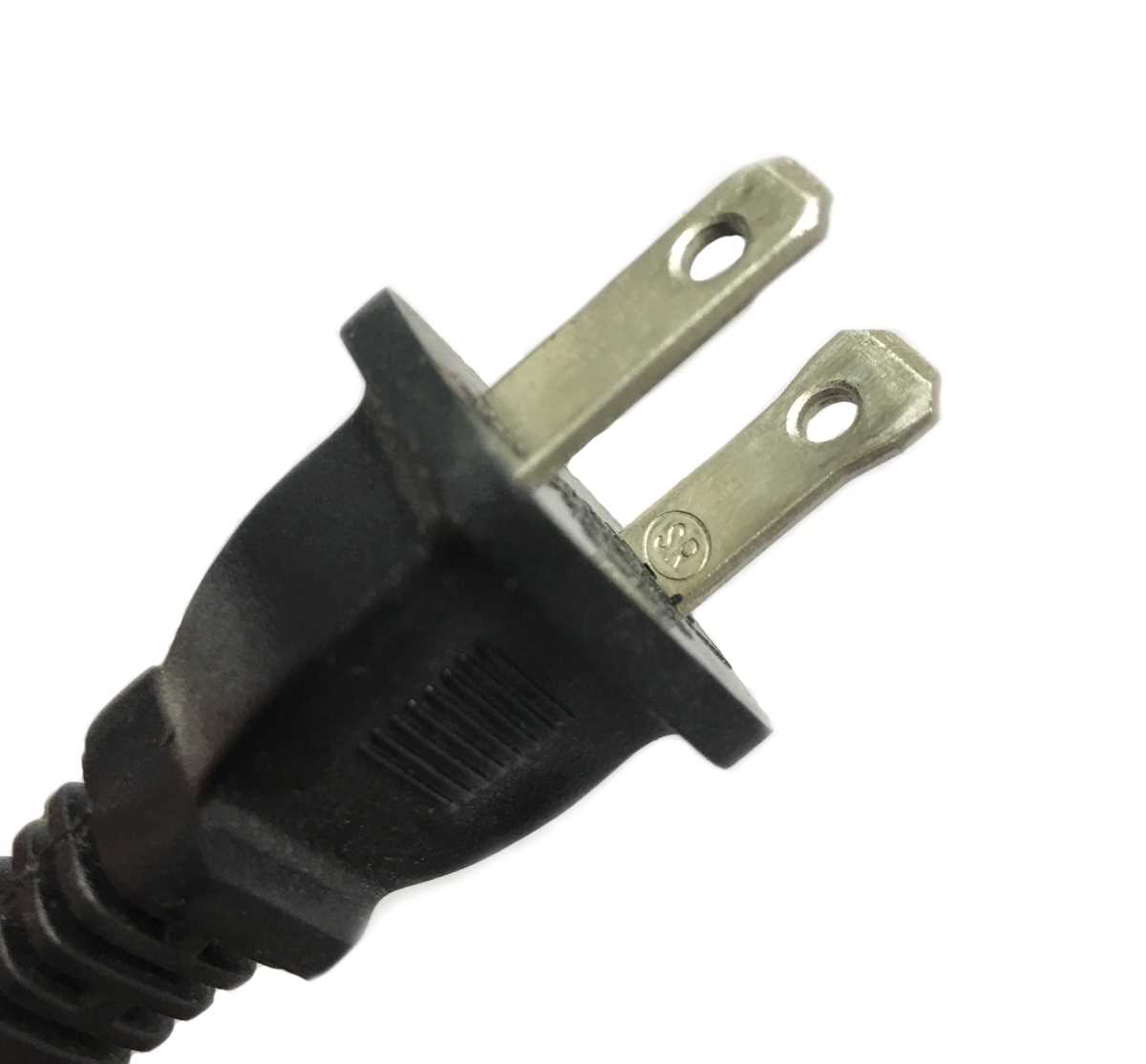

- Wider prong (neutral) → Silver terminal
Inspect for damage after installation. Tug wires gently–no movement should occur. Test with a circuit tester: proper polarity shows correct sequence of lights; reversed polarity requires immediate rework.
Use 14 AWG copper wire for 15-amp circuits; 12 AWG for 20-amp applications. Undersized wires overheat. UL-listed components ensure compliance with NEC (National Electrical Code) standards.
Troubleshooting Common Errors
If the connector doesn’t seat fully:
- Verify wire length isn’t causing obstruction inside the housing
- Check terminal screws aren’t protruding beyond the base
- Ensure strain relief clamps aren’t crushing insulation too tightly
Burn marks or melting indicate high resistance–replace the connector immediately and inspect the circuit for overloads. Never reuse damaged components.
Essential Tools and Supplies for Connecting a Single-Phase Connector
Begin with a wire stripper featuring 14-12 AWG notches–cheaper models often strip insulation unevenly, risking exposed wire or cuts that weaken conductivity. A multimeter (minimum 600V AC range) is non-negotiable; verify continuity and voltage absence before handling live terminals. For terminals, a screwdriving forceps with insulated handles (rated 1000V) prevents hand fatigue when securing screws to torque specs (7-9 in-lbs). Include heat-shrink tubing (3:1 shrink ratio, 1/4″ diameter) over spade connectors; electrical tape degrades under heat, while shrink tubing creates a moisture-proof seal lasting 20+ years. Use grounding pigtails (green 12 AWG THHN wire) if the appliance lacks a dedicated ground wire–bare wire corrodes faster under screw terminals.
- Materials checklist:
- NEMA 5-15R connector (two flat blades + ground pin)
- Stranded copper cable (SOOW 14/3 or SJOOW 12/3 for heavy loads)
- Nickel-plated brass crimp connectors (spade type, #10-24 stud size)
- Flux-core solder (60/40 rosin, 0.032″ diameter) for permanent splices
- Anti-oxidant gel (teflon-based, not petroleum) for aluminum conductors if retrofitting
- Zip ties (UV-stabilized, 8″ length) to anchor strain relief within 4″ of entry point
Avoid Romex NM-B wire–its solid core breaks under flex. For outdoor or damp locations, use waterproof cord grips (IP68-rated, nylon body) instead of standard strain relief; standard clamps crack under UV exposure within 18 months. Verify cable jacket rating: UL-listed SJTW handles 10A continuous, while SJOW resists oil and sunlight for outdoor tools. Always test polarity after assembly: hot (brass screw) to narrow blade, neutral (silver screw) to wide blade, ground (green screw) to U-shaped pin.
Step-by-Step Guide to Identifying Wire Functions in a Standard U.S. Power Connector
Begin by locating the terminal screws on the connector. Most U.S. electrical connectors feature three screws: brass (hot), silver (neutral), and green (ground). The brass terminal carries the live current, the silver connects to the return path, and the green secures the safety bond. Verify the screws’ positions against the connector’s molded ridges–typically, the hot terminal aligns with the narrower blade, neutral with the wider blade, and ground with the hexagonal or rounded post.
Use a multimeter set to voltage mode (AC) to confirm each wire’s role. Touch the probes to the bare copper ends of the wires while the connector is plugged into an active outlet. A reading near 120 volts between the hot (brass) and neutral (silver) wires confirms correct identification. Zero volts between neutral and ground indicates proper polarity, while any voltage reading here suggests a miswired circuit requiring immediate disconnection.
| Wire Type | Color (U.S. Standard) | Terminal Match | Safety Check |
|---|---|---|---|
| Live | Black (or red in multi-branch) | Brass screw | 120V between live and neutral |
| Neutral | White | Silver screw | 0V between neutral and ground |
| Ground | Green, bare copper | Green hexagonal screw | 0V between ground and neutral |
Strip no more than 5/8 inch of insulation from each conductor to prevent exposed copper from contacting adjacent terminals. Secure wires under screws using clockwise loops to ensure tightening complements the screw’s rotation. For push-in connectors, insert straight ends fully until a click is felt–gentle tugging should not dislodge the wire. Avoid twisting stranded wire; instead, tin the ends or use ferrules to prevent fraying.
Examine older connectors for non-standard color coding. Some vintage installations may use black for neutral or omit ground entirely. In such cases, prioritize terminal placement over wire color–molded ridges on the connector housing supersede any color deviations. If uncertainty persists, reference the outlet’s wiring: the narrow slot is always live, the wider slot neutral, and the round hole ground, irrespective of wire colors.
Finalize by wrapping electrical tape around the connector body, covering all terminal screws to prevent accidental contact. Test with a non-contact voltage tester post-installation–no voltage should be detected on the outer casing. If the tester indicates current, power down the circuit and re-inspect connections, ensuring no stray strands bridge terminals. Properly wired, the device should operate silently without overheating or tripping breakers.
Proper Techniques for Exposing and Handling Conductors for a Household Connector
Select a strippers tool with marked cutting slots matching the gauge of your cable–typically 14 or 12 AWG for standard household devices. Position the wire perpendicular to the jaws, ensuring the insulation rests against the stop without compressing the copper strands.
Squeeze the handles firmly until the blades pierce the coating, then rotate the tool 360 degrees while maintaining consistent pressure. This method prevents nicking individual strands, which weakens conductivity and risks heat buildup at the connection point.
For solid-core conductors, strip back only 3/8 inch of insulation. Multistranded wires require slightly more–around 1/2 inch–to allow full insertion into terminal screws or clamping mechanisms without loose strands protruding. Verify length by aligning the exposed copper with the terminal depth before finalizing.
After stripping, twist multistranded wires clockwise with needle-nose pliers to compact the strands. This ensures all filaments make solid contact when secured under a screw or insert. Avoid overtightening; the goal is uniformity, not deformation, of the copper bundle.
Inspect each conductor for damage post-stripping. Discard any wire showing signs of fraying, uneven cuts, or discoloration–these indicate potential failure points under load. Use a magnifying lens if working with fine strands to confirm integrity.
Before attaching, insert the wire into the intended terminal to test fit. The copper should seat fully without resistance; if it binds, re-strip rather than forcing it. For push-in terminals, ensure the stripped length matches the internal contact depth–usually 5/16 inch for most residential models.
Clean the exposed copper with a lint-free cloth or fine-grit emery paper if oxidation is present. Bright, shiny metal conducts better than tarnished surfaces, especially under sustained current. Avoid abrasives on plated connectors, as they remove protective coatings critical for corrosion resistance.
Finally, bend solid-core wires into a gentle hook matching the terminal screw’s tightening direction–typically clockwise. This prevents the wire from sliding out as you secure it. For stranded wires, insert straight into clamp-style terminals and tighten until movement stops, then back off slightly to avoid crushing.
