Step-by-Step Guide to Wiring a 110v Electrical Plug Safely
Begin by confirming the circuit’s voltage rating matches 120-volt AC standards before proceeding. Use a multimeter to verify the outlet delivers 115–125 volts between the hot and neutral terminals, and near-zero volts between neutral and ground. Identify the brass screw (hot), silver screw (neutral), and green screw (ground) on any standard NEMA 5-15 receptacle–labeling them prevents errors.
Strip 5/8 inch of insulation from each conductor using wire strippers calibrated for 14–12 AWG copper wire. Twist the exposed strands tightly to prevent fraying, then bend a small hook clockwise to secure the wire under the terminal screw. Tighten screws to 12–15 inch-pounds of torque–over-tightening risks breaking the receptacle, while under-tightening causes arcing.
For lighting circuits or fixed appliances, use 14 AWG wire on 15-amp circuits; for outlets powering high-draw devices like microwaves or space heaters, upgrade to 12 AWG on a dedicated 20-amp breaker. Verify the breaker’s amperage rating corresponds to the wire gauge–mismatches create fire hazards. Mount the receptacle with the ground slot facing downward for consistent orientation.

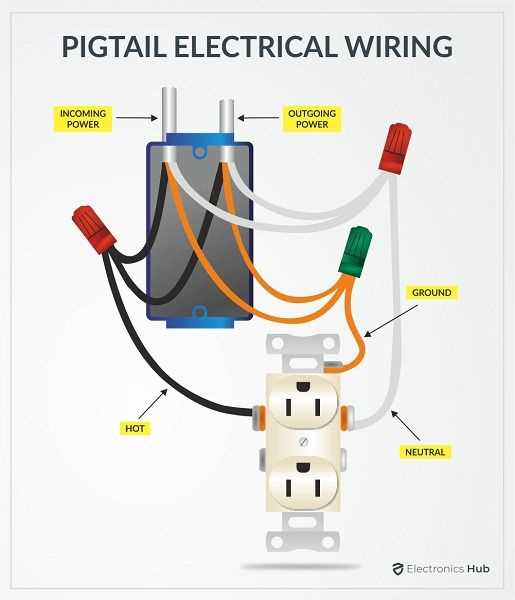

Test the connection with a receptacle analyzer before finalizing. A correct installation will show hot-neutral-ground continuity with no reversed polarity or open grounds. If the tester indicates a fault, recheck terminal connections–neutral and ground wires must never be swapped. For split-wired receptacles (e.g., half-switched outlets), add a pigtail jumper to the hot terminal to maintain independent circuit paths.
In older installations, replace cloth-insulated wiring immediately if brittle or cracked–modern THHN/THWN or Romex NM-B cables are rated for 600 volts and resist heat/corrosion. Secure cables every 4.5 feet and within 12 inches of outlet boxes using staples or cable clamps; loose wiring risks shorts. Always de-energize the circuit at the panel before starting work–use a non-contact voltage tester to confirm power is off.
Understanding Single-Phase Electrical Connector Configurations
First, ensure the terminal screws on a standard household connector are fully tightened before testing continuity–loose connections cause intermittent power loss or arcing, most often misdiagnosed as faulty appliances. A 15-amp polarized connector will have a brass screw for the hot conductor, a silver screw for neutral, and a green screw (or bare wire) for ground. Never reverse brass and silver terminals; this violates NEC 406.7(D) and risks shock or fire.
For a NEMA 5-15 configuration, the blade slots differ: the wider slot (neutral) aligns with the left prong when viewing the outlet face-on, while the narrower slot (hot) matches the right prong. Ground occupies the rounded slot at the top. Verify correct polarity with a multimeter: neutral-to-ground should measure ~0 V, hot-to-neutral ~120 VAC, and hot-to-ground ~120 VAC.
Strip insulation to expose exactly 5/8″ of copper wire for secure termination–excess bare wire increases short-circuit risk, while insufficient exposure leads to poor contact. Insert conductors under terminal screws clockwise to prevent loosening when tightening. Pre-twist stranded wire to maintain strand integrity under the screw head.
Heavy-duty 20-amp connectors (NEMA 5-20) require 12 AWG copper wire minimum, unlike 14 AWG permitted for 15-amp circuits. The hot terminal often has a T-shape to accommodate the horizontal blade of a 20-amp device. Never substitute a 15-amp connector on a 20-amp circuit–doing so breaches NEC 210.21(B)(3) and risks overheating.
When rewiring an appliance cord, match the original wire gauge and insulation type–thermoplastic (type TW) for damp locations, type THHN for dry installations. Route conductors through strain-relief clamps to prevent tugs from dislodging connections. Test with a megohmmeter if the cord serves motor-driven tools: insulation resistance should exceed 1 MΩ.
Color-coding varies by jurisdiction but follows this convention in North America: black (hot), white (neutral), green or bare (ground). Some factory cords use brown (hot) and blue (neutral) per IEC standards–confirm markings before reconnecting to avoid inverting polarity. For split-phase circuits (e.g., 240 V appliances), add a red conductor for the second hot leg.
Before final assembly, perform a torque check: brass screws resist 12 in-lbs, silver screws 10 in-lbs. Use a calibrated screwdriver to comply with UL 498 and NEC 110.14(D). Recheck continuity after securing the cover plate–plate screws can dislodge poorly seated terminals.
For temporary installations, use twist-lock connectors (NEMA L5-15/20) or inlets to prevent accidental disconnection. These require mating plug orientation: the curved prong (ground) aligns with the top, while the straight prongs must match neutral (left) and hot (right). Locking collars should rotate freely but resist vibration-induced release.

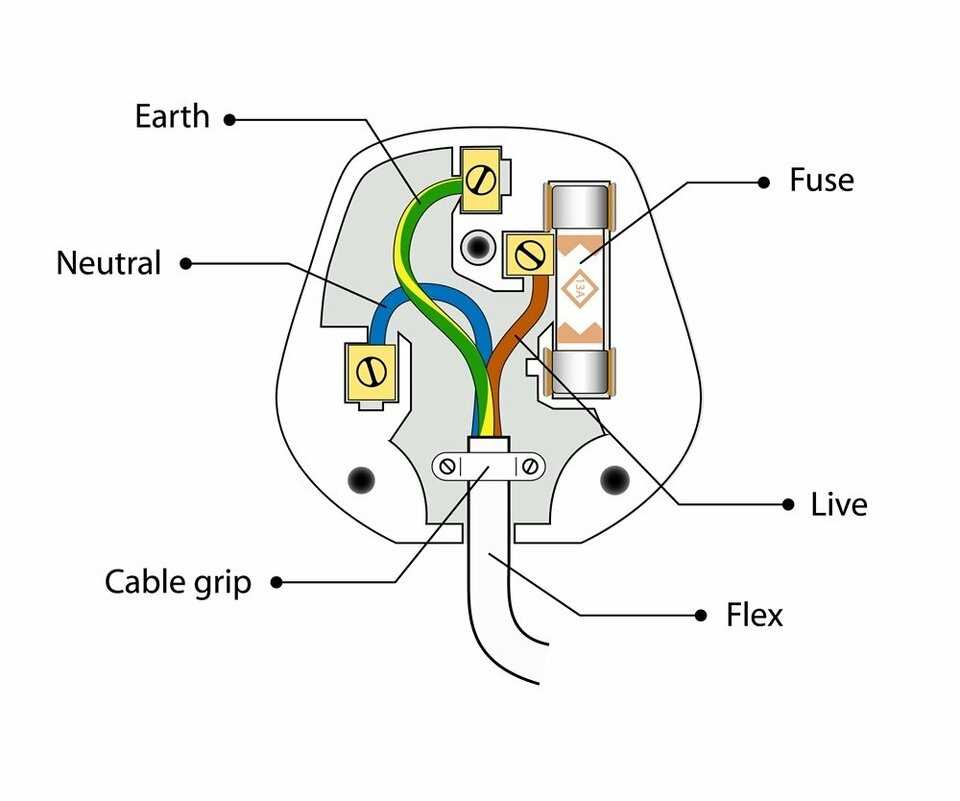

How to Distinguish Live, Return, and Earth Conductors in a Standard Single-Phase Connector
Start by examining the prongs: the live conductor connects to the smaller straight blade, the return (neutral) to the larger one, and the earth to the U-shaped or round pin. This configuration is consistent across North American 15-ampere and 20-ampere variants, though some industrial models may deviate with a T-shape for the live prong.
Use a multimeter set to alternating current voltage: probe between the live and return terminals to confirm 115–125 volts. Testing live to earth should yield the same potential, while return to earth must register zero or near-zero millivolts. If readings contradict these values, suspect miswiring or a faulty outlet.
The return conductor often bears a white or light gray insulation per NEC and CSA color coding, while the live wire is required to be black, red, blue, or another hot color–never white, gray, or bare unless reidentified properly with colored tape. Earth remains green, yellow-green striped, or bare copper for all grounding configurations.

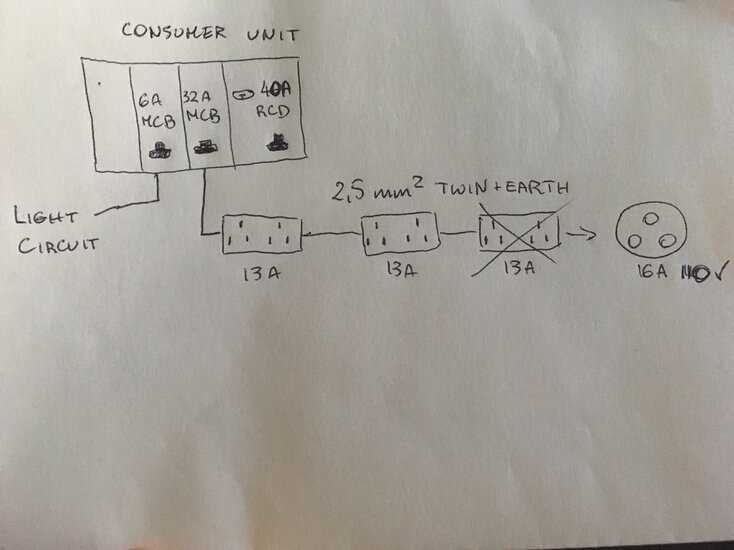

Trace each conductor back to the fuse box: the live wire terminates at a breaker rated for the circuit (typically 15A or 20A), the return lands on the neutral bus bar, and the earth attaches to the grounding bus, often bonded to the enclosure via a green screw. Verify continuity above the main disconnect using a continuity tester.
In two-prong ungrounded adapters–commonly called “cheater” connectors–the missing U-shaped earth pin corresponds to the absent grounding wire. These older or temporary setups lack fault protection; replace them with properly grounded three-wire connectors whenever possible.
When repairing frayed or cut conductors, match the original gauge: 14 AWG for 15-amp circuits, 12 AWG for 20 amps. Strip insulation ⅜ inch, twist strands tightly clockwise, and secure with UL-approved wire nuts, ensuring no copper extends beyond the nut’s tapered opening. Crimp connections only with listed terminals rated for the conductor size.
Label each wire at both ends with adhesive markers: “L” for live, “N” for return, “G” for earth. Store spare connectors with leads labeled identically to prevent reversal during future replacements. Keep digital photographs of every connection phase as reference for maintenance or troubleshooting sessions.
Step-by-Step Guide to Stripping and Preparing Conductors for a 120V Receptacle
Measure the insulation removal length precisely. For a standard North American outlet, strip 5/8 inch (15.9 mm) of sheathing from each conductor. Use a calibrated wire stripper with notches marked for 12 AWG (most common for household circuits) to avoid nicking the copper strands. If working with 14 AWG, adjust the tool to the appropriate setting–nicked strands can lead to overheating and failed inspections.
Secure the cable before cutting. Clamp a non-slip vise or lock the cable in a bench clamp 6 inches (15 cm) from the stripped end to prevent slippage. For armored cable (BX), score the outer jacket with a rotary cutter at a 30-degree angle, then snap it clean–never twist, as this can sever the internal bonding wire. Expose 8–10 inches (20–25 cm) of inner conductors to allow for proper termination.
Conductor Preparation by Terminal Type
| Terminal Type | Required Bend | Bare Copper Exposure | Crimp/Tool |
|---|---|---|---|
| Screw (Side-Wired) | 180° hook, clockwise | None (butt against screw) | Flathead screwdriver (#2 Phillips) |
| Push-In (Back-Wired) | Straight, no bend | 5/8″ (15.9 mm) max | Release tool or small screwdriver |
| Ring Lug | 360° loop | 1/8″ (3 mm) beyond lug | Crimping tool (red die for 12 AWG) |
Twist stranded conductors counterclockwise before termination. For 12 AWG stranded, twist the bare ends until the strands form a tight, uniform bundle–this prevents stray strands from causing shorts. Solid conductors (common in 14 AWG) require no twisting but should be bent sharply where they enter the terminal to create a mechanical lock. Avoid tinning (soldering) copper strands; modern receptacles rely on compression, and solder can creep under pressure, loosening connections over time.
Trim excess copper after forming hooks. Use flush-cutting diagonal pliers to remove any protruding strands–0.5 mm is the maximum permissible excess under NEC 250.148. For back-wired terminals, ensure the conductor is fully seated; tug gently with pliers to confirm it doesn’t pull free. When working with aluminum conductors (rare but code-permissible), apply an anti-oxidant compound to the stripped ends and torque screws to 12 in-lbs to prevent cold flow.
Inspection Checklist Before Energizing
Verify all connections with a non-contact voltage tester. Probe each terminal slot and the outlet face–if any beep or light indicator activates, reopen the receptacle and check for:
– Loose screws (torque to 15 in-lbs for brass, 10 in-lbs for steel)
– Misaligned hooks (side-wired terminals only)
– Exposed copper touching the device yoke (ground fault risk)
– Damaged insulation within 1/4 inch (6 mm) of the terminal.
Reassemble the outlet only after confirming all conductors are fully enclosed and no stray strands are visible.
