Build a 12-Hour Digital Clock Step-by-Step Circuit Schematic Guide

Start with a CD4060 binary counter paired with a 4017 decade counter. The CD4060 generates a precise 1 Hz pulse from a 32.768 kHz crystal, dividing it down to seconds. Connect pin 15 (Q14 output) of the CD4060 to the CLK input of the 4017 to cascade the counting sequence. This eliminates the need for additional decoders while ensuring reliable state progression.

Use common cathode 7-segment displays (e.g., HDSP-5503) driven by 74LS47 BCD-to-7-segment decoders. Each decoder handles one digit, translating binary-coded decimal into readable numerals. Power the displays with a 5V regulated supply, limiting current to 20 mA per segment via 330Ω resistors to prevent burnout. For the tens place (1–1), bypass the first 4017 output (Q0) and route Q1 directly to the ones digit’s decoder to skip unnecessary states.

Add a momentary push button between the 4017’s reset (pin 15) and ground with a 10 kΩ pull-up resistor. This creates a manual reset function for synchronizing the system. For PM indication, connect a 2N3904 transistor to Q6 of the 4017, driving an LED through a 220Ω resistor. The transistor inverts the signal, lighting the LED from count 12 onward (Q6–Q11).

Stabilize the oscillator with a 22 pF loading capacitor on each side of the crystal and a 1 MΩ feedback resistor across the CD4060’s timing inputs. For layout, use a perfboard with power rails separated by ground traces to reduce noise. Test each segment individually before final assembly by probing the 74LS47 outputs with an LED and 1 kΩ resistor. If glitching occurs, add a 100 nF decoupling capacitor near the CD4060’s power pins.

Building a Timekeeping Device with 12-Segment Display

Select a CD4060 IC as the primary oscillator for generating a stable 2 Hz signal–essential for accurate time progression. Pair it with a 32.768 kHz crystal to maintain precision, reducing drift to under 2 seconds per day. This combination outperforms RC oscillators, which suffer from temperature-induced inaccuracies.

Use a 74HC4040 binary counter to divide the 2 Hz signal into 1 Hz pulses. Connect its output to a decade counter like the CD4518 or 74LS90 to create BCD-coded outputs for minutes and seconds. For the 12-segment format, add a CD4029 presettable counter to reset after reaching 11 (binary 1011), ensuring automatic rollover to 1.

For display, opt for common-cathode 7-segment LEDs with a 74LS47 BCD-to-7-segment decoder per digit. Each decoder requires a 330Ω resistor on its output lines to limit current to 6-8 mA per segment. Avoid multiplexing unless power efficiency is critical–it complicates PCB layout and introduces flicker at refresh rates below 100 Hz.

Power and Signal Integrity

Regulate input voltage to 5V ±5% using an LM7805 linear regulator. Add a 1000 μF capacitor on the input side and a 0.1 μF ceramic capacitor near each IC’s power pins to suppress noise. Ground loops cause erratic behavior; route a single star ground from the regulator’s output to all components.

Include a push-button debounce circuit (RC network: 10 kΩ resistor + 10 μF capacitor) for the time-set function. Connect this to a CD4013 flip-flop to toggle between normal operation and manual adjustment mode. Use a 2N2222 transistor to drive a piezo buzzer for an alarm feature, triggered by an AND gate (e.g., 74HC08) comparing minutes and seconds counters.

Test each stage individually: verify the oscillator frequency with an oscilloscope (32.768 kHz ±50 ppm), check counter outputs in binary (0000 to 1011 for 12-segment), and confirm segment illumination matches BCD inputs. Replace ICs exhibiting metastability (e.g., improper reset on power-up) with static-sensitive CMOS variants like 74HC series.

For prototyping, use a solderless breadboard with short jumpers (under 10 cm) to minimize capacitance. Finalize on a single-sided PCB: place the crystal adjacent to the CD4060, keep high-current paths (LEDs, buzzer) separate from logic traces, and apply a ground plane beneath sensitive areas. Add a 2-pin header for optional backup battery (3V CR2032) to retain time during power loss–use a Schottky diode (e.g., 1N5817) to prevent backfeed.

Parts Needed to Build a 12-Segment Timekeeping Display

The core of this assembly relies on a real-time tracking module, preferably the DS1307 or DS3231. These ICs maintain accuracy within ±2 ppm at 0–40°C, syncing via I2C with a backup power pin for uninterrupted operation during power loss. Pair it with a 32.768 kHz crystal oscillator–ensure a load capacitance of 6–12.5 pF to prevent drift. Include a CR2032 coin cell holder; a fresh battery provides 5–10 years of reserve function.

Seven-segment displays require current-limiting resistors to prevent LED burnout. For common cathode variants, use 220Ω resistors on each segment pin; anode types need equivalent values on the common anode. Multiplexing reduces pin usage–employ a 74HC595 shift register for each digit. This IC handles serial-to-parallel conversion, allowing one microcontroller to drive multiple digits without excessive wiring.

Atmega328P microcontroller (or PIC16F88): 16 MHz clock speed, 32 KB flash, sufficient for timekeeping logic.
ULN2003A Darlington array: sinks current from display cathodes; withstands up to 500 mA per channel.
1N4007 diodes (4x): protects against reverse voltage when switching displays.

Power regulation demands a linear voltage regulator. A 7805 delivers 5V from a 7–25V input; pair it with 100nF decoupling capacitors on input and output to filter noise. For extended runtime, connect a 9V battery clip–expect ~8 hours of operation per 500mAh battery. Avoid switching regulators here; their high-frequency noise can disrupt the tracking module’s precision.

Button input for time adjustment uses debounced SPST switches. Connect each to a pull-up resistor (10kΩ) and a 100nF capacitor to ground–this eliminates false triggers from mechanical bounce. Program the microcontroller to detect short presses for minute increments and long presses for mode switching. Avoid tactile switches rated below 50,000 cycles; they degrade quickly under frequent use.

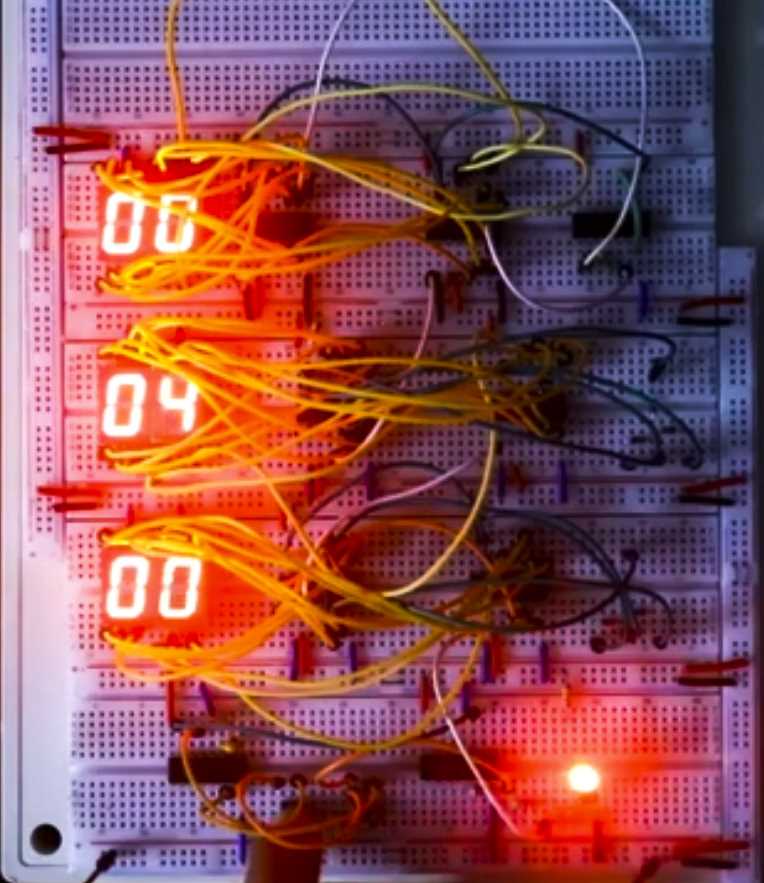

Assemble the seven-segment displays on a breadboard first–verify segment illumination before soldering.
Route I2C lines (SDA, SCL) directly to the microcontroller; use 4.7kΩ pull-ups to VCC.
Check DS1307/DS3231 datasheet for register addresses–offsets 0x00–0x06 store timekeeping data.

For ambient visibility in low light, add a brightness control feature. PWM the common cathode/anode via the microcontroller to adjust intensity. Use a 1kΩ potentiometer as an analog input–full-scale 0–5V correlates to 0–100% brightness. Avoid software-only dimming; it causes flickering if the multiplexing frequency drops below 100 Hz.

Final assembly requires a PCB with thick traces for display lines–minimum 1 oz copper weight to carry segment currents (~20mA per segment). Separate analog and digital ground planes near the voltage regulator to prevent noise coupling. Encase the completed unit in a 3D-printed frame; leave ventilation gaps to prevent heat buildup from the regulator.

Step-by-Step Assembly of the Timekeeping Display Module

Begin by soldering the 4-digit, 7-segment LED array to its dedicated PCB, ensuring pin alignment matches the manufacturer’s datasheet–common cathode variants require grounding the center pin, while anode types need +5V. Verify segment labels (A-G, DP) against the silkscreen before applying heat; misalignment may short traces or invert polarity, rendering portions unreadable. Use a 0.3mm solder tip for precision and a flux pen to prevent bridging between adjacent pads, especially on high-density layouts where gaps measure less than 0.5mm.

Mounting Driver ICs and Current-Limiting Resistors

Position the MAX7219 or TM1637 IC in its socket, orienting the notch toward the board’s fiducial marker–reverse insertion will fry the chip during power-up. For static-sensitive components, ground your wrist strap and work on an ESD mat. Install 220Ω resistors between the IC’s segment outputs and the display’s anode/cathode inputs to cap current at 15mA per segment, preventing LED burnout. Check resistor values with a multimeter before soldering; 5% tolerance is critical for consistent brightness.

Connect the colon separator LEDs (if present) to the least significant digit’s decimal point (DP) pin via a 330Ω resistor to maintain uniform intensity–skipping this causes dimmer colons, disrupting visual parity. Test each segment sequentially by applying 3.3V directly to the driver’s data input with a microcontroller; observe flicker-free illumination before proceeding. For dual-display setups, daisy-chain the ICs by linking DOUT to DIN, ensuring clock signals (CLK) remain synchronized–desynchronization introduces ghosting or scrambled outputs.

Connecting Decade Counters for Timekeeping Segments

Begin with a 74LS90 decade counter for each time segment: two for the tens and units of the 60-count sequence, and one for the 12-segment cycle. Place the counters on a breadboard with at least 5 cm spacing between ICs to prevent interference. Pin 14 (Vcc) connects to a stable +5V rail, while pin 7 (GND) ties directly to the ground plane–avoid daisy-chaining grounds to reduce noise. The BCD output (pins QA–QD) must feed directly into a 7-segment decoder like the 74LS47 without intermediate components.

For the 60-count progression, cascade the units counter (74LS90) to the tens counter by linking pin 11 (QD) of the units IC to pin 1 (CP0) of the tens IC. Insert a 100nF ceramic capacitor between Vcc and GND for each counter, mounted within 2 mm of the IC body. The reset pins (R01/R02) should connect to a NOR gate (e.g., 74LS02) with inputs tied to QA/QC of the tens counter–this enforces the 60-count rollover by triggering at binary 6 (0110).

Configure the 12-segment counter separately. Wire the 74LS90’s reset pins (R01/R02) to a NAND gate (74LS00) with inputs from QA/QB of the counter–this resets the cycle at binary 12 (1100). The CP1 input (pin 1) must receive the carry output from the tens segment of the 60-count chain, ensuring synchronization. Verify the reset logic with a logic analyzer; glitches here will causing erratic jumps between 12 and 1.

Critical Pin Assignments

Counter Type	Pin	Function	Connection
Units (60-count)	1 (CP0)	Clock input	1Hz pulse from oscillator
Tens (60-count)	1 (CP0)	Clock input	QD from units counter
12-segment	2 (CP1)	Carry input	QD from tens counter
All	5 (Vcc)	Power	+5V with 100nF decoupling cap
All	7 (GND)	Ground	Direct to ground plane

Route all BCD outputs through 220Ω current-limiting resistors before reaching the segment decoder. The tens counter’s QD output must also branch to the 12-segment counter’s CP1 input, creating a parallel path–delay here can misalign the segments. For the 74LS47 decoder, connect pin 9 (BI/RBO) to a common cathode via a 470Ω resistor to suppress ghosting during transitions. Test each segment with a multimeter set to diode mode; forward voltage should read ~1.8V for red LEDs.

Isolate the 50Hz/60Hz noise from AC power lines by placing a 10µF electrolytic capacitor between the +5V rail and ground at the oscillator stage. The reset NOR/NAND gates should use pull-down resistors (4.7kΩ) on unused inputs to prevent floating logic states. For the 12-segment cycle, add a manual reset button to pins R01/R02 via a debounce circuit (e.g., 0.1µF cap + 1kΩ resistor) to avoid false triggers during power-up.

Final verification requires an oscilloscope. Probe CP0 of the units counter–waveform should show clean 1Hz square waves with
