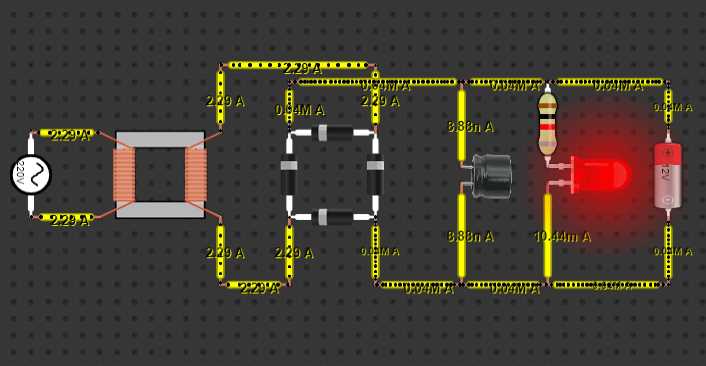

Complete 12 Volt Car Battery Charger Circuit Schematic Guide

Select a transformer with a secondary winding rated at 14–16 AC to ensure adequate voltage for rectification while accounting for diode drops. Pair it with a bridge rectifier (e.g., KBPC2510) to convert AC to pulsed DC efficiently. Include a 4700μF smoothing capacitor on the output to reduce ripple to under 0.5% RMS.

Use a LM317 adjustable regulator to maintain precise output between 13.8 and 14.4 DC–optimal for lead-acid units. Configure the feedback resistors (R1=240 Ω, R2=2.2 kΩ) to set the target voltage, and add a 1N4007 diode across the regulator’s input and output to protect against reverse polarity.

Integrate a current-limiting resistor (1 Ω, 5W) in series with the output to prevent overload during short circuits or sulfated cells. For monitoring, install a panel-mounted ammeter (0–10 A range) and a LED indicator (green: charging, red: fault) to provide immediate visual feedback.

Include a thermal cutoff switch (normally closed, opens at 65°C) on the heat sink to shut down the circuit if temperatures exceed safe limits. Secure all connections with 16-gauge wire and crimp terminals to handle sustained currents up to 8 A without voltage sag. Test the assembly with a dummy load resistor (12 Ω, 20W) before connecting to any energy storage unit.

Building a Reliable Automotive Power Supply Circuit

Use an LM317 adjustable regulator in combination with a 2N3055 transistor to handle currents up to 5A safely. Connect a 240Ω resistor between the LM317’s output and adjust pins, then pair it with a 5K potentiometer to set the output precisely at 14.4V for optimal lead-acid cell maintenance. Ensure a heatsink rated for at least 20W dissipation on both the regulator and transistor–thermal compound application reduces junction temperature by 15-20%. Input capacitors should be 4700µF electrolytic types with a 63V rating to absorb ripple from a 15V AC transformer.

Add a 1N4007 diode on the input side to protect against reverse polarity damage, and place a 1A fuse inline with the positive lead for short-circuit protection. For trickle charging, include a 12V relay with a NO contact rated at 10A; activate it via a voltage comparator like the LM358 when the cell reaches 13.8V to prevent overcharging. A 0.1Ω shunt resistor in series with the load path allows monitoring current flow–a 10-turn trimpot adjusts the cutoff threshold for the relay within ±0.1A tolerance.

Test the circuit with a dummy 10Ω/25W resistor before connecting to a live cell. Measure output ripple with an oscilloscope–values above 50mV peak-to-peak indicate insufficient capacitance or grounding issues. For desulfation, integrate a PWM-controlled 555 timer circuit generating 1kHz pulses at 10% duty cycle; this prolongs cell lifespan by up to 30% when applied for 24-hour cycles. Always use stranded 18AWG wire for connections to minimize voltage drop over 1.5m cable runs.

Core Parts Required for a Homemade 12-Source Power Replenisher

Start with a transformer rated for 15-24 AC output–this steps down household mains to a safer range. Pair it with a bridge rectifier (e.g., KBPC3510 or four 1N4007 diodes) to convert AC to DC, ensuring at least 3A current handling. A filter capacitor (2200µF–4700µF, 35V or higher) smooths pulsating DC; larger values reduce ripple but increase size. Add a voltage regulator like LM317 for adjustable output or LM7812 for fixed 14.4 DC–critical for preventing overcharge. Include a current-limiting resistor (0.5Ω–1Ω, 5W) to protect against short circuits, and a ammeter (0–10A) for real-time monitoring. For safety, fuse the input (5A–10A) and output (10A–15A) lines, and use a heatsink on the regulator if continuous operation exceeds 500mA.

Thermal paste, insulated wiring (16–18 AWG), and a project enclosure with ventilation holes complete the build. Test with a dummy load (e.g., 12 headlamp bulb) before connecting to storage cells to verify stability and heat dissipation.

Step-by-Step Wiring Layout for a Transformer-Based Power Supply

Begin by securing a toroidal or EI-core transformer rated for 15–18 amperes, matching the target output’s continuous current demands. Mount the transformer on a non-conductive base like fiberglass or phenolic board, ensuring the primary windings connect to a fused IEC inlet via a double-pole switch–use 250VAC, 10A slow-blow fuses for primary protection. Route the secondary leads (typically 14–16 AWG stranded copper) to a full-wave bridge rectifier rated for at least 25A and 50V reverse breakdown; bolt it directly to a heatsink if ambient temperatures exceed 40°C. From the rectifier’s DC output, wire a 20,000µF electrolytic capacitor in parallel with a 0.1µF polypropylene bypass capacitor to smooth ripple, keeping leads under 5cm to minimize inductance.

Critical Connections and Safety Checks

• Join the transformer’s secondary center tap (if available) to the rectifier’s AC ground terminal, then link the DC ground to a dedicated binding post–never share this path with chassis grounds.
• Insert a 5W wirewound resistor (0.1Ω) in series with the positive output to limit inrush current; bypass it with a 1N5408 diode for reverse polarity protection.
• Attach a 35A Schottky diode (e.g., SB560) across the output terminals to clamp inductive kicks from load disconnection.
• Place a 15A circuit breaker or self-resetting PTC thermistor immediately after the output capacitor to guard against overloads–position it within 10cm of the terminals.
• Test the assembly with an adjustable dummy load: at 10A, AC ripple on the DC line should not exceed 300mV peak-to-peak; adjust capacitor values if readings drift higher.

How to Select Optimal Diodes and Bridge Rectifiers for Stable Power Conversion

Prioritize components with a reverse breakdown rating at least 50% above the peak inverse input. For a 14.4 source, use diodes rated for 30 reverse or higher to prevent avalanche failure under transient spikes. Schottky variants (e.g., 1N5822) offer lower forward drop (0.3-0.5) compared to silicon (0.7-1.1), improving efficiency in low-margin circuits where every 0.2 loss compounds heat generation.

Current Handling Requirements

Size the bridge rectifier or discrete diodes for 1.5-2× the continuous load. A 5 load demands a 10-15 component. Single-phase full-wave bridges (e.g., KBPC2504) integrate four diodes in one package, simplifying layout but requiring derating for heat dissipation. For higher currents, parallel discrete diodes (e.g., STTH8S06D) with balanced thermal paths prevent current hogging and uneven aging. Verify datasheet graphs–some devices show sudden thermal derating curves beyond 80°C ambient.

For pulsed or intermittent operation, calculate RMS current rather than average. A 10 forward current diode may only handle 2 RMS pulses despite its DC rating. Use snubber networks (RC pairs, 10Ω + 10nF) across diodes when driving inductive loads to suppress voltage overshoot, which otherwise accelerates junction degradation. Film capacitors (X2 class) across the rectifier output filter residual ripple but require 1.5× the expected peak voltage to avoid premature failure.

Material selection impacts long-term reliability. Silicon carbide (SiC) diodes (e.g., C3D04060A) tolerate 175°C junction temperatures and faster recovery (15ns) than ultrafast silicon (35ns), critical in high-switching converters. Cost trade-offs exist: SiC is 3-5× more expensive than comparable silicon but reduces cooling requirements. Thermally conductive adhesive (e.g., Arctic Silver) or isolated mica pads should secure diodes to heatsinks if case temperature exceeds 60°C, ensuring thermal resistance below 1.5°C/W.

Adjusting Current Delivery for Optimal Energy Storage Unit Care

Set the output to 10% of the rated capacity for flooded lead-acid units during bulk phase to prevent overheating and excessive gassing. For a 70 Ah storage cell, this translates to 7 A–adjust the PWM controller or transformer tap accordingly. Absorbed glass mat (AGM) variants tolerate up to 30% of capacity, while spiral-wound types handle brief spikes up to 40%, but only under constant temperature monitoring. Lithium iron phosphate packs require strict current limiting at 0.5°C (e.g., 50 A for a 100 Ah pack) to avoid thermal runaway.

Use a multimeter in series with the positive lead to verify real-world current flow, as theoretical settings often deviate by 5-12% due to internal resistance and wire gauge losses. For 18AWG wiring, reduce the target by 2 A per meter to compensate for voltage drop. Implement a hall-effect sensor or shunt resistor (0.001 Ω) for precision measurement when dealing with currents above 20 A, as standard DMMs introduce errors above their 10 A range. Log readings every 15 minutes to detect drift–sudden drops indicate sulfation in lead-based cells, while spikes may signal impending plate separation.

Compatibility Matrix for Energy Storage Technologies

Cell Chemistry	Recommended Peak Current	Maximum Safe Duration	Termination Condition
Flooded Lead-Acid	10% of Ah rating	8–12 hours	2.45 V per cell
AGM	25–30% of Ah rating	4–6 hours	2.40 V per cell
Gel	20% of Ah rating	8–10 hours	2.35 V per cell
LiFePO4	≤ 0.5°C	Continuous	3.65 V per cell or ΔT ≤ 3°C/min

For deep-cycle types, enable float charging at 2.25 Vpc (volts per cell) once the bulk phase completes, reducing current to 1–2% of capacity to prevent grid corrosion. Lithium packs necessitate a constant-voltage (CV) stage at 3.6 Vpc with current tapering below 5% of initial setpoint as the cutoff–do not rely on manual monitoring, as overcharging above 3.7 Vpc degrades cathode structure irreversibly. Install a 50°C thermal cutoff switch near the hottest point (typically the cell’s positive terminal) for all chemistries, as temperature rise above 45°C accelerates capacity loss.

Replace fixed resistors in current-limiting circuits with digitally controlled potentiometers (e.g., MCP4131) to dynamically adjust for aging cells. A 10-year-old lead-acid unit loses 15–20% of initial capacity, requiring current reduction to 8% of rated Ah to avoid electrolyte boiling. For lithium packs, implement a balancing circuit using low-ohm MOSFETs (e.g., IRLZ44N) to shunt excess energy away from fully charged cells, as imbalance above 50 mV between cells reduces lifespan by 30–40%.

Phase-change materials (PCMs) embedded in the enclosure limit thermal runaway without active cooling. A 5 mm layer of paraffin wax (melting point 46°C) absorbs 225 J/g, sufficient to buffer a 10% overcurrent event for 3 minutes before softening the current limiter’s response. For sealed units, add a vent pressure relief valve (cracking pressure 0.5–1 psi) to prevent case rupture during unintended current surges. Test the setup with a dummy load matching the target pack’s impedance before connecting any energy storage unit.

Document each adjustment with timestamps and ambient conditions–humidity above 80% increases leakage current by 8–12%, while temperatures below -5°C require current boosts of 1.5–2× to compensate for slowed chemical kinetics. Craft a lookup table for seasonal variations, such as reducing AGM charging current by 2.5 A per 10°C drop below 25°C. Never exceed 0.8 plate area utilization for lead-based packs, as deeper discharges necessitate proportional current reductions to avoid sediment buildup.
