Pit Bike 125cc Kick Start Wiring Guide with Detailed Diagram

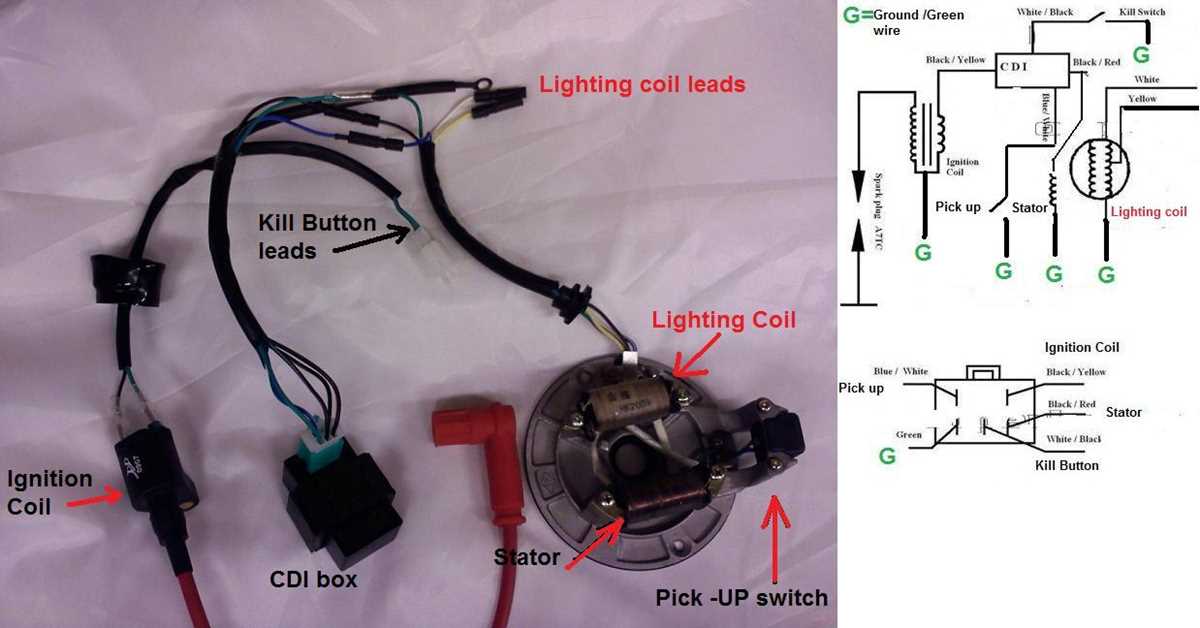

For a reliable 4-stroke 50–150cc single-cylinder model with manual ignition, begin by identifying the magneto coil output (typically yellow or white wires). Route this directly to the CDI unit without intermediate splices–resistance from poor connections causes misfires at low RPM. Verify voltage: 60–80V AC at idle, dropping to 20–30V under load. If readings deviate, test stator winding continuity (8–15 ohms range).

Grounding the frame incorrectly creates erratic spark. Connect the CDI’s black/red wire to the engine case using a 14-gauge terminal–never chassis bolts. The kick lever microswitch (if equipped) must close fully at 10° lever depression; bypass worn switches temporarily by bridging the circuit with a jumper for emergency diagnostics. For models with lighting, split the magneto output: 30% to ignition, 70% to regulator–adjust based on voltmeter readings (12.5–14.8V DC stable).

Use heat-shrink tubing on all solder joints; adhesive-lined for under-seat connections prone to condensation. The kill switch (black/white) interrupts ignition by grounding–test with a multimeter: continuity toggles only when pressed. For battery-less models, confirm the rectifier outputs stable DC; ripple voltage above 0.5V indicates capacitor failure. Label wires with alphanumeric codes matched to OEM schematics–never rely on color alone. Component placement matters: keep the CDI at least 50mm from exhaust headers to prevent thermal degradation.

Simplified Small-Capacity Off-Road Engine Electrical Layout for Pedal Ignition

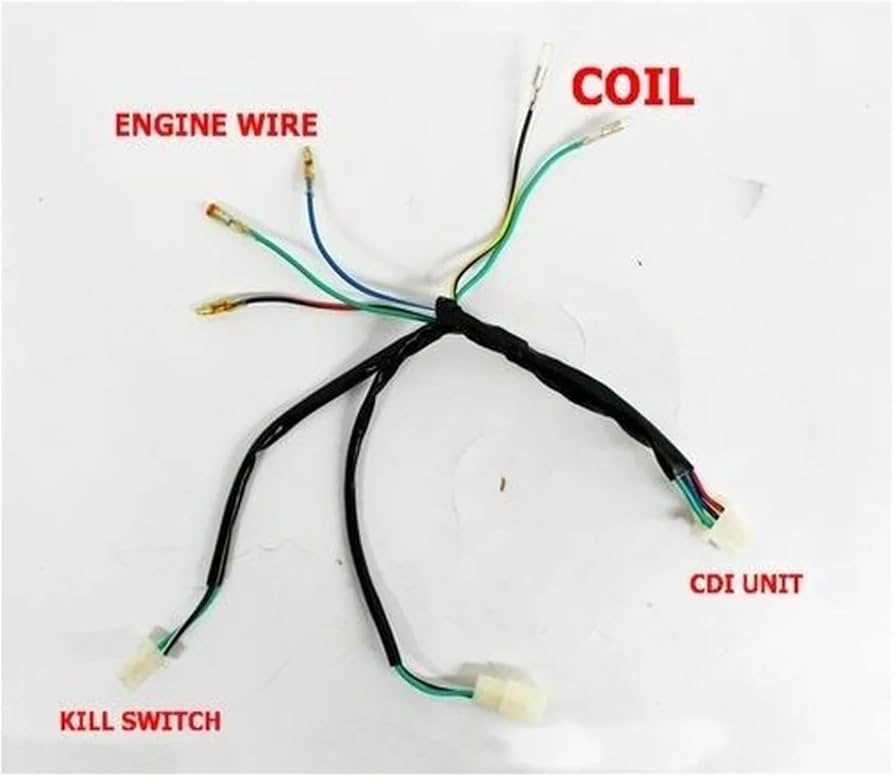

Locate the magneto coil (AC generator) wires first–typically a white lead for lighting circuits (if present) and a distinct black/red wire for ignition. Connect the black/red output directly to the CDI unit’s corresponding terminal (usually marked "AC"), ensuring no intermediate components disrupt the signal. Ground the CDI’s negative terminal (black wire) to the engine case with a dedicated 14-gauge wire, avoiding chassis grounds to prevent voltage drops. From the CDI’s output (yellow or blue wire), route a single wire to the ignition coil’s primary (smaller terminal), bypassing any kill switch during testing. Verify spark by removing the spark plug, grounding its shell to the engine, and hitting the pedal–consistent blue sparks confirm circuit integrity.

For auxiliary components:

• Headlight: Tap the white magneto wire to a 3-position switch (off/low/high), then run a 18-gauge wire to a 35W/25W dual-filament bulb (use a 10A fuse inline).
• Tail/Brake Light: Split the rear bulb’s circuit–connect the tail/running light (brown wire) to the magneto’s white wire via a 5A fuse, and the brake light (green/white stripe) to the rear brake switch.
• Horn: Wire a 12V horn (maximum 5A draw) to a momentary push-button (black/yellow wire) with the other terminal grounded.
• Battery (optional): Add a 12V 4Ah sealed lead-acid unit only if electric start exists–connect the positive (red) to a rectifier/regulator (not needed for kick-only setups), then to the CDI’s AC input via a 10A diode to prevent backfeed.

Test each circuit individually, starting with ignition, then lighting, and finally accessories–never power all systems simultaneously during initial tests. Use a multimeter to check magneto output (minimum 12V AC at 5,000 RPM) and CDI resistance (600–1,200 ohms).

Identifying Critical Electrical Leads in Off-Road Miniature Cycles with Manual Ignition

Locate the ignition coil wires first–typically a pair of thick leads in red or black insulation, terminating at the spark plug cap and coil pack. The red lead usually connects to the positive terminal of the ignition module, while the black (or yellow-striped) counterpart grounds to the chassis or engine block. Trace these with a multimeter in resistance mode; healthy coils read 0.5 to 1.5 ohms primary and 5,000 to 15,000 ohms secondary. If readings deviate, inspect for corrosion at connectors or cracked insulation near the cylinder head.

Next, isolate the alternator stator wires–three thinner leads (often white, yellow, or green) bundled behind the flywheel cover. The two yellow wires form the AC output for lighting and battery charging; each should measure 0.1 to 1.0 ohms between them. The white lead, if present, is the pulse generator signal for the CDI box. Use alligator clips to jumper the yellow pair to a 12V bulb; spinning the engine by hand should make it glow steadily. Flickering indicates a shorted stator winding requiring replacement.

The CDI unit itself has five connectors: red (12V supply), black (ground), white (pulse), blue (ignition output), and green (kill switch return). Disconnect all leads and test continuity from the blue wire to the ignition coil’s red input–zero resistance confirms a clean path. Reinstall wires one by one while monitoring spark at the plug; arcing inside the CDI demands immediate sealing with dielectric grease.

Check the kill switch circuit–a red-and-black twin-lead wire running to the handlebar. Probe both ends with a multimeter in diode mode; healthy switches show short circuit when engaged and open circuit when released. Corrosion inside the switch housing often mimics failure; flush with contact cleaner and work the switch repeatedly to restore function.

Verify the battery charging circuit if equipped. A single yellow-and-red wire from the stator connects to the rectifier, then splits to the battery positive. Back-probe the rectifier’s output with the engine running; voltages below 13.5V at 3,000 RPM signal a failing regulator or stator. Replace rectifiers in pairs–matching forward voltage drop prevents unbalanced current flow.

Step-by-Step Electrical Hookup for Combustion Trigger Assembly

Locate the magnetically triggered pulse sensor on the engine casing–typically positioned near the flywheel. Securely fasten its two terminals to the ignition coil’s primary circuit using 16-gauge wire, ensuring polarity matches the coil’s designated input (+ to +, – to –). Confirm the sensor’s resistance reads between 50–100 ohms with a multimeter before proceeding.

Route the coil’s high-voltage lead directly to the spark plug cap, avoiding sharp bends or proximity to moving components. Ground the coil’s secondary terminal to the engine block using a dedicated M6 bolt, scraping away paint or corrosion at the contact point for optimal conductivity. Use dielectric grease on the connection to prevent moisture ingress.

Identify the kill switch and connect its red lead to the ignition module’s positive input via a fused (5A) circuit. The black lead should terminate at the negative bus–a shared grounding point for the entire trigger system. Verify that the switch interrupts the circuit cleanly by testing for an open loop when engaged.

For engines with CDI modules, link the module’s trigger input to the pulse sensor’s output using twisted-pair wiring to minimize electromagnetic interference. Shielded cable is unnecessary unless coil whine persists during operation. Solder all splices and insulate with heat-shrink tubing to withstand vibrational stress.

Install an inline resistor (1–1.2 ohms) between the coil and spark plug if using resistor-less plugs to prevent radio-frequency interference. Skip this step for resistor-type plugs (marked “R”) to avoid weakening spark intensity. Check spark quality by grounding the plug 6mm from the engine–it should jump consistently without misfires.

Attach the battery’s positive terminal to the ignition switch’s input post, ensuring the switch’s output connects directly to the coil’s primary circuit. Fuse this link with a 10A fuse no further than 15cm from the battery terminal. For kick-only setups, omit the battery and wire the coil directly to the magneto’s charging output.

Test the entire assembly by rotating the flywheel manually and observing spark consistency. If misfiring occurs, recheck sensor alignment–even a 1mm gap variance disrupts timing. For points-based ignitions, set dwell at 55–60% using a dwell meter with the engine warm.

Finalize by securing all wires with nylon zip ties, spaced 10cm apart, and coating exposed connections with liquid electrical tape. Route harnesses away from exhaust components and rotating shafts, leaving 3cm slack to accommodate engine vibration. Label each wire segment with heat-resistant tags for future diagnostics.

Standard Wire Colors and Their Roles in Off-Road Miniature Motorcycles

Begin troubleshooting by identifying the red wire–this carries the main battery positive voltage (usually 12V) from the ignition switch to critical components like the CDI unit, coil, and lights. A loose or corroded red wire can cause intermittent power loss; always trace it back to the fuse first. If voltage drops below 11.2V at the coil, expect weak spark or misfires, especially during kickstarting.

Locate the black/white stripe (ground) next, which completes the electrical circuit. Poor grounding–often from rusted frame points or thin wires–produces erratic ignition or dim lights. Sand down contact surfaces to bare metal and securely fasten with star washers; avoid daisy-chaining grounds. For 50cc-150cc engines, a 14-gauge black/white wire is optimal, while smaller models may use 16-gauge.

Critical Wire Pairings and Sensor Leads

• Yellow: AC generator output (stator) to the rectifier/regulator. Voltage should read 18-25V AC at 3000 RPM; lower readings indicate stator failure.
• Blue/white: CDI trigger signal from the pickup coil. Resistance should measure 50-200 ohms; erratic readings confirm coil damage.
• Green: Tachometer signal (if equipped). Disconnect first when diagnosing phantom RPM spikes.
• Orange/white: Battery charging line from rectifier. Voltage at 4000 RPM must reach 13.8-14.5V DC; anything below flags rectifier issues.

Check the brown/white wire for brake light activation–it should supply 12V when the pedal is depressed. A faulty switch causes delayed engagement or persistent illumination. Replace switches showing over 0.5V drop under load. For turn signals, light blue and light green wires alternate 12V pulses; flasher units typically demand 3-6 ohms load–add resistors if LEDs draw insufficient current.

Inspect purple and gray wires only if the model includes electric start. Purple feeds the starter solenoid (high current, 30A+), while gray relays the starter relay control signal. Solenoid clicks without engine turnover point to weak battery or burnt contacts–clean terminals with 400-grit sandpaper and apply dielectric grease. Never splice these wires; replace with identical gauge (minimum 10-gauge for purple) to prevent fire hazards.
