Complete 12V Campervan Electrical System Wiring Guide with Schematics

Start with a 30-amp fuse block as the central distribution point–this protects the entire system from overload while simplifying splits to individual circuits. Route the main feed from the battery through a battery isolator if using dual power sources, ensuring seamless switching without voltage drop. For a 200Ah lithium battery, expect 16-20 hours of runtime at 10 amps continuous draw before needing a recharge.

Separate circuits into three categories: lighting, appliances, and charging. Use 12-gauge wire for LED strips (max 10 amps) and 8-gauge for fridges or inverters (up to 40 amps). Install a 10-amp fuse on each lighting circuit to prevent short circuits from draining the entire bank. For USB ports, integrate a 2.1A DC-DC converter to avoid voltage fluctuations damaging sensitive devices.

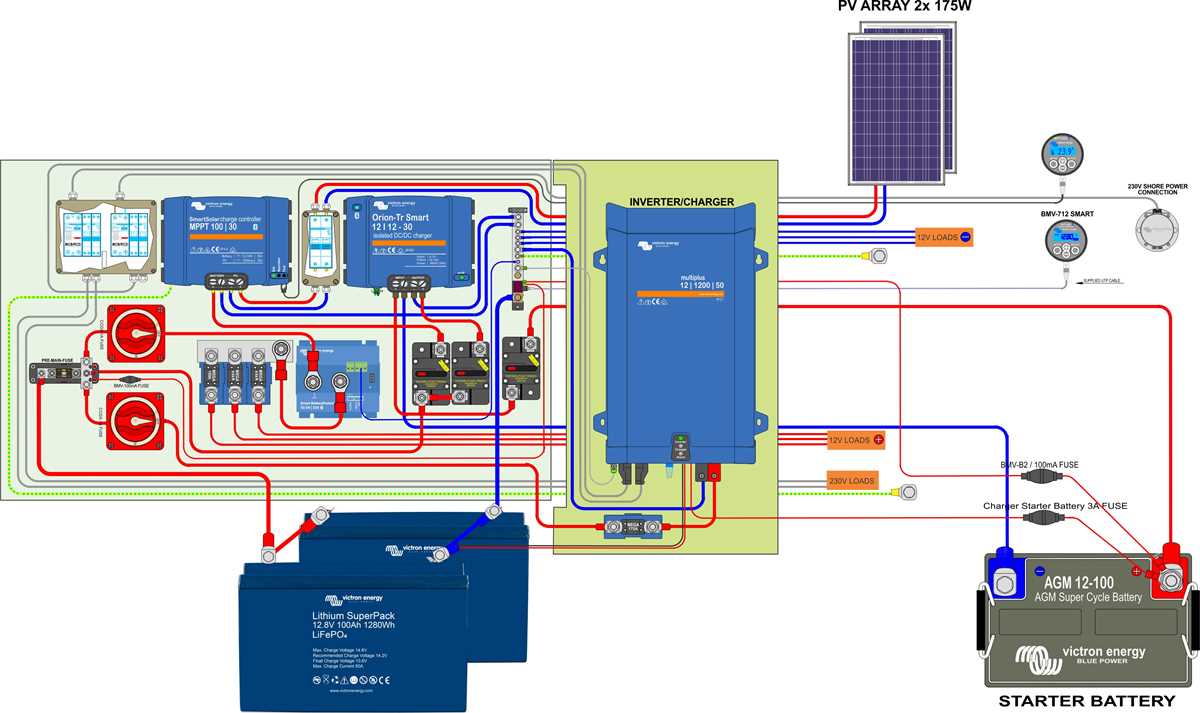

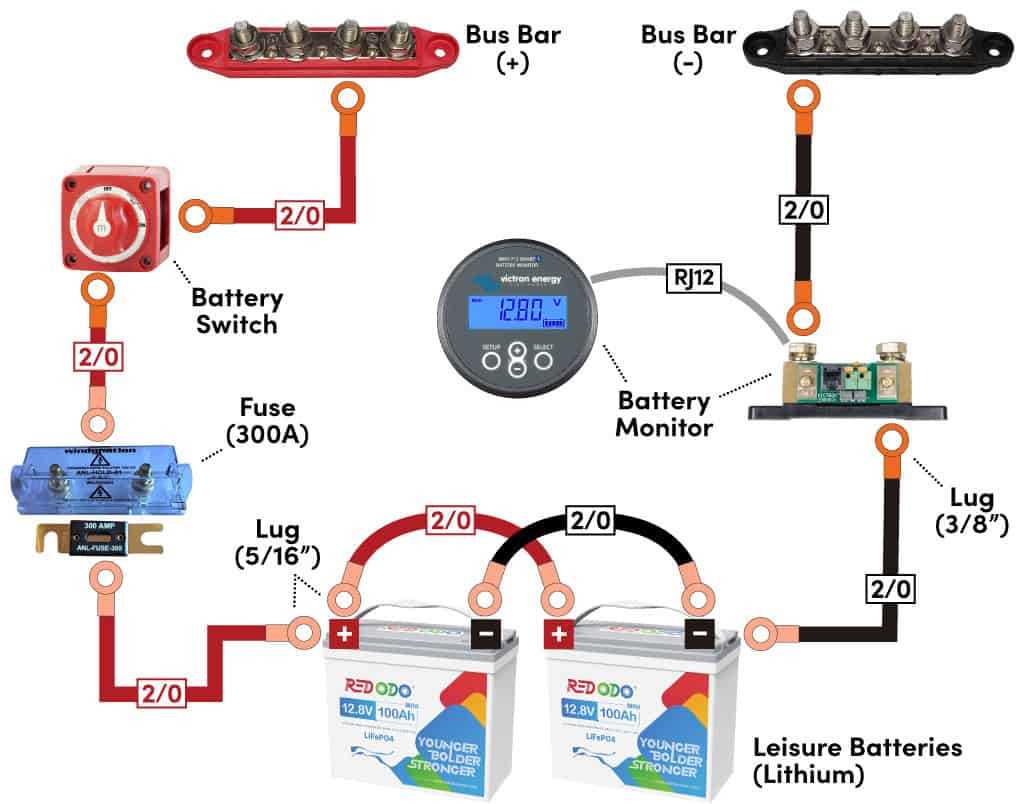

Ground all components to a single bus bar, avoiding chassis grounds due to corrosion risks over time. Test each circuit with a multimeter before final connection–target 13.2 volts at the furthest outlet for optimal performance. Include a 30-amp kill switch near the bed for emergencies, cutting power without crawling under cabinets.

Ventilation fans require thicker wiring (10-gauge) and a 20-amp fuse due to startup surges. Place the solar charge controller within 60cm of the panels to minimize power loss. For backup, add a 7-pin trailer connector for exterior power input, rated for 40 amps to handle alternator charging while driving.

Label every wire at both ends with heat-shrink tubing and a permanent marker. Use crimp connectors with adhesive-lined heat shrink for waterproof junctions. Store spare fuses, a spare wire roll, and crimping tools in a sealable box–these prevent stranded trips when repairs are needed on the road.

Build a Reliable Auxiliary Power Layout: Step-by-Step

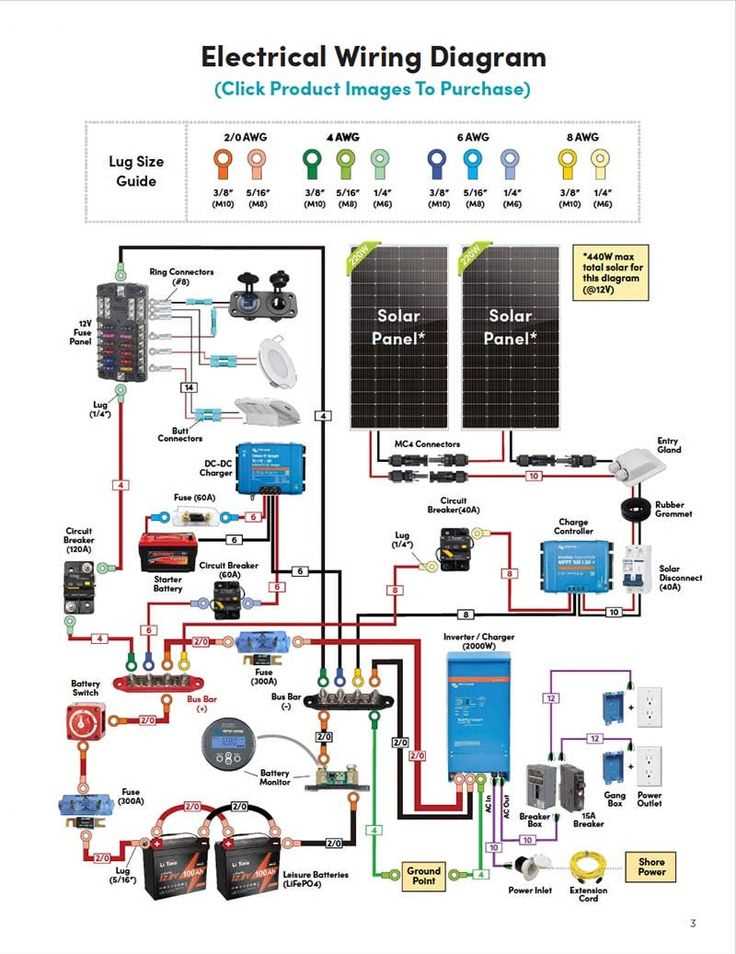

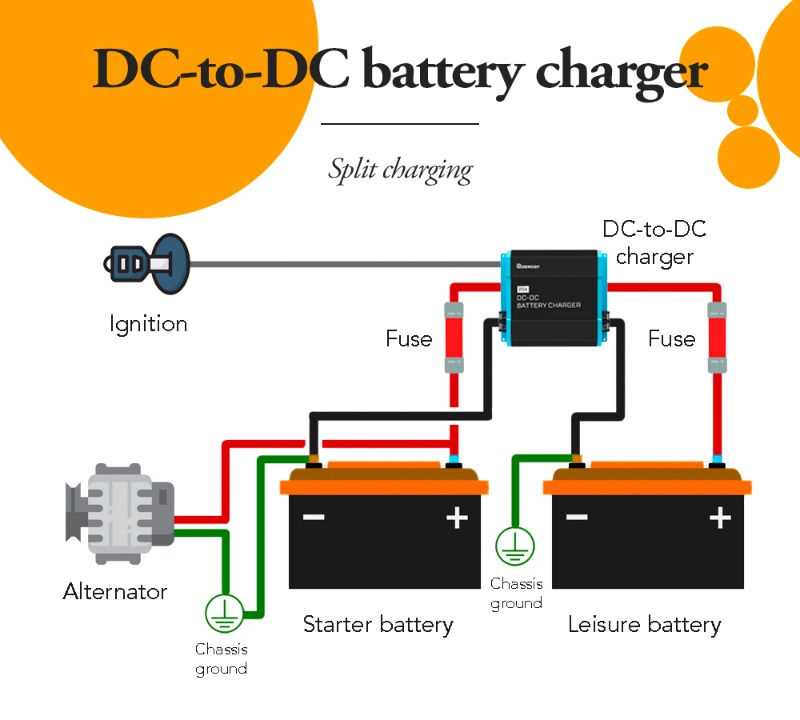

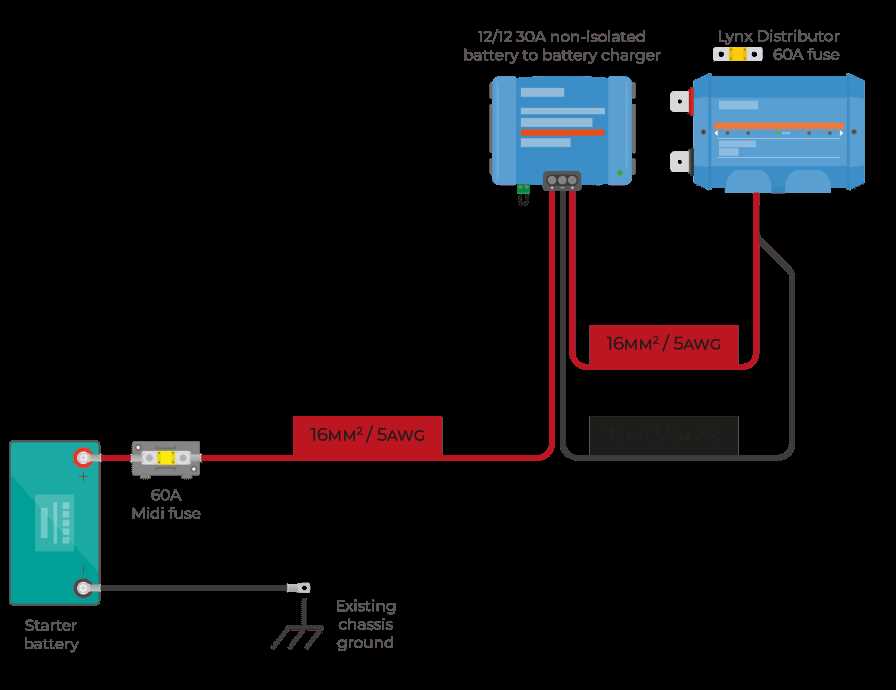

Connect the leisure battery directly to the starter battery using a 50A isolator; this prevents deep discharge while allowing charge sharing during driving. Use 16mm² cable for the main run–thicker strands reduce voltage drop over distances exceeding 2 meters. Install a 100A fuse within 20cm of the leisure battery terminal to protect against short circuits. Avoid splicing the main feed; terminating at a busbar simplifies future expansions without compromising safety.

Use 4mm² cable for lighting circuits, running separate feeds for interior LEDs, reading spots, and awning lights to isolate faults. Each circuit should have a 5A fuse at the distribution point–located near the battery–to prevent overloads. Position switches within 1m of the target fixture to minimize cable runs and voltage loss. For dimmable circuits, integrate a PWM controller rated for 8A to handle inductive loads without flickering.

Securing Low-Voltage Appliances

Feed the fridge through a dedicated 10A line, splitting 6mm² cable at a junction box to avoid drawing power from sensitive circuits. Power sockets should use 2.5mm² cable, fused at 15A, supporting peak loads up to 180W without overheating. Install USB outlets with integrated 2.1A ports; separate them from general sockets to prevent voltage sag during simultaneous use. Ground all outlets to the chassis via a 4mm² earth cable, crimping with tinned copper lugs for corrosion resistance.

Test each circuit with a multimeter before finalizing connections: verify 12.6V at the battery, dropping no more than 0.3V per 3-meter run. Label every fuse and switch with a permanent marker, noting amperage and target device. Store a schematic on waterproof paper folded inside a ziplock bag–include cable gauges, fuse ratings, and wire colors. Update it immediately after modifications to avoid future troubleshooting guesswork.

Selecting Proper Conductor Size for Auxiliary Vehicle Power Networks

Begin with 10 AWG for circuits drawing up to 30 A under standard 3-meter runs. This gauge prevents voltage drop below 3% at full load–critical for refrigerators and inverters. Shorter lengths (under 1.5 m) allow 12 AWG for the same current, but never exceed a 0.4 V loss.

Lighting and USB ports operate efficiently on 16 AWG for distances under 2 m at 5 A. Beyond this length, step up to 14 AWG. Use tinned copper for all conductors exposed to moisture or engine bays–bare copper oxidizes within months in humid conditions.

Fuses must match the wire’s ampacity. A 15 A fuse pairs with 14 AWG; 20 A with 12 AWG; 30 A with 10 AWG. Place fuses within 15 cm of the battery or distribution block. Avoid shared fuses for multiple devices–each circuit requires individual protection.

For high-draw components like winches or air compressors (50 A+), use 6 AWG or larger. Voltage drop calculations become negligible at this size, but heat buildup in terminal blocks demands periodic inspection. Aluminum conductors are unsuitable due to higher resistance and oxidation risks.

Measure exact run lengths before cutting conductors. Include extra length (5–10 cm) for crimping and routing errors. Label both ends of each wire with heat-shrink tubing–ink fades under UV exposure, while printed labels last indefinitely.

Connections require crimped terminals, not solder, for vibration resistance. Heat-shrink with adhesive lining seals out moisture better than electrical tape. Avoid wire nuts; stranded copper frays when twisted, leading to intermittent faults.

Voltage Drop Calculations

Use V=IR for precise drops. A 3 m run of 10 AWG (0.00328 Ω/m) carrying 20 A loses 0.197 V–well within limits. Double-check with an online calculator if runs exceed 5 m or currents top 40 A. Neglecting this leads to dim lights, slow motors, or failed electronics.

Thinner gauges (18 AWG+) suffice for signals (e.g., sensors, relays), but never for power. Even low-current circuits need proper grounding–a single shared ground causes interference. Dedicate a ground busbar for clean returns.

Terminal and Crimping Standards

Crimp tools must match terminal size. Ratcheting types ensure consistent pressure; manual pliers often crush strands or leave gaps. Tin the crimps after connecting to prevent corrosion. For ring terminals, use 2–3 mm larger holes than the stud to allow thermal expansion.

Step-by-Step Fuse and Circuit Breaker Placement for Safety

Install a blade fuse block within 30 cm of the battery terminals to minimize voltage drop. Use a 50A main fuse for the primary protection, sized at 125% of the total system draw. For example, if the combined load is 40A, select a 50A fuse. Place secondary fuses no farther than 15 cm from each appliance or branch to isolate faults effectively.

Select circuit breakers with trip curves matching the load type: Type B for resistive (lights, heaters) and Type C for inductive (compressors, motors). A 15A breaker with a 5ms trip time suits a 12A fridge circuit. Mount breakers in accessible locations–avoid engine bays or areas prone to moisture unless IP67-rated. Label each breaker and fuse with the connected device and amperage to streamline troubleshooting.

Fuse and Breaker Sizing Guide

Device Type	Typical Current Draw (A)	Recommended Fuse/Breaker (A)	Wire Gauge (AWG)
LED lights	0.5–2	3–5	18–16
Compact fridge	4–8	10–15	14–12
Water pump	3–6	7.5–10	16–14
Inverter (300W)	25–35	40–50	10–8

Route all positive wires through the fuse block or breaker before reaching any load. Negative returns should attach directly to the battery’s negative terminal or a common ground busbar, never through a fuse. For high-draw devices like inverters, use ANL fuses rated at 150% of the continuous load. Position these fuses in an inline holder with heat-shrink tubing to prevent short circuits from vibration.

Test each circuit before finalizing connections. Use a multimeter to verify voltage at the fuse holder (should match battery voltage) and check for continuity. If a fuse blows during testing, reduce the fuse size incrementally until it stabilizes. For breakers, simulate a fault by briefly shorting the output–ensure the breaker trips within its specified time. Document the final fuse/breaker values and wire gauges in a schematic for future reference.

Common Mistakes to Avoid

Never replace a fuse with a higher-rated one to “fix” repeated blowing–this indicates a wiring fault. Avoid daisy-chaining fuses or using a single fuse for multiple devices, as this defeats overcurrent protection. Ensure all crimp connections are soldered and heat-shrunk; loose connections generate resistance and heat, risking meltdowns. Store spare fuses and breakers in a labeled, dry container within the vehicle for quick access during emergencies.

Installing a Dual Battery Isolation Relay for Auxiliary and Primary Cells

Connect the relay between the main power source and the secondary pack using 16mm² cable for currents up to 100A. Mount the relay within 50cm of the primary battery to minimize voltage drop; most 70A–120A relays handle a 0.3V drop at full load. Wire the relay coil trigger directly to the ignition circuit–use a dedicated 2A fuse on this line–to ensure disengagement during engine cranking, preventing voltage spikes from damaging the leisure battery’s sensitive electronics.

• Locate the relay so its switching contacts align vertically; sideways mounting risks moisture buildup.
• Attach a 150A ANL fuse on the relay’s main output terminal before branching to the auxiliary battery busbar.
• Test relay operation with a multimeter: coil resistance should read 50–80Ω, contact closure below 0.1Ω.
• Bypass relays designed for heavy-duty alternators often incorporate a temperature sensor; place this within 10cm of the secondary cell’s top vent for accurate readings.
