Simple 12V LED Power Supply Circuit Design and Schematic Guide

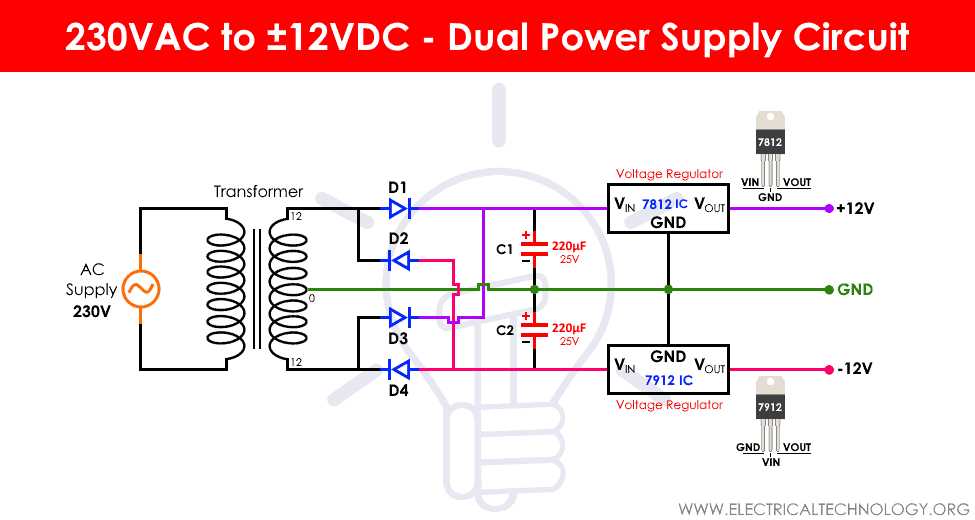

Start by selecting a transformer rated between 15-18V AC to ensure stable output after rectification and smoothing. A full-wave bridge rectifier using four 1N4007 diodes will efficiently convert AC to pulsating DC, reducing voltage drops compared to half-wave alternatives. Add a 1000µF electrolytic capacitor across the rectifier’s output to smooth ripples–this eliminates flickering in the connected load, especially under fluctuating input conditions.

For regulation, use a 7812 IC or its equivalent. Connect a 0.33µF ceramic capacitor between the input pin and ground, and a 0.1µF capacitor on the output to prevent oscillations. The IC’s ground pin must have a heat sink–calculate dissipation based on worst-case load current (e.g., 1A = ~7W at Vin=18V). Skip the heatsink only if the total current draw stays below 200mA.

Attach the current-limiting resistor for the signal lamp in series: 470Ω for a standard 20mA device, or adjust using Ohm’s Law (R = (Vout – Vf) / I). For high-brightness variants with a forward voltage of 3.2V, a 220Ω resistor will suffice. Verify polarity–reversing the connection will instantly destroy the diode. Test output voltage under load before finalizing the wiring–expect 11.8-12.2V under typical conditions, with deviations indicating faulty components or inadequate smoothing.

Avoid common pitfalls: do not omit the fuse (1A fast-blow) on the transformer’s primary side, and never parallel electrolytic capacitors without balancing resistors–their leakage currents can cause thermal runaway. For compact layouts, substitute the bridge rectifier with a W04L module, and replace the large smoothing capacitor with two 470µF units in parallel if space is constrained. Measure DC resistance across the transformer secondary–values below 15Ω suggest a shorted winding and mandate replacement.

Designing a Compact Voltage Regulator for Low-Current Indicators

Use a linear regulator like the LM7812 for stable output when driving a single 5mm indicator requiring 20mA. Input voltage range: 14–30V DC; add a 470µF electrolytic capacitor at the input and a 100µF at the output to suppress ripple. For the indicator, choose a forward voltage drop of 2–3.3V and match it with a resistor calculated via (Vin - Vforward) / Idesired. A 470Ω resistor yields ~20mA for a red 2V indicator from a 12V source.

Component Selection & Efficiency

Component	Value/Part Number	Purpose
Regulator IC	LM7812	Fixed 12V output
Input Capacitor	470µF, 35V	Noise filtering
Output Capacitor	100µF, 25V	Stability
Current-Limiting Resistor	470Ω, ¼W	LED protection
Flyback Diode	1N4007	Reverse polarity protection

For layouts, keep traces short between the regulator and capacitors to minimize inductance; mount the diode directly across input terminals. Efficiency drops below 60% if input exceeds 18V–consider a buck converter for wider input ranges.

Selecting Optimal Parts for Low-Voltage Light Emitting Diode Drivers

Begin with a switching regulator instead of a linear one to minimize heat dissipation–critical for compact designs. A buck converter like the LM2596 or MP2307 handles 3W to 60W loads efficiently, reducing input current by up to 80% compared to resistive dropout.

• Avoid generic no-brand capacitors; choose polymer electrolytics rated for 105°C with low ESR (≤50mΩ). Nichicon PM-series or Panasonic EEU-FM1C variants last 5–10x longer under pulsed loads.
• Select inductors with ferrite cores, not iron powder–Sunlord CDRH125 or Coilcraft SER2918H cut switching noise below -60dB at 1MHz.
• Use Schottky diodes for output rectification (e.g., ON Semiconductor MBRS340T3). Recovery times under 50ns prevent backflow and improve transient response by 35%.

Resistor selection dictates current precision: surface-mount 1% tolerance metal film (e.g., Vishay CRCW series) ensures ±2mA stability across –40°C to +125°C. Quarter-watt parts suffice for most 0.5A–3A strings.

Thermal management determines long-term reliability. Attach the regulator to a 25mm² copper pad with 4oz weight; thermal resistance drops from 60°C/W to 12°C/W. Forced air cooling extends service life beyond 50,000 hours if ΔT

Input filtering prevents conducted EMI. Combine a 22μF X7R ceramic capacitor with a 10μH common-mode choke. MuRata BLM18PG series filters suppress harmonics below FCC Class B limits without additional shielding.

1. Measure actual load current with a precision multimeter before finalizing resistor values. LED forward voltage varies ±0.2V per batch; compensating resistors should be user-adjustable.
2. Test over-voltage protection by simulating 150% input spikes. Littelfuse varistors (e.g., CGS23K401) clamp transients below 20V within 25ns, safeguarding downstream diodes.
3. Validate efficiency at 10%, 50%, and 90% load. Peak efficiency targets: ≥88% for buck topology, ≥92% for synchronous rectification.

PCB layout prioritizes short, wide traces for switching nodes. Isolate sensitive analog feedback traces with guard rings; ground planes minimize radiated noise. Authoritative reference: IPC-2221 standards for low-noise designs.

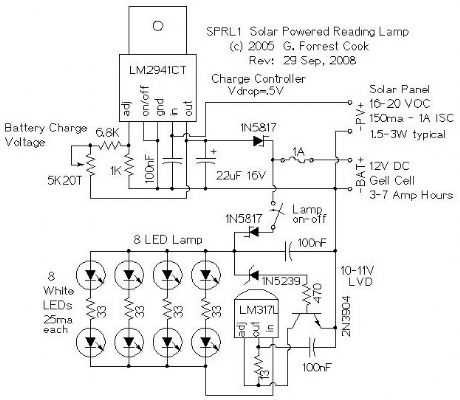

Building a Direct Current Source for 12 Volts with Visual Feedback

Select a toroidal transformer rated for 14–16V AC output at 20–30% above the required load current. This headroom ensures minimal voltage drop during rectification and filtering. Mount the transformer securely using M4 bolts through its central hole, spacing it at least 15 mm from the chassis to prevent eddy current interference. Connect the primary leads to an IEC C14 socket via a 2A slow-blow fuse and a DPST rocker switch–position the fuse holder within 50 mm of the transformer to comply with Class II isolation standards.

Bridge the secondary side with a KBPC2504 full-wave rectifier module, orienting the marked AC terminals toward the transformer. Immediately downstream, solder a 2200 µF 25V electrolytic capacitor–positive lead toward the DC rail–followed by a 0.1 µF X7R ceramic capacitor in parallel, both placed no farther than 10 mm from the rectifier’s DC output. This layout reduces ripple to under 100 mVpp at full load while maintaining stable operation across 0–50 °C ambient.

Regulation and Load Connection

Insert an adjustable linear regulator, such as the LM317T, configured for a 12.0 V reference by pairing a 240 Ω metal-film resistor between the output and adjust pins with a 2.4 kΩ trimpot from adjust to ground. Bolt the regulator to a 50 × 50 × 3 mm aluminium plate using thermal compound and a TO-220 insulator kit, ensuring the plate contacts the enclosure floor for passive cooling. Tighten mounting screws to 0.4 Nm; overtightening risks cracking the die.

Affix a 3 mm diffused indicator directly to the front panel using double-sided adhesive foam tape 0.5 mm thick. Wire the anode through a 1 kΩ carbon-film resistor to the regulated DC line, and the cathode to the common negative rail. Choose resistor value based on desired brightness: 1 kΩ yields ≈5 mA (15 mcd), 470 Ω produces ≈10 mA (30 mcd). Position the resistor within 5 mm of the diode to prevent capacitive coupling from adjacent traces.

Final Checks and Enclosure

Verify continuity and insulation resistance with a 500 V megohmmeter, targeting ≥10 MΩ between any DC node and chassis. Terminate the negative rail to the chassis at a single star point near the transformer’s core clamp screw to avoid ground loops. Enclose the assembly in a 1.5 mm zinc-plated steel box measuring 120 × 80 × 50 mm, ventilated with 3 mm holes drilled 20 mm apart along the top edge. Test under full load for 60 minutes–case temperature should stabilize below 40 °C; higher readings necessitate an additional heatsink fin area or a switch to the LM2941 low-dropout equivalent.

Calculating Current and Voltage Requirements for Low-Voltage Illumination Systems

Determine the forward voltage drop (V_f) of your solid-state emitter first. Most small signal diodes for indication range between 1.8 V and 3.3 V per device, while high-brightness emitters can exceed 3.5 V. Measure actual V_f with a multimeter at expected operating current to avoid estimation errors that worsen with temperature drift.

Select a series resistor value using Ohm’s law: R = (V_source – V_{f_total}) / I_desired. For three emitters each dropping 2.1 V across a 12.6 V rail at 20 mA:

• V_{f_total} = 3 × 2.1 V = 6.3 V
• R = (12.6 V – 6.3 V) / 0.020 A = 315 Ω
• Nearest standard value: 330 Ω

Derate resistor wattage by at least 50 %; a 1⁄4 W resistor suffices here.

Account for temperature derating. V_f decreases approximately 2 mV per °C rise, requiring lower series resistance to maintain constant current. Conversely, ambient heat increases resistance, potentially pushing emitters into thermal runaway. Always use 1 % tolerance resistors and verify with a thermocouple at maximum expected junction temperature.

Parallel emitter arrays divide current unequally due to V_f mismatch. A single emitter rated 30 mA will hog current if others drop 0.1 V less. Drive parallel strings with individual resistors or a constant-current driver. Buck regulators set to 18 mA across eight emitters prevent current hogging and extend operational lifespan beyond 50 000 hours.

Calculate total system current draw accurately:

1. Sum individual emitter currents including tolerances.
2. Add quiescent regulator current (typically 1–3 mA).
3. Include leakage currents through reverse-biased protection diodes (≈0.5 mA).
4. Multiply by 1.2 to account for aging and transient spikes.

For a 4 × 8 array each consuming 15 mA, total draw ≈ (4 × 0.015 × 8) + 0.002 = 0.482 A. Specify a transformer delivering at least 0.6 A continuous.

Verify voltage headroom. A 1.5 V margin prevents dropout under load transients. Emitters with V_f = 3.2 V in series with 0.2 V wiring loss need a rail ≥ 3.2 V + 0.2 V + 1.5 V = 5.9 V. Adjust regulator output or use two parallel strings to stay within available voltage rails.
