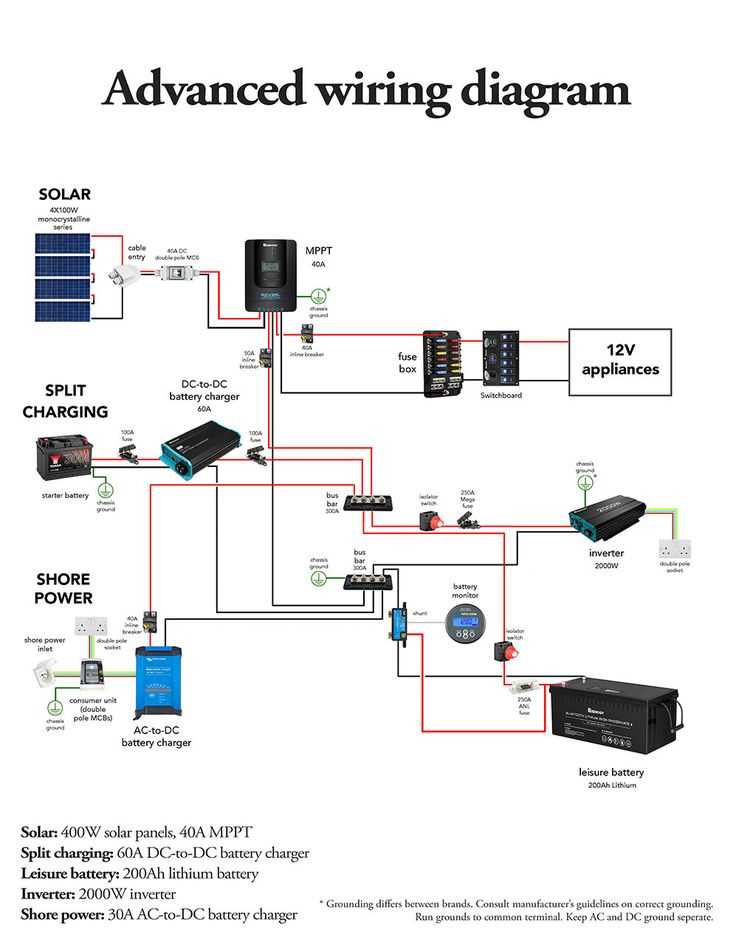

Complete 12V RV Electrical System Wiring Guide with Schematics
Start with a fuse near the battery–no exceptions. A 20-amp fuse protects the main feed line from overloads, while a 10-amp fuse suffices for branch circuits. Copper wire (minimum 10 AWG for main lines, 14 AWG for secondary) ensures minimal voltage drop over distances under 10 feet. Label every connection with heat-shrink tubing or numbered tags to avoid mistakes during troubleshooting.
Use a bus bar for the ground and positive distribution points. A 4- or 6-stud bar simplifies branching circuits without overcrowding terminal blocks. Splitting power into dedicated zones–lights, outlets, appliances–prevents interference and isolates failures. For fluoroescent or LED strips, add a capacitor (470–1000 µF, 25V) across the switch to suppress flickering caused by minor voltage fluctuations.
Twist paired wires when running signals or sensor feeds to reduce noise pickup. For dual-battery setups, install a 150-amp relay between the starter and auxiliary battery; engage it only when the main battery exceeds 12.8V to prevent unintended discharge. Test continuity with a multimeter before sealing connections–readings should match wire length specifications: 0.1 ohms per foot for copper.
Diodes (1N4007) protect charge controllers from reverse current in solar or dual-battery systems. Install them in-line on the positive lead, cathode toward the charge source. For high-drain devices like inverters, route 8 AWG wire directly from the battery’s positive terminal, bypassing the distribution panel entirely. Secure all wiring with adhesive-lined clamps every 18 inches to prevent chafing against metal edges.
Practical Guide to Electrical Layouts for Recreational Vehicles
Begin by mapping your camper’s power needs before cutting any cables. Identify every appliance–lights, fridge, vent fans–and note their amperage. A single deep-cycle battery rated at 100Ah supports roughly 5-7 hours of moderate usage; lithium units last 30% longer. Use a 6-gauge cable for circuits drawing over 20A to prevent voltage drop–each additional foot of wire beyond 10 feet demands an extra 0.1V compensation.
Label each connection with heat-shrink tubing and a permanent marker. Fuse every positive line within 7 inches of the battery; 30A fuses suit most 15–25A circuits while 50A blocks protect inverter feeds. Avoid terminal strips with brass screws–they corrode faster than tin-plated copper. Instead, opt for marine-grade busbars or ANL fuse panels rated for 150A continuous draw.
Component Placement Checklist
| Component | Minimum Distance from Battery | Recommended Cable Gauge |
|---|---|---|
| Inverter | 1 foot | 4/0 AWG |
| Charge controller | 3 feet | 8 AWG |
| LED lighting | 15 feet | 16 AWG |
| Water pump | 5 feet | 12 AWG |
Route cables above plumbing lines to prevent condensation damage. Secure runs every 18 inches with nylon clamps tightened to 3 lb-in torque–over-tightening cracks insulation. Split circuits into zones: cabin lights, kitchen, and exterior ports each deserve independent feeds for troubleshooting ease. Test every connection with a multimeter set to DC volts before sealing; expect 12.6V resting and 14.2V–14.6V during charging.
Ground terminals directly to the chassis near each appliance, not daisy-chained. Use star washers under screw heads to bite through paint and oxidation layers. Isolate ground paths for sensitive electronics–stereo amplifiers and GPS units–by running separate 8-gauge wires back to a central ground busbar bonded to the chassis at a single bolt.
Voltage Drop Calculator
| Cable Length (feet) | 4 AWG | 6 AWG | 10 AWG |
|---|---|---|---|
| 5 | 0.2V | 0.3V | 0.6V |
| 10 | 0.4V | 0.6V | 1.2V |
| 15 | 0.6V | 0.9V | 1.8V |
Upgrade to tinned copper crimp connectors–unplated copper oxidizes in three months; tinned lasts five years. Crimp twice: once with a hexagonal die and again with a round sleeve for gas-tight seals. Shrink tubing must overlap each connector by ¼ inch and be heated until glue beads form at both ends. Skip adhesive-lined tubing if ambient temperatures exceed 85°C; use high-temp tubing rated for 125°C instead.
Selecting the Proper Cable Thickness for Your Recreational Vehicle’s Low-Voltage Setup
For a 3-amp load like LED lights, use 18 AWG copper conductors; for 10-amp circuits such as vent fans or water pumps, 14 AWG is the minimum. Power-hungry devices–refrigerators drawing 15 amps or inverters rated at 30 amps–require 10 AWG or thicker. Exceeding 20 feet? Increase the diameter by two steps: at 25 feet, swap 14 AWG for 12 AWG; at 40 feet, 10 AWG becomes 8 AWG. Terminal connections demand crimp sleeves or solder, never twist-and-tape.
Marine-grade, tinned copper cables resist corrosion in humid environments–mandatory near batteries or plumbing. Fuse every positive line within 7 inches of the source; dual-fuse high-current paths to isolate faults. Skip Romex: stranded wire bends without fatigue, and jacketed bundles simplify routing behind walls. Calculate drops precisely: 0.5–1.0 volts lost per 10-foot run at full load; anything beyond compromises motor startup torque and LED brightness.
Step-by-Step Fuse and Breaker Placement in Recreational Vehicle Low-Voltage Systems
Install a fuse within 7 inches of the battery’s positive terminal for each main circuit. This distance minimizes fire risk from short wires while protecting the entire downstream network. Use ANL or Class T fuses rated at 125% of expected continuous current–for a 30A draw, select a 40A fuse. Mount fuses in accessible waterproof holders near the battery compartment.
- Branch circuits feeding lights or outlets require ATO/ATC fuses rated 5A-20A, depending on load.
- Appliance circuits (refrigerator, furnace) need higher-rated fuses, typically 20A-30A.
- For inverters or converters, install Class T fuses directly on the positive busbar.
Place breakers at the distribution panel, not near the battery. Use thermal-magnetic breakers for branch circuits; for sensitive electronics like USB chargers, select hydraulic-magnetic breakers with a 1-2x current rating. Label each breaker clearly: “Main,” “Furnace,” “Outlets–Left Side,” etc., to simplify troubleshooting.
Test all connections with a multimeter after installation. Verify no voltage drop exceeds 0.5V across any fuse or breaker under maximum load. Replace blown fuses once, then investigate causes–loose connections, overloading, or insulation damage–before reinstalling. Store spare fuses and a spare 150A breaker onboard for emergencies.

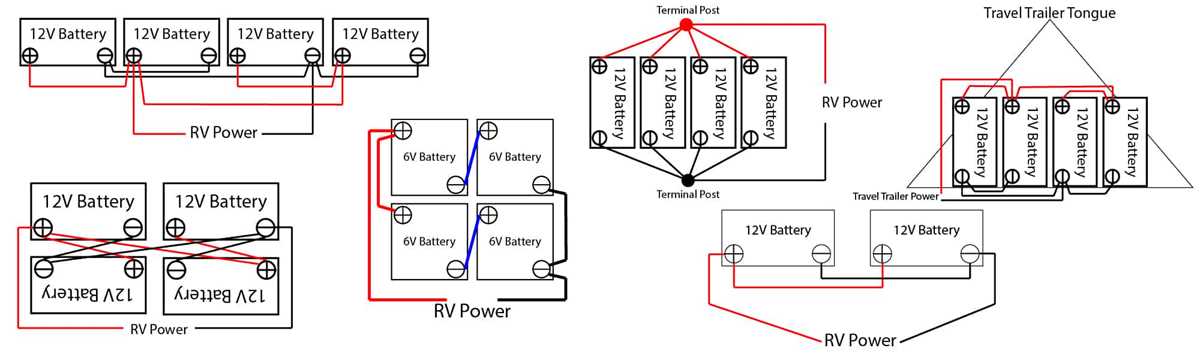

How to Connect Batteries in Parallel for Reliable Low-Voltage Power
Use identical batteries with the same voltage rating, capacity, and age to prevent imbalance. Connect positive terminals together first using 4 AWG or thicker copper cables, ensuring terminal clamps are torqued to 10–12 Nm. Repeat for negative terminals, maintaining equal cable lengths between all batteries to avoid uneven current distribution. Add a 150–200A fuse within 7 inches of each positive terminal to interrupt short circuits without damaging the system. Verify connections with a digital multimeter–expect 0.1V or less drop across cables under load.
Critical Considerations
- Charging: Parallel configurations require a charger matched to the total amp-hour capacity (e.g., 40A for four 100Ah batteries). Use a smart charger with temperature compensation to prevent overcharging.
- Monitoring: Install a shunt-based battery monitor (e.g., Victron BMV-712) to track individual cell health and state of charge–parallel setups mask weaker batteries until failure.
- Balancing: Every 6 months, disconnect batteries and charge individually to equalize voltage. Store at 50% charge if unused for >30 days to prolong lifespan.
- Safety: Work in a ventilated area; lithium batteries release hydrogen gas during charging. Wear insulated gloves–parallel connections can arc at 300+ amps if shorted.
Integrating Solar Power into Your Mobile Setup with a Voltage-Based Schematic
Select a solar array rated for at least 20% more capacity than your daily consumption. A 300-watt panel system suffices for most recreational units running LED lights, a compact fridge, and a ventilation fan. Avoid undersized installations–cloud cover and seasonal angle variations reduce output by 30-50%. Mount panels at a fixed 35-degree tilt for year-round optimization in temperate climates.
Install a charge regulator between the panels and storage unit with a current rating exceeding the panel’s maximum output by 25%. MPPT controllers outperform PWM types by recovering 10-30% more energy in suboptimal light. Wire the regulator directly to a 100Ah lithium battery for extended cycle life–lead-acid alternatives degrade after 300-500 cycles, losing capacity prematurely.
Use 6 AWG copper conductors between the battery and inverter to minimize voltage drop–no more than 3% loss over 10 feet. For circuits powering sensitive devices, reduce wire gauge to 8 AWG to prevent overheating under sustained loads. Secure connections with crimped ring terminals and heat-shrink tubing to resist corrosion from moisture and road vibration.
Connect a pure sine wave inverter sized for 150% of your peak load to handle startup surges. A 2000-watt unit accommodates microwaves and small power tools, but omits high-draw appliances like air conditioners–alternators or shore power handle those efficiently. Run an independent ground wire from the inverter chassis to the vehicle frame to suppress interference with onboard electronics.
Distribute auxiliary circuits through a fuse block with individual 20% overcurrent protection. Place fuses no further than 7 inches from the battery terminal to comply with ABYC standards. Label each circuit with its function and amp rating–misidentification leads to accidental overloads when troubleshooting under low-light conditions.
Test the system under load by measuring voltage at the battery terminals, regulator output, and inverter input. A fully charged system reads 13.2 volts; drops below 12.8 indicate inadequate charging or parasitic draws. Use a clamp meter to verify current flow matches expected values–discrepancies reveal hidden faults like reverse polarity or corroded connectors.
Seal all outdoor connections with dielectric grease to prevent oxidation. Inspect panel mounts every 6 months for stress cracks–wind loads flex brackets unpredictably. Replace any failed bypass diodes promptly; a single compromised diode disables an entire bypass path, cutting panel output by 33% or more.
Document the layout with a hand-drawn schematic noting wire colors, component locations, and fuse ratings. Store a backup copy in a weatherproof bag near the electrical compartment. Update the chart after modifications–unverified changes risk shorts when servicing unfamiliar circuits later.
