How to Build a 12VDC to 220VAC Inverter Step-by-Step Circuit Guide

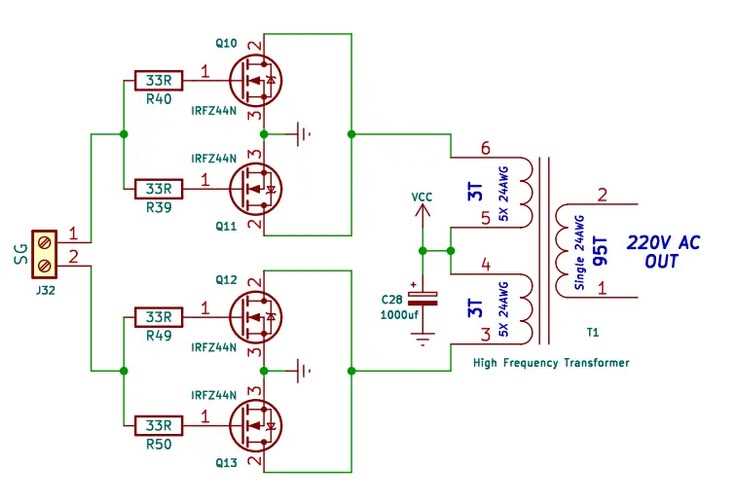

12vdc to 220vac inverter circuit diagram

For reliable conversion from a 12-volt battery to household mains, prioritize a push-pull topology with a center-tapped transformer. This configuration minimizes switching losses and handles reactive loads better than bridge designs. Use a 50Hz square-wave oscillator (e.g., CD4047 astable multivibrator) to drive the power stage, ensuring minimal harmonic distortion before filtering. The transformer core should be rated for at least 20% above your target wattage–ferrite cores excel for high-frequency applications, while laminated silicon steel suits cost-sensitive 50/60Hz setups.

Select MOSFETs (IRF3205 or better) with a drain-source breakdown voltage exceeding 60V and a gate threshold below 4V for efficient switching at low control voltages. Include fast-recovery diodes (e.g., UF4007) across each transistor to suppress inductive spikes. For protection, fuse the battery input at 120% of your expected current draw and add a thermistor near the transformer winding to prevent overheating. If purity of the output waveform is critical, incorporate a LC filter (20µH inductor + 10µF capacitor) to smooth residual switching noise.

Calibrate the oscillator frequency to ±1Hz of your local grid standard to avoid desynchronization issues with inductive loads like motors. Test under variable loading (e.g., a 60W bulb, then a 200W heater) to verify stability–oscilloscope readings should show for basic applications. For extended runtime, size your battery bank to deliver 150% of peak load current for the required duration; AGM or lithium-iron-phosphate chemistries outperform flooded lead-acid in both cycle life and efficiency.

Building a Low-Voltage to High-Voltage Power Conversion Setup

Select a push-pull topology for your power transformer stage if efficiency above 85% is required. Use a ferrite core transformer with a 1:20 turns ratio–primary windings (each 8 turns of 1.5mm wire) must be bifilar-wound to minimize leakage inductance, while the secondary (160 turns of 0.4mm wire) needs layer insulation with Mylar tape to prevent voltage breakdown. Trigger the switching transistors (IRF3205 MOSFETs or equivalent) with a feedback-controlled PWM driver like the SG3525, ensuring dead-time adjustment to prevent cross-conduction. Add snubber circuits (0.1µF capacitor in series with 10Ω resistor) across each MOSFET drain-source to suppress voltage spikes exceeding 100V during switching.

Critical Component Specifications

Input filtering demands a 2200µF electrolytic capacitor (50V rating) paired with a 10µF ceramic capacitor to stabilize the 12-volt source under load transients exceeding 20A. The output rectifier requires ultrafast recovery diodes (UF4007 or better) with a reverse voltage rating of at least 400V to handle the 311V peak AC waveform. For protection, integrate a 15A automotive fuse on the input line and a 5A slow-blow fuse on the output to prevent overload damage. Mount all high-current traces on 2oz copper PCB with a minimum width of 4mm to avoid resistive losses and thermal stress.

Calibrate output waveform purity by fine-tuning the oscillator frequency of the PWM driver–typically 50Hz for pure sine wave designs–using a 100kΩ potentiometer connected to the timing resistor pin. For modified sine wave setups, replace the transformer with a toroidal core (1:25 ratio) and use a CD4047 oscillator chip to generate symmetrical square waves, but note total harmonic distortion may exceed 10%. Test under load with a 60W incandescent bulb; voltage sag should not drop below 210V RMS at full load to ensure compatibility with inductive appliances like motors or compressors.

Key Components Required for a Low-Voltage to Mains-Level Power Conversion Setup

Begin with a high-current switching transistor rated for at least 15A or more, depending on the target wattage. MOSFETs like IRF3205 handle 110A continuous drain current and 55V breakdown voltage, ideal for 300W+ systems. Bipolar junction transistors (BJTs) may suffice for smaller loads but introduce higher switching losses. Ensure proper heat sinking–thermal paste and a copper or aluminum heatsink prevent overheating at frequencies above 50Hz.

Select a center-tapped transformer with a primary matching the battery output (e.g., 12V-0-12V) and a secondary producing the desired AC level (e.g., 230V). Ferrite-core transformers suit compact, high-frequency designs, while laminated iron-core units handle 50/60Hz applications better. Wire gauge must exceed calculated RMS current–14 AWG for 10A, 10 AWG for 20A–to minimize resistive losses. Verify the turns ratio empirically if salvaging an unmarked unit.

  • PWM controller IC: TL494 or SG3525 offer precise duty cycle adjustment (5% to 95%) and built-in error amplifiers. These ICs simplify feedback loops for voltage regulation. Avoid generic “555 timer” circuits if stability is critical–they lack overcurrent protection.
  • Snubber network: A 10Ω resistor in series with a 0.1µF capacitor across the MOSFET drain-source absorbs voltage spikes from transformer leakage inductance. Without it, semiconductors fail within minutes.
  • Fast recovery diodes: BY229 or UF4007 (1A, 1000V) clamp inductive kickback. Standard 1N4007 diodes are too slow for switching above 1kHz.

Fuse selection follows the formula: Ifuse = 1.25 × Imax_load. A 10A load requires a 12.5A fuse, but always round up to the nearest standard value (e.g., 15A). Slow-blow fuses tolerate startup surges; fast-acting types prevent fires during short circuits. Place the fuse as close to the battery terminal as physically possible.

Advanced Protection and Efficiency Boosters

Implement a battery cutoff below 10.5V to prevent deep discharge, which degrades lead-acid cells irreversibly. A simple comparator circuit with an LM393 IC and voltage divider suffices. For lithium-ion, add a dedicated protection module (e.g., DW01A) to handle overcharge/undervoltage.

  1. Soft-start: A 470Ω resistor + 470µF capacitor in series with the PWM enable pin ramps output voltage over 2-3 seconds, reducing inrush current. Bypass this circuit after startup to avoid efficiency penalties.
  2. Current sensing: A 0.01Ω shunt resistor on the MOSFET source leg, paired with an LM358 op-amp, enables real-time current monitoring. Scale the output to trigger shutdown at 1.2× rated load.
  3. Cooling: For >200W setups, attach a 12V fan to the transformer core. Airflow should target both the transformer and switching transistors–passive cooling suffices only below 100W.

Opt for a printed circuit board (PCB) with 2oz copper thickness to handle high currents. Manual point-to-point wiring risks loose connections, especially under vibration. Use screw terminals for input/output instead of soldering wires directly, allowing easier repairs. Arrange components to minimize trace lengths–place the transformer and MOSFETs within 5cm of each other to reduce EMI.

Step-by-Step Wiring of a Push-Pull Transformer-Based Power Conversion Unit

Begin by securing the primary coil connections of the high-frequency transformer to the complementary outputs of your dual-switching semiconductor arrangement. Use heavy-gauge wire–preferably 14 AWG or thicker–to handle the current surge without overheating. Solder each lead directly to the MOSFET or transistor drain terminals, ensuring minimal resistance at the junctions. Polarity matters: cross-verify the windings against the datasheet to avoid phase cancellation, which would render the setup inoperable.

Attach the center tap of the transformer’s primary winding to the positive pole of your low-voltage source through a low-resistance choke–typically 10-50 microhenries–to suppress transient spikes. Omit this component only if your switching elements include built-in snubbers, though external filtering remains superior for efficiency. Ground the other end of the choke to a common star point, not the negative rail, to prevent ground loops that distort waveform symmetry.

For the secondary side, wind the appropriate turns ratio–usually 1:10 to 1:15 for a 1kW output–using enameled copper wire of at least 18 AWG. Leave generous slack at the ends for soldering to the bridge rectifier inputs. Mount a full-wave rectifier module rated for at least 200V peak inverse voltage and 30A forward current per leg. Heat-sink the diodes if the expected load exceeds 500W; forced-air cooling is recommended beyond 800W continuous duty.

After rectification, insert a 2.2 microfarad polyester film capacitor bank across the DC bus to smooth ripple. Install a 100nF ceramic capacitor in parallel for high-frequency noise suppression. Route the filtered output to the H-bridge configuration, which will convert the DC back to an alternating sine approximation. Gate drivers must be optically isolated–HCPL-3120 or equivalent–and powered by a separate 15V auxiliary supply to prevent latching.

Finally, connect the H-bridge outputs to the transformer’s tertiary winding, if present, or directly to the AC load terminals. Add a 10-ohm, 10-watt series resistor between the bridge midpoint and the AC outlet to limit inrush current. Verify the waveform with an oscilloscope; a clean 50Hz sine wave should show less than 5% total harmonic distortion. Adjust the PWM dead-time in 100ns increments until switching artifacts disappear.

Selecting Optimal MOSFETs and Thermal Management for High-Power Conversion

Prioritize MOSFETs with a low RDS(on) (typically below 10mΩ for 100W+ applications) to minimize conduction losses. IRFB4110 (40V, 97A, 4.5mΩ) or IPP075N10N3 (100V, 100A, 7.5mΩ) offer robust performance for switched-mode power stages. Verify the device’s pulse current rating–it should exceed peak load requirements by at least 30% to prevent avalanche breakdown during transient spikes.

Thermal resistance (θJA) dictates heat sink selection. For TO-220 packages, a θJA of 62°C/W mandates a heatsink with θSA ≤ 5°C/W for continuous 50W dissipation. Extruded aluminum profiles like Fischer Elektronik SK129 (1.5°C/W) or Aavid Thermalloy 7300BG (0.5°C/W) strike a balance between cost and efficiency. Apply a 0.1mm layer of Arctic MX-6 thermal compound to reduce interface resistance by up to 20%.

Gate charge (Qg) influences switching losses; target values below 50nC for 100kHz+ operation. SiRA220DP (30V, 20A, Qg=25nC) enables faster transitions, reducing dead-time losses. Pair with a isolated gate driver like UCC27211 (4A source/sink) to ensure clean drive waveforms and avoid false turn-on. Decouple the driver’s VDD with 1µF X7R ceramics at the PCB mount point to suppress ringing.

Mount MOSFETs with multiple vias (minimum 0.3mm diameter) beneath the drain pad to improve thermal dissipation into the PCB’s copper planes. A 2oz/70µm copper layer can reduce θJC by 15% compared to standard 1oz designs. For air-cooled setups, orient heatsink fins parallel to airflow direction with a spacing of 3-5mm to maximize convective heat transfer without choking laminar flow.

Overcurrent protection requires sensing resistor values derived from Ipeak/Vsense. For a 20A peak and 0.1V sense voltage, use a 5mΩ (±1%) Vishay WSLP1206 with Kelvin connections to avoid parasitic inductance. Fuse the input at 1.2×Irms (e.g., 15A slow-blow for 12.5A continuous) to guard against sustained overloads while tolerating inrush currents from capacitive loads.
