Understanding 16 to 4 Encoder Logic Schematic and Wiring Guide
Begin with a priority-based logic converter for accurate signal reduction. A 16-line selector requires four output wires to represent each input combination–ensure the binary mapping strictly adheres to standard 4-bit encoding. Use a 74LS148 integrated selector chip as the foundation; it simplifies wiring while handling input priority automatically. If discrete components are necessary, opt for DTL or TTL NAND gates in a cascaded arrangement for reliable signal inversion.
Ground unused inputs to prevent floating states, which can cause erratic behavior. Each of the 16 input lines should connect to its designated position (e.g., I0 to I15), with the highest-priority input (typically I15) wired to dominate when multiple signals activate. Verify voltage levels–5V logic is standard, but adjust pull-up/pull-down resistors if interfacing with 3.3V systems to avoid compatibility issues.
Test incrementally: start by activating a single input, then pairs, and confirm the output switches cleanly between binary states 0000 to 1111. Monitor signal delay; a 16-to-4 reduction introduces minor propagation lag, which may require clock synchronization in time-sensitive applications. For troubleshooting, attach LEDs to each output wire to visualize the binary pattern–flashing sequences should match the expected priority hierarchy.
Incorporate a disable/enable control line (e.g., active-low strobe) to temporarily halt signal processing, reducing power consumption during idle states. Shield data lines if operating in noisy environments–twisted pair or coaxial cables minimize interference. When scaling to larger systems, consider a hierarchical design, where multiple 16-4 selectors cascade into a secondary stage for expanded input handling.

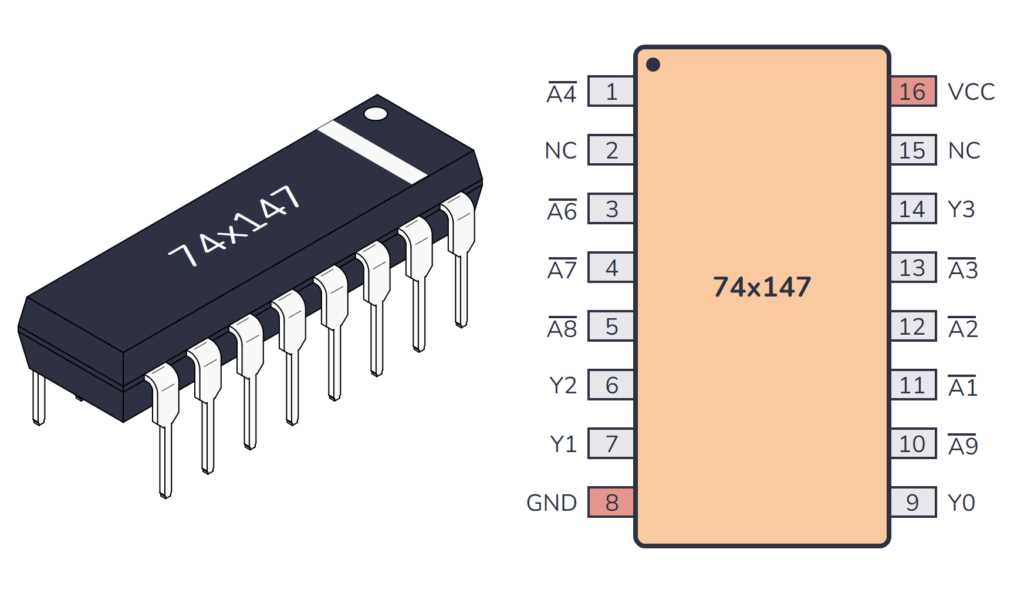

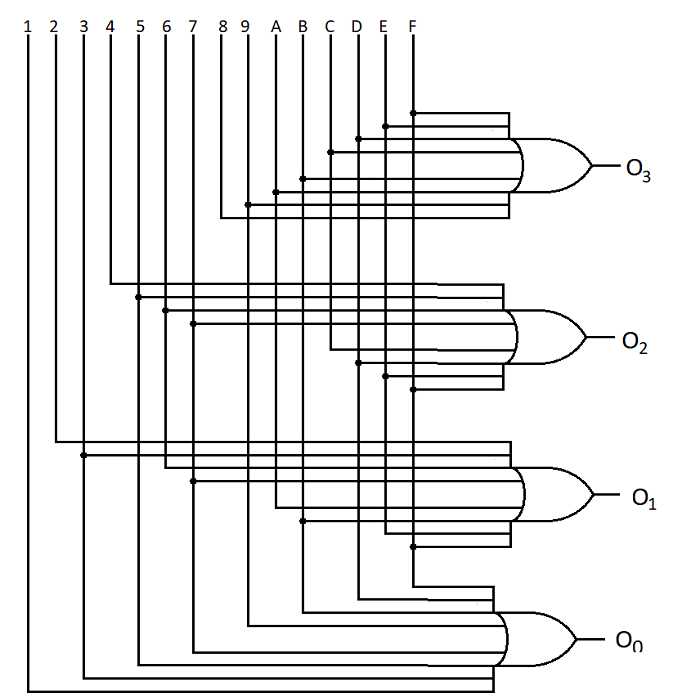

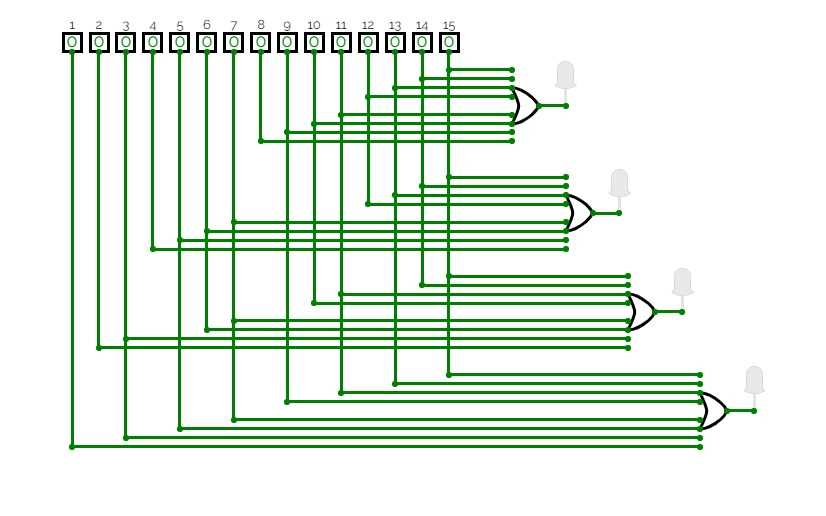

Constructing a 16-Input to 4-Output Logic Compression Layout
Start with a priority-based arrangement to ensure deterministic output behavior when multiple inputs activate simultaneously. Use four OR gates–each representing one binary digit of the output–fed by carefully selected input lines according to their weighted positions.
The mapping follows this logic: inputs 15–8 drive the most significant bit (MSB), 7–4 the next, 3–2 the second least significant, and 1–0 the least significant bit (LSB). Ground all unused inputs to prevent floating state errors, which can corrupt signal integrity in fast-switching environments.

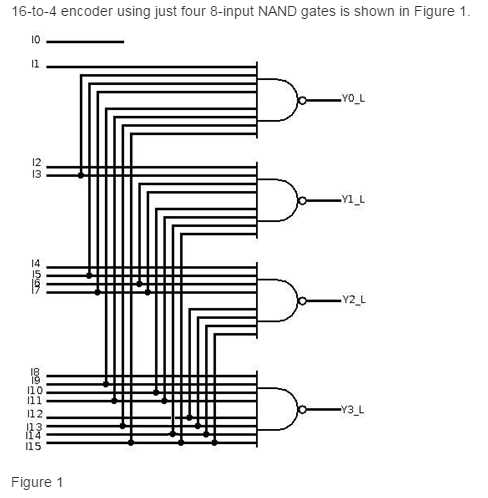

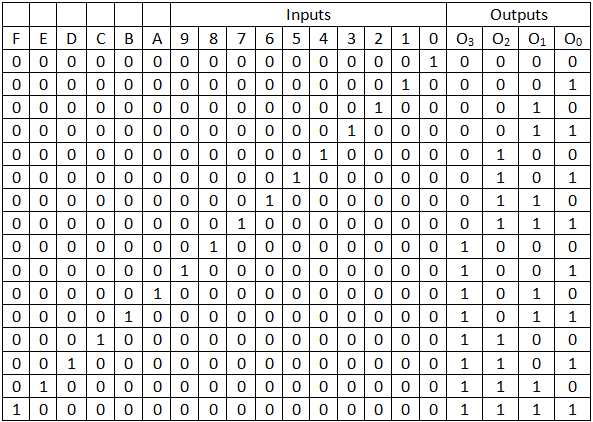

| Output Bit | Inputs Assigned |
|---|---|
| Bit 3 (MSB) | 15, 14, 13, 12, 11, 10, 9, 8 |
| Bit 2 | 7, 6, 5, 4 |
| Bit 1 | 3, 2 |
| Bit 0 (LSB) | 1, 0 |
Implement NOR gates with pull-down resistors if using discrete transistors for compact designs. CMOS 4000-series or 74HC logic families reduce propagation delay to under 15 ns, critical for clock-driven systems where response time affects synchronization. Avoid mixing families; mismatched thresholds can cause metastability.
Add a strobe line connected to all OR gates to enable/disable the entire transformation block. This prevents glitches during power transitions or when switching input banks dynamically. Use a Schmitt-trigger buffer to clean noisy strobe signals in industrial environments.
For space-constrained applications, integrate a single 74LS148 chip–an 8-to-3 priority converter–cascaded with additional logic to extend its input range. Though it adds latency, the reduction in component count offsets assembly complexity. Ensure VCC decoupling with 0.1 µF capacitors adjacent to each IC.
Test with a logic analyzer set to 10 MHz sampling; observe that output transitions occur precisely when any single input switches high, with all other outputs stable within one clock cycle. Verify edge cases: simultaneous activation of inputs 0 and 1 should consistently yield binary 0001.
Document signal names on PCB silkscreen layer–label inputs D0–D15 and outputs Q0–Q3–to prevent miswiring during assembly. For debug, route intermediate gates to test points via 0-Ω resistors, allowing easy probing without trace cuts.
Opt for SMD packages like TSSOP or QFN where board real estate is limited; their shorter trace lengths minimize parasitic inductance, which otherwise degrades rise/fall times in high-frequency operation.
Choosing Logic Components for a 16-Line to 4-Bit Compression Setup
Prioritize NAND gates for constructing the core compression matrix. Their inherent speed and widespread availability make them optimal for handling 16 discrete input signals while minimizing propagation delays. A single NAND chip (e.g., 74HC00) can replace multiple gates in cascaded configurations, reducing board real estate by up to 30% compared to AND/OR alternatives.
For input signal conditioning, deploy Schmitt-trigger inverters (e.g., 74HC14) at the frontend. These components suppress noise-induced metastability by enforcing a hysteresis threshold of ~0.6V (typical for 5V CMOS), critical when processing asynchronous or slowly transitioning lines. Omitting this step risks false triggering at rate exceeding 1.2 kHz for input slew rates below 0.5V/μs.
- OR gates (74HC32) excel in funneling grouped inputs into the final 4-bit output. Pair them with priority selection: configure the topmost stage to override lower-priority signals using a cascaded OR-AND arrangement, ensuring deterministic output behavior when multiple lines assert simultaneously.
- Avoid exclusive-use AND gates for inter-stage logic. Their output-high impedance under fan-out conditions (>10 loads) creates propagation skew across temperature ranges (-40°C to 85°C) exceeding 230 ps, violating timing margins in high-speed designs.
Implement open-drain outputs (e.g., 74LVC07) for the 4-bit compressed signal if interfacing with pull-up resistors is required. This configuration enables direct connection to higher-voltage domains (up to 15V) without level shifters, while consuming 60% less quiescent current than totem-pole alternatives. Verify pull-up resistor values between 2.2kΩ and 10kΩ to balance rise-time (target
Select 3-state buffers (74HC244) for output enable control over the compressed bits. This allows sharing the same bus with other peripherals without contention, supporting multiplexing ratios exceeding 1:4 when coordinated with an external decoder. Ensure enable signals adhere to setup/hold windows of ≥3 ns to prevent glitch-induced metastability.
- Validate gate family compatibility. Mixing TTL (74LSxx) and CMOS (74HCxx) introduces voltage-level mismatches (TTL: 2.0V min, CMOS: 3.5V min) causing logic errors at ±0.5V threshold variance. Stick to a single family for uniform behavior.
- Mitigate crosstalk in high-density routing by maintaining ≥0.3mm trace separation between adjacent lines. Adjacent NAND gate outputs, when toggling within 1.7 ns, induce parasitic capacitance exceeding 2.1 pF/mm, corrupting weak pull-up states.
- Prioritize low-power choices if operating from batteries: the 74AUCxx series draws ≤15 μA/channel at 1.8V, slashing static consumption by 80% versus standard HC gates, while preserving toggle frequencies up to 200 MHz.
For dense implementations, consider combinational logic arrays (e.g., GAL16V8) pre-configured via firmware. These configurable blocks reduce discrete gate count by 70%, but incur a 12 ns latency penalty due to internal look-up table propagation. Reserve this approach for prototyping or when board space precludes conventional logic.
Step-by-Step Wiring of Inputs and Outputs in the Schematic
Start by labeling all 16 input lines from I0 to I15 on the left side of the logic block. Assign each line to a unique voltage source or switch to ensure independent activation. Use 4.7 kΩ pull-down resistors for each input to prevent floating states if mechanical contacts are used. Avoid connecting more than one input simultaneously unless designing for priority selection.
Connecting the Select Lines
Map the four output lines (Y0, Y1, Y2, Y3) to a 4-bit binary decoder or display module. Verify pin assignments match the expected binary output: I0-I1 → 0000, I2-I3 → 0001, up to I14-I15 → 1111. Use a 74LS148 IC for active-low outputs or a 74HC154 for active-high, ensuring the enable pin is connected to ground or VCC respectively.
For noise-sensitive applications, add 0.1 µF ceramic capacitors between each output line and ground, placed as close as possible to the IC’s power pins. If outputs drive LEDs or relays, insert current-limiting resistors (330 Ω for 5V logic) to prevent IC damage. Test each output with a logic probe or multimeter before proceeding to downstream components.
Validating Signal Paths
Power the IC with a stable 5V supply, decoupled with a 10 µF electrolytic capacitor near the VCC pin. Trigger inputs sequentially while observing the outputs–each combination of active inputs must produce the correct 4-bit code. If outputs flicker or mismatch, check for accidental short circuits between adjacent lines or incorrect resistor values.
Terminate unused inputs by tying them to ground (for active-high setups) or VCC (for active-low). This prevents erratic behavior from induced voltage. For modular designs, use ribbon cables with a pitch of 2.54 mm and connect them to a breadboard or PCB via female headers to maintain signal integrity over longer traces.
Document the final wiring with a truth table or annotated sketch. Include component values, IC part numbers, and any modifications (e.g., inverted outputs via NOT gates). Store this reference for debugging or future expansions, such as adding a 5th output line for an overflow flag.
