Complete Wiring Guide and Diagram for the 1955 Chevrolet Bel Air Restoration

If your project involves a vintage model from the mid-1950s, begin with a full circuit map sourced directly from factory schematics rather than aftermarket reproductions. Original blueprints from Fisher Body Service Manuals or Chevrolet Passenger Car Shop Manuals (specifically Section 10) provide unaltered wire gauge, color codes, and terminal placements–critical for avoiding voltage drops or short circuits in post-war automotive setups. Verify each connection point against a multimeter reading of 12.6V at the battery terminals before proceeding; anything below indicates corroded grounds or degraded wiring harnesses likely requiring replacement.

Focus first on the four-core harness bundle running from the firewall to the dashboard. This cluster controls the ignition switch, instrument panel illumination, and generator voltage regulator. Use a crimping tool rated for 16-18 AWG stranded copper wire and heat-shrink tubing to repair frayed sections–never rely on electrical tape, which degrades under heat cycles. Pay special attention to the braided ground strap linking the engine block to the chassis; clean contact surfaces with a wire brush and apply dielectric grease to prevent oxidation.

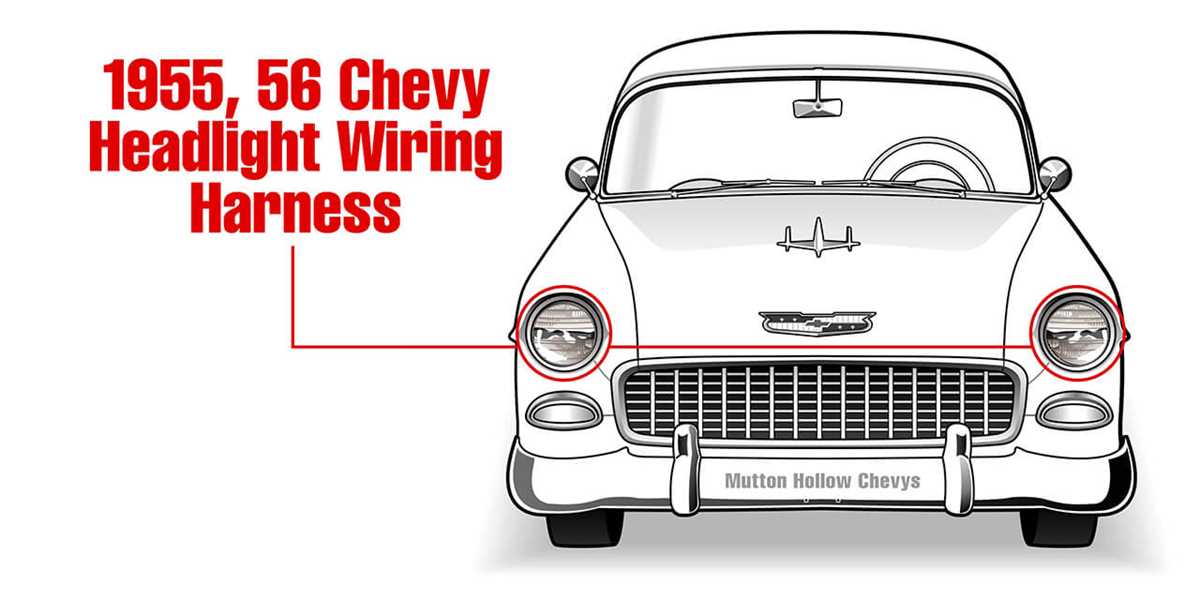

For the lighting circuit, trace the tail lamp wires along the driver-side rocker panel. Many failures stem from broken solder joints at the bulb sockets, where heat from 6V systems causes brittleness. Replace old sockets with modern bakelite units if continuity tests show resistance above 0.5 ohms. The headlight dimmer switch, located beneath the left-side brake pedal, often develops pitted contacts–disassemble and polish with 600-grit sandpaper if headlights flicker during operation.

When working on the generator and voltage regulator, confirm the field coil resistance sits between 2.5–3.5 ohms. Values outside this range signal internal shorts warranting a rebuild kit (part #1116907 for this era). The regulator’s cutout relay must open at 12.8V and close at 12.2V; adjust the contact gap to 0.020 inches using feeler gauges if readings deviate. Lastly, disconnect the battery before servicing the starter solenoid–a sudden 600A surge can weld contacts shut if mishandled.

Restoring Electrical Schematics for Classic Tri-Five Models

Begin by locating the original factory schematic for the 1955 model year’s signature two-door coupe–available through GM Heritage Center or reputable reprints like Those Cars’ manual set. Verify the exact trim (e.g., One-Fifty, Two-Ten, or Nomad) since fusebox layouts and harness routing differ. Use a multimeter to trace circuits before splicing: resistance readings below 0.5 ohms indicate intact paths; values above 2 ohms signal corroded connectors or broken wires.

Critical components often requiring replacement:

• Voltage regulator–third-party units require recalibration to match the original Delco-Remy 1118336 specs (14.2V at 1,500 RPM).
• Starter solenoid contact plates–worn plates increase amp draw, causing slow cranking.
• Dash harness jumper plugs–inspect for brittle insulation; modern cross-linked polyethylene sleeves prevent future cracking.
• Headlight switch–test internal resistors with a load test lamp; early failure dims only high beams.

Route new harnesses along factory clips, avoiding sharp edges on the firewall’s inner panel–pre-drill holes if necessary, but only after verifying no hidden components (e.g., heater blower resistor) lie beneath. Ground straps should attach to bare metal, free of paint or undercoating; use a wire brush to clean contact points, then apply dielectric grease before securing with stainless hardware.

Color codes on replacement harnesses rarely match originals:

1. Orange stripe: ignition coil primary.
2. Green: taillight circuit.
3. Yellow/black: dashboard illumination.
4. Red stripe: battery positive.

Confirm each circuit’s function with the schematic’s legend before soldering. Avoid quick-disconnect terminals for high-load circuits (e.g., starter, alternator); solder and heat-shrink every joint.

For intermittent electrical faults, use a thermal camera to detect overheating wires–common near bulkhead connectors due to loose crimps. Replace any wire showing discoloration or stiffness. Install a dedicated circuit breaker (30A) for the radio’s power antenna to prevent fuse overloads. If upgrading to LED taillights, add inline resistors (6Ω, 50W) to prevent hyperflash; original filaments draw 2.1A per bulb, while LEDs draw 0.2A.

Store physical schematics in a dry, acid-free tube; digital copies should reside on two separate devices (e.g., tablet + cloud backup) to prevent loss during field diagnostics. Always cross-reference wiring paths with the vehicle’s VIN plate–mid-year production changes (e.g., automatic transmission wiring) affect harness pinouts.

Locating Authentic Factory Electrical Blueprints for the Classic Tri-Five Model

Start with the General Motors Heritage Center in Sterling Heights, Michigan. Their archives hold original engineering drawings, including full schematics for all first-generation variants. Requests must be submitted in writing with the exact vehicle identification number (VIN) for pinpoint retrieval. Turnaround time averages 10-15 business days.

Official Chevrolet Service News publications from the era offer another verified source. Volume 6, Issue 3 (mid-year release) contains a fold-out electrical layout for body styles produced between January and June. Copies surface on eBay monthly–search for seller ratings above 99% and original paper stock.

• Factory assembly manuals (Fisher Body Division Part No. 1555969)
• Dealer installation guides (Chevrolet Motor Division Manual 155624)
• Wiring harness specification sheets (AC Spark Plug Co. Document Set 786)

Reproduction companies maintain digitized copies of original microfiche records. Fusick Auto Parts and Classic Industries both offer downloadable PDFs of OEM schematics–ensure the file name includes the full GM part number (e.g., 3736579) to confirm authenticity. Subscription fees apply but are waived for first-time buyers.

Key Documentation Sources by System

1. Chassis harness: Page 22 of Fisher Body’s Plate Glass Installation Bulletin No. 17
2. Instrument cluster: Chevrolet Technical Service Bulletin 128, Section E
3. Lighting circuits: SAE Standard J567a (supplemented by GM Engineering Standard 55-30)

Restoration forums host privately preserved documents. The Tri-Five Nationals forum archives include a pinned thread with user-uploaded scans of wiring diagrams from disassembled cars. Filter posts by “verified owner” tags to avoid modified or inaccurate versions. File sizes range from 12MB to 45MB–premium membership required for high-resolution downloads.

Local GM dealerships with heritage departments often retain physical copies of old service manuals. Contact the service manager directly and reference Chevrolet Service Procedure Bulletin SP-55-3. Smaller towns with dealerships operating since the mid-20th century yield the highest success rates–call ahead to confirm availability before visiting.

For immediate access, licensed reprints of the original 1955 Chevrolet Passenger Car Shop Manual (Section 10, Electrical) are sold through Helm Incorporated. The unaltered edition includes wire gauge specifications, color-coding, and connector pinouts. Avoid third-party “condensed” versions–only the 528-page original matches factory standards.

Decoding Color Codes in Classic Vintage Vehicle Schematics

Trace each circuit’s primary conductor first–black (BLK) denotes ground paths, while red (RED) or brown (BRN) typically supplies ignition-switched voltage. Yellow (YEL) wires often feed accessory circuits like headlamps; purple (PPL) may route instrument cluster signals. Cross-reference the stripe colors: a wire labeled “ORN/WHT” combines orange primary with white stripe, usually reserved for backup light circuits or wiper motors. Verify continuity with a multimeter set to resistance mode–resistance below 5 ohms confirms a functional connection without hidden shorts.

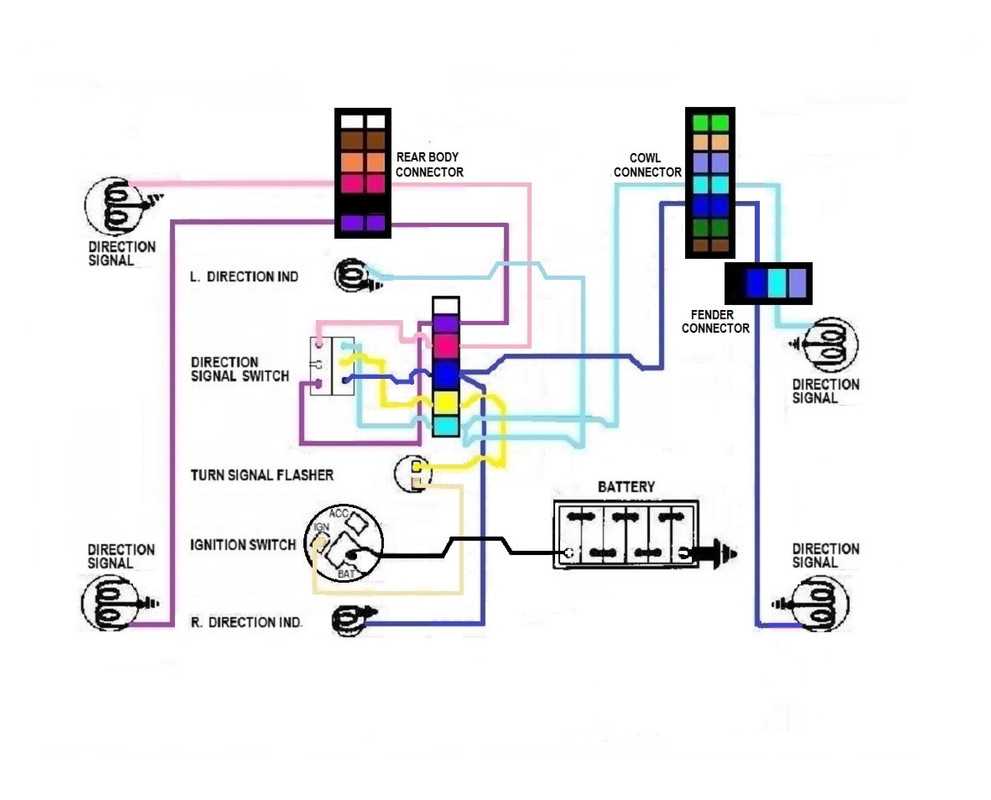

Locate the factory service manual’s legend section–early mid-century American automobiles standardize white (WHT) for headlight low beams and light green (LT GRN) for turn signals. Blue (BLU) stripes mark high-beam circuits, while gray (GRY) commonly interfaces with gauges. Use colored tape matching each wire’s stripe to label both ends before disconnecting any connectors–misidentified wires risk fusing relay contacts or blowing fuses rated at 10-30 amps.

How to Methodically Trace Spark Plug Circuit Paths in a Classic 1950s Sedan

Locate the distributor cap first–it sits atop the engine block, secured by two spring-loaded clips. Remove the clips by lifting their levered ends, then pry the cap straight upward to avoid bending the contact points. Inside, you’ll find eight brass terminals arranged in a circle; each corresponds to one cylinder. Use a bright flashlight to verify the rotor’s position–it should align with the #1 terminal marker. If corrosion is present, clean terminals with a wire brush and apply dielectric grease to prevent future oxidation.

Wire Color	Cylinder Assignment	Terminal Position (Distributor Cap)	Resistance (Ohms ±10%)
Black/Yellow	#1	7 o’clock	6,000–8,000
Black/White	#2	5 o’clock	6,000–8,000
Black	#3	3 o’clock	6,000–8,000
Green	#4	1 o’clock	6,000–8,000
Red	#5	11 o’clock	6,000–8,000
Light Blue	#6	9 o’clock	6,000–8,000

Attach a multimeter’s probes–negative to the distributor cap’s central post, positive to each wire’s terminal in sequence. Record readings; deviations beyond the specified range indicate a faulty lead or damaged coil winding. Follow each wire from the distributor to its respective spark plug, noting any sharp bends or chafing near exhaust manifolds–replace compromised wires immediately. Reinstall the distributor cap by aligning the rotor before pressing it downward, ensuring each clip snaps securely into place.
