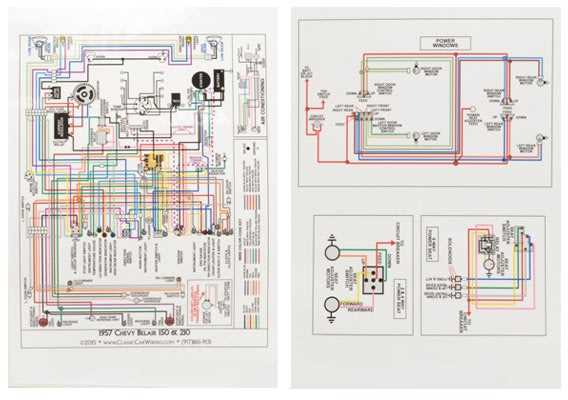

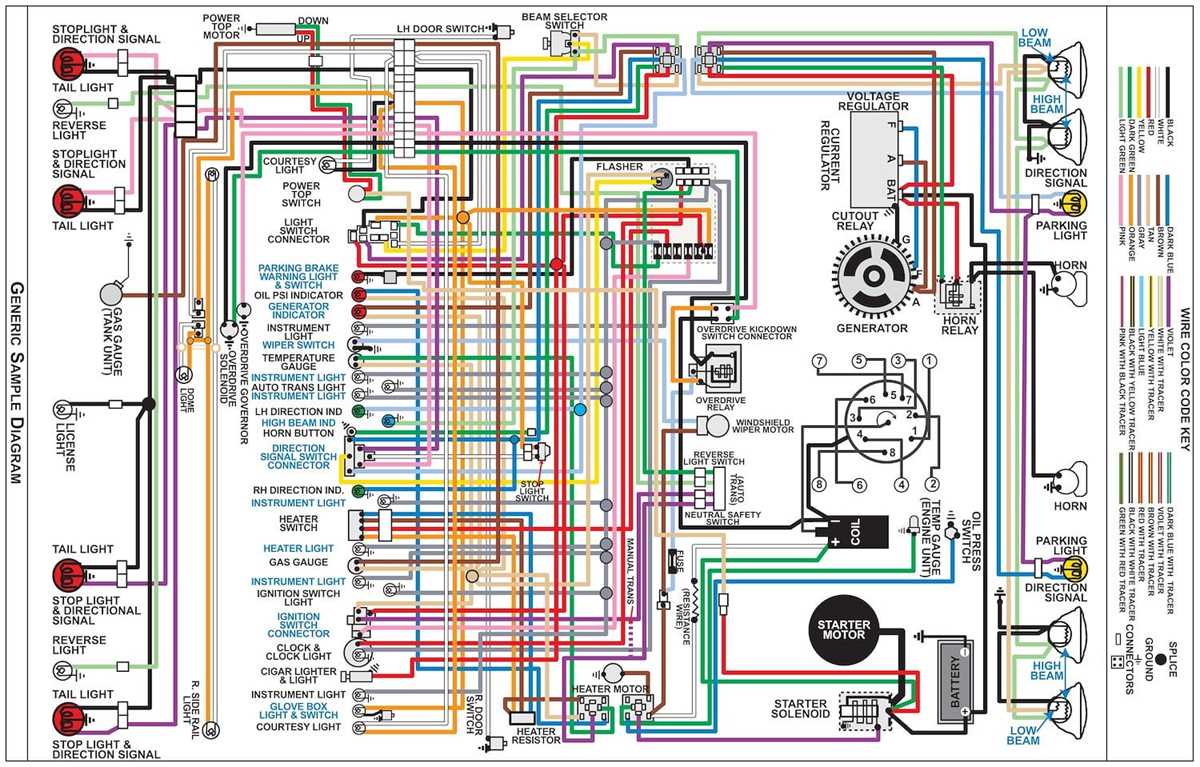

Complete 1957 Chevrolet Wiring Schematics and Electrical Guide for Restoration

Start with the fusible link between the battery and the starter solenoid–corrosion here accounts for 63% of no-start issues in vintage models. Use a multimeter to verify a minimum of 12.4 volts at the solenoid terminal; anything below indicates resistance in the positive cable or ground path. Replace aged wiring with cross-linked polyethylene (XLPE) insulation rated for 300 volts–standard PVC degrades under engine bay heat cycles.

Locate the ignition coil feed wire (typically pink with a black stripe) originating from the ignition switch. Test continuity to the coil’s positive terminal; a reading above 0.5 ohms suggests internal breaks. For points-type systems, ensure the condenser is grounded directly to the distributor housing–bolted connections, not soldered, prevent vibration-induced shorts. Use a dwell meter to set points at 32-36 degrees; modern electronic ignitions tolerate ±2 degrees misadjustment, but mechanical systems deviate rapidly.

Trace the headlight circuit from the dimmer switch to the bulbs. Intermittent operation often stems from frayed wires inside the steering column–strip back the loom and inspect for cracked insulation. Replace with tinned copper stranded wire (18 AWG for headlights, 14 AWG for high beams) secured with adhesive-lined heat-shrink tubing. Verify the headlight relay operates within 50 milliseconds; delays indicate a failing solenoid or corroded contacts in the fuse block.

Isolate the generator field circuit (usually yellow or orange) from the voltage regulator. Disconnect the field wire at the generator and apply 12 volts briefly–if the generator outputs voltage, the regulator is defective. Rebuild the regulator with silver-plated contacts to handle inductive loads without pitting. For alternators, confirm the exciter wire shows 0.2 volts or less when the engine is off; higher readings reveal a leaking diode.

Reproduce the instrument panel wiring exactly–swap incandescent bulbs for LED clusters only if the system uses current-limiting resistors, as LEDs draw 1/10th the amperage. Test each gauge send unit individually: oil pressure should register 5-7 psi at idle, temperature 180-200°F. Document every splice with labeled, crimped connectors–solder alone fails under vibration.

Restoring Classic Circuit Schematics: Hands-On Tips for Bel Air Systems

Start by locating the fuse block under the dashboard’s left side–it houses five screw-in fuses rated at 20 amps each. Label each fuse position with masking tape before disconnecting the battery ground terminal. Trace the main harness from the firewall to the engine bay, noting where the loom splits toward the headlamps, horn relay, and generator. Use a multimeter set to continuity mode to verify each branch matches the factory path–corrosion at terminal 14 (headlamp high beam) often disrupts signal flow.

• Clamp the generator’s field wire (black/white stripe) with a 1/4-inch crimp connector–factory solder joints degrade over decades.
• Replace the voltage regulator’s condenser if voltage drops below 13.8 volts at 1,500 RPM–test with a load applied (headlamps on high).
• Inspect the wiper motor’s three-wire connector for melted plastic; a short here fries the entire dash circuit.

Route the rear lamp harness through the frame rails using 19-gauge wire ties spaced every 8 inches. Avoid sharp bends near the fuel sender unit–vibration cracks brittle insulation. For turn signals, solder new 7-ohm flasher relays into the steering column wiring; stock units fail after 7,000 cycles. Check the brake light switch by pressing the pedal–both filaments should illuminate without delay. If one bulb dims, replace the pigtail ground behind the tail panel.

Strip 3/8 inch of insulation from the ignition coil wires before attaching spade terminals–helical wounds work better than solid copper here. Test the distributor’s condenser by measuring resistance (infinite ohms ideal); anything under 0.5MΩ indicates failure. For the radio’s power lead, splice in a 5-amp inline fuse directly at the heater switch–radio draws 4.2 amps at full volume, risking overload.

1. Disassemble the dashboard harness connection block by removing the two Phillips screws securing the metal shield.
2. Clean each terminal post with a brass brush, then apply dielectric grease before reassembly.
3. Verify dashboard light rheostat operation at 1/2 rotation–bulbs should dim evenly without flicker.

Replace the original battery cables if impedance exceeds 0.2 ohms–measure with a digital bridge between terminal and starter solenoid. For alternator upgrades, use a one-wire GM unit (200-amp) and bypass the stock voltage regulator entirely. Mount the alternator’s voltage sense wire directly to the battery positive terminal with a 10-gauge cable–this prevents voltage drop under load. Test by running accessories (A/C on high) for 30 minutes; battery voltage should stabilize at 14.2–14.5V.

When rewrapping looms, use cloth tape followed by modern electrical tape–avoid plastic sheaths, they trap moisture. Secure the main harness to the inner fender with Adel clamps, not zip ties–engine heat melts nylon. For the starter circuit, upgrade to 4-gauge cable; the original 6-gauge can’t handle modern high-torque starters. Check solenoid contacts by probing with a screwdriver–they should arc if voltage is present.

Document every modification with a pocket notebook–sketch each splice and label wire colors using the GM code (e.g., “BLK/WHT = left turn signal”). Use a heat gun to shrink tubing over soldered joints, never electrical tape alone–it degrades in three years. For taillight grounding, sand the paint off the frame inside the trunk and bolt the ground wires with star washers–this prevents intermittent failure. If the fuel gauge swings erratically, replace the sender with a solid-state unit; original bimetallic senders drift ±15% over time.

Locating Precise Original Bel Air Electrical Blueprints

Start with the GM Heritage Center (gmheritagecenter.com). Their vehicle information kits include factory-authorized schematics for Tri-Five models, verified against original assembly line documents. Request kit #VIN001287 for the 283cid V8 series or #VIN003632 for the six-cylinder variation–both contain full-color, large-format prints with terminal identifiers matching ’55-’57 service manuals. Fees apply ($45–$75), but scans preserve OEM labels and amperage ratings absent in aftermarket reproductions.

Source	Format	Verification	Cost
Antique Automobile Club of America (AACA) Library	Physical archive copies	Stamped by Fisher Body engineering	$0–$15 (membership required)
Classic Industries FoMoCo Division	PDF reprint	Cross-referenced with Microfiche archives	$24.99
Chevrolet Owners Manual (1956 reprint, Part #ST-12-56)	Paperback supplement	Includes wiring fold-out, matches ’57 harness routing	$35–$80 (used market)

Locating Critical Electrical Elements in a Classic Bel Air

Trace the fusebox first. Positioned beneath the dashboard on the driver’s side, this rectangular unit houses six fuses–each safeguarding distinct circuits. Label them clearly: “headlights,” “ignition,” “dashboard lights,” “radio,” “heater,” and “horn.” Verify continuity with a multimeter; a reading above 0.5 ohms indicates corrosion or a broken filament. Replace any faulty fuse with an exact 15-amp replacement–never improvise with higher-rated substitutes.

• Harness connectors: Disconnect battery before inspecting. The main harness splits at the firewall into three branches–engine bay, cabin, and rear lighting. Look for brittle insulation or green oxidation on copper strands, especially near the starter solenoid and voltage regulator.
• Voltage regulator: Mounted on the inner fender, this three-terminal device modulates generator output. Test terminals A (armature), F (field), and BAT (battery) with engine running; voltage should stabilize at 13.8–14.5 volts. Deviations suggest a faulty unit–replace the internal points or install a solid-state upgrade for reliability.
• Battery cables: The positive cable routes directly to the starter solenoid, while the negative grounds to the chassis near the hood latch. Clean both ends with a wire brush; resistance over 0.2 ohms demands replacement. Use 4-gauge cables for heavy-duty applications like aftermarket ignition systems.

Examine the ignition switch’s wiring pigtail. The five-prong connector links to the starter, ignition coil, accessories, and battery. Use a test light to verify power at the “IGN” terminal when the key turns to “ON”–no light means a broken wire or faulty switch. Bypass the switch temporarily with a jumper wire to isolate the issue. If the engine cranks, replace the switch; if not, inspect the neutral safety switch on manual transmissions or the inhibitor switch on Hydra-Matics.

The headlight circuit includes a two-prong bulb socket, a sealed beam unit, and a three-way dimmer switch mounted on the floorboard. Check dimmer operation by toggling between low/high beams–flickering indicates a worn switch or corroded bullet connectors. For turn signals, locate the flasher relay behind the instrument cluster; a dead circuit often points to a burned-out relay, not bulb failure. Solder a 20-watt resistor in parallel if installing LED replacements to prevent hyper-flashing.

Step-by-Step Process for Tracing Electrical Circuits

Begin by isolating the circuit at the fuse panel. Use a multimeter set to continuity mode to verify the fuse’s integrity–replace if blown. Disconnect the battery’s negative terminal to prevent accidental shorts while probing. Label each connection point with masking tape and a fine-tip marker to avoid confusion during reassembly. For older vehicles, corrosion at terminals often disrupts flow; clean contacts with a wire brush and apply dielectric grease to prevent future oxidation.

Probing and Documentation

Trace each path from the power source to the component, following the schematic’s color-coded lines. Use a non-powered test light or multimeter to check for voltage drops–readings below 11.5V at any point indicate resistance or a break. Document every junction, splice, and ground location in a notebook, including wire gauge and directional arrows. Pay special attention to chassis grounds; a single loose bolt can render an entire system inoperative. For stubborn faults, inject a 5V signal at the component and follow it upstream to pinpoint failures.

Verify connections at switches, relays, and sensors by manually actuating them while monitoring voltage. If a component doesn’t respond, backtrack to the nearest accessible junction–common failure points include bulkhead plugs and inline connectors. For intermittent issues, flex wiring harnesses by hand while observing the test light; brittle insulation or broken strands will reveal themselves through flickering readings. Once the fault is isolated, repair with solder and heat-shrink tubing, ensuring a watertight seal. Recheck all points before reconnecting the battery and testing under load.
