Complete Electrical Wiring Guide for the 1961 Chevrolet Impala Restoration

Start with the fusible link near the battery–it’s often the first point of failure in vintage models. A multimeter set to continuity mode will confirm if the circuit remains intact or if corrosion has broken the path. Check the headlight switch terminals next; these components wear out faster than any other due to frequent use, and a faulty one can mimic problems elsewhere. Ignore generic advice about “checking fuses” if you’ve already verified the main power feed.

Remove the instrument cluster to access the printed circuit board behind the gauges. The thin copper traces corrode over time, especially near the voltage regulator connections. Scrape off oxidation with a fiberglass pen or fine sandpaper, then solder a jumper wire if the trace is broken. Resist the urge to simply clean and reassemble–corrosion returns quickly if the underlying issue isn’t permanently addressed.

The generator-to-battery circuit is critical; voltage drops here can cause dim lights, slow cranking, or erratic gauge readings. Use a wiring diagram for your specific body style (even minor trim differences alter pinouts) and probe each connection while the engine runs. A healthy system should show 13.8–14.4 volts at the battery terminal with no load. Anything below 13.2 volts indicates a bad ground, faulty regulator, or deteriorating alternator brushes.

Focus on the turn signal flasher relay if signals act erratically–it’s a common failure point with distinct symptoms. Replace the relay rather than diagnosing its internal contacts; aftermarket replacements cost less than a single diagnostic hour. For tail lights, trace the circuit from the bulb sockets backward–crumbling insulation on the fuel gauge sending wire often shorts against chassis ground, causing intermittent failures.

Store an annotated diagram under the driver’s seat or in the glovebox. Mark known trouble areas in red pen and update it after each repair. Avoid relying on memory; even identical-looking harnesses can have subtle routing differences between production runs.

Restoring the Classic Electrical System: A Hands-On Approach

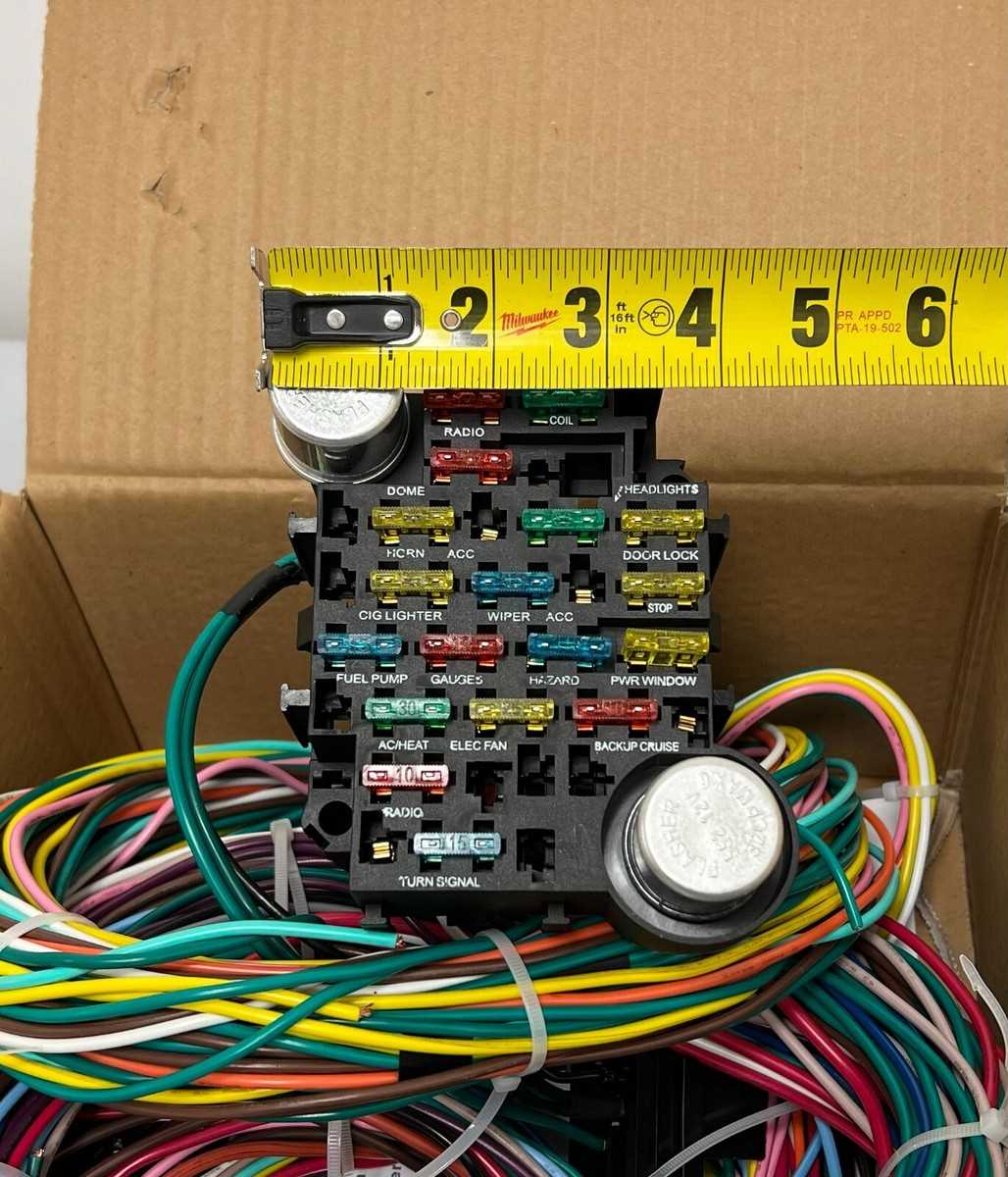

Begin by locating the fuse block under the dashboard–Chevrolet’s engineers placed it near the steering column for accessibility. Use a multimeter set to continuity mode to verify each fuse slot before reconnecting any harness. Factory-spec fuses for this model are 18A for the headlight circuit and 12A for the ignition, but replacements should match the original amperage precisely to prevent overheating. If the circuit breaker trips frequently, inspect the voltage regulator, as faulty units often mimic short conditions in older vehicles.

Trace the main power feed from the battery terminal to the solenoid, then along the firewall bulkhead connector. The bulkhead pins–nine in total–corrode easily; clean each with a wire brush and apply dielectric grease before reassembly. Pay special attention to pin 5 (bright light switch) and pin 8 (instrument cluster); corrosion here causes intermittent dash lamp failures. Replace any degraded pigtails with 10-gauge stranded copper wire, soldering connections and heat-shrinking each joint for durability.

Instrument Panel Troubleshooting

The speedometer and fuel gauge share a grounding strap bolted to the firewall, often overlooked during restorations. Remove the strap, sand the mounting surface to bare metal, and reattach with a zinc-plated bolt to prevent voltage drops. If the temperature gauge reads erratically, swap the sending unit first–original units are prone to internal shorting after decades of thermal cycles. For turn signal issues, check the flasher relay mounted on the brake pedal bracket; bypass it temporarily with a test light to isolate the fault.

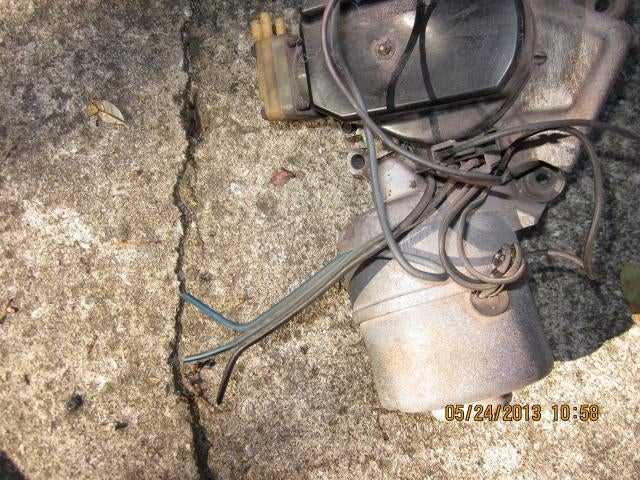

When rewiring the two-speed wiper motor, note the color-coding: black/white for low speed, black/yellow for high. The delay feature, if equipped, relies on a separate brown wire fed through the dashboard harness–route this carefully to avoid chafing against the steering column. For radio wiring, the power lead (red) connects directly to the fuse block via a 5A fuse; ground the chassis at the antenna base with a dedicated 8-gauge wire to eliminate static. Avoid using modern crimp connectors–solder and shrink tube ensure long-term reliability in high-vibration areas.

Finding Authentic Schematic Sources for the Classic 1961 Chevy Full-Size Model

Begin with the original factory service manuals released by General Motors for the Bel Air series, which included the same electrical layouts. The 1961 edition, part number ST-12, remains the most reliable source, often sold through reproductions from vendors like Helm Incorporated or Motor Books. These manuals include fold-out pages with color-coded circuits, ground locations, and fuse block details–critical for accurate restoration.

Online forums such as Impala SS Forum and Team Chevelle host scanned archives of dealer-issued supplements. Look for thread attachments labeled “Electrical Troubleshooting Guide” or “Factory Wiring Supplement”. Members frequently upload rare, high-resolution PDFs of diagrams pulled from surviving dealership stocks. Check the “Reference Materials” subsections for direct links.

Vintage Print Media and Club Resources

Back issues of Chevrolet Enthusiast magazine from the early 2000s occasionally featured detailed schematics in their tech articles. These can be found in physical archives at national car club meets or through specialty sellers like RockAuto and Weston’s Antique Auto Literature. Confirm the issue covers the B-body platform’s electrical system.

For physical copies, visit swap meets where vendors sell original shop manuals removed from dealerships. Key identifiers include the Chevrolet “bowtie” logo embossed on the cover and page headers listing “Section 8 – Electrical”. Avoid later reprints lacking factory labels–these often omit sub-circuit details like turn signal relay pinouts or dash harness branch points.

Step-by-Step Breakdown of the Classic Chevy’s Electrical Layout

Begin by isolating the fuse block behind the instrument panel–its eight-slot design houses critical circuits for the headlamps, tail lights, and ignition. Label each fuse numerically (1–8) with masking tape, referencing the original factory schematic: slots 1–3 handle lighting, 4–6 power accessories, and 7–8 protect the charging system. Use a multimeter to test continuity; voltage at each terminal should read 12.6V with the key in the *ACC* position. Replace corroded spade connectors with tin-plated copper variants, crimped and soldered for longevity–aluminum-style terminals from auto parts stores accelerate degradation under vibration.

Key Subsystems and Testing Protocols

• Charging Circuit: The generator’s *A* terminal (armature) connects to the voltage regulator via a 10-gauge wire, striped yellow/black. Clean the regulator’s contact points with 600-grit sandpaper, then adjust spring tension to 4.5–5.2 oz for proper voltage cut-out. Bench-test the generator using a 12V power supply and ammeter: output should stabilize at 35–45 amps with the field terminal grounded.
• Lighting Harness: Trace the headlamp switch’s *L* terminal to the dimmer relay–this single-pole double-throw unit toggles between high and low beams. Inspect the relay’s coil resistance (85–120 ohms); values outside this range indicate a failed winding. Replace brittle polyester-insulated wires in the front harness with cross-linked polyethylene (XLPE) rated for 150°C.
• Ignition System: The ballast resistor (1.8 ohms) feeds the coil’s positive terminal via a resistor wire (pink, 18-gauge). Bypass this temporarily during startup to confirm coil performance–current draw should spike to 4–6 amps then drop to 1.5–2.5 amps. A steady draw above 3 amps suggests primary winding shorts.
• Instrument Gauges: The fuel and temperature senders rely on variable resistance (0–90 ohms for empty/full on fuel). Use a potentiometer to simulate sender output at the gauge cluster’s *I* terminal: voltage should swing from 0.5V (empty) to 5V (full). Corroded printed circuits on the back of the cluster require silver conductive paint for repairs–avoid carbon-based pastes as they introduce parasitic resistance.

For ground verification, attach a jumper wire from the battery negative terminal to the engine block and frame–voltmeter readings across chassis points should not exceed 0.1V. Scrub paint and rust from grounding straps (especially behind the battery tray) and re-secure with star washers to prevent voltage drop under load.

Troubleshooting Electrical Faults in Classic Chevy Models

Start by checking the fuse block behind the instrument panel–corrosion on the blade connectors often mimics blown fuses. A voltmeter reading less than 12.4V at any fuse slot suggests a failed contact, even if the fuse itself tests intact. Replace the entire holder if oxidation resists cleaning; aftermarket reproductions lack the original brass plating and degrade faster.

Dim or flickering headlights typically point to a flaking voltage regulator ground, not the bulbs. Scrape the paint off the firewall mounting stud where the regulator attaches, then coat the bare metal with dielectric grease before re-securing the unit. Voltage readings above 15.5V at the battery while the engine runs confirm regulator failure; the original Delco unit rarely lasts beyond four decades and should be swapped for a modern solid-state equivalent.

Dash Instrument Anomalies

Intermittent gauge operation usually stems from brittle insulation on the sender wires beneath the dashboard. Peel back the cloth wrapping on the harness and probe each wire with a continuity tester; a single broken strand can drop resistance enough to skew fuel and temperature readings. Re-wrap exposed sections with genuine cotton braid and flexible varnish–vinyl tape melts under heat from the heater core.

If the speedometer needle bounces or sticks, the problem lies in the flexible cable’s inner core, not the gearbox output. Disconnect the cable at both ends, flush the housing with mineral spirits, then lubricate it with graphite powder; petroleum jellies attract dust and seize the cable in cold weather. Replace the entire assembly if fraying is visible at either tip–attempting to splice a vintage cable invites premature failure.

Parasitic drains often trace to the courtesy light circuit under the rear seat or in the trunk. Unplug the door jamb switches; if the battery still discharges overnight, pull the fuse for the interior lights and measure current draw at the fuse slot. Readings above 50mA indicate a short to chassis–common culprits include pinched wires along the rocker panels where the harness exits the body. Isolate the faulty branch by pulling fuses one by one until the current drops.
