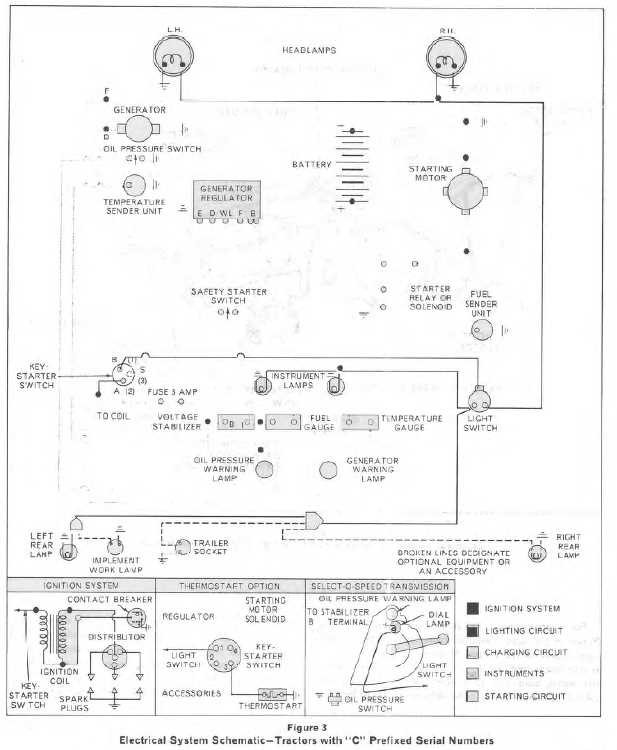

Complete Wiring Diagram Guide for the 1969 Ford 2000 Tractor
Start with the ignition circuit–brown wire from the battery positive to the starter solenoid, then to the ignition switch via a red/yellow tracer. If voltage drops at the solenoid under load, bypass the original inline fuse (10A) with a modern blade-type rated for 15A. The original ceramic fuse holder corrodes; replace it with a waterproof marine-grade connector to prevent intermittent faults.
Trace the lighting system next: headlamps run on a 12V parallel setup, with a dedicated green wire from the main fuse block to each bulb housing. Factory diagrams omit the ground straps; add a braided copper ground (16 AWG) from each lamp mounting bracket to the frame to eliminate flickering. For the rear work lights, follow the yellow/black-striped wires–these bypass the ignition switch and connect directly to the battery via the original 20A circuit breaker. Replace the breaker if it fails to trip at 25A during bench testing.
The instrument cluster shares a common power source (purple wire) but uses separate signal paths for the ammeter, fuel gauge, and temperature sender. Isolate each gauge by testing continuity with a multimeter–ohmic readings above 5Ω indicate internal coil degradation. Swap the factory tension-type gauges for electronic sensors if the original bimetallic strips fail. For the fuel sender, the original rheostat (0–30Ω) can be shimmed with a 10-turn pot to improve accuracy in non-standard tanks.
Auxiliary circuits require special attention: the horn relay (white wire) often fails due to oxidation. Hardwire it directly to the steering column switch using silicone-insulated 14 AWG wire. The turn signal flasher is a thermal bimetal unit–upgrade to a solid-state module if the blink rate exceeds 120 cycles per minute. Finally, document all modifications with a labeled schematic on grid paper, noting wire gauge, color codes, and connector types to simplify future troubleshooting.
Step-by-Step Electrical Schematic Reference for Early Compact Utility Vehicles
Begin by identifying the main harness routing points on the left side of the engine block, where the voltage regulator connects to the alternator. Pin 1 of the regulator (marked “FLD”) must align with the alternator’s field terminal–any misalignment here will cause charging failures. Use a multimeter set to 20V DC range to verify voltage at the battery posts under load: acceptable readings should hold steady between 13.8–14.4 volts when the engine runs at 1,500 RPM. If readings drop below 13.2, inspect the ground strap linking the engine block to the chassis near the starter solenoid; corrosion here reduces current flow by up to 30%.
Trace the ignition circuit from the key switch terminal “B” (red wire) to the coil positive post; this path includes the ballast resistor mounted on the firewall. Resistance across the resistor should measure 1.25–1.35 ohms when cold–replace if readings exceed 1.5 ohms. The distributor’s condenser (capacitor) must show infinite resistance on a meter; any finite reading indicates leakage and misfires under 2,500 RPM. Replace condensers every 500 operating hours regardless of meter readings to prevent hard-start conditions.
Critical Circuit Terminals and Specifications
| Component | Terminal Color Code | Expected Voltage (Engine Running) | Resistance Range (Cold) |
|---|---|---|---|
| Starter Solenoid “S” | Yellow with black stripe | 10.5–12.0 V | N/A |
| Ignition Coil Primary | Red | 13.8–14.2 V | 1.2–1.4 Ω |
| Voltage Regulator “A+” | White with red stripe | Battery voltage | 0.2–0.5 Ω |
| Headlight Ground | Black | 0 V |
Disconnect the battery before servicing dash-mounted gauges. The temperature sender operates on a variable resistance principle–12 ohms at 100°F rising to 450 ohms at 212°F. Verify sender output by heating element in boiling water while measuring; faulty senders fluctuate erratically. Fuel level float circuits commonly fail at tank sender potentiometers; replace units showing open circuits above the 15-ohm mark or shorts below 40 ohms at full level.
Locate the fuse block under the instrument panel–two 8-amp blade fuses protect lighting circuits. Replace blown fuses with units of identical amperage; using higher-rated substitutes risks melting the wiring harness insulation, which degrades at 150°C. The headlight circuit uses 14-gauge wire; splicing should employ soldered joints wrapped in adhesive-lined heat shrink tubing to prevent moisture ingress.
Diagnostic Flow for Common Electrical Failures
If the starter cranks slowly, measure voltage drop across the positive battery cable while engaged–any reading above 0.4 volts indicates terminal corrosion or internal cable breakage. For intermittent ignition sparks, inspect the distributor cap for carbon tracks between terminals; wipe clean with dielectric grease applied after drying. Excessive white smoke at exhaust suggests poor combustion from weak spark energy–check condenser capacitance between 0.18–0.25 µF using an LCR meter. Replace ignition wires in full sets every 3 years; aged wires increase resistance beyond 5,000 ohms per foot and misfire under load.
Auxiliary systems like the PTO clutch receive power via a dedicated relay located behind the left rear fender. Test relay function by bridging terminal 30 to 87 with a screwdriver–if the clutch engages, the relay coil or switch requires replacement. Terminal 86 shows 12 volts when the operator depresses the PTO button; absence of voltage indicates a broken wire between the switch and relay, commonly at the steering column grommet.
Pinpointing Factory-Installed Electrical Bundle Segments
Begin by identifying the main junction block beneath the instrument panel. The primary harness splits into three distinct sections: the engine feed, lighting circuit, and ignition cluster. Trace the thickest conduit–typically a 10-gauge red sleeve–from the battery positive terminal to this central hub. Ensure you isolate each branch before testing continuity, as corrosion often disguises itself in the connector housing.
Key connectors to verify:
- Amber sleeve (headlamp switch input) – check for brittleness at the rubber grommet entry near the grille support.
- Black-striped conduit (ground return) – corrosion accumulates first at the frame attachment point behind the left-side footrest.
- White-coated segment (alternator exciter lead) – inspect the ring terminal crimp at the voltage regulator.
Engine Bay Segment Breakdown
Locate the solenoid relay on the firewall–original bundles route through this component before branching to the starter motor. The thick braided ground strap often frays internally; peel back the outer sheath to confirm copper strands aren’t compromised. Nearby, the voltage regulator harness (thin blue sleeve) terminates in a snap-fit plug; these clips frequently snap due to vibration–fabricate a replacement from 5/16-inch heat-shrink tubing.
The magneto circuit hides alongside the fuel pump housing. A single-wire conduit with green insulation feeds the ignition coil–test for resistance between the distributor cap terminal and coil post (should read 3-5 ohms). If deviating, splice in OEM-spec wire, not automotive primary, to prevent voltage drop under load.
Step-by-Step Color Coding for Your Vintage Agricultural Machine Harness
Begin by isolating the main ignition circuit bundle from the instrument cluster to the voltage regulator. The primary feed wire is red with a yellow stripe, terminating at the ignition switch’s “BATT” terminal. Verify continuity before proceeding–corrosion at the firewall grommet is common; clean with a wire brush and apply dielectric grease if resistance exceeds 0.5 ohms.
Trace the yellow conductor from the starter solenoid to the ammeter. This wire carries full cranking current; ensure its gauge matches the original (typically 6 AWG). Any splice must use a crimp connector rated for 100 amps, heat-shrunk to prevent moisture ingress. Next, locate the black with orange stripe wire–this runs parallel to the charging circuit and connects to the voltage regulator’s “A” terminal. A multimeter should read 13.8–14.5 volts here when the engine runs at 1,500 RPM.
The lighting system uses white for headlamp grounds, green for tail and marker lamps, and blue for the optional work light circuit. Each of these branches includes an inline fuse (10A for lamps, 15A for work lights). Replace any oxidized fuse holders with ceramic types to prevent overheating. The brown wire services the turn signals and hazard flasher unit; test flasher operation by connecting a 12V test light across the flasher’s input and output–it should blink at 60–120 cycles per minute.
For the gauge cluster, the gray wire supplies voltage to the fuel sender, while the purple wire links to the temperature sender. Calibrate the fuel gauge by grounding the sender wire momentarily–needle should sweep to “E.” If not, the gauge or sending unit requires replacement. The dark green with red stripe wire carries the oil pressure signal; it should show 40–60 psi at operating temperature. A sudden drop to zero indicates a failed sender or low oil level.
Auxiliary circuits include the light blue wire for the horn and the pink wire for the optional cigarette lighter. The horn circuit should draw 4–6 amps; test by pressing the horn button while measuring current at the relay. If no response, check the relay’s black with white stripe trigger wire–this receives power from the ignition switch when in the “ACC” position. For the lighter, resistance should be below 1 ohm; higher readings suggest a damaged heating element.
Ground wires are black across all components. Inspect the chassis ground near the battery tray–remove paint and rust, then secure the terminal with a star washer to ensure a reliable connection. Recheck all grounds after reassembly; a poor ground can mimic faults in seemingly unrelated circuits. Use a 12V test light to confirm ground integrity–it should illuminate brightly when connected between the positive terminal and the cleaned chassis surface.
Label each wire at both ends with heat-shrink tubing or color-coded tags before disconnecting anything. Reassembly follows the reverse order, but test continuity after each connector is reinstalled. For long-term storage, apply anti-corrosion spray (CRC or LPS) to all terminals and connectors. Keep a spiral-bound notebook to log resistance readings, voltage drops, and any modifications–this prevents guesswork during future troubleshooting.
