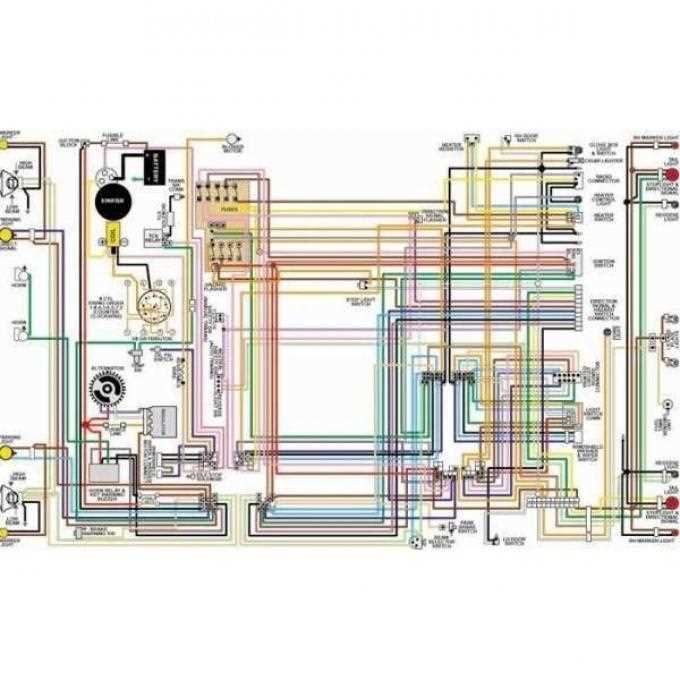

Complete 1970 Ford Torino Wiring Diagram and Electrical Guide
Start by locating the fusebox–positioned beneath the dashboard on the driver’s side–then trace the main power distribution harness running along the firewall. The 6-cylinder layout differs from the V8 variant: the former routes the ignition feed through a single ballast resistor, while the latter splits it across dual coils. Use a multimeter set to 20VDC to verify voltage at the ignition switch terminal (should read 12.6V with key in “ON” position). If voltage drops below 11.8V, inspect the battery-to-starter solenoid cable for corrosion or loose connections.
Focus on the instrument panel cluster next. The amp gauge wiring loops through the voltage regulator before grounding at the firewall; bypassing this path will cause erratic readings. For automatic transmissions, the neutral safety switch wires (light green/yellow and dark green/red) must show continuity in “PARK” or “NEUTRAL” only–any deviation indicates a faulty switch. Replace with an OEM-spec unit to avoid starter engagement issues.
The rear lighting harness uses a brown/white stripe wire for tail lights and a green/black stripe for brake activation. Corrosion at the trailer plug junction box is common–clean terminals with dielectric grease and crimp new connectors if resistance exceeds 0.5 ohms. For convertible models, the top motor relay (supplied by purple/yellow wire) requires 5 amp fuse protection; a blown fuse often stems from a short in the limit switch circuit.
When diagnosing intermittent faults, prioritize the choke heater (carbureted engines) and temperature sender circuits. The choke heater wire (dark blue) should maintain 6-8 ohms resistance; anything above 12 ohms signals a failing heater element. For fuel-injected variants, the ECU ground (via black/white wire) must attach to an unpainted chassis point–improper grounding causes hot-start stumbles.
Classic Muscle Car Electrical Layout: Hands-On Troubleshooting
Start by locating the fuse block under the instrument panel–it’s mounted to the firewall on the driver’s side. Label each fuse with its amperage and circuit name using a fine-tip marker before removing any. A blown 15-amp fuse in slot B often indicates a short in the tail light harness; pull the rear trim panel and inspect the brown/white striped wire for chafing near the wheel well.
Trace the ignition feed from the starter solenoid to the ignition switch–it’s the red wire with a yellow stripe, gauge 10. At the firewall connector, probe the wire with a multimeter; 12.6 volts should read when the key is in the “on” position. If voltage drops below 11.2 volts, the inline fusible link has oxidized–replace the 3-inch segment with tinned 10-gauge copper wire, soldered and heat-shrunk.
Dome light circuits fail when the door jamb switches corrode. Remove the kick panel and test continuity on the tan/black wire–each switch should close to ground when the door opens. Lubricate the switches with dielectric grease; if corroded, replace the full-length door harness rather than splicing, as intermediates cause voltage drop.
Headlamp relays click but don’t illuminate? Check the dimmer switch mounted on the steering column–its contacts wear from repeated toggling. Disassemble the switch, sand contacts with 600-grit paper, and reassemble with generous contact cleaner. If replacement is needed, upgrade to a sealed relay kit that bypasses the original switch entirely, using a momentary rocker for brights.
Turn signals cancel poorly because the cancelling cam on the steering shaft wears down. Remove the steering wheel, pry off the cam with a flathead, and epoxy a new nylon cam fabricated from 0.25-inch thick stock. Alternatively, install an electronic cancel module that reads wheel position via a Hall sensor glued to the lower column shroud.
Radio static persists after antenna extension? Snip the coaxial 15 feet from the radio, strip 0.75 inches of shielding, and solder a 0.01-microfarad capacitor between the core and the braid at the splice. Route the wire away from the ignition coil and alternator, securing with zip ties every 12 inches to prevent vibration-induced interference.
Voltage regulators fail when the battery overcharges. Mount a solid-state replacement externally on the radiator support; connect the field terminal to the alternator’s “F” post using 12-gauge silicone wire, heat-shrunk at each end. Calibrate charging voltage to 14.2 volts at 2,000 rpm by adjusting the onboard potentiometer until the voltmeter stabilizes.
Finding the Right Electrical Schematic for Your Classic Muscle Coupe
Begin by identifying the exact trim and engine configuration of your vehicle. Factory schematics differ between base models, GT variants, and Cobras due to optional features like air conditioning, power windows, or heavy-duty alternators. Check the vehicle identification plate mounted on the driver-side door jamb or firewall–the third digit indicates the model year, while the fifth and sixth letters specify body style and engine code. Cross-reference this with a manufacturer’s build sheet archived at the Martí Auto Works database or through the Fordification technical library.
Key Sources for Authentic Schematics
Factory service manuals published by Detroit Iron Press or Chilton’s remain the gold standard. Look for ISBN-numbered editions from 1969–1971, as these include updates for mid-cycle electrical revisions. MotorBooks’ reproduction manuals often exclude late-year changes, so verify the publication date matches your build month (e.g., early ’69 manuals miss December fuel gauge revisions). Alternatively, scan OEM microfiche from Ford Parts Graphics–their high-resolution files preserve original wiring colors and terminal designations absent in third-party reproductions.
Aftermarket harness suppliers like Painless Performance and CE Auto Electric offer variant-specific overlays, but confirm their wire gauge matches factory specs (e.g., 16-gauge for lighting circuits vs. 10-gauge for starter cables). Downloadable PDFs from Wiring Wizard let you filter by ignition system (points vs. Duraspark), transmission (C4/C6), and rear axle ratio, but their diagrams lack Ford’s error-checking symbols–cross-check against the original shop manual’s diagnostic charts.
Decoding Color Codes and Connector Pinouts
Stock wiring uses alphanumeric labels with striped, dotted, or solid insulation. Yellow/Brown (YL/BR) signifies a fused ignition feed, while Purple/Yellow (PP/YL) marks the instrument voltage regulator circuit. Terminal identifiers like “S” (starter solenoid) or “I” (ignition coil) vary by transmission control module–note whether your model uses a mechanical or vacuum advance distributor, as this alters the ballast resistor wiring. For GT trim, the optional tachometer harness includes a Pink/Black (PK/BK) auxiliary lead absent in base models, which requires a pigtail splice if retrofitting.
If restoring a car with aftermarket modifications, map each circuit using a multimeter rather than relying on generic wiring guides. Measure voltage drop across the headlight switch (max 0.4V), and probe the fuse block sockets–early models use ATO fuses, while late-year builds incorporate dual-spade “mini” fuses. For Cobras with factory radios, the antenna relay (located behind the glovebox) connects via a Gray/Red (GY/RD) wire that is often mislabeled as a lighting circuit in reproduction diagrams.
Decoding Color Patterns in Classic Muscle Car Electrical Pathways
Begin by isolating the main harness cluster behind the instrument panel. Locate the orange-striped conductor (Y-O) feeding the ignition circuit–this is your first anchor point. Trace it backward to the fuse block, noting splices where it splits toward the voltage regulator and coil. Use a multimeter set to continuity mode; probe the terminal while an assistant cycles the ignition to confirm live voltage at key junctures.
Identify the dark green (DG) bundle serving the lighting network. This cluster separates into three primary branches: headlamps (DG/W), taillights (DG/Y), and dash indicators (DG/R). Label each termination before disconnecting the bulkhead connector–record resistance readings (typically 1.5–3 ohms) across each branch to establish baseline integrity. Corroded splices often manifest as values exceeding 5 ohms.
Critical Junction Verification
The firewall feedthrough grommet houses twelve 18-gauge leads–prioritize the purple (P) and light blue (LB) pairs. The P conductor powers the fuel sender; inconsistencies here directly impact gauge accuracy. Follow the LB path to the back-up lamp relay–test for 12V delivery when shifting into reverse. If voltage drops below 11.8V, inspect the neutral safety switch for worn contacts.
- Strip ¼ inch of insulation from suspect terminations using specialty automotive strippers (avoid side-cutters to prevent nicked strands).
- Apply dielectric grease to reconnected joints to prevent oxidation–especially critical for ground connections near the driver-side fender.
- Replace crimped connectors with soldered joins for main power feeds; use heat-shrink tubing rated for 125°C minimum.
Examine the brown (BR) lead routing through the passenger compartment. This circuit governs turn signals and hazard flashers–intermittent failures often stem from chafing near the rocker panel. Use a tone generator to audibly trace buried segments; a sudden signal loss indicates compromised insulation requiring immediate sheath replacement with automotive-grade loom.
For engine bay diagnostics, focus on the red/white (R/W) starter solenoid feed. This high-amperage path carries transient currents exceeding 200A during cranking. Verify cable gauge (minimum 4 AWG) and replace any undersized segments–undersized wiring creates fire hazards under prolonged draw. The solenoid ground strap (bare copper) must terminate directly to the block with a star washer to ensure negligible resistance.
Advanced Color Map Cross-Referencing
- Cross-reference stray conductors using factory service documentation Appendix C (Electrical Diagnostic Charts). The light green/black (LG/BK) wire, for example, correlates to power window motors–original schematics specify 14-gauge sizing.
- For non-standard modifications, create a secondary map using zip-ties of contrasting colors at each junction. Document every splice with photographic evidence before reassembly.
- Terminal identification: Ford’s early-70s era often utilized ¼-inch spade connectors for low-current circuits–verify female-to-male polarity using a test light before reconnecting.
