Complete Wiring Diagram Guide for 1979 Chevrolet Models Electrical Systems

Begin by locating the main fuse block under the dashboard–this cluster houses critical connections for lighting, ignition, and auxiliary systems. Label each fuse with masking tape and a fine-tip marker to avoid cross-circuiting during diagnosis. The ignition switch wiring follows a red (power) and purple (start) sequence; splice mismatches here are a common failure point in vehicles of this era.

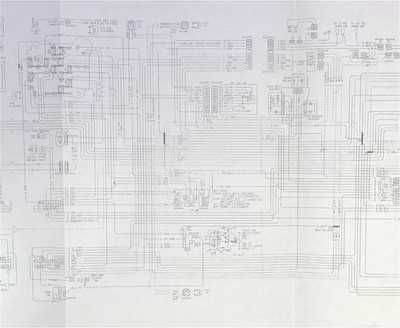

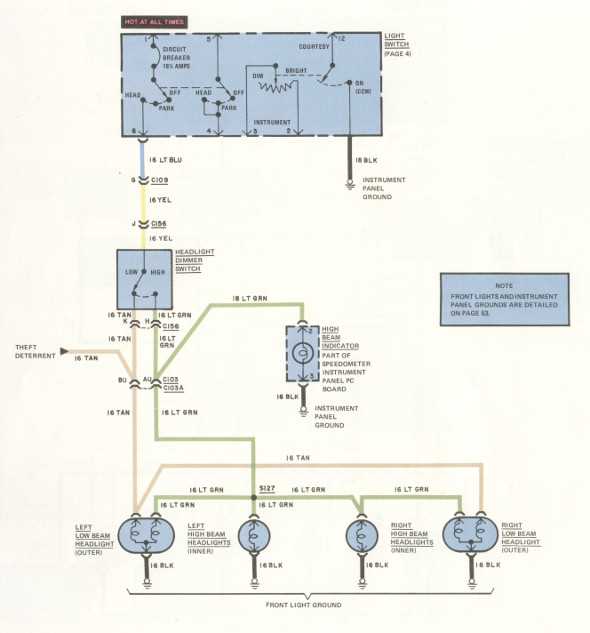

For headlight circuits, trace the dimmer switch wiring (light blue/yellow) to the steering column harness–corrosion at this junction often causes erratic low-beam operation. Use a multimeter set to 20V DC to verify voltage drops exceeding 0.5V between the switch and bulb sockets, indicating resistance from damaged wires or terminals.

The instrument cluster relies on a printed circuit board prone to cracking; inspect it under a bright light for hairline fractures. Replace the board if digital readouts flicker or analog gauges remain stuck–third-party reproduction boards are available with improved solder traces for better durability.

Air conditioning relays (white/black wire) draw high current; check the relay socket for melted plastic or discolored contacts. Swap the relay temporarily with the horn relay (identical part) to test functionality before ordering replacements. Grounding points near the battery tray and firewall must be scraped clean and secured with star washers to prevent voltage spikes affecting sensitive components.

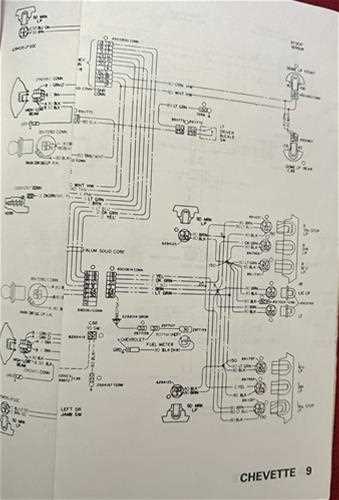

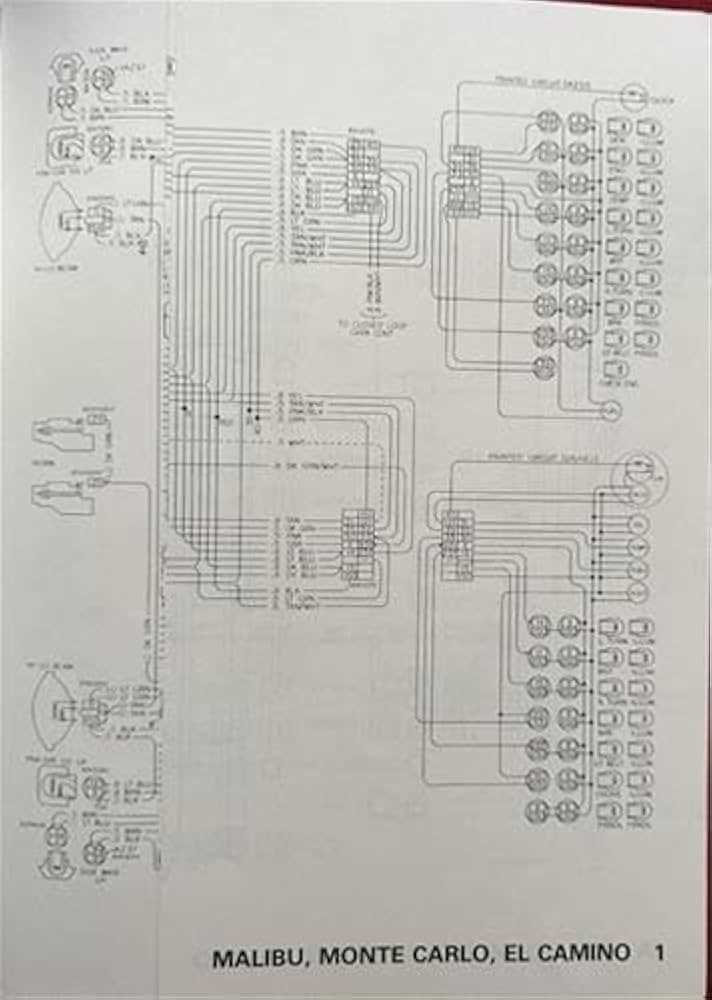

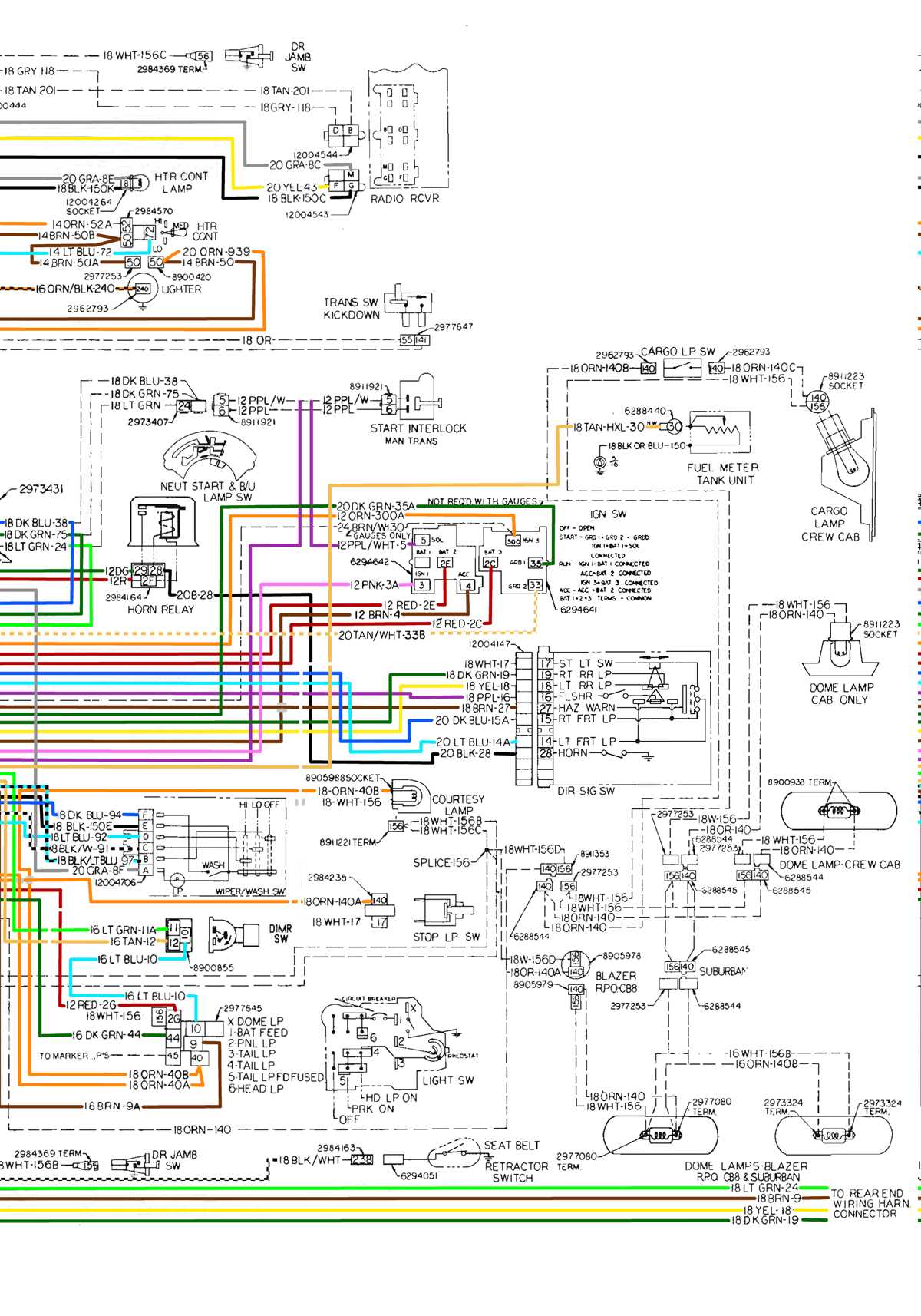

Download a factory schematic from GM’s Heritage Archive for exact wire colors and pinouts–aftermarket manuals often mislabel or omit late-70s updates like the emissions control wiring. Cross-reference physical wires with the diagram using a continuity tester; routes like the brown/white stripe for the dome light are frequently rerouted in custom builds.

When repairing splices, use heat-shrink tubing with adhesive lining instead of electrical tape–vibration loosens tape over time, leading to shorts. For fuel gauge sender wiring (pink/black), ensure the tank connector remains dry and sealed; moisture here causes false gauge readings and premature sender failure.

Understanding Electrical Schematics for Classic C/K Models: A Hands-On Walkthrough

Start by locating the under-dash fuse block–marked with a decal on the driver’s side firewall. Count three rows down and two columns right to find the ignition coil feed terminal. Use a multimeter set to 20V DC; probe the male spade connector while a helper cranks the engine. Voltage below 9.6V suggests resistance in the pink wire running from the ignition switch. Trace this path backward, checking each splice near the steering column and bulkhead connector for oxidation.

Inspect the instrument cluster’s printed circuit board–common failure points appear at the solder joints for the fuel gauge and temperature sender. A visual inspection under a 10x magnifier reveals hairline cracks radiating from the circular pads. Apply rosin-core solder with a 25-watt iron; avoid overheating the phenolic substrate, which warps at temperatures above 280°C. Replace any cracked bulbs with #194 equivalent LEDs to reduce current draw on the dimmer circuit.

Common Harness Repair Techniques

For brittle insulation on the rear tail light harness, strip back the outer sheath 12 inches from the connector. Identify the gray stripe from the brake light circuit–this wire corrodes first due to road salt intrusion. Splice in new 18-gauge GPT copper wire using Western Union joints, then seal with heat-shrink tubing containing adhesive liner. Avoid solder connections in high-vibration areas; mechanical crimps tolerate flexing better over decade-long exposure.

Test the charging system by back-probing the alternator’s “F” terminal with a test light while the engine runs at 1500 RPM. If the light doesn’t illuminate, the voltage regulator has failed or the field circuit inside the alternator is open. Replace the internal brushes if they measure less than 5mm in length; OEM replacements are Part #5169849. After reassembly, polarize the alternator by momentarily touching a jumper wire from the battery positive terminal to the “Bat” stud–this resets the residual magnetism.

When rewiring the HVAC blower motor, note the two-speed resistor block mounted on the evaporator housing. The resistor coils often burn out due to restricted airflow from clogged cabin filters. Verify continuity across each coil using an ohmmeter: the first stage should read 1.2 ohms, the second 0.8 ohms. If readings are infinite, replace the entire resistor pack (Part #14083140) rather than individual coils–corrosion spreads quickly between them.

For intermittent turn signal failures, focus on the flasher relay socket–corrosion accumulates on the #49 ground terminal. Clean the socket contacts with a wire brush, then apply dielectric grease. If the problem persists, check the bulb filaments while cycling the signal switch; improperly grounded taillights or aftermarket LED replacements can cause hyper-flashing. Revert to incandescent bulbs temporarily to confirm the diagnosis before modifying the flasher unit.

Finding the Right Electrical Schematic for Your Classic 1979 GM Truck

Begin by identifying the exact variant of your vehicle–whether it’s a C10, K10, or another series–since each model year’s electrical pathways differ. Manuals like the Chilton’s Repair & Service Guide or the GM Factory Service Manual (FSM) contain precise schematics tailored to each trim and engine option. Avoid generic online sources; they often omit critical details like fuse block layouts, ignition switch pinouts, or alternator wiring specific to the L6 or V8 configurations.

• Check the glove compartment or under-seat storage–original owners sometimes kept the FSM or a dealer-issued supplement there.
• Visit specialty forums (e.g., TheHAMB, ChevyTalk) where enthusiasts share high-resolution scans of original schematics.
• Contact GM Heritage Center; they may provide reproductions of official documents for discontinued models.

Trace wires by color codes listed in the schematic–black stripes, solid red, or pink with white stripes denote different circuits. Use a multimeter to verify connections against the diagram; resistance readings below 0.5 ohms typically confirm intact pathways. If wiring appears modified, cross-reference with a later year’s diagram (e.g., 1980) as GM occasionally reused harness designs.

Understanding Color Codes and Terminal Layouts in Classic Vehicle Electrical Blueprints

Begin by isolating the primary power distribution harness–typically marked with a solid orange or red stripe. This trace serves as the main feed from the battery to the fuse block, so any disruption here will cascade across accessory circuits. Secondary feeds (instrument panel, lighting clusters) often branch from here via thinner wires with dual-color coding, where the base hue (white, dark green) indicates the circuit family, while the stripe (yellow, black) denotes the specific function within that group. Verify connections with a multimeter set to 20V DC before assuming continuity; corrosion in older terminal blocks mimics intact wiring.

Bullet-style connectors dominate factory harnesses, identifiable by their circular housing and single locking tab. The male terminal (with a protruding pin) nearly always pairs with the female socket (marked by a circular opening), but mismatched gauges or bent pins will cause intermittent failures. For inline splices, GM favored three-terminal “piggyback” connectors–distinguished by a triangular tab–and these require precise alignment to prevent voltage drop. When replacing terminals, use crimping tools with a nested die (not pliers) and apply dielectric grease to the mating surfaces to prevent oxidation.

Identifying Pin Layouts in Modular Junctions

Dash-mounted fuseboxes and turn signal relays rely on 4-, 6-, or 8-way plastic headers, each port labeled numerically on the original schematic. Pin 1 universally handles ignition-switched power, while higher numbers (6-8) often route to accessory circuits like hazard flashers or emission solenoids. If a header appears intact but functions erratically, pry apart the housing halves with a flathead screwdriver–internal corrosion on the bus bar mimics circuit failure. Clean oxidation with 400-grit sandpaper, then reflow the connections with rosin-core solder before reassembly.

Ground straps (bare copper or black with a yellow stripe) terminate in eyelet-style connectors secured with star washers directly to the chassis. These links frequently fail at paint penetration points, so scrape adjacent surfaces to bare metal before reattaching–use a 10 AWG wire for any repair to match the original gauge. For taillight assemblies, note that the dual-filament sockets use offset keyways; forcing a bulb into the wrong orientation risks shorting the brake and running lights. Mating connectors here employ 3mm spade terminals–verify retainer clips before installation.

Heater blower circuits utilize a unique two-stage resistor block mounted behind the glovebox, fed by a purple wire (high speed) and a purple-white wire (low speed). The block’s ceramic resistors degrade over time; replace the entire module if continuity tests show resistance beyond 5 ohms between terminals. Ignition coils and electronic control modules share a dedicated harness segment, typically wrapped in loom with blue-striped wires–any repair here demands heat-resistant tape (not electrical tape) to prevent melting. Always cross-reference the color codes against a physical sample before cutting into a harness segment.
