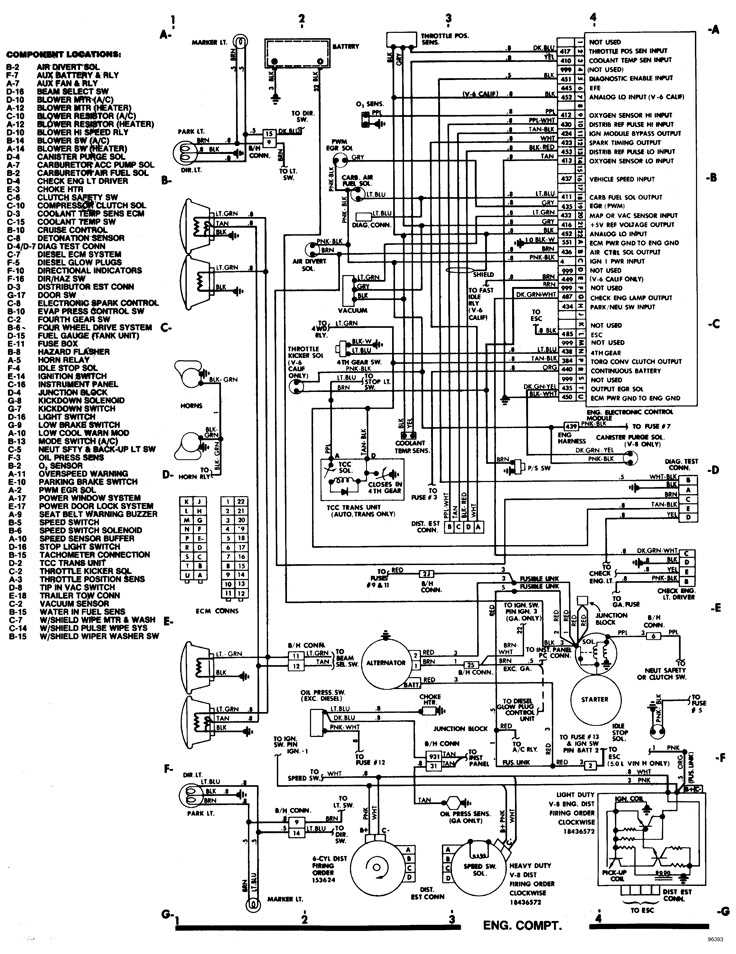

Complete 1985 Chevy K10 Wiring Diagram and Electrical Guide

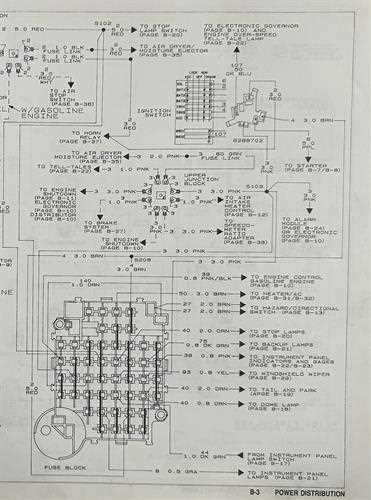

Locate the main fuse panel under the dashboard on the driver’s side–this is the nerve center for over 90% of electrical faults in square-body trucks. Use a multimeter to test continuity on fuse terminals #3 (tail lights) and #7 (headlight switch) before replacing fuses blindly; corrosion here causes intermittent failures not visible during visual inspection. The turn signal relay (mounted behind the dashboard near the steering column) often fails–replace it with a Napa ST-107 or equivalent for reliable flash rates.

Trace the instrument cluster harness back to its connector (white 12-pin plug) and inspect pins #4 (fuel gauge) and #6 (temperature gauge) for green oxidation–clean with electrical contact cleaner and re-seat firmly. The alternator wiring includes a fusible link (orange 10-gauge wire) from the battery terminal to the alternator’s B+ post; test voltage drop across it with the engine running–any reading above 0.5V indicates replacement required.

Check the brake light switch (mounted above the pedal) by jumping its terminals–if the brake lights illuminate, the switch is faulty. The wiper motor wiring includes a delay module (black box under the dashboard); if intermittent wipers fail, bypass the module temporarily with a jumper wire between #1 and #3 terminals to isolate the issue. For engine controls, verify ECM power at the blue 8-pin connector (pin #B–constant 12V, pin #A–ignition-switched)

Print the GM service manual wiring chart (publication 12449504)–it includes wire gauge, color codes, and circuit paths absent from generic online schematics. Use a heat gun to loosen factory loom tape before splicing–this prevents wire insulation cracking, a common failure point in 30+ year-old trucks. Store spare 10-amp fuses (ATF type) and 14-gauge primary wire (red/white stripe) for quick repairs.

Electrical System Troubleshooting for Your Classic Light-Duty Pickup

Start by locating the fusible links near the battery terminal. These heat-shrunk wires (typically 10 or 12 gauge) protect the main circuits; a melted or broken link often mimics ignition failure. Use a multimeter set to continuity mode: probe both ends of each link. If no beep occurs, replace the wire with identical gauge tinned copper, not standard automotive cable. The links connect to a red 10-gauge starter solenoid feed–trace this wire backward to the ignition switch if voltage drops below 10.5 volts during cranking.

Ground connections demand sanded metal surfaces–paint or corrosion creates 0.5-ohm resistance, enough to stall fuel pumps or injectors. Focus on the main engine-to-frame strap: a single 4-gauge braided wire bolted to the transmission bellhousing. Scrape until bright metal appears, apply dielectric grease, tighten to 25 ft-lbs. Similar treatment applies to the bed-to-cab ground near the driver-side taillight; neglect here often triggers erratic dash gauge jumps above 2,500 RPM.

Key Harness Repairs

• Unplug the dashboard harness. Inside the connector, pinch probes into terminals 1 (purple) for tachometer signal and 6 (pink/black) for ignition feed–both should read 12.6V key-on. Voltage below 9.5V indicates a corroded splice beneath the steering column.
• Headlight circuit failure arises from the dimmer switch; bypass using a relay mounted under the left fender. Connect relay coil to the original switch red wire, while the coil ground taps the chassis. This reduces switch load by 80%, preventing melted plastic.
• Trailer wiring requires a separate 4-pin connector. Wire the brown (tail) and yellow (left turn) directly to the rear lamp sockets–not through the factory harness, which shares grounds and causes LED lamps to flicker.

A common but overlooked issue involves the vacuum actuator wiring on the transmission. Trace the two thin wires from the shift solenoid to the firewall connector; these often chafe against the brake master cylinder. Solder and heat-shrink any exposed copper, then route the wires through a spiral plastic loom. Failure here strands the vehicle in limp mode with no drive gears above 2,000 RPM.

For auxiliary circuits–winch, plow lights, or auxiliary battery–install a 100-amp relay with fused links. Mount the relay near the battery; the coil trigger taps the accessory side of the ignition switch. This isolates the high-demand circuits, preventing voltage sag in the factory harness during simultaneous plow and winch operation.

Finding the Factory Harness and Color Codes for Your Classic Pickup

Begin by removing the dashboard lower cover and glove box to expose the main harness bundle running along the firewall passenger side. The factory harness for this full-size GM truck splits into three primary branches: engine bay, cabin, and rear chassis. Each segment uses a distinct color-coding system with solid and striped wires–stripes indicate auxiliary circuits like sensors or switched power, while solid colors handle primary functions such as battery feed, ignition, and lighting.

Trace the thickest red wire (10-12 gauge) from the battery terminal to the starter solenoid–this is your battery positive feed. Offshoots include a red/black stripe (ignition-switched power) and red/yellow stripe (alternator exciter). The black wire serves as ground; look for it crimped directly to chassis points near the engine block, frame, and cab firewall. Locate the brown wire cluster near the fuse block–this handles all exterior lighting (headlamps, taillamps) with variations: brown/white for park lamps, brown/black for brake, and brown/green for reverse.

For the instrument panel, follow the orange wire bundle behind the gauge cluster. Orange (battery constant) powers the fuel gauge sender; orange/white (ignition-switched) feeds the dash lights and turn signals. A pink wire (ignition feed) supplies power to the radio and HVAC controls–verify continuity at the fuse block’s IGN terminal. The grey wire connects to the blower motor resistor; grey/black handles high-speed operation.

Under the hood, the engine harness includes yellow (fuel pump), dark blue (oil pressure sender), and dark green (temperature sender). The transmission harness, if automatic, uses a light blue wire for the neutral safety switch and a dark blue/white stripe for the backup lamps. Manual transmissions replace these with a purple wire for the clutch switch. Check the firewall bulkhead connector–misaligned pins here cause intermittent failures in gauges and starter operation.

Rear chassis wiring can be accessed by lifting the bed. The trailer harness (if equipped) uses a heavy yellow wire for charging circuits and a yellow/black stripe for brake lights. Factory towing packages include a separate brown/red stripe wire for auxiliary brake controllers. For 4WD models, locate the transfer case harness with a tan wire for the front axle actuator–this is fused through a separate relay near the driver’s side inner fender.

Document every connection using a multimeter set to continuity mode. Cross-reference findings with the assembly manual’s electrical section–look for diagrams labeled “RPO,” “CKT,” or “WIRING SCHEMATIC” followed by a numeric code. Common failure points include brittle insulation near the exhaust manifold (replace with GM-spec cross-linked polyethylene wire) and corroded ground straps on the frame rails–clean with a wire brush and apply dielectric grease before reattaching.

How to Methodically Trace Ignition Circuit Paths on Your Classic Truck

Disconnect the battery terminal first to prevent accidental shorts or sparks. Label each wire with masking tape and a marker–note the color-code and connection point (e.g., “Red/White – coil +”). Use a multimeter set to continuity mode to verify no unintended breaks exist before probing further.

• Battery feed to solenoid: Locate the thick red cable running from the positive terminal; trace it to the starter relay. Check for corrosion at the connection–clean with a wire brush if needed. The relay’s smaller wire (often purple) should split: one path leads to the ignition switch, the other to the alternator field terminal.
• Ignition switch output: From the switch’s “I” terminal, a brown wire typically feeds the ballast resistor. Confirm this with a test light–voltage should drop when the key is turned to “start.” If absent, inspect the switch connector for bent pins.

Follow the coil’s primary circuit. The positive terminal receives 12V via the brown wire from the ballast resistor (or directly from the switch in some setups). The negative side connects to the distributor’s breaker points or electronic module. Probe the coil terminals with the key on–voltage should match battery level at the positive, and zero at the negative when points are closed.

1. Distributor connections: Pull the cap off and mark the rotor position. Two small wires run from the points/module: a black/tan striped lead (signal) and a solid black (ground). Attach your multimeter’s black probe to the intake manifold, red to the signal wire–crank the engine; you should see 3-5V pulses.
2. Spark plug wires: Resistance-test each cable with the meter’s 20kΩ range. Values should fall between 5,000 and 10,000 ohms. Higher readings indicate internal breaks; replace immediately. Route wires away from exhaust manifolds to prevent insulation melt.

Inspect the fusible link–a short yellow or orange wire near the battery. Scrape off any melted insulation; if the inner copper strands are severed, splice in a new 14-gauge segment using crimp connectors. Never bypass with solid wire–it eliminates overcurrent protection.

Reconnect the battery last. Turn the key to “run” and verify dashboard lamps illuminate. Crank the engine; if starter spins but no fire occurs, focus on the coil’s negative terminal voltage swing–absence confirms a faulty module or points gap issue. Swap the module first before adjusting points.

Document every step with photographs or hand-drawn sketches. Avoid relying on memory–critical colors often repeat (e.g., orange appears at both the heater and dashboard circuits). Keep a zippered bag of spare bullet connectors, heat-shrink tubing, and dielectric grease nearby for field repairs.
