Guide to 1986 Toyota Pickup Stereo Wiring Colors and Connections
Locate the pink wire (constant 12V power) behind the factory harness–it’s typically bundled with the instrument cluster connector. Pair this with the brown accessory wire (switched 12V) near the ignition switch. Cross-referencing these with an aftermarket head unit’s power harness prevents battery drain and ensures power cuts when the ignition is off.
Match the blue/white amplifier trigger wire to the vehicle’s existing wiring harness–look for a single thin wire usually tucked near the back of the original radio slot. This wire enables remote turn-on for external amplifiers. Failure to connect it properly results in no sound or a persistent “thump” noise during startup and shutdown cycles.
Identify speaker leads: front left (+) light green, front left (-) dark green; front right (+) gray, front right (-) dark gray; rear left (+) blue/black, rear left (-) blue/white; rear right (+) red/black, rear right (-) red/white. Use a multimeter to confirm polarity–reversing these can degrade soundstage imaging and bass response.
For aftermarket DEI (Directed Electronics Inc.) interfaces, route the pink memory wire directly to a fused circuit if the stock loom lacks a proper inline fuse. Install a 10A fuse within 7 inches of the battery terminal to prevent fire hazards. Avoid tapping into the cigarette lighter circuit–its weak ground path causes voltage fluctuations and eventual connector oxidation.
Ground the black chassis wire to a bare metal spot beneath the dash–clean rust or paint first using a wire brush and apply dielectric grease to inhibit corrosion. Poor grounding manifests as whining noises that escalate with engine RPM increases. If interference persists, relocate the ground to the firewall near the brake master cylinder.
Audio System Harness Layout for Early Eighth-Gen Compact Trucks
Begin by disconnecting the negative battery terminal to prevent short circuits before handling any electrical connections. Locate the factory harness behind the dashboard cluster–typically a 10-pin rectangular connector with color-coded wires. Use a multimeter to verify wire functions if labels are missing or faded.
Key Wire Identifications
- Red (constant power): Supplies 12V direct from the battery; fuse this line at 10A to protect the memory settings.
- Yellow (switched power): Activates with the ignition; ensure it’s connected to a clean 12V source, not the ACC circuit, to avoid voltage drop.
- Black (ground): Must be routed to a bare metal chassis point; sand paint away for solid contact.
- Blue/white (amplifier trigger): Only needed if installing an external amp; otherwise, cap with electrical tape to prevent shorts.
- Green, gray, purple, white (speaker wires): Follow the absolute right-hand drive/left-hand drive polarity–mismatches cause phase cancellation.
For models with factory premium audio, an additional 8-pin harness exists under the passenger kick panel. This includes a dedicated pink/black wire for the antenna motor–interrupting this line can cause the motor to stall mid-retraction. Test antenna operation separately before finalizing head unit installation.
Troubleshooting Common Pitfalls
- Fuse blows repeatedly:
- Check for melted insulation on the red wire near the fuse block–common in vehicles with aftermarket gauge clusters.
- Use a relay if drawing more than 5A for upgrades (e.g., subwoofer).
- Speakers cut out at high volumes:
- Inspect wire gauge–original harness uses 18AWG; thicken to 16AWG for modern systems.
- Avoid routing wires near HVAC ducts to prevent interference.
- Display dims inconsistently:
- Orange wire (illumination) must be connected to the dimmer circuit, not dashboard lights, to maintain proportional brightness.
Isolate aftermarket harnesses from the factory loom using T-taps or soldered connections–never twist wires, as vibration from uneven roads will degrade the joint over time. For converter boxes (e.g., Metra ASWC-1), confirm compatibility with the 20-pin connector’s pinout; some early units mislabel the illumination wire.
If retaining the stock cassette player or CD changer interface (gray 6-pin connector), note that the purple/white wire carries data signals–splicing into this line can corrupt transmission. Use a bypass module if the original interface is non-functional.
For vehicles with manual climate control, avoid the brown wire (defogger switch) as it carries intermittent high-current loads that can introduce noise into the audio signal. Route all new wires through existing grommets in the firewall to prevent chafing against sharp metal edges.
Finding the Original Audio System Harness in Your Vintage Truck
Begin by removing the center console or lower dashboard panel–this area typically conceals the main electrical bundle for audio hardware. On most single-cab models, the harness exits directly behind the factory radio slot, secured with a plastic clip or zip tie. If the clip is brittle, carefully slice it with diagonal cutters to avoid damaging the colored leads.
The bundle consists of eight to ten wires, grouped by gauge and insulation color. Use the table below to identify each lead based on its function and hue–this mapping applies to standard configurations before aftermarket modifications:
| Wire Color | Purpose | Connects To |
|---|---|---|
| Yellow (striped) | Memory power | Positive battery via fuse |
| Red | Switched power | Ignition circuit |
| Black | Ground | Chassis or metal bracket |
| White | Front left speaker (+) | Positive speaker terminal |
| White/black | Front left speaker (-) | Negative speaker terminal |
| Gray | Front right speaker (+) | Positive speaker terminal |
| Gray/black | Front right speaker (-) | Negative speaker terminal |
| Green | Rear left speaker (+) | Positive speaker terminal |
| Green/black | Rear left speaker (-) | Negative speaker terminal |
Trace the yellow-striped cable to its splice point–usually near the fuse block under the driver’s side dash. For aftermarket integration, tap this wire with a *Add-A-Circuit* fuse holder rather than cutting it directly, preserving factory reliability. Verify voltage with a multimeter: it should register 12V even when the key is off, confirming proper memory retention.
On extended-cab variants, additional harness branches extend toward rear-mounted tweeters. These sub-bundles, often wrapped in corrugated loom, terminate in plastic Molex connectors. If upgrading to amplified systems, retain these connectors for potential factory amplification bypass–later models include built-in crossovers that affect signal clarity if omitted.
Inspect for brittle or oxidized wires, particularly near high-vibration zones like the firewall grommet. If insulation crumbles, slide adhesive-lined heat shrink tubing over exposed sections, apply solder if necessary, then seal with low-voltage electrical tape designed for automotive use (e.g., Scotch 2242). Standard electrical tape deteriorates under heat cycles, risking shorts.
For vehicles equipped with optional equalizers or fader controls, an auxiliary harness splitter may exist behind the glove box or kick panel. Label each segment using painter’s tape before disconnecting to avoid later confusion–factory harnesses rarely include color-coding documentation for auxiliary circuits.
Wire Color Standards and Connector Layout for Early Model Light Truck Audio Systems

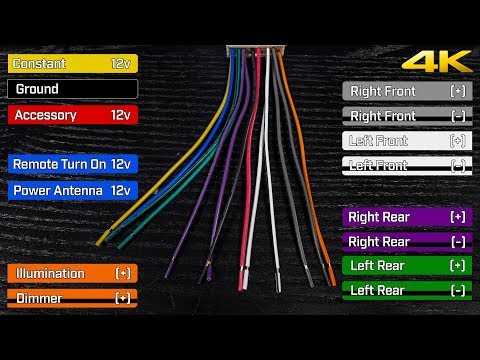

Begin by matching the solid red wire to the ignition-switched 12V supply; this line powers the receiver only when the key is in the RUN or ACC position. The adjacent solid yellow wire delivers constant battery voltage, ensuring memory retention for presets and clock settings–verify this line maintains 12V even with the ignition off. Ground connections must terminate at the bare black wire, preferably bolted directly to the chassis near the unit’s mounting location to prevent whine or static interference.
Speaker outputs follow a consistent color scheme: front left positive is light green, front right positive is gray, rear left positive is blue, and rear right positive is violet–each paired with a corresponding striped wire (white, green, brown, and red stripes respectively) marking the negative return path. Avoid bridging or shorting these leads, as improper connections can damage the amplifier circuitry or blow fuses. Test each pair with a multimeter set to continuity mode before finalizing connections to confirm polarity.
The illumination control wire, solid orange, dims dashboard lights in sync with the vehicle’s headlight switch–connect this to the dash lighting circuit to enable automatic dimming at night. For vehicles equipped with an antenna motor, the pink wire supplies power; splice this to the original radio’s antenna lead to ensure proper retraction when switching sources. Factory harnesses may include a single brown wire for a mute function, typically unused in aftermarket units but requiring insulation if left disconnected.
Pinout sequence on the 10-pin ISO connector reads left to right as follows: constant power (yellow), switched power (red), ground (black), front left (+), rear left (+), rear right (+), front right (+), illumination (orange), antenna (pink), and mute (brown). Use crimp connectors or solder joins for secure, corrosion-resistant terminations, and wrap each joint with electrical tape or heat-shrink tubing to prevent moisture intrusion. Double-check all connections against a wiring schematic specific to your model variant, as minor deviations exist between single-cab and extended configurations.
