Complete Electrical Wiring Guide for the 1987 Porsche 911 Schematics
To accurately restore or troubleshoot any late-’80s German performance machine, begin by securing the original schematic–evade aftermarket reproductions, as they often omit critical fusebox pin assignments and ground distribution points. The car’s central relay panel, tucked beneath the dashboard on the passenger side, governs fuel injection, ignition timing, and coolant fans through distinct 8-pin connectors; each terminal must be cross-referenced with the factory service manual’s 4-color coded pages–blue, red, yellow, and green wiring paths correspond to primary, sensor, power, and earth circuits respectively.
The engine bay harness splits at the firewall bulkhead into two critical sub-assemblies: the main loom feeding the 3.2-liter flat-six, and a secondary bundle servicing the rear-mounted auxiliary systems. Pay particular attention to the dual-path oxygen sensor loops; pre-catalyst and post-catalyst signals diverge at connector C103 before routing to the fuel computer’s 16-pin ECU interface. A multimeter set to 200-ohm scale will confirm continuity across the twin fuse holders–designated rows A and B–that safeguard the air conditioning clutch coil and headlight washers.
Aftermarket alarm installations frequently disrupt the door lock actuator circuits, which rely on a pulsed 12V feed controlled by the central locking module adjacent to the driver’s footwell. Validate signal integrity by probing pin 3 of the brown 6-way plug while cycling the key lock; expected voltage drop should not exceed 0.5V under load. For retrofits involving modern audio systems, bypass the stock amplifier’s 8-channel impedance matcher–located behind the rear bulkhead–by tapping directly into speaker outputs at the head unit’s ISO harness, but preserve the factory equalizer settings stored in the climate control module’s EEPROM.

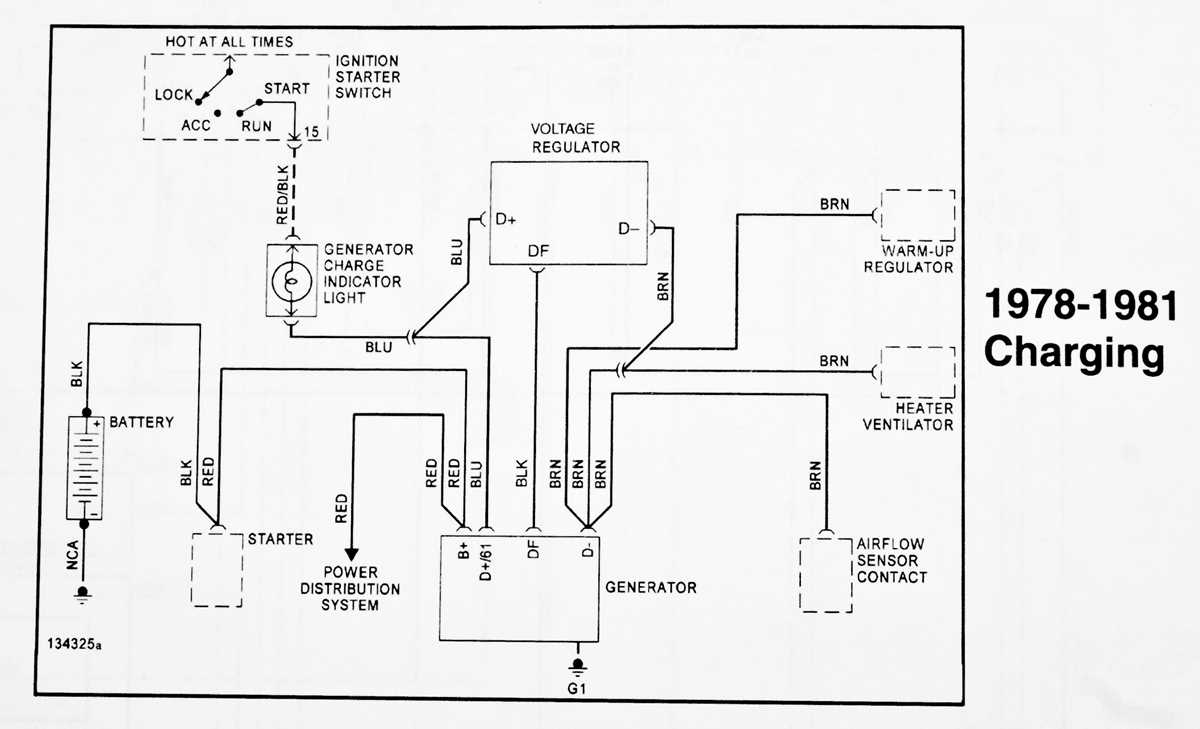

Critical failure points–often overlooked–include the alternator voltage regulator’s single-wire excitation circuit and the instrument cluster’s stepper motor wiring for the tachometer; both require soldered repair, not crimped splices. When reconnecting the 9-way diagnostic port beneath the dashboard, ensure pin 7 (engine speed reference) aligns with the ECU’s grey connector, as cross-threading here risks corrupting the fuel trim maps during prolonged cranking sequences.
Understanding the 1984 Sports Car Electrical Schematic: A Hands-On Approach
Locate the fusebox under the dashboard on the driver’s side–remove the lower panel by unscrewing three 10mm bolts. The diagram printed inside the cover corresponds to slots 1-10 for main circuits and 11-20 for auxiliary systems. Label each fuse with masking tape before testing continuity; slot 9 (15A) powers the fuel pump relay, while slot 13 (10A) controls the instrument cluster backlighting. Swap faulty fuses with identical amperage values only–never exceed the rated capacity.
Critical Relay Placements and Bypass Techniques
Three relays govern fuel delivery, air conditioning, and headlamps; they sit in a black plastic tray beneath the passenger footwell. Pinout labels on the relay bodies match the schematic’s numerical coding: terminals 85 and 86 connect to coil, 30 to power, and 87 to output. If the engine cranks but won’t start, bypass the fuel pump relay by jumpering terminal 30 to 87 with a paperclip–if fuel flows, the relay or its 12V feed line is defective. Always probe terminal 86 first for battery voltage before condemning the relay itself.
Behind the glovebox, a 22-pin connector links the engine bay harness to the cabin loom. Pin 17 carries throttle position sensor data; a broken wire here causes erratic idle. Strip 5mm of insulation, splice with a soldered butt connector, then wrap with adhesive-lined heat shrink tubing. Verify each splice by wiggling the wire while monitoring resistance–any fluctuation above 0.5 ohms indicates a cold joint. Replace the glovebox liner screws finger-tight to prevent rattling.
For rear defogger repairs, scrape the heater element traces with a razor blade at 1mm intervals until shiny copper appears. Tin each segment with rosin-core solder, then bridge gaps with 22-gauge wire soldered flush to the glass. Run the defogger for 10 minutes after repair to cure the solder joints–avoid touching the glass while energized.
Finding the Right Electrical Layout for Your Classic Coupe’s Exact Trim
Start with the vehicle’s model code–every variant from the Carrera to the Turbo has a unique three-digit identifier stamped on the data plate. For example, the 930 series indicates the flagship forced-induction version, while the 911 G-series naturally aspirated coupes split into sub-types like 911 (base), 911 S (sport), and 911 Targa (open-top). Factory manuals from Porsche Press or third-party publishers like Bentley or Haynes frequently group schematics by these codes, often hiding them in appendices or microfiche supplements. If ordering physical documentation, specify the exact trim and transmission type–manual, Sportomatic, or Tiptronic–to avoid generic, non-matching illustrations.
Critical Sources Beyond Owner’s Manuals
Factory-issued service bulletins (Technische Mitteilungen) hold late-stage revisions that never made it into the original workshop manuals; these corrections address mid-year changes in circuit paths, relay placements, or instrument cluster logic. The independent Porsche club archives–specifically the PCA Library or Rennlist forums–host digitized copies of these bulletins, often scanned directly from dealership tech libraries. Another underutilized resource is the wiring harness itself: by tracing fuse numbers silk-screened on relay panels (e.g., main fuse panel behind the driver’s knee bar) and cross-referencing them against the vehicle build sheet (available via Porsche’s Classic website), owners can isolate which schematic page correlates to their exact harness run.

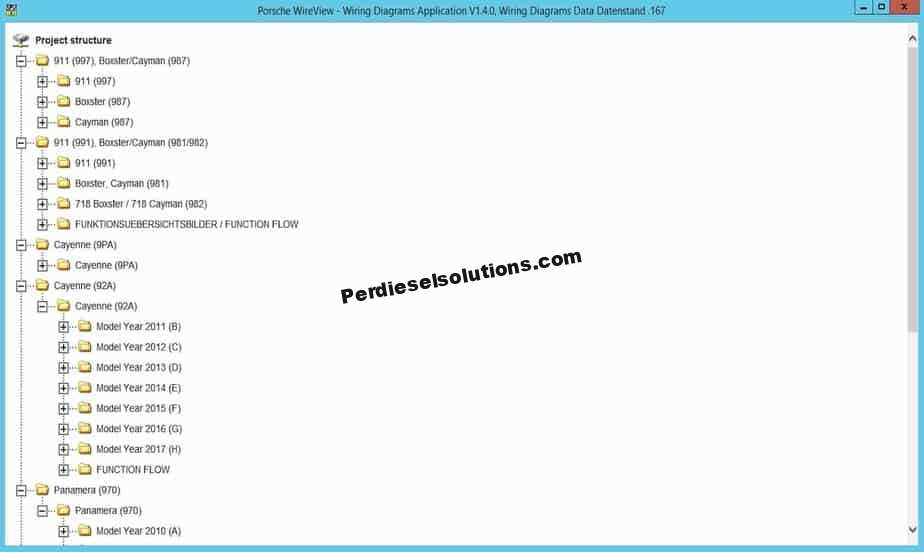

Automotive museums and restoration shops frequently retain full-set microfiche readers pre-loaded with OEM schematics; contacting local chapters of the Porsche Club of America can grant access. For immediate troubleshooting, download the “Porsche Classic” mobile app–the official factory tool–filter by chassis number to pull a vector-based electrical diagram specific to your trim’s build date, including color codes and connector pinouts absent from aftermarket guides. Avoid generic Euro or US-market conflations: Targa models sold in California often had additional smog equipment circuits that don’t align with ROW (rest-of-world) schematics, leading to wasted tracing time if misidentified.
Color-coding discrepancies arise across reproduction diagrams–a red wire on one publisher’s version may appear orange in another; validate using the actual harness sleeve printing, which typically includes thin white text identifiers like “K1” (main headlight relay) or “T3” (instrument cluster connector). If the physical vehicle retains its original radio, consult Grundig or Becker service documentation–the stereo wiring pinout sometimes functions as an unofficial sub-diagram within the car’s greater electrical network.
Decoding the Electrical Circuit Palette: Hands-On Breakdown
Begin with the main harness bifurcation behind the instrument cluster–segment the loom into three functional groups: ignition feed, lighting control, and ancillary systems. Each group uses a distinct color hierarchy to denote priority and purpose. Trace the red-striped cables first; these carry 12V constant power from the battery through relays and fuses, forming the backbone of current distribution. Cross-reference with a voltage drop test before assuming integrity–corrosion at the firewall bulkhead grommet often mimics short circuits.
Use a 1:1 pinout chart for the fusebox (central junction under the driver’s dash) to isolate wire pairs by color and function. Below is the condensed reference for primary circuits:
| Cable Hue | Base Striping | System Served | Fuse Rating (Amps) | Connector Location |
|---|---|---|---|---|
| Brown | None | Ground return | N/A | Multiple chassis points |
| Red | White stripe | Battery positive | N/A | Starter solenoid |
| Green | Yellow stripe | Headlamp high beam | 10 | Headlamp switch plug |
| Black | Red stripe | Fuel pump relay | 15 | Relay panel (rear trunk) |
| Blue | Black stripe | Instrument illumination | 5 | Dimmer switch |
Attachigator clips to a multimeter set to continuity mode; probe each ground wire (solid brown) against chassis points. Resistance above 0.5 ohms indicates compromised connection–clean bolt heads with a rotary brush before securing. For switched circuits, verify color transition at splicing points; dashed lines in schematics often denote factory solder joints prone to fatigue. Example: the green/yellow high-beam feed splits at the firewall into a secondary harness running to each lamp housing–confirm both branches carry identical voltage.
Inspect the dashboard loom’s wrapped section for brittle tape–replace with modern textile sleeving (expandable polyester braid) to prevent stress fractures. Label each segment with heat-shrink tubing inscribed with a fine-tip Sharpie: include color code and destination (e.g., “GR-YEL → RH H-Beam”). This eliminates guesswork during reassembly. For sensor circuits, follow the green harness branch behind the glovebox; connectors here use a metric pin pitch (2.8mm)–gentle prying with a precision screwdriver prevents latch damage.
Test auxiliary circuits–horn, wipers–in isolation. The horn’s twin yellow/black cables merge into a single plug near the radiator support; verify the ground path through the fender mounting bracket. Wiper circuits (blue/red) share a common ground bus inside the motor assembly–apply dielectric grease sparingly to the gearbox plate during rebuilds to prevent moisture ingress.
Resolve intermittent faults by backtracking from the symptom: flickering gauge needles point to corroded instrument cluster sockets (gold-plated pins), while dimming headlights implicate the voltage regulator’s brown/white ground strap. Use a non-contact thermometer to check for hotspots along spliced wires–discoloration or melting indicates resistive short. Replace suspect lengths with automotive-grade wire (TXL copper core) matched to original AWG (typically 16 or 18).
Secure the main harness to the chassis using nylon P-clips spaced every 150mm–avoid metal clips which chafe insulation over time. Route branches away from sharp edges and heat sources (exhaust manifolds, A/C lines); use spiral wrap where bends exceed 90 degrees. Recheck all connections with a cold engine–thermal expansion alters resistance patterns, revealing latent faults masked by pre-test driving.
