Complete Wiring Diagram Guide for 1989 Chevrolet Suburban Electrical System
Start troubleshooting by locating the engine bay fuse block under the driver’s side dash. Pinout values for the 24-pin connector are: C1 (red) to ignition coil (+), C2 (yellow) to instrument panel dimmer, C3 (dark green) to rear window defogger relay, C4 (light blue) to stop lamp switch. Verify continuity with a multimeter before bypassing–expected resistance on harness wires is 0.2–0.5 ohms.
Central power distribution module sits behind the glovebox. Trace pink power wire (#10 AWG) from the battery positive terminal through 60-amp fusible link; splice splits off to A/C compressor clutch, alternator field coil, and ECM main relay. Use heat-shrink splice connectors (3M 5623) rated 105°C minimum, not standard crimp caps.
Instrument cluster backlight circuit runs on dimmer-controlled orange wire–which also feeds trailer brake controller input. Replace burnt 15-amp fuse F11 first; if cluster still dark, probe violet wire (pin 12 of 16-pin connector) for 1.5–3.5V reference signal with dimmer switch cycled. Voltage drop above 0.3V indicates corroded ground at frame rail behind third-row seat.
Door lock actuators share a common tan/black ground wire terminating at G401 under the driver’s seat. If locks chatter, check 8-amp fuse F30 before replacing relay–relay contacts erode first on high-mileage units. Actuator pull current is 6–8 amps; exceeding 12 amps suggests seized gearbox inside door panel requiring Benteler TO-62 replacement.
Fuel pump prime circuit runs through inertia switch (mounted above right rear axle). Jumper yellow connector wire to pink (ignition feed) for pump prime; listen for five-second whine–noise absent indicates failed pump or blocked sock strainer. Pump current draw is 4.2–5.8 amps at 12.6V; readings
Electrical Schematic for Classic Full-Size GM SUV: Hands-On Repair Tips
Locate the fusebox under the dashboard’s left side–label F2 contains the 30-amp circuit for the fuel pump relay. Trace the pink wire from terminal 87 of the relay to the fuel pump connector; resistance above 0.5 ohms between the two points confirms corrosion in the frame rail grommet. Replace the grommet and coat the wires with dielectric grease before reassembling.
- Ignition switch wiring: Red (battery), Pink (ignition), Yellow (accessory), and Brown (crank). Test voltage at the switch plug with a multimeter; 10.5V minimum on Pink while cranking.

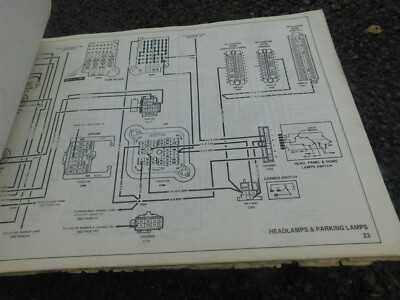

- Headlight circuit: Dark blue (high beam), Light blue (low beam). Corroded terminals at the bulkhead connector cause intermittent operation–clean with contact cleaner or replace terminals if pitting is visible.
- Instrument cluster: Purple (fuel gauge sender), Gray (temp sender). Shorted sender wires create false readings; disconnect the sender and measure resistance–sender should read 0-90 ohms (empty-full).
- Rear defroster grid: Two dark green wires spliced at the hatch hinge. Open circuits appear as horizontal lines; repair breaks with conductive silver paint.
- Blower motor resistor: Located behind the glovebox, three wires (tan, light green, dark green) control speeds. Burnt resistors require replacement–test continuity before reinstalling.
Finding and Utilizing the Original Electrical Blueprint for Your Full-Size GM Utility Vehicle

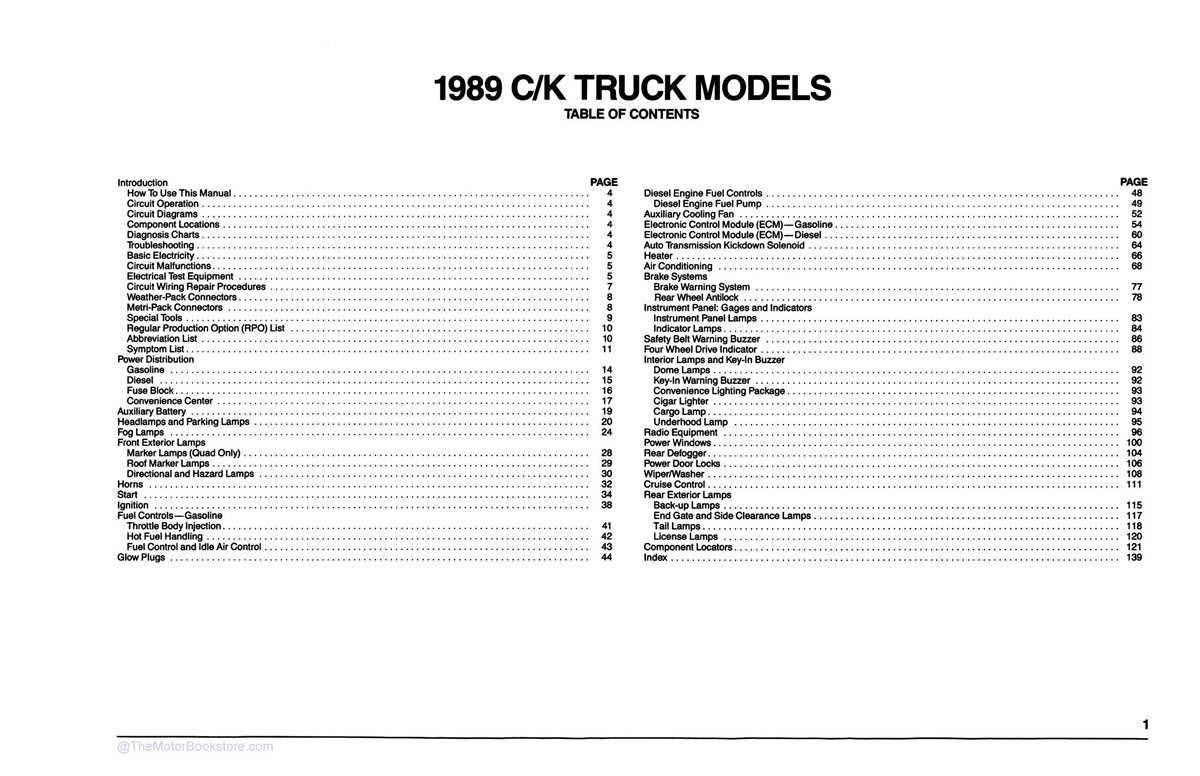

Begin by accessing the official service manual issued by the manufacturer for this specific model year. The electrical schematics are typically found in Section 8, labeled “Vehicle Wiring” or “Electrical Diagnosis.” If a physical copy isn’t available, authorized repair guides from Helm Incorporated (publication #9798400) are the most reliable alternative–avoid third-party knockoffs with incomplete or inaccurate layouts.
Trace color codes methodically: power circuits use orange (battery positive) and black (ground), while sensor lines often follow tan, dark blue, or purple with white stripes. Use the legend provided at the start of each schematic page–every color and symbol is defined, including circuit numbers stamped next to connectors (e.g., C201, S105). A multimeter set to continuity mode helps verify each path against the printed guide.
| Component | Typical Color Code | Connector Reference |
|---|---|---|
| Alternator output | Orange | C100 |
| Starter solenoid | Purple/White stripe | S103 |
| Fuel pump relay | Dark green/White stripe | C302 |
Pinpoint fuse and relay locations first–located in the passenger-side kick panel and underhood junction box. The schematic labels each fuse slot (e.g., F1, F2) with corresponding amperage and protected components (headlights, A/C blower, ignition). For relay identification, match the printed diagram numbers on the relay casing to the chart; relays R4 (horn) and R7 (fuel pump) are common failure points.
Inspect harness routing near high-heat areas (exhaust manifold, catalytic converter) where insulation degrades fastest. The factory blueprint marks these zones with dashed lines–replace brittle wiring with automotive-grade cross-linked polyethylene (XLPE) wire of identical gauge. For splices, use solder-sealed connectors; never twist-and-tape.
Use the troubleshooting flowcharts at the end of the electrical section for systematic diagnosis. Start at the affected component (e.g., non-functional brake lights), follow the circuit backward through switches (stop lamp switch, turn signal switch), then check fuses and grounds. Test continuity at each junction–failure here often indicates a broken trace rather than component failure.
For aftermarket modifications (stereo upgrades, auxiliary lighting), isolate new circuits on a separate relay with dedicated fused power. Avoid tapping into existing circuits like the dome light feed (light blue wire), as this can overload the fragile 20-amp mini fuses. Refer to the “Add-On Circuits” appendix in the manual for safe integration points.
Scan for hidden splices in door jam wiring and taillight housings–these are prone to corrosion. Apply dielectric grease to reconnected terminals, and secure harnesses away from moving parts (steering column, suspension). Keep a digital copy of the blueprint on a tablet for reference during repairs; zoom into specific pages to avoid misreading micro-sized text.
Step-by-Step Guide to Mapping Electrical Pathways in Your 1989 Full-Size SUV
Locate the fuse block beneath the dashboard on the driver’s side and remove the cover. Use a printed service manual or an official schematic to identify the correct fuse for the circuit you’re inspecting–label each fuse with masking tape to avoid confusion. A multimeter set to continuity mode will confirm if the fuse is intact before proceeding.
Disconnect the battery’s negative terminal before probing any connections. For circuits tied to the ignition or lighting systems, trace the wires from the fuse block to the first junction, noting color codes. Brown wires typically handle tail lamps, while yellow or pink may control turn signals. Document each branch with photographs or sketches to reference later.
Use a non-contact voltage tester to verify power at key points–start at the switch, then move to relays, and finally the load (e.g., headlight bulbs or dashboard indicators). If voltage drops between points, isolate the segment by wiggling wires while monitoring the tester. Pay special attention to chafe points near the steering column or door hinges, where insulation often frays.
Check ground connections by attaching a jumper wire from the suspected ground terminal to the bare chassis metal. If the circuit activates, clean the original ground point with a wire brush and apply dielectric grease before reattaching. For circuits with relays, swap a known-good relay into the suspect slot to confirm if the issue lies in the relay itself or downstream wiring.
When splicing is necessary, strip ¼ inch of insulation and twist strands together tightly. Crimp a butt connector over the splice, then heat-shrink tubing for a watertight seal. Avoid electrical tape alone, as it degrades over time. For circuits longer than 10 feet, test voltage at the midpoint to identify resistance build-up, which may require running a parallel wire.
Reinstall components only after verifying full functionality. Reconnect the battery’s negative terminal last, then cycle all tested circuits to ensure no shorts remain. Keep a digital log of all findings–including wire colors, junction locations, and resistance readings–for future troubleshooting.
Troubleshooting Electrical Problems in Classic Full-Size SUVs
Check the fusible links near the battery first–corrosion here mimics dead battery symptoms while leaving the starter cranking normally. These links, often overlooked, degrade faster than standard fuses due to heat cycles from the engine bay. Replace with identical gauge wire (usually 10 or 12 AWG) and crimp terminals properly to prevent resistive voltage drops. A voltmeter reading below 12.4V at the alternator output post with the engine running confirms charging system failure, not just a bad ground.
Dashboard gauge inaccuracies often stem from cracked solder joints on the instrument cluster circuit board. The speedometer and fuel sender traces corrode first due to vibration and temperature swings. Resolder with 60/40 rosin-core solder, avoiding acid-flux types that accelerate future failure. For intermittent gauges, probe the printed circuit paths with a continuity tester–expect 0.1-0.3 ohms resistance. If readings exceed 1 ohm, trace the path back to the sender unit, commonly a faulty sender ground or loose connector pin.
Solving Power Window and Door Lock Failures
Actuator motors burn out if driven with excessive resistance; dirty window tracks create this stress. Lubricate tracks with silicone spray, never grease, to reduce current draw. Test motor current in-circuit–normal values hover between 3-5 amps. Exceeding 8 amps signals impending failure; replace the mechanism before the fuse blows and risks damaging the switch. Door lock switches corrode internally–clean contacts with electrical contact cleaner or replace if pitting is visible under magnification.
Headlight flickering under load points to a weak alternator or poor battery cable connections. Inspect the positive cable where it bolts to the alternator housing; the crimp often separates from the eyelet. Solder this joint if possible–mechanical crimps on these models fail within 5-7 years. The voltage regulator, if external, should maintain 13.8-14.5V output across all RPMs. Values outside this range require regulator replacement; bypassing it for testing risks overcharging and cooking the battery.
Turn signal cancellation issues trace to the steering column switch or the cancelling cam. The cam, plastic on these models, wears out after 100,000 miles. Replace it with a brass aftermarket unit to prevent recurrence. Test switch continuity with the harness disconnected–expect open circuits when the lever is neutral, closed circuits when activated. If readings are erratic, the switch contacts need cleaning or replacement. For stubborn cases, check the flasher module mounted on the dash brace–it fails silently and is often misdiagnosed as a bulb issue.
