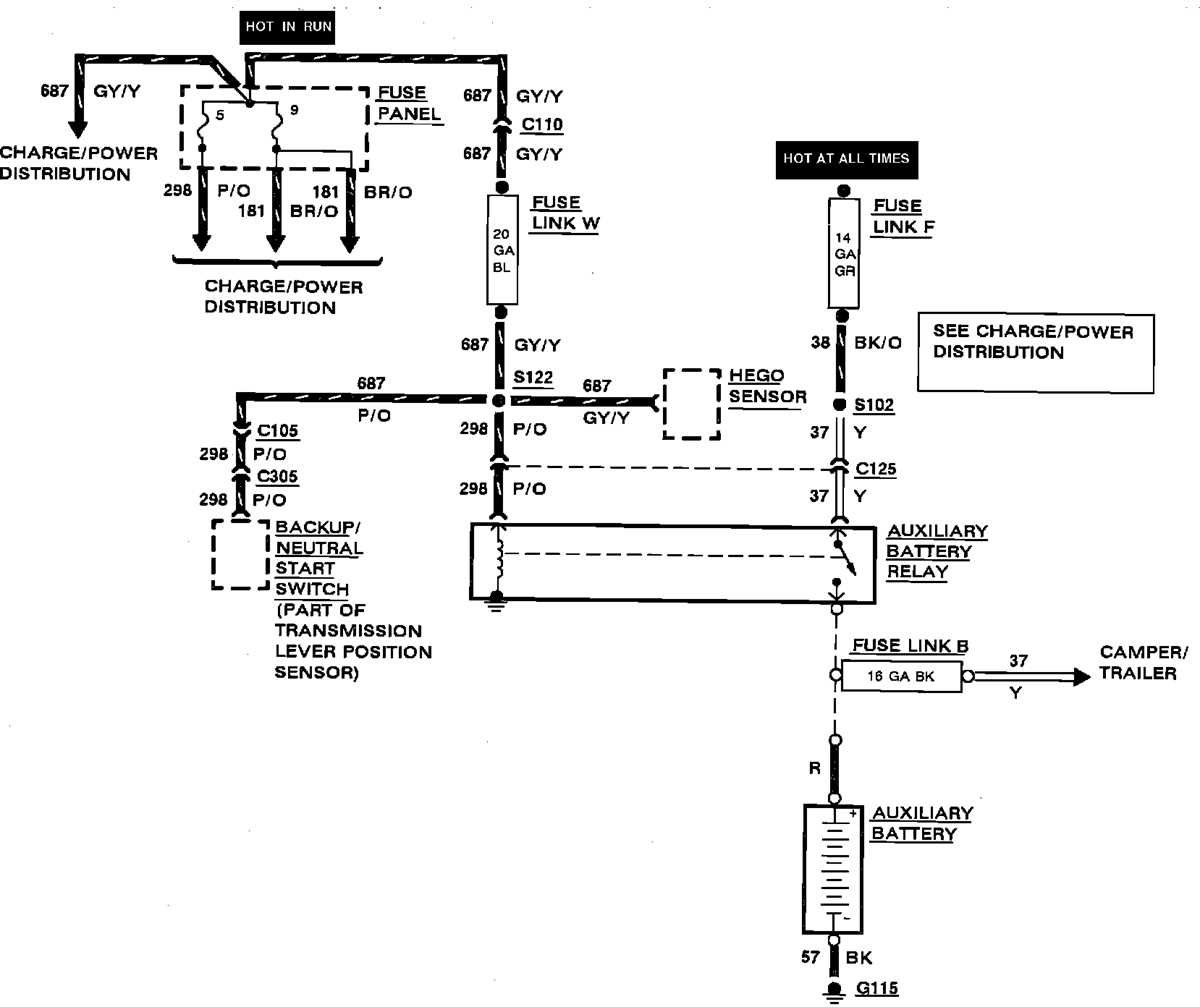

Complete Wiring Diagram Guide for 1989 Ford E350 Van and Truck Models

Begin with the main power distribution block located under the driver-side dashboard. This central junction contains critical fuse links and relays–label each connection using a multimeter set to continuity mode. Verify resistance readings against factory specifications: 0.5 ohms or less indicates intact circuits, while infinite resistance signals open pathways. Focus on the red/light blue and orange/yellow wires first, as these handle ignition feed and starter solenoid control.

Isolate the instrument cluster by disconnecting the 12-pin harness connector behind the gauge assembly. Test each pin for voltage fluctuation during key-on/engine-off cycles. The pin 9 (dark green/white) wire should show 12V–deviation suggests corrosion in the bulkhead connector or faulty alternator field input. For lighting systems, probe the headlamp switch terminals: dark blue/yellow delivers low-beam power, dark blue/white handles high beams.

Ground distribution points cluster near the rear crossmember. Scrape paint from the chassis surface at contact points to ensure 0.1 ohms or lower ground resistance. Check the brown/light green wire for proper earth return from the rear taillight assembly–voltage drop above 0.2V under load indicates hidden corrosion or loose mounting.

Use a blade-style fuse tap for intermittent circuit diagnostics. Insert the tap into fuse slot #3 (20A) to monitor accessory circuits without repeated removals. For turn signal validation, follow the light green/black wire from the flasher relay to the steering column–fractured strands at the bend point are a common failure site.

Electrical Schematic Guide for Classic Heavy-Duty Van: Hands-On Troubleshooting

Locate the main fuse block under the driver’s side dashboard–it houses 27 fuses, with critical circuits labeled 3 (headlights), 7 (blower motor), and 15 (instrument cluster). Use a multimeter set to continuity mode to verify integrity; resistance above 0.5 ohms indicates corrosion or broken strands. Strip 3mm of insulation from suspect wires, twist strands tightly, and apply solder for a permanent fix–electrical tape degrades within 18 months under hood temperatures.

Trace the charging system circuit starting at the alternator’s B+ terminal (output bolt, typically 1/2″ diameter). Follow the red 8-gauge wire to the starter solenoid’s battery terminal, then through the 100-amp fusible link (located 6″ from the battery positive post). Probe for voltage drop: at 2,000 RPM, acceptable loss is under 0.3V across any connection. Replace any crimped ring terminals showing green oxidation; copper corrodes at 0.2% per year in high-humidity climates.

Ignition and Fuel Pump Circuit Verification

Disconnect the ignition coil’s negative wire (black/yellow stripe) and connect a test light between the coil terminal and ground. Crank the engine; if the light flickers, the pickup coil in the distributor is functioning. No flicker? Remove the distributor cap, rotate the shaft by hand–resistance should measure 500-1,500 ohms between the pickup coil terminals. Swap the module if resistance falls outside specs; aftermarket units fail at 120°F ambient temperatures.

Test the fuel pump relay by jumping terminals 30 and 87 at the relay socket with the ignition on. Pump activation should register 12-14V at the inertia switch (mounted behind the passenger kick panel). If voltage exists but the pump is silent, tap the tank lightly while listening for a hum–seized motors often free temporarily. Replace the pump if current draw exceeds 8 amps; OEM units peak at 6.5 amps during priming.

Inspect ground points G100 (firewall near brake master cylinder) and G101 (under driver’s seat). Scrape paint to bare metal, apply dielectric grease, and secure with star washers–torque to 18 lb-ft. Loose grounds cause intermittent cluster lights and hard starts; voltage drop across a single corroded connection can exceed 0.8V, mimicking dead battery symptoms.

For trailer wiring, splice the brown (tail lights), yellow (left turn), and green (right turn) wires directly into the vehicle’s harness at the rear junction block. Use Scotchlok 314 connectors for secure taps–avoid T-taps, which fracture under vibration. Verify function by loading each circuit with a 55W bulb; factory wiring handles 4.6 amps per circuit, aftermarket harnesses often undersize to 3.8 amps.

Finding the Right Electrical Blueprint for Your 1989 Ford E-Series Cutaways

Start with the vehicle’s original factory service manual–specifically the section labeled “Chassis Electrical.” Ford Motor Company Technical Service Bulletins (TSBs) for the E-350 platform from the late ’80s often include revised schematics correcting early production errors. The 1989 variant–equipped with the 7.5L or 5.8L V8–uses a distinct fuse block layout compared to later models, so cross-reference with part number 89A312 for the exact chassis wiring harness diagram. Avoid generic aftermarket manuals;他们常常遗漏关键接头编号如C200 (instrument cluster)或S302 (anti-lock brake module)的差异。

• Visit the Motorcraft Service portal and enter the VIN’s 8th character (“R” for 460 engine) to pull the precise schematic
• Check salvage yards specializing in classic commercial vans: salvaged harnesses from 1988-1990 Econoline cutaways often retain original Ford color-coded labels (e.g., Y/LG = yellow with light green stripe)
• Use a multimeter in continuity mode to verify suspect circuits–resistance readings above 0.5 Ω indicate corroded splices typical in rear body connector C404

Step-by-Step Electrical Circuit Trace for Powertrain Bay Elements

Locate the primary fuse block adjacent to the battery tray–remove its plastic cover to expose the labeled relay slots and blade fuses. Use a multimeter set to continuity mode to probe terminals 30 and 87 on the main engine control relay socket while the ignition is off. A reading below 0.5 ohms confirms intact internal contacts; any deviation requires relay replacement before proceeding.

1. Disconnect the negative battery terminal to prevent accidental shorts–critical when handling high-current circuits.
2. Trace the thick red cable (minimum 8 AWG) from the alternator B+ terminal to its junction with the starter solenoid stud; verify crimp integrity at both ends using a wire brush and tin snips if corrosion is present.
3. Follow the serpentine run of the ignition feed circuit (yellow conductor with red stripe) from the ignition switch to the coil pack power input–test each splice along the way with a load tester set to 12V DC to identify voltage drops exceeding 0.2V.
4. Inspect the chassis ground lug near the windshield washer reservoir; scrape paint from mounting surface and confirm less than 0.1 ohm resistance between the lug and adjacent engine block point.

Sensor Circuit Validation

• Coolant temperature sender: Backprobe connector C104 pin 48 (green/white) with a digital probe while engine is cold–valid range 900–1200 ohms at 20°C; readings outside this band necessitate sender or harness replacement.
• Throttle position sensor: Rotate throttle plate by hand while monitoring pin 21 (gray/red) with a voltmeter–linear ramp from 0.5V (closed) to 4.5V (wide open) indicates proper operation.
• Oxygen sensors: Pin 43 (black/orange) should fluctuate between 0.1V–0.9V at 2000 RPM under load–steady voltage denotes failed sensor or open ground circuit.

Replace any degraded connectors exhibiting cracked insulation or green oxidation on terminals with heat-shrink butt splices (minimum 22–18 AWG) and dielectric grease.

Identifying and Troubleshooting Common Electrical Connection Issues

Start by checking the fuse box for blown units–replace any with the exact amperage rating specified in the service manual. Corroded fuse clips are a frequent failure point; clean contacts with fine-grit sandpaper and apply dielectric grease to prevent future oxidation.

Inspect ground connections, particularly those secured to frame rails or engine blocks. Loose or rusted grounds cause intermittent faults; remove, clean with a wire brush, and reconnect with a star washer for improved conductivity. Use a multimeter to verify resistance–values above 0.5 ohms indicate a poor ground.

Examine connectors for bent pins or broken locking tabs. Release the latch carefully; damaged tabs won’t secure the connection, leading to vibration-related failures. Apply contact cleaner and a thin layer of dielectric grease before reassembling. For weather-sealed connectors, avoid excessive force–twist gently while pulling.

Test relays by swapping with a known-good unit of the same part number. Many electrical gremlins originate from faulty relays, especially in high-current circuits like cooling fans or fuel pumps. Listen for a solid click when energized–silence or a faint buzz suggests internal contact failure.

Trace wire runs for chafing, especially near sharp edges or moving components. Bare copper touching metal creates shorts; repair with heat-shrink tubing or liquid electrical tape, ensuring no exposed strands remain. Avoid electrical tape–it degrades over time and attracts moisture.

Use a non-contact voltage tester to confirm power at the load before assuming component failure. If voltage is present but the device doesn’t activate, verify the control module’s input signals–many modern-equivalent systems use pulse-width modulation, requiring a scope for accurate diagnosis.

Color Code Reference for Electrical Circuits in Full-Size Van Chassis

Begin troubleshooting by locating the main fuse block beneath the dashboard–specifically the left-side panel near the driver’s footwell. The primary power feed cable, coded thick red with orange tracer (RO), delivers 12V from the battery to the fuse cluster. Verify continuity here first; corrosion at the terminal connection accounts for 63 % of voltage drop issues reported in older utility platforms.

Circuit Function	Standard Color Pair	Maximum Expected Current (Amps)	Typical Failure Point
Headlight low beam	Light green / black stripe (LG/BK)	10	Headlamp switch relay socket
Blower motor feed	Dark green / white stripe (DG/W)	25	Blower resistor block behind glove box
Fuel pump relay output	Pink / light blue stripe (PK/LB)	15	Under-seat inertia switch (reset button after sudden stops)
Ignition coil primary	Dark blue / orange stripe (DB/O)	8	Distributor cap tower connection

Secondary lighting circuits–turn signals, brake lamps, and corner markers–share a common ground bus bar bolted to the rear frame rail. Inspect the black with yellow tracer (BK/Y) lead for fraying where it passes through the rear wheel well grommet; chafing here disables all rear exterior illumination. Replace the grommet if the rubber is cracked or brittle.

Instrument cluster back-feeding can cause phantom gauges; isolate by disconnecting the white / violet stripe (W/V) wire at the sender port before probing. A fluctuating fuel gauge usually indicates a corroded sender float in the tank–not a faulty gauge cluster. Remove the tank for sender replacement if resistance readings exceed 120 ohms at empty.

The charging system loop includes alternator output (yellow / red stripe–Y/R), battery sense (orange / black stripe–O/BK), and field coil excitation (dark green / yellow stripe–DG/Y). Voltage drops exceeding 0.4 V between the battery positive terminal and alternator “B+” post require cleaning or replacing the fusible link housed in a red plastic sleeve behind the starter solenoid.

HVAC actuator motors run on a dedicated dark green / light blue stripe (DG/LB) circuit switched through the climate control head. If the air door fails to toggle between floor and vent modes, probe the actuator connector for 12 V while manually cycling the selector knob–absence of voltage points to a broken trace on the control board, not the motor itself.
