Complete Wiring Diagram Guide for 1994 Chevy Silverado Models
Begin troubleshooting by locating fuse box relay R6 along the driver-side firewall–critical for eliminating false ground faults in the tail lamp circuit. Reference pin-outs for connector C101 (white 14-pin) and note the voltage drop across terminal 12 when the key rests in ACC; deviations exceeding 0.3V indicate corrosion beneath the bulkhead grommet. Replace harness clip 712-3B if brittle plastic compromises wire retention, especially near the rear axle vent tube mount.
Ground cluster G101 requires direct 10mm ring terminal contact to chassis; sand away factory paint using 320-grit abrasive strips. The IPC module’s pink-striped conductor (terminal 15) carries VRef at 5V–verify continuity back to PCM B using a low-impedance digital multimeter; disconnect oxygen sensor wiring to isolate open circuits. For intermittent dome lamp failures, solder a 330-ohm suppression resistor across switch terminal 5 and ground, bypassing parasitic draws from the BCM’s interior dimming function.
Trace the orange power feed from fuse F3 (30A) through the under-dash connector cluster–corrosion here mimics instrument panel gauge drop-out. Replace the voltage regulator assembly (VR3) if tachometer readings fluctuate erratically; confirm brush alignment with armature grooves before re-installing. Keep spare weather-pack seals (PN 12162132) for the trailer wiring harness junction–environmental exposure degrades the silicone insulation within two Oklahoma winters.
Measure starter solenoid control wire voltage (circuit 50, dark green) at 11.5V minimum during crank; signal loss often originates at neutral safety switch connector C301 pin F. For horn relay click without activation, inspect the blue/white conductor splice near the left front headlamp; vibration-fatigue fractures develop at the turn signal lever pivot. Replace the entire signal stalk if continuity testing exceeds 0.8 ohms between circuits 1H and 2H–internal erosion expands exponentially above 120°F ambient.
Electrical Schematic Guide for the 1993 Full-Size GMC Pickup
Start repairs by locating the fuse block under the instrument panel on the driver’s side–its layout includes 30 slots, with relays numbered 1 (horn) through 6 (fog lamps). Label each fuse with a non-permanent marker before removal to prevent misplacement.
Engine compartment harness connections cluster near the firewall, specifically around the battery tray. The primary ground points–G100 (left fender) and G200 (right side of the radiator support)–must be sanded to bare metal and coated with dielectric grease to prevent corrosion. Resistance exceeding 0.5 ohms between these grounds and the negative terminal indicates a faulty connection.
The powertrain control module (PCM) sits behind the glove box, secured by a 10mm bolt. Its 144-pin connector splits into two sections: red (sensor inputs) and blue (actuator outputs). Pin 58 (red group) delivers throttle position sensor data; a voltage below 0.5V at idle signals a faulty sensor or frayed wire (orange/black tracer).
| Component | Wire Color | Connector Pin | Expected Voltage |
|---|---|---|---|
| Fuel Pump Relay | Pink/Black | C201: Pin 87 | 12V key-on |
| Mass Airflow Sensor | Tan/Black | PCM: Pin 50 | 0.5-4.5V |
| Blower Motor Resistor | Dark Blue | S205: Pin 2 | 10-14V |
Rear lamp circuits terminate at the trailer connector–yellow for left turn/brake, green for right, and brown for taillights. Verify each circuit independently: apply 12V directly to the yellow wire at the connector; failure to illuminate mandates tracing back to the S104 splice near the spare tire well.
Instrument cluster diagnostics begin at the white 14-pin plug behind the speedometer. Pin 3 (white wire) delivers oil pressure data; if the gauge reads zero, jumper pins 1 and 3–movement to 70PSI confirms a failed sender. Ignore the fuel gauge’s initial sweep during testing; persistent fluctuations below 1/4 tank indicate a short in the sending unit’s black wire.
For charging system verification, back-probe the alternator’s two-wire plug: dark green (ignition input) must show 12V with the engine off; light blue (charge indicator) drops below 0.1V at 2,000 RPM. Voltage above 14.8V suggests a faulty voltage regulator or corroded battery terminal–clean terminals with a wire brush and follow up with a 20-minute charge cycle at 10 amps.
Finding the Right Electrical Schematic for Your Early-’90s GM Pickup
Start by identifying your truck’s exact trim and engine configuration. The 1500, 2500, and 3500 series each have distinct fuse block layouts, ignition systems, and accessory feeds. The 4.3L V6, 5.0L V8, and 5.7L V8 models use different sensor wiring, ECM pinouts, and fuel pump circuits–verify your engine code (usually a single letter stamped on the engine block or vehicle emissions label) before downloading any reference material.
Official service manuals divide schematics into system-specific sections: engine control, lighting, instrument cluster, and charging. Use the table of contents to locate pages 8-15 for powertrain wiring, 16-24 for exterior lights, and 30-38 for interior circuits. Online forums and private archives often compress these into single PDFs–prioritize downloads labeled “OEM” or “factory” over aftermarket diagrams, which may omit color-coding or splice details.
Key Sources for Accurate Schematics
Helm Incorporated’s GM service manual reprints (ISBN 978-1561030293) include exact pin assignments for the main 32-way harness connector under the dashboard–critical for troubleshooting intermittent instrument cluster failures. Mitchell1’s ProDemand platform offers interactive diagrams with zoomable fuse box layouts; a 48-hour subscription costs under $30 and covers every factory option, including rare keyless entry and trailer brake modules.
Peer-to-peer file sharing sites host scanned copies of dealer-issued supplement booklets addressing mid-cycle updates–specifically bulletins 94-7A-29 (revised ABS wiring) and 94-8E-14 (corrected powertrain ground locations). Check file dates: schematics uploaded in 2020 or later often incorporate these revisions, earlier uploads typically do not.
When tracing circuits, match wire gauge to function: 18-gauge wires (yellow stripe) handle dash lights, 14-gauge (red) feed the ignition coil, 12-gauge (orange) power major accessories like A/C compressors, and 10-gauge (blue) handle starter motor feeds. Crucially, the ground stud on the driver-side fenderwell (labeled G106) supports seven separate circuits–verify continuity with a multimeter if corrosion is visible, as a single poor connection can mimic multiple failed components.
Document modifications made by previous owners–aftermarket stereos, alarm systems, or trailer hitch wiring kits often reuse factory fuse slots (positions 9, 12, or 18 in the under-dash block) and may alter color-coding. Use a continuity tester to confirm which circuits remain active at the original splice points before assuming factory defaults still apply.
Step-by-Step Guide to Interpreting Pickup Truck Electrical Labeling
Locate the main fuse block under the dashboard on the driver’s side. Remove the cover to expose the harness connectors–these will be secured with locking tabs. Identify the red wire with a white stripe (RW), which carries the ignition-switched 12V+ power to critical modules. Confirm continuity using a multimeter set to 20V DC; probe the terminal while turning the key to the “RUN” position–voltage should spike to 12.0–14.5V. If readings fluctuate below 11V, inspect the fusible link near the battery’s positive terminal for corrosion or breaks.
- Dark Blue (DB): Trailer brake output. Splice only with 16-gauge wire rated for 15A; bypassing causes controller errors.
- Pink (PK): Fuel pump relay trigger. Test by jumping relay socket terminals 85–86–pump should hum within 2 seconds.
- Yellow (YL): Headlight switch feed. Verify at the bulb socket with a test light–no glow indicates a broken ground or open circuit in the dimmer switch.
- Light Green (LG): Left park lamp supply. Trace to the front marker assembly; resistance above 1Ω suggests a corroded bulb socket.
Strip the harness near the engine bay firewall grommet to expose the purple wire (PP), which transmits the vehicle speed signal to the PCM. Attach a frequency counter or oscilloscope to pin #12 of the diagnostic connector; at 30 mph (48 km/h), expect 32–48 Hz pulses. If waveforms appear distorted, replace the sensor–common failure on odometers exceeding 120,000 miles. Seal all splices with adhesive-lined heat shrink tubing; electrical tape deteriorates within 3 years under hood temperatures.
Frequent Electrical Problems in Early Mid-90s Pickup Trucks and Solutions
Start by checking the fusible links near the battery if dashboard instruments flicker or the engine stalls unexpectedly. These links–often mistaken for standard fuses–corrode or melt due to age. Replace them with a 14-gauge wire rated for 60 amps, stripping ½ inch of insulation on both ends and soldering connections for longevity. Avoid twisting wires together; heat shrink tubing is mandatory to prevent moisture intrusion.
Corrosion at the ground connections under the driver’s side kick panel causes intermittent power windows or erratic radio behavior. Scrape the paint off the chassis using a wire brush until bare metal appears, then clean with baking soda and water. Apply dielectric grease before reattaching the ground strap with a serrated washer between the bolt and metal surface. Repeat this on the engine block ground near the thermostat housing if the starter engages sluggishly.
Inspect the harness under the hood where it passes through the firewall if turn signals fail while the hazard lights work. The grommet deteriorates, exposing wires to sharp edges. Use a flashlight to locate chafed spots–often the brown (left turn) and dark green (right turn) wires. Splice in new 18-gauge wire using butt connectors, then wrap the repair in split loom tubing secured with zip ties. Test each signal before reassembly to confirm polarity.
Dim headlights or a whining alternator often trace to a faulty voltage regulator. Disconnect the positive battery terminal, then unplug the regulator’s four-wire connector. Probe the blue wire (pin C) with a multimeter set to 20V DC; voltage should read 13.8–14.4V with the engine at 2,000 RPM. If readings fluctuate wildly, replace the regulator–don’t attempt repairs. Clean the mating surfaces with contact cleaner before reinstalling.
Repeated blown fuses for the A/C clutch (usually a 25-amp fuse) indicate a short in the compressor’s clutch coil. Disconnect the single-wire connector at the compressor and measure resistance across the clutch with an ohmmeter. Normal readings range from 3.0–4.5 ohms; infinite resistance or zero ohms means the clutch is faulty. Swap the compressor if the coil shorts–no internal repairs are feasible. Inspect the condenser fan for proper operation while diagnosing, as dual failures are common.
If the fuel pump primes but the engine won’t start, focus on the inertia switch behind the driver’s seat. Push the reset button firmly–even if it doesn’t click–to restore circuit continuity. If the problem persists, bypass the switch temporarily by jumping the two outer terminals with a paperclip, then monitor for gas leaks. Relocate the switch away from road spray zones if failures recur frequently; aftermarket brackets mount it under the hood for added protection.

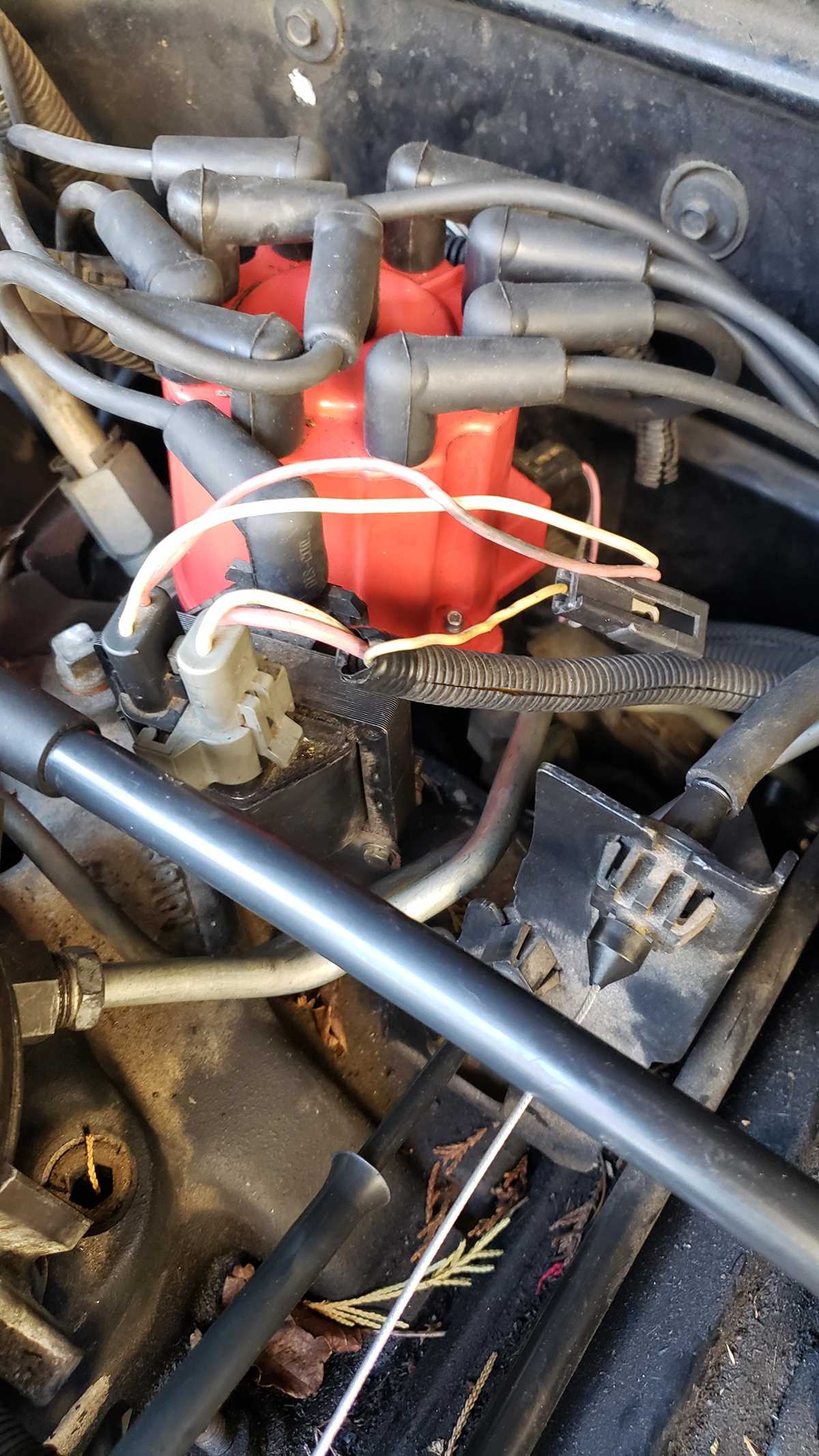

Stalling at idle or rough acceleration often stems from a cracked ignition control module (ICM) housing. Remove the distributor cap and inspect the ICM for hairline fractures. Swap the module with a known-good unit–don’t rely on bench testing. Apply a thin layer of thermal paste between the module and heat sink before reinstalling screws in a star pattern to prevent warping. Replace the cap and rotor simultaneously to avoid cross-contamination from carbon tracks.
Gauge cluster failures–especially the fuel or temperature senders–require tracing wires to the instrument panel connector (IPC). Unplug the IPC harness behind the glove box and probe terminals D11 (fuel) and D16 (temp) with the ignition on. A reading of 5V DC confirms power; zero volts means a broken wire between the harness and sender. Locate breaks by back-probing connectors with a T-pin–expect chafing near the steering column. Repair with solder and heat shrink or splice in a new 18-gauge wire if the original insulation crumbles.
