Guide to Ford F150 58L Spark Plug Wiring Diagram for 1994 Model

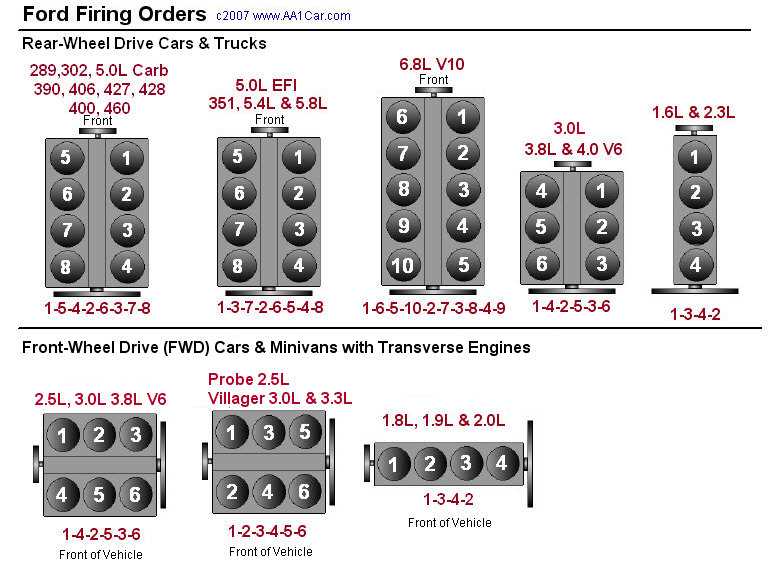

For accurate troubleshooting, always verify the firing order 1-3-7-2-6-5-4-8 on the 351 Windsor variant against the distributor cap. Mistakes here cause misfires even with new components. Locate cylinder #1 at the driver’s side front–this orientation dictates correct routing for the remaining wires.
Resistance matters: use 8mm suppression wires with 5,000–10,000 ohms per foot to prevent radio interference while maintaining combustion efficiency. Replace any cable exceeding 15,000 ohms–this often masks as a lean code or hesitation under load. Route wires away from exhaust manifolds and sharp edges, securing with OE-style looms for consistent shielding.
Test individual coils with a multimeter: expect 0.5–1.5 ohms primary resistance and 10,000–15,000 ohms secondary. If readings deviate, inspect the ignition control module behind the distributor–corrosion here disrupts signal strength more often than coil failure. Use dielectric grease on all connections to prevent voltage leaks in humid conditions.
Label wires before removal. Follow this color code for stock setups:
- Black/Yellow stripe – Cylinder 1
- Black/White stripe – Cylinder 3
- Black/Red stripe – Cylinder 5
- Black/Green stripe – Cylinder 7
- Solid colors mirror these patterns (e.g., White/Yellow for cylinder 2).
Crossed wires won’t just reduce power–they’ll damage the catalytic converter over time.
Aftermarket setups require reluctor alignment checks. If the distributor was recently removed, confirm the rotor points to cylinder #1 when the engine reaches TDC on compression stroke. Failure to align causes backfires or no-start scenarios, even with perfect wiring. Use a timing light to verify spark at #1 before finalizing traces.
V8 Engine Ignition System Layout for Early ’90s Pickup Models
Locate cylinder firing order labels on the intake manifold–this sticker shows sequence as 1-3-7-2-6-5-4-8, critical for correct coil tower alignment. Mistakes in pairing often cause misfires characterized by rough idle and hesitation under load.
Identify each cylinder position counterclockwise from driver’s side: front bank cylinders 1, 2, 3, 4; rear bank 5, 6, 7, 8. Resistance readings should fall between 5,000-7,000 ohms per 12-inch segment for properly functioning leads.
| Cylinder Number | Distributor Cap Terminal | Resistance Target (Ohms) |
|---|---|---|
| 1 | 7 o’clock | 6,000 |
| 3 | 5 o’clock | 5,900 |
| 7 | 1 o’clock | 5,800 |
| 2 | 8 o’clock | 6,200 |
| 6 | 2 o’clock | 6,100 |
| 5 | 10 o’clock | 5,700 |
| 4 | 4 o’clock | 6,000 |
| 8 | 12 o’clock | 5,600 |
Route leads away from exhaust manifolds and sharp edges; secure with zip ties every 6 inches to prevent heat damage. Silicone boots withstand temperatures up to 400°F–replace any showing cracks or hardening. Verify correct contact by firmly seating boots onto towers until an audible click occurs.
Quick Diagnostic Checks Before Full Replacement
Inspect ignition coil output with multimeter: primary side should read 0.4-0.6 ohms, secondary side 8,000-12,000 ohms. Low readings indicate internal short, high readings suggest open circuit. Check distributor rotor for carbon tracking–clean contacts with solvent-soaked lint-free cloth prior to reinstallation.
Crossfire prevention requires staggering adjacent lead lengths by minimum 3 inches; maintain at least 1-inch clearance between boot sleeves. Replace any lead whose jacket shows chafing or discoloration even without exposed conductor. After engine shutdown, residual voltage bleeds within 30 seconds–wait before handling components.
Establishing the Proper Ignition Lead Sequence for the 351W V8
Locate the distributor cap at the rear of the engine block–its rotational direction is clockwise. Cylinder #1 sits at the front-left bank (driver’s side), with firing order following 1-5-4-2-6-3-7-8. Verify this by removing the cap and observing the rotor’s position at crankshaft top dead center for cylinder #1.
Label each lead terminal on the cap sequentially: starting at the #1 post (aligned with the rotor), proceed clockwise in firing order. The #1 post is typically marked or offset on most aftermarket caps. If unmarked, follow the original wiring harness routing–factory harnesses use color-coded sleeving or numbered tags.
Resistive wires reduce radio interference; measure each with an ohmmeter (5-15 kΩ per foot). Replace any wire below 4 kΩ or above 20 kΩ. Crossfire risks increase with improper routing; group left-bank wires (1, 2, 3, 4) together and right-bank wires (5, 6, 7, 8) on opposite sides to minimize induction.
Aftermarket distributors may differ–consult the specific model’s timing sheet. MSD and ACCEL units often rotate counterclockwise, inverting the firing order. Mistakes here cause backfires, misfires, or no-start conditions. Use a timing light to confirm each cylinder fires in sequence before finalizing connections.
Critical note: The 351W’s rear-located distributor requires precise indexing. A misaligned rotor by even 10° throws off timing across all cylinders. Align the distributor gear so the rotor points to the #1 cap post when the crankshaft is at exact TDC.
For dual-plug applications (rare but documented on some conversions), replicate the primary firing order for secondary wires, but route them to the opposite side of the combustion chamber. This demands custom-length wires and exact cap modifications–factory caps lack these provisions.
Store removed wires coiled loosely to prevent kinking. Inspect boots for cracks; dielectric grease inside each boot prevents moisture ingress. Tighten cap screws evenly (7-9 lb-ft) to avoid warping–over-torque distorts the cap’s internal contacts, causing intermittent misfires.
Step-by-Step Guide to Locating the Distributor Cap Terminals
Park the vehicle on level ground and engage the parking brake. Disconnect the negative battery terminal to prevent accidental shorts. Locate the ignition coil–it sits near the firewall on the driver’s side, bolted to the engine block with a single bracket.
Remove the distributor cap by releasing the two retaining clips or screws. Some models use 8mm bolts; check for corrosion if they resist turning. Once freed, lift the cap straight up to avoid damaging the rotor underneath.
The cap’s interior reveals terminals arranged in a circular pattern. Numbering follows the engine’s firing order: 1-5-4-2-6-3-7-8. Rotor direction is clockwise. Trace the central terminal–this connects to the coil via the distributor’s internal contact.
Identify cylinder #1’s terminal by finding the notch or marker on the cap’s rim. This aligns with the rotor’s tip when the engine is at top dead center on the compression stroke. Use a timing light to confirm if uncertain.
- Terminal 1: Front left (driver’s side)
- Terminal 2: Front right (passenger’s side)
- Terminal 3: Middle left
- Terminal 4: Middle right
- Terminal 5: Rear left
- Terminal 6: Rear right
- Terminal 7: Second from front left
- Terminal 8: Second from front right
Inspect the cap for cracks, carbon tracks, or corroded terminals. Replace if resistance exceeds 50,000 ohms when tested with a multimeter. Clean contacts with dielectric grease to prevent misfires.
Reinstall the cap by aligning the rotor’s tip with terminal #1. Press firmly until the clips snap into place. Reattach the coil wire last–ensure it seats fully on the distributor’s center post to avoid intermittent sparks.
Reconnect the battery, start the engine, and listen for smooth idle. If misfires persist, verify each wire’s resistance (5,000–10,000 ohms per foot). Swap wires between cylinders to isolate faults.
Essential Gear for Upgrading Ignition Leads on a Pre-OBD-2 V8
Begin with a multimeter (Klein MM700 or Fluke 87V) to verify continuity and pinpoint shorts before removing any components–set the dial to 20 kΩ and probe each lead between the boot and terminal; readings above 5 kΩ indicate degradation.
Secure a 1/4″ socket set with deep-wall 7/16″ and 9/16″ sockets (Craftsman or GearWrench)–standard shallows won’t clear the valve cover bolts on the passenger side, requiring extension bars (6″ minimum) and a swivel joint for angle access.
Keep dielectric grease (Permatex 22058) on hand to coat the ceramic insulator and boot interior; apply a 0.5 mm layer to prevent moisture ingress and simplify future disconnections–skip this step and risk brittle boots by the next replacement.
A spark plug boot puller (Lisle 66990) prevents tearing the silicone when extracting leads from recessed ports; needle-nose pliers crush boots, increasing resistance by up to 20% over time–use the puller’s hooked jaws to grip the lip, twist 1/4 turn, then lift straight out.
Label each lead with colored electrical tape (3M Scotch 35)–match cylinder numbers to the firing order stamped on the intake manifold (1-5-4-2-6-3-7-8 for distributor rotation) before removal; misrouted leads cause backfire, fouling plugs within 50 miles.
Store removed components in a magnetic parts tray (Husky 90043) to avoid dropping fasteners into the engine bay–valve cover bolts (M6x1.0 thread) require Loctite 243 on reinstallation, torque to 12 ft-lbs in a spiral pattern starting at the center to prevent gasket leaks.
A borescope (DEPSTECH DS450) with a 4 mm probe helps inspect the cylinder head wells for oil deposits before installing new parts; oil-soaked wells foul new leads within 1,000 miles–clean wells with brake cleaner and lint-free rags (Kimberly-Clark WypAll).
Use a feeler gauge (.054″ for this engine) to confirm proper terminal gap in new leads before installation; factory gap is 0.040″, but aftermarket manufacturers (.045″-.050″) often ship with wider gaps–adjust by gently squeezing the terminal with pliers to avoid damaging the conductor.
