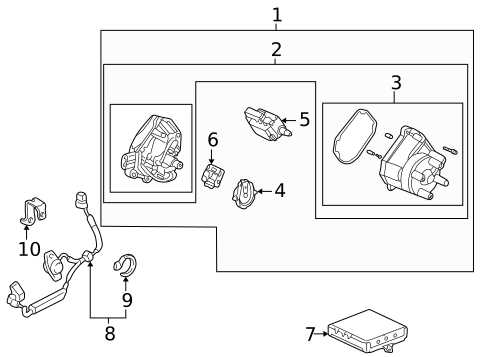

Complete Wiring Diagram for 1994 Honda Accord Distributor System
Start by locating the engine bay’s central ignition module–it’s the rectangular unit with a single plug cluster on the passenger side, near the firewall. The primary power feed uses a thick yellow wire with a red stripe; this connects directly to the main 12V source from the ignition switch. If voltage is absent here, trace back to the fusible link under the dash.
Next, identify the signal wires: two thinner cables, one white with a blue stripe and another blue with a yellow stripe. These link to the crank and camshaft sensors. Swap these at your peril–reversing them will trigger erratic spark timing or a no-start condition. Use a multimeter to confirm 5V reference pulses on both before reconnecting.
Ground matters. The black wire with a white stripe must terminate at the engine block; corroded mounting points are a common failure point. Sand the surface clean, secure with a star washer and a 10mm bolt. Avoid chassis grounds–they introduce resistance and misfires under load.
For secondary ignition verification, probe the coil towers: the left tower (cylinders 1–3) uses a black wire with a red stripe, the right (cylinders 2–4) a black wire with a blue stripe. Both should read 0.5–1.5 ohms. Anything higher indicates internal degradation–replace the entire assembly, not just the wires.
If the tach signal is erratic, focus on the gray wire with a red stripe. It carries the RPM output to the instrument cluster. A loose connection here disrupts idle control and fuel mapping. Crimp a new soldered joint if fraying is visible.
Understanding Your F22B1 Ignition System Connections
Begin by locating the 7-pin connector on the ignition module–this is your primary interface. Pin A (black/yht) delivers 12V constant power from the main harness, while Pin B (white/blu) carries ignition-switched voltage. Verify these with a multimeter before proceeding; readings should register 11.8V-12.6V when the key is turned to ON.
The coil control wires (Pins D and E) require special attention. The black/yel lead (Pin D) grounds the coil’s primary circuit during dwell, while the blu/yel (Pin E) triggers firing. Swap these, and the engine will either misfire violently or refuse to start entirely. Test continuity from the coil’s negative terminal to Pin D–resistance should not exceed 0.5 ohms.
Crankshaft position sensor wiring (Pins F and G) uses a two-wire hall-effect setup. The blu/wht (Pin F) sends a 5V reference signal, while the grn/blk (Pin G) returns the pulsed ground. If the engine stumbles at 3K RPM, inspect these wires for intermittent breaks–often hidden beneath the valve cover gasket. A scope trace should reveal clean square waves with ~2.5V amplitude.
Vacuum advance functionality hinges on the single blu/red wire (Pin C). This connects to the MAP sensor and adjusts timing based on load. If the engine pings under acceleration, check this wire’s path for corrosion at the firewall grommet–it’s a notorious failure point. Resistance between Pin C and the MAP sensor should read 0.2-0.8 ohms.
For the ignition pickup coil, focus on the blk/yht (Pin A) and blu/wht (Pin F) pair. These generate the AC voltage that tells the module when to fire. An oscilloscope should display a sine wave peaking at 300-500mV–anything below 200mV indicates a weak signal or open circuit in the coil’s windings. Replace the entire assembly if readings are inconsistent.
Ground paths deserve equal scrutiny. The blk wire (Pin H) must terminate directly to the cylinder head–not through the body or intake manifold. A single rusty connection here increases voltage drop, causing random misfires at idle. Scrape paint off the head’s mounting surface and apply dielectric grease to the ring terminal for a corrosion-proof bond.
When reassembling, route all wires away from the exhaust manifold–excessive heat cycles degrade insulation. Use heat-resistant loom for the final 6 inches of wire near the valve cover. Secure leads with plastic ties every 4 inches to prevent vibration-induced chafing. Double-check each connection with a torque wrench: 8-10 lb-ft for power terminals, 4-6 lb-ft for sensor connectors.
Selecting the Proper Engine Component Connector for the F22B1 Ignition Assembly
Begin by locating the harness connected to the ignition assembly’s four-pin connector–typically black with labeled terminals: C (coil), ICM, P (pickup), and G (ground). Verify the wire colors against factory schematics: yellow/black for C, white/blue for ICM, blue/white for P, and green for G. Mismatches indicate an incorrect replacement part.
Check for distortion in the connector housing–cracked plastic or corroded terminals suggest a need for full harness replacement rather than repairs. Aftermarket suppliers often bundle connectors with improper gauge wiring; OEM or direct-fit units maintain precise resistance specs (0.3–0.5 ohms on signal wires) critical for timing stability.
For the F-series 2.2L engine variant, source harnesses stamped with part number 30520-PM3-003 or equivalent Mitsuba/Stanley sub-assemblies. Avoid universal kits; these lack the distinctive offset tab design securing alignment during installation. Third-party options may omit the integral sealing grommet, risking moisture ingress.
Trace each conductor’s path back to its originating component–coil, ignition control module, and crank angle sensor–before disconnecting. Use a multimeter in continuity mode to confirm uninterrupted circuits; resistance exceeding 0.8 ohms on any lead necessitates investigative re-soldering or full bundle replacement.
Inspect the harness sleeve for rodent damage or chafing near heat shields; exposed conductors here degrade within weeks under hood temperatures (180–220°F). Polyethylene-coated bundles outlast PVC alternatives, resisting embrittlement up to 250°F. Re-seat connectors with dielectric grease, avoiding excessive amounts that could migrate onto sensor contacts.
When replacing individual wires, match original specifications: 18-gauge for primary ignition signals, 16-gauge for power feeds, and 20-gauge for ground paths. Tin all splices with 60/40 rosin-core solder for vibration resistance; crimp connectors introduce corrosion-prone junctions. Insulate repairs with adhesive-lined heat-shrink tubing, shrinking at 275°F for 30 seconds minimum.
Test each restoration by monitoring dwell angles (50–60° at idle) and ignition spark output (>25kV) across all cylinders. Oscilloscope waveforms should display consistent 10°–20° advance curves under load; erratic patterns reveal misrouted or compromised harness integrity.
Finalize installation by securing the harness away from moving components using factory-style plastic clamps, positioned at 6-inch intervals. Recheck torque specs (8-12 ft-lbs) on all mounting fasteners; overtightening cracks distributor housings or distorts rotor alignment.
How to Trace Ignition System Connections in Your Mid-90s Sedan
Park the vehicle on level ground with the engine cold. Remove the driver-side wheel well cover by unscrewing three 10-mm bolts. This exposes the rear of the engine bay where the coil and rotor assembly connects to the cylinder head.
Identify the ignition control module mounted on the side of the cylinder block–it’s a black plastic box roughly 3×5 inches with four spade terminals labeled: “P”, “IGP”, “IGN”, and “G”. Disconnect the negative battery terminal before proceeding to prevent accidental grounding.
Use a multimeter set to 20-volt DC. Probe the harness plug while a helper turns the key to “ON” (do not start). Record voltages:
| Terminal | Expected Reading |
|---|---|
| P | 0V (ground reference) |
| IGP | 12V (fused power) |
| IGN | 12V (ignition switch) |
| G | 0-5V (synchronization signal from crank angle sensor) |
Trace the thick pink wire from the IGP terminal back to the main fuse box. It runs through a white two-pin connector under the battery tray–inspect for corrosion here first if voltage drops below 11.5V.
Follow the thin blue-white stripe wire from the IGN terminal. It loops around the firewall, then splits near the intake manifold–secure any chafing points with loom tape, as exposed copper causes intermittent misfires.
Locate the single black wire from the P terminal–it grounds through a small ring terminal bolted to the valve cover. Clean this connection with a wire brush and apply dielectric grease to prevent future oxidation.
For the G terminal, use a logic probe. The signal wire fires once per cylinder cycle–if pulsing is erratic, check the crank angle sensor gap (optimally 0.020-0.040 inches). Rotate the harmonic balancer by hand while monitoring the probe to confirm each TDC mark aligns with a pulse transition.
Identifying Correct Wire Pairings for Your Vehicle’s Ignition System
Connect the black/yellow (B/Y) lead from the harness directly to the ignition coil’s positive (+) terminal. This feed supplies primary voltage from the main relay, ensuring steady current during startup and operation.
Match the white/black (W/B) wire to the ignition control module’s signal input. This link triggers spark timing based on crankshaft position sensor data, so verify resistance between 800–1,200 ohms before securing the connection.
Route the blue (Bu) cable to the tachometer input if the instrument cluster includes a rev counter. The pulse signal mirrors engine speed; splice only after confirming continuity within the dashboard loom to prevent phantom readings.
The green/red (G/R) line carries ground references from the chassis–the final shared return path for all ignition components. Secure it to an unpainted metal surface near the mounting flange using a self-tapping screw; corrosion here masks misfires.
For sequential models, the yellow/blue (Y/Bu) interface relays cylinder-specific timing signals. Locate the ECU pin labeled “TD-1” and ensure no frayed strands compromise the 0.5 mm² cross-section; smaller gauge risks voltage drop under load.
Troubleshooting Mismatched Colors
If documentation lists a white/green (W/G) variant absent in your harness, inspect the harness sleeve for faint stripes–manufacturers occasionally phase minor revisions without notice. Switch to a multimeter’s tone mode and trace the wire back to the firewall grommet; cross-reference against OEM bulletins for mid-year adjustments.
Never assume polarity alignment solely by shade. Use a non-contact voltage tester on the black/white (B/W) safety circuit: it should toggle between 0V and 12V when engaging the starter. Persistent low voltage here points to a compromised ignition switch, not wiring error.
