Complete Wiring Guide for 1995 Chevy S10 Tail Light Harness Connections
For immediate troubleshooting of the 4-cylinder base model’s rear illumination circuits, reference pin A7 on the main connector–this is the primary feed for both brake and running lamp filaments. The brown wire (right side) and its corresponding counterpart on the left must show continuity to chassis ground when tested with a multimeter set to 200Ω. If resistance exceeds 5Ω, inspect the grounding eyelet near the mounting bracket for corrosion or loose fastening.
Signal function relies on the yellow-striped conductor leading to the blinker relay. Verify the relay’s P-terminal voltage drops to 0.5V or lower during activation; anything above 1.2V indicates excessive resistance in the flasher unit or its downstream connections. The license plate bulb shares its ground path with the right-side lamp assembly–disconnect the license fixture first to isolate intermittent failures.

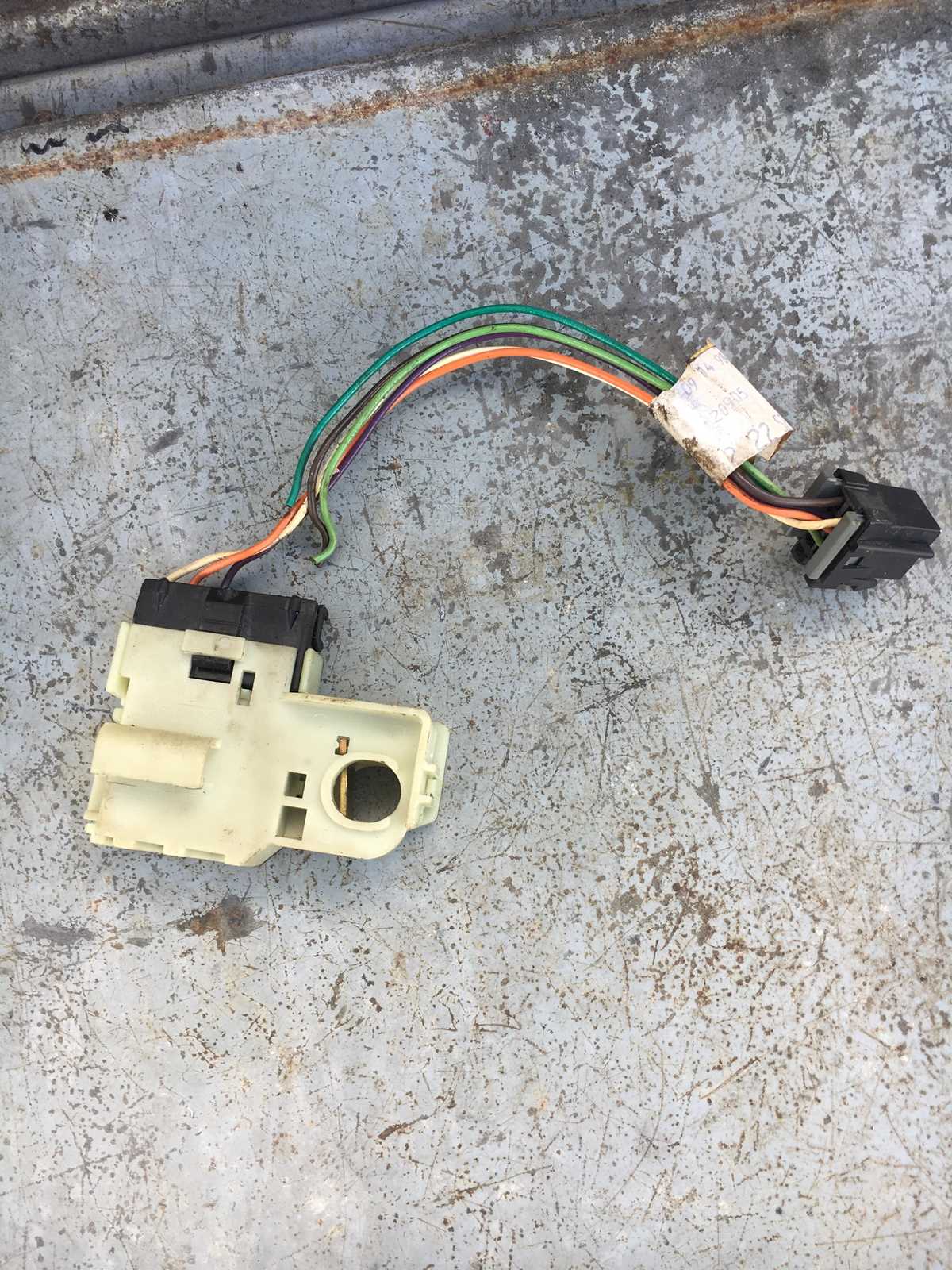

Aftermarket LED upgrades often trigger hyperflash due to insufficient current draw. Install a fixed-load resistor (6Ω, 50W) in parallel with each affected filament circuit or replace the flasher module with an electronic variant calibrated for lower amperage. Avoid tapping into the brake switch circuit for auxiliary lighting–the switch contacts are rated for 12A max and will fail prematurely under additional load.
If both brake lamps illuminate dimly but turn signals function normally, focus on the red-striped wire shared between the lamps. Check the splice under the rear fascia; rodents frequently chew through this segment. A temporary bypass can be created using 14-gauge automotive wire, but route it away from moving suspension components to prevent abrasion.
Understanding the Rear Lamp Circuit Layout for a Mid-90s GM Compact Pickup
Start troubleshooting by locating the black wire with a white stripe–this is the ground connection for the entire assembly. A faulty ground is the most common cause of intermittent operation. Scrape paint or corrosion from the connection point before securing it tightly with a 10mm bolt.
The three primary functions–brake signal, turn indicator, and running illumination–each use a distinct wire gauge and color code. The red cable (typically 16 AWG) carries the brake voltage, while the yellow (14 AWG) handles the right-side blinker. A split or partial short in either wire causes the corresponding bulb to flicker under load.

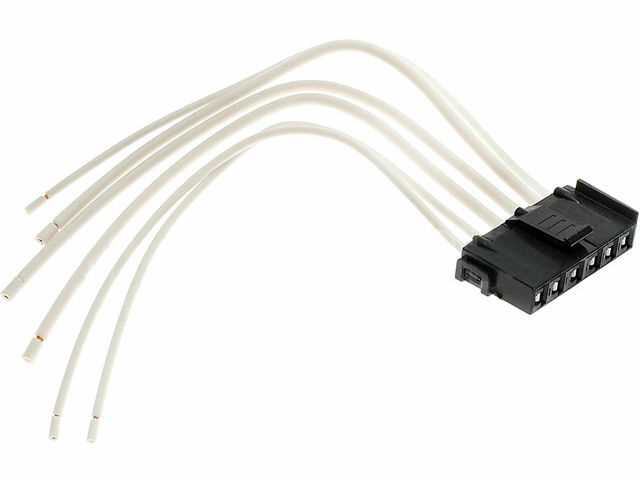

Inspect the integral harness plug behind the housing for melted plastic or green oxidation. If present, cut back the damaged section, crimp new terminals (AMP .110 series), and seal with heat-shrink tubing. Avoid twisting wires together; a loose twist introduces resistance that diminishes bulb brightness by 20-30%.
When splicing the brown running lamp wire, use a butt connector rated for 20A. The stock wiring relies on a single circuit for both rear lamps, so a poor splice on one side will dim lights across the entire rear system. Confirm voltage drop across the splice never exceeds 0.2V with a multimeter while the circuit is active.
Check the bulb socket for carbon buildup; a single pitted contact can draw excess current, leading to premature bulb failure. Sand each contact lightly with 400-grit paper, then apply dielectric grease before reinstalling the bulb. The correct dual-filament bulb for this model is a #3157, NOT #1157–the latter lacks the proper heat dissipation and melts the socket within weeks.
If diagnostics show inconsistent left-turn signals, test the light-green cable feeding the left-side flasher. Use a non-contact voltage pen to verify pulse presence approximately 10mm from the insulation. A steady voltage indicates a failed flasher relay (clusters under the dash, labeled “T/S OUT”), while erratic pulses suggest a break within the wire loom near the driver-side frame rail.
The high-mount stop lamp–if equipped–shares the same red brake wire but branches through a separate inline fuse (15A) behind the lower glove box. Remove the kick panel to access the branch; corrosion here mimics a dead rear lamp cluster.
After repairs, cycle each circuit–turn signals, brake pedal, and park switch–for a full minute. Monitor temperature on the wiring with an infrared thermometer; any section exceeding 60°C requires reinspection for an overlooked short or undersized wire repair.
Matching Wire Colors to Rear Signal Functions in Compact Pickups
Begin by locating the factory harness connector behind the left assembly–this is the primary access point for all connections. The standard color coding for 1993-1997 model years follows a distinct pattern: ground wires are always black, brake circuits use red or red with a tracer stripe (typically white), and turn/park illumination shares a brown wire with a consistent stripe (yellow for right, green for left). Verify these with a multimeter set to continuity mode; any deviation suggests aftermarket modifications or corrosion.
Use the table below to cross-reference expected colors with observed wires:
| Function | Primary Wire Color | Tracer Stripe (if applicable) | Voltage (Key On, Engine Off) |
|---|---|---|---|
| Parking | Brown | None | 12V |
| Brake | Red | White | 12V (when pedal depressed) |
| Left Turn | Brown | Yellow | Flashing 12V |
| Right Turn | Brown | Green | Flashing 12V |
| Ground | Black | None | 0V (chassis reference) |
Brown wires without stripes carry the parking circuit; these split at the bulb socket into dual-filament connections. Right-side assemblies replace the yellow stripe with green–this distinction is critical for proper turn signal operation. If your vehicle has a third brake filament (common in models sold in Canada), an additional red wire with a blue stripe may be present; confirm its function with a test light before splicing.
Corrosion often mimics damage–inspect connectors for white or green oxidation on copper terminals. Clean contacts with electrical cleaner and a small wire brush; recheck continuity before reattaching. For vehicles with trailer wiring adapters, note that auxiliary circuits may use purple (backup) or orange (trailer brake) wires–these should not be confused with rear illumination functions.
When in doubt, trace each wire from the connector back to the bulb socket using the vehicle’s service manual wiring schematics. Aftermarket harnesses frequently repurpose colors–orange may substitute for red, light blue for brown with green stripe, etc. Always map circuits before powering on to avoid fuses or module damage. Replace any wire showing cracked insulation or exposed copper.
Final verification: apply the parking brake, activate left and right turn signals separately, then depress the brake pedal. All functions should illuminate simultaneously without cross-talk. If turn signals flash rapidly, check the ground path first; poor grounding is the leading cause of erratic behavior in these systems.
Step-by-Step Guide to Locating the Rear Illumination Harness Plug
Disconnect the battery’s negative terminal before handling any electrical connections to prevent short circuits or accidental activation of the circuit.
Remove the interior panel on the driver’s side near the rear of the vehicle. This panel is typically secured with plastic clips–gently pry them loose using a flathead screwdriver, starting at the bottom edge. Avoid forcing the clips to prevent breaking them.
Locate the access hole behind the panel. The primary harness plug for the rear lamps is often positioned near the wheel well, partially obscured by sound-deadening material or insulation. Shine a flashlight to identify the connector’s shape and color–it is usually a rectangular or trapezoidal plug with multiple pin terminals.
The harness connector may be bundled with other cables. Trace the wires from the rear lamp assembly forward until you find the plug. On most models, it features a release tab that must be pressed inward or squeezed before pulling the connector apart. Ensure the tab is fully disengaged before applying force to separate the halves.
If the connector is difficult to reach, remove the adjacent trim or bolted components (e.g., cargo hooks or spare tire mount) to gain better access. Label each fastener or clip to simplify reassembly.
Inspect the connector for corrosion, frayed wires, or bent pins. Clean contacts with electrical contact cleaner and a fine brush if oxidation is present. Verify that the locking mechanism engages fully when reconnecting.
For vehicles with a trailer hitch or aftermarket modifications, the original plug may be bypassed or extended. Follow the wiring loom from the lamp housing to identify any splices or additional connectors added during customization.
Reinstall the interior panel and reconnect the battery. Test the rear lamps by activating the turn signals, brake pedal, and running lights to confirm proper operation before finalizing assembly.
How to Verify Rear Illumination Circuitry with a Multimeter
Set the multimeter to DC voltage mode at 20V before probing any connectors. Locate the vehicle’s rear harness near the lamp assembly–colors typically include brown (ground), red (brake signal), and yellow (running lamps) on this model. Insert the black probe into the brown wire’s crimp terminal and touch the red probe to the yellow wire while the ignition is on. A reading of 12-14V confirms the circuit is live; 0V indicates an open or blown fuse (check 15A fuse #12 in the under-dash panel).
Test continuity for grounds by switching the multimeter to ohms (Ω) and selecting the lowest range. Attach one probe to the chassis and the other to the brown wire at the connector. Resistance should be under 0.5Ω–values above 2Ω reveal corrosion or a broken ground connection. For brake circuits, have an assistant depress the pedal while you probe the red wire; voltage should spike from 0V to 12V instantly. Delayed or erratic readings suggest a weak brake switch or frayed wire.
- Inspect connectors for bent pins or green oxidation–clean with electrical contact cleaner and a small wire brush.
- If voltage is present at the harness but the bulb fails to illuminate, check filament resistance (~2-5Ω for healthy bulbs).
- For turn signals, cycle the lever and verify 12V pulses on both sides of the orange wire; inconsistent pulses point to a faulty flasher relay.
Use a tone generator to trace wires behind panels if harness routing is unclear. Probe suspected wires at the fuse box (terminals A5 for running lamps and A1 for brakes) to isolate faults. Replace any wires showing >1MΩ resistance when disconnected–this indicates internal wire breakage. Ensure the multimeter leads are 24-gauge or thicker to avoid false low-voltage readings caused by thin probes.
Common Pitfalls and Solutions
- False ground readings: Wiggle the connector during testing to expose intermittent connections–repair with solder and heat-shrink tubing.
- Parasitic voltage: Disconnect the battery’s negative terminal before measuring resistance to avoid backfeeding.
- Bulb socket corrosion: Apply dielectric grease to sockets after cleaning to prevent future oxidation.
