Jeep Cherokee 1996 Turn Signal Wiring Diagram and Electrical Guide
If your vehicle’s front or rear indicator lights flicker erratically or fail to activate, start by inspecting the flasher relay–located behind the left dashboard panel, near the steering column. Remove the relay and test continuity between terminals 49 and 49a using a multimeter; resistance should read below 1 ohm when operational. Replace immediately if readings exceed 2 ohms or if the internal clicking mechanism sounds irregular.
Trace the color-coded wires from the switch assembly to the bulb sockets. The light green/black stripe (LG/BK) wire carries power to the left side, while the brown/white stripe (BRN/WHT) handles the right. Verify these connections at the 10-pin connector under the steering wheel; corrosion here is a common failure point. Clean terminals with a wire brush and dielectric grease to prevent future oxidation.
Check the ground points near the front bumper–specifically, the G101 and G102 locations. A weak ground (indicated by voltage drop above 0.2V) can cause dim or non-functional bulbs. Secure connections with 12-gauge copper wire if the factory grounding straps show signs of wear. For rear indicators, inspect the harness where it passes through the tailgate hinge; chafing against the metal frame frequently severs the dark green/white stripe (DK GRN/WHT) circuit.
Use a 12V test light to confirm power at the bulb sockets. If power is present but the bulb remains dark, replace the socket–cheap aftermarket units often fail due to insufficient contact tension. Original-equipment sockets can be refurbished by bending the brass tabs outward to improve grip on the bulb base. Avoid soldering bulb wires; crimped connectors with heat-shrink tubing provide more reliable, vibration-resistant repairs.
For intermittent failures, focus on the multi-function switch stalk. Remove the steering wheel (torque the nut to 25 ft-lbs when reinstalling) and disassemble the switch housing. Look for worn contacts on the rotary contacts; lightly sand with 1000-grit paper if pitting is visible. Lubricate moving parts with dielectric silicone grease–petroleum-based products will degrade the plastic components over time.
If the hazard lights operate but directional signals do not, the issue lies either in the combination flasher (replace with a heavy-duty 3-prong unit, Part #194-4317) or the brake switch interference. Pull the brake switch fuse (labeled STOP) and retest; a faulty switch can backfeed voltage into the indicator circuit, causing erratic behavior.
Electrical Layout for Indicator Circuit on Mid-90s SUV Models
Locate the flasher relay under the dashboard near the steering column–it’s a cylindrical or rectangular device with a metal tab or plug-in connector. Pin configurations typically follow a three-prong setup: power input, ground, and output to the bulbs. Verify relay continuity using a multimeter; resistance should register between 50-120 ohms.
Trace the harness from the relay toward the front and rear lamp assemblies. The color-coded conductors are:
- Dark green/white stripe: front right lens.
- Light blue/white stripe: front left lens.
- Brown/white stripe: rear left fixture.
- Dark blue/white stripe: rear right fixture.
Cut or strip only insulation necessary for repair, leaving protective sleeves intact to prevent shorts.
Ground connections terminate at chassis points near each lamp–clean these contact surfaces with sandpaper or a wire brush to remove corrosion. Apply dielectric grease before reattaching to inhibit future oxidation. For vehicles with trailer hitches, check for an inline fuseholder installed in the brown conductor path; bypassed or blown fuses cause intermittent failure.
Disconnect the battery positive terminal when working on bare copper strands. Use crimp connectors rated for 16-14 AWG, solder if joint corrosion recurs frequently. Heat shrink tubing provides superior insulation versus electrical tape.
Hazard switch shares output circuitry with regular blinker function–test both modes separately. Inoperative hazards without blinker issues suggest switch failure, while universal failure indicates flasher relay or fuse block problems. Replace the hazard switch by removing the dash bezel retaining clips; no soldering required as connectors are plug-and-play.

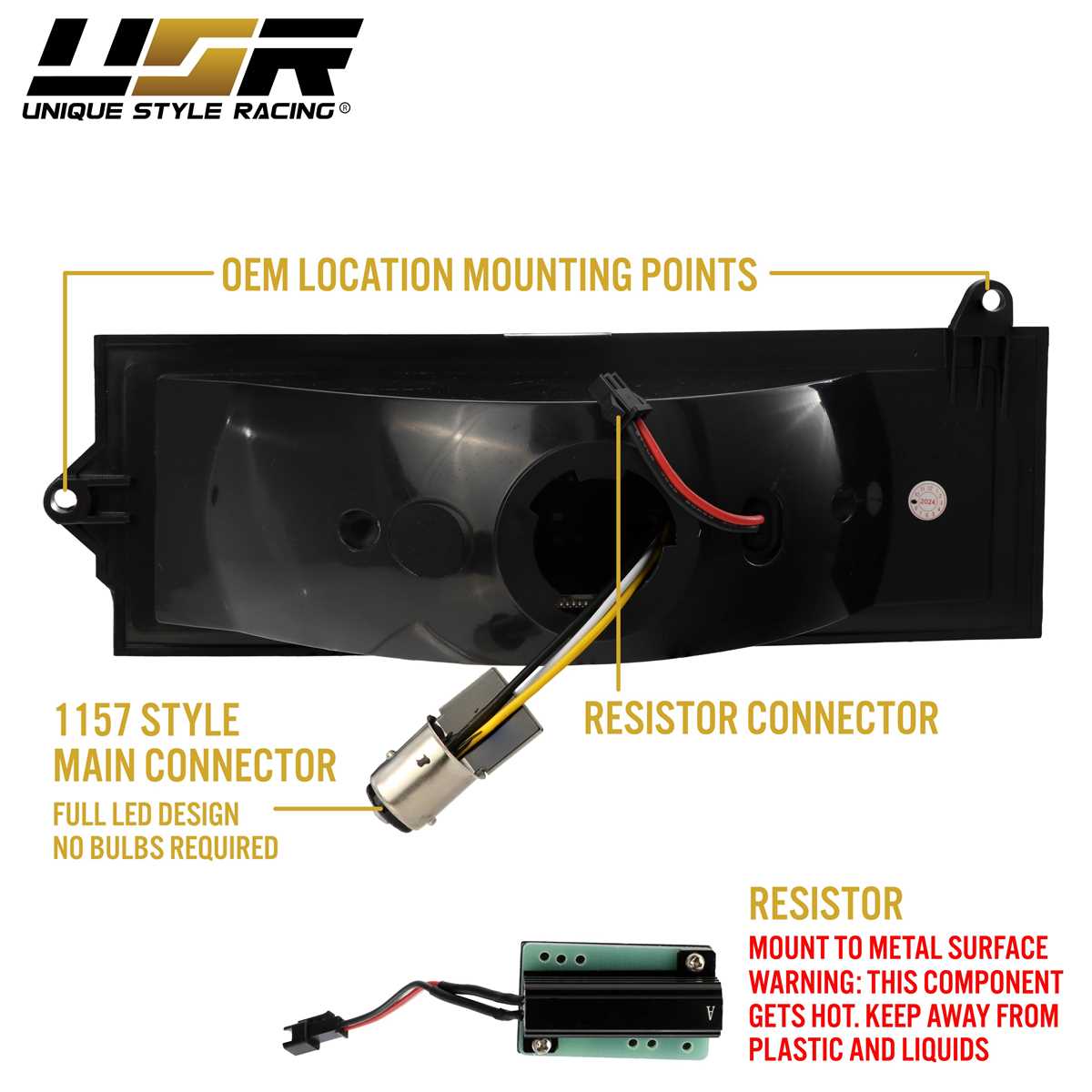

Aftermarket LED retrofits often trigger hyper-flash–install a 6-ohm load resistor in parallel with each bulb or upgrade the relay to an electronic variable-load unit. Factory incandescent bulbs require 2.2 watts per filament; LED substitutes typically draw 0.4 watts–mismatched loads confuse the relay trigger circuit.
Final verification includes turning ignition to accessory mode, cycling through left/right indication functions, and observing dashboard illumination and external lamp synchronization. Triple-check for stray voltage at ground terminals–any reading above 0.1 volts indicates incomplete grounding.
Locating the Proper Electrical Link for Light Indicators
Begin by examining the steering column assembly, where the primary harness connector for front and rear illumination controls resides. For most models, this will be a 10-pin or 12-pin plug colored dark brown or black, often secured with a small tab release. Verify the pin layout matches factory specifications by cross-referencing with service manual illustrations–mismatched connectors frequently cause intermittent failures.
The rear harness junction, typically near the tailgate or under the rear quarter panel, uses a smaller 6-pin connector. Look for a green/black-striped wire leading to the left-side housing and a brown/white-striped wire for the right. If corrosion is present, clean contacts with electrical spray before reassembly to prevent voltage drop issues.
Tools for Connector Identification
Use a multimeter set to continuity mode to trace circuits. Probe each terminal while activating the lever–the correct pins will show near-zero resistance. Avoid guesswork: some vehicles integrate hazard flasher circuits into the same connector, requiring precise pin distinction. A splice-free adapter kit may be necessary if original terminals are damaged.
Check the fuse block beneath the dashboard for relay engagement. The flasher unit often shares ground with the instrument cluster–verify this pathway with a test light. If no power reaches the bulbs, inspect the combination switch for worn contacts; replacement is more reliable than cleaning pitted terminals.
Troubleshooting Non-Standard Configurations
Modifications like trailer wiring kits can introduce additional connectors. Isolate these by unplugging auxillary harnesses one at a time. Aftermarket LED upgrades may require load resistors if hyperflash occurs–never bridge circuits without confirming bulb type compatibility.
Document all removed connectors with photographs before disassembly. Label wires with masking tape for reassembly accuracy. Common failure points include the front marker light sockets–check for brittle insulation where wires pass through the chassis.
Finding the Directional Flasher Module and Protective Device in a Mid-90s SUV
Locate the flasher relay behind the lower dashboard panel on the driver’s side, approximately 12 inches above the pedal assembly. The exact position is adjacent to the steering column support bracket, secured by a single Phillips-head screw and a friction clip. Remove the knee bolster by releasing two 10mm bolts first–this grants clear access without disconnecting unnecessary harnesses. The relay will be a black rectangular unit, roughly 2″ × 1.5″ with a three-prong connector labeled “Hazard” on the backside. If corrosion is present, clean the contacts with a wire brush and dielectric grease before reassembly.
| Component | Location | Identification | Replacement Specs |
|---|---|---|---|
| Flasher relay | Behind driver-side dash panel | 3-prong, black rectangle, “Hazard” label | 12V/15A, GE #194, standard automotive relay |
| Fuse (indicators) | Primary fuse block, slot #12 | 10A blade, clear housing | ATC/ATO type, 10 amp rating |
| Circuit breaker (optional) | Underhood distribution box, rear left corner | Red button, 20A thermal reset | Detachable, max 25A load |
For the fuse, consult the fuse block cover diagram–it’s the third row from the top, second slot from the left, directly beneath the horn relay. If indicators blink erratically but the flasher tests functional, check the hazard switch continuity using a multimeter; resistance should drop below 2 ohms when engaged. Ground wires (black/yellow stripe) often corrode at chassis attachment points near the driver-side kick panel–verify connection integrity before replacing components.
Step-by-Step Guide to Tracing Light Flasher Circuit Paths and Connector Layouts
Locate the flasher relay under the dashboard near the steering column–it’s a small plastic module with a single spade terminal or two. Disconnect the negative battery cable first, then remove the relay to expose the harness connector. Use a multimeter set to continuity mode to probe each pin: pin 1 (black/white) grounds the circuit, pin 2 (dark green/white) carries voltage from the fuse block, and pin 3 (light blue/orange) outputs the pulse to the left stalk. Mark each connection with tape to avoid mixing wires during reassembly. Reattach the relay, reconnect the battery, and test each side independently by engaging the stalk–listen for the relay’s audible click to confirm power flow.
Trace the harness from the relay downward toward the under-hood junction block. Follow these color codes:
- Left side flasher: light blue/orange stripe travels through the driver’s kick panel, joins the main harness at the firewall grommet, then splits–one branch to the front bulb (bayonet socket, amber lens), the other to the rear assembly via the trailer connector. Check for corrosion at the trailer plug pins (pin 1: brown/yellow stripe).
- Right side flasher: dark green/white stripe mirrors the left path but terminates at the passenger-side bulb sockets–front connector houses a purple/black wire, rear connector a gray/red wire.
- Hazard switch interrupts both circuits simultaneously: red/light green wire delivers 12V to both paths when activated.
Use a probe to back-feed 9V into each bulb socket while observing the harness–any dip below 8V indicates a short or chafed section, typically where the harness bends behind the bumper support or above the rear axle. Repair by soldering and heat-shrinking split sections, then secure with adhesive-lined loom tubing.
