1996 Nissan Pickup Factory Radio Wiring Color Code and Installation Guide

Locate the 14-pin harness connector behind the dashboard near the driver’s side. Pins 1 (red) and 4 (yellow) carry constant 12V from the fuse box–tap these for power without risking fuse overload. Pin 7 (black) grounds directly to the chassis; clean the contact surface to prevent voltage drop. Factory antennas connect via pin 12 (blue/white), but aftermarket units may require an inline resistor to prevent signal feedback.

For speaker output, match colors to the D21’s stock layout: front doors use pins 2 (gray) and 3 (light gray), rear outputs (pins 8–11) pair white/orange (right) and white/green (left). Test each wire with a multimeter before splicing–peak voltage should read 2–4V under load. If replacing the head unit, bypass the factory amplifier by rerouting the harness’s pink/black wire (pin 13) to the new unit’s pre-amp input.

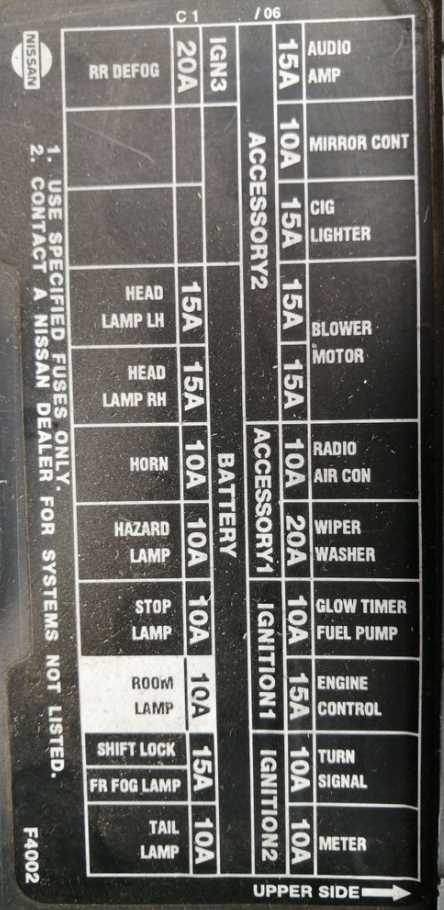

Security systems or remote starters often hijack the illumination circuit (pin 6, purple). If dimming malfunctions, trace the wire to the dashboard fuse box slot #15 (10A) and ensure no parasitic draws exist. For OEM cassette players, the motor drive (pin 5, brown) requires a steady 5V; aftermarket adapters may need a voltage regulator to avoid burnout.

If static persists, check the ground distribution point under the driver’s seat–corrosion here mimics wiring faults. Use dielectric grease on connections exposed to moisture. For bluetooth retrofits, splice the microphone line (typically pin 14, violet) to the new module’s input, but keep the wire shielded to prevent engine noise interference.

Wiring Guide for Your D22 Audio System Installation

Locate the factory harness behind the instrument cluster–color-coded wires follow this pinout:

• Constant power (12V): Yellow (fused at 10A)
• Switched power: Red (activates with ignition, 5A fuse)
• Ground: Black with white stripe (bare metal chassis connection)
• Speaker outputs:
  • Front left (+): White with black stripe
  • Front left (-): White
  • Front right (+): Gray with black stripe
  • Front right (-): Gray
  • Rear left (+): Green with black stripe
  • Rear left (-): Green
  • Rear right (+): Purple with black stripe
  • Rear right (-): Purple
• Illumination control: Orange (dims with headlights)
• Antenna trigger: Blue with white stripe (extends power antenna)

Use a multimeter to verify voltages–probe yellow wire for 12V with engine off, red wire for 12V only when ignition is in “ACC” or “ON” position. Strip wires no more than 5mm to avoid short circuits. Crimp connectors with a ratcheting crimper, then solder joints for corrosion resistance. Avoid twisting wires–heat-shrink tubing over soldered joints prevents moisture ingress. For aftermarket units, match impedance (typically 4 ohms) to prevent amplifier overload.

How to Match the Right Audio Connector for Your Mid-90s Truck

Begin by locating the factory audio harness behind the instrument panel. Mid-size trucks from this era typically use a 12-pin connector with a distinctive trapezoidal shape, colored brown or dark gray. The terminals are arranged in two rows: the upper row carries speaker outputs (front left, rear left, front right, rear right), while the lower row handles power and ground signals. Check the vehicle’s service manual for pin assignments if you encounter variations–some base models omit the rear speaker outputs.

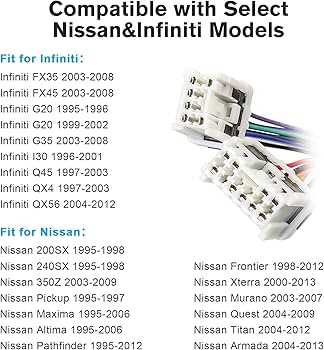

Purchase a replacement harness designed for this specific vehicle platform rather than a universal adapter. Aftermarket kits often mislabel pins or omit the illumination wire, a thin blue or orange stripe that dims dashboard lights in sync with headlights. Verify compatibility by comparing the pin count and wire colors against the original connector–deviations in manufacturing batches exist, but the core layout remains consistent across trim levels.

For vehicles equipped with a factory amplifier, an additional 4-pin connector sits adjacent to the main harness. This sub-harness supplies switched 12V power (red), constant battery feed (yellow), ground (black), and a control wire (usually white with a stripe) for amplifier activation. Bypass the amplifier entirely if upgrading to a modern head unit; connect the new harness’s RCA outputs directly to the speakers to prevent signal degradation.

Use a multimeter to confirm voltage on critical wires before connecting a new stereo. Probe the red wire (ignition-switched power) with the key in the “ACC” position–it should read 12V. The yellow wire (constant power) must maintain voltage even with the key removed. Ground connections (black) require a solid chassis attachment; sand away paint at the mounting point to ensure conductivity. Failure to verify these will result in intermittent operation or blown fuses.

If the vehicle features a single-DIN slot, avoid harnesses labeled for double-DIN conversions unless you plan to modify the dashboard. Single-DIN replacements retain the factory climate controls and cup holder placement, while double-DIN kits often require removing these components. Measure the available depth behind the dash–stock stereos sit 100mm deep, but aftermarket units may protrude an additional 40-50mm, limiting installation space.

Match the new harness’s wire colors to the stock connector using this cross-reference: pink (left front +), violet (right front +), black with white stripe (left rear +), gray (right rear +), orange (illumination), black (ground), red (switched power), yellow (constant power). Strip only 6mm of insulation per wire to prevent short circuits; use solder or crimp connectors rated for automotive use. Heat-shrink tubing adds durability against vibration and moisture.

Test the newly connected audio system before finalizing dashboard reassembly. Cycle through all speaker outputs using the head unit’s balance/fade controls to isolate potential wiring errors. Check the antenna signal with an AM/FM scan–poor reception often indicates a faulty or improperly grounded antenna lead. Inspect for heat buildup near the harness connectors after 30 minutes of operation; excessive warmth suggests an incorrect power draw match.

Keep the original harness intact if possible. Label each wire with masking tape before cutting, and coil the factory connector neatly behind the dash for future diagnostics or resale purposes. Aftermarket harnesses occasionally omit the antenna trigger wire (blue with white stripe), which may require manual activation of the power antenna via the stereo’s settings menu–consult the new head unit’s manual for the correct menu path.

Step-by-Step Guide to Identifying Original Audio System Wire Colors and Terminals

Begin by removing the dashboard trim panel surrounding the stereo unit. Most vehicles from this era use plastic clips–pry gently with a trim tool along the edges to avoid snapping them. Once exposed, disconnect the negative battery terminal to prevent shorts or accidental speaker pops.

Locate the harness connector at the back of the head unit. It typically has 12–20 pins arranged in two rows. Use a multimeter set to DC voltage (20V range) to probe each pin while a helper turns the ignition to the “ACC” position. Note which wires show 12V–these power the system and illuminate the display.

Identify ground wires by their consistent 0V reading when probed. They often share a black or brown sheathing but verify by touching the multimeter lead to a known chassis ground while testing. Mark these immediately with electrical tape for easier reassembly.

Common Wire Function	Typical Color Codes	Voltage (Ignition ON)
Constant 12V	Yellow, Orange w/ stripe	12V
Switched 12V (ACC)	Red, Pink	12V (only with key)
Ground	Black, Brown	0V
Left Front Speaker (+)	Light Blue, Light Green	Variable (AC signal)
Left Front Speaker (-)	Dark Blue, Dark Green	Variable (AC signal)
Right Front Speaker (+)	White, Grey	Variable (AC signal)
Right Front Speaker (-)	Black w/ stripe, Violet	Variable (AC signal)
Dimmer/Illumination	Orange, Yellow/Red	5V–12V (depends on dash lights)

Speaker wires carry alternating current–set the multimeter to AC voltage (200mV range) and probe pairs while playing audio. A reading between 0.1V and 0.5V confirms active speaker wires. Label each pair (+/-) based on polarity; mixing them weakens sound output.

Check for antenna control wires–usually a single blue or blue/white lead providing 12V to automatically extend the power antenna when the source turns on. If integrating an aftermarket unit, connect this to the new system’s antenna trigger to maintain automatic functionality.

For vehicles equipped with a factory amplifier, additional wires may include mute, speed-sensitive volume, or data bus lines. These appear as single leads without matching pairs and require specialized adapters if replacing the stereo. Trace suspicious wires to their origin–typically a separate module under the dash or behind glovebox.

Reassemble by reconnecting all harnesses, securing ground connections to bare metal, and testing each function before snapping trim panels back into place. Store notes and photographs of the original wiring layout for future reference.

How to Safely Remove the Dashboard Trim for Audio System Access

Disconnect the vehicle’s battery before touching any interior panels to prevent short circuits or airbag deployment. Use a 10mm socket to loosen the negative terminal clamp, then isolate it from the battery post. For models with memory-preset features, note the settings first–this avoids resetting clock, seat positions, or audio presets later.

Step-by-Step Panel Removal

• Locate the trim clips along the lower edge of the instrument cluster bezel. Slide a plastic pry tool (never metal) beneath the seam, starting at a corner, and gently pivot to release the clip. Work methodically–most trim pieces hide 6-8 clips per side.
• Remove the hazard light switch by depressing the tab on its underside with a small flathead screwdriver, then pull it straight out. Unplug the wiring harness immediately to avoid straining the connector pins.
• For the center console, peel back the gearshift boot from its rubber gasket, then unscrew the two 8mm bolts securing the console base. Lift the unit upward, disconnecting any remaining harnesses before fully removing it.
• Check for hidden screws behind ashtrays or coin trays–these often secure the upper dashboard section and require a 7mm or Phillips #2 driver.

Verify clip integrity before reinstallation. Replace any broken retainers–aftermarket clips (e.g., Dorman 555-406) cost under $5 for a 10-pack. Align trim edges flush with adjacent panels; a single misaligned clip can cause rattles or poor fitment. Reconnect battery last, testing all lights and switches before finalizing assembly.
