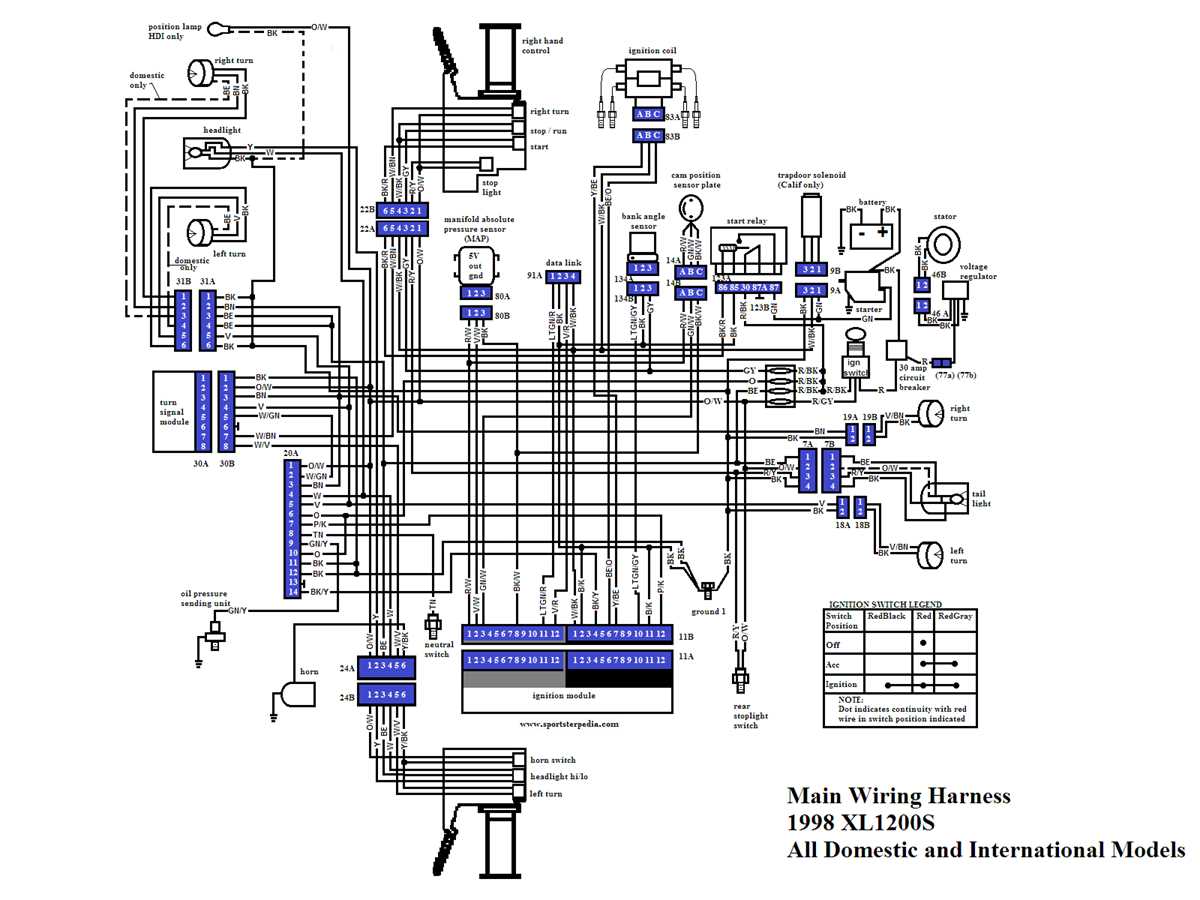

Harley Davidson Sportster 1200 1996 Electrical System Wiring Schematic Guide
Locate the ignition module connections at terminals 1 through 4–these feed the coil’s primary circuit. Verify each pin for corrosion; clean with dielectric grease if resistance exceeds 0.5 ohms. The CDI box (black 16-pin harness) must sync with the crank position sensor; misfires often trace to pin 5 or 8 oxidation. Swap sensor wires with a known-good pair to isolate failures.
Check the charging system at the stator’s three yellow leads–AC voltage should read 20-30V at 2500 RPM. Low output? Replace the voltage regulator (mounted left frame rail) before condemning the stator. The headlight relay (fusebox, slot 2) shares ground with the turn signal flasher; test for continuity between brown/white and black wires.
For sporadic no-start issues, probe the run/stop switch (right handlebar) for broken gray/red wires–vibration cracks insulation near the terminal. The neutral indicator circuit (green/white) ties into the transmission switch; ensure engagement before starter relay diagnosis. Fuel pump priming (orange/black) requires 12V during ignition-on; bypass relay contacts with a temporary jumper to confirm pump operation.
Color-coded harness errors? Verify factory wiring schematics against a multimeter–black/yellow always grounds to frame, blue/red carries 12V to the kill switch. T-taps cause shorts; solder and shrink-wrap all splices. Keep the 30-amp main fuse accessible for rapid reset after shorts.
Harley-Davidson XLH Electrical Schematic Reference
Begin by identifying the ignition switch connector (6-pin, black housing) on the left frame rail beneath the seat. Pin assignments differ from later models: terminals 1 and 2 (red/white wires) supply power directly from the battery via the main fuse (30A). Terminal 3 (black/green) feeds the ignition coil primary, while 4 (black) grounds the system. Terminal 5 (purple) activates the starter relay, and 6 (brown) links to the lighting circuit. Trace each wire back to its source–corrosion at the fuse block often mimics ignition failure; clean contacts with 400-grit sandpaper and apply dielectric grease.
| Component | Wire Color | Connector | Voltage (Key On) |
|---|---|---|---|
| Left Handlebar Switch | Black/White (High Beam) | 2-pin Molex | 12.6V |
| Voltage Regulator | Yellow (Stator) | 3-pin Deutsch | 13.8–14.5V |
| Turn Signal Module | Orange/White (Left) | 4-pin Bullet | 11.8–12.2V |
| Engine Temperature Sensor | Gray | Single Blade | 0.5–4.5V |
Test the charging circuit at the battery terminals: with the engine running at 2,000 RPM, voltage must rise to 13.8–14.2V. If readings drop below 13.5V, inspect the stator windings (three yellow wires, resistance 0.1–0.3 ohms between each pair) and regulator/rectifier connections (blue wire, 10A fuse). Replace blown fuses immediately–substituting higher amperage risks melting the harness. For intermittent stalls, probe the run/stop relay (gray, 30A fuse) located behind the ignition switch panel; a faulty relay drops voltage to 8V under load.
Locating the Main Electrical Connectivity Hub Units
Begin beneath the fuel tank’s rear mounting plate where the central loom exits the frame’s backbone. Trace the bundled cables–typically sheathed in black corrugated tubing–to the first junction, a rectangular multi-pin connector fastened to the frame’s left downtube. This primary splitter divides power lines to the ignition module, lighting circuits, and sensor feeds.
Follow the loom’s lower fork where it wraps behind the left engine casing. A circular three-wire plug links directly to the stator assembly, distinguishable by heat-resistant fiberglass shielding. Adjacent, the voltage regulator bolts onto the crankcase with two screws, its aluminum fins marking its position. Verify connections here if charging faults appear.
Inspect the front harness branch behind the headlight bucket. Look for a smaller two-pin connector near the upper triple clamp–this delivers switched current to the headlight and turn signals. Secure any exposed strands with nylon zip ties to prevent chafing against the front fender support.
Understanding the Ignition System Circuit Path
Begin by locating the ignition coil–mounted near the engine block–with two primary terminals: one connected to the spark plug wire (output) and the other to the run/stop switch (input). Verify the coil’s resistance with a multimeter: primary winding should read 0.5–1.5 ohms, secondary 6–15 kΩ. Deviations indicate internal breakdown or corrosion at the terminals.
Trace the input wire from the coil back to the ignition module, which sits behind the left-side cover. This module contains a single connector with four wires: black (ground), pink (12V key-on power), orange/yellow (ignition pulse), and violet (tachometer signal if equipped). Probe the pink wire at the connector with the key in the “ON” position–voltage should match battery level. If absent, inspect the fuse block (30A main fuse) and wiring harness for chafing near the steering head.
Key components to test if spark is absent:
- Pickup coil (mounted behind the stator plate): Measure resistance between its two terminals–spec is 200–400 ohms. Zero reading means open circuit; replace the stator.
- Run/stop switch: Disconnect the switch, bridge the two main terminals with a jumper wire–spark should return if the switch is faulty.
- ECU (if equipped): Bypass by connecting the ignition pulse wire directly to the coil’s input terminal–if spark resumes, the module needs replacement.
For intermittent spark issues, focus on the ground path. The coil’s ground terminal attaches to the engine block via a single 10-gauge wire; corrosion here causes weak or erratic spark. Remove the fastener, sand the contact surfaces, apply dielectric grease, and retighten to 18 ft-lbs. Also check the battery negative terminal–voltage drop exceeding 0.2V under load (starter engaged) indicates a poor ground connection.
High-tension cables (spark plug wires) degrade internally. Inspect for cracks or carbon tracking; resistance should not exceed 10 kΩ per foot. Replace wires in sets–mixing old and new wires creates unequal spark energy, leading to misfires. Route wires away from exhaust headers and sharp edges; secure with OE-style clamps to prevent vibration-induced breaks.
If the engine cranks but won’t start, swap the ignition module with a known-good unit. Modules fail silently–no visual signs–so carry a spare during long rides. For dual-spark models, verify both coils fire simultaneously; a single-firing coil indicates a failed module or wiring short. Use a timing light to confirm spark at both plugs during cranking–gaps exceeding 1/8″ indicate incorrect dwell.
Final checks:
- Disconnect the spark plug wires, insert a grounded spark tester into each wire, and crank the engine–spark should be blue-white and consistent.
- Test the kill switch by toggling it while monitoring spark–interruption confirms proper function.
- If all tests pass but no spark occurs, replace the stator (pickup coil and generator windings are integral and cannot be serviced separately).
Mapping the Alternator Circuit Pathways
Begin at the stator output–locate the three yellow wires exiting the left-side engine casing, each crimped to spade connectors. Connect a multimeter set to AC voltage (50V range) between any two yellow leads with the engine idling: readings should stabilize between 15–20V. If values fluctuate outside this window, inspect the regulator/rectifier’s ground wire (black with white stripe) for corrosion where it bolts to the frame near the battery tray. Clean the contact surface with a wire brush and apply dielectric grease before reassembly.
Trace the yellow wires to the regulator/rectifier’s input terminals–verify the solder joints haven’t cracked under vibration, especially at the unit’s heat sink fins. Replace any wire exhibiting brittle insulation or discoloration. From the regulator’s output, follow the red lead to the battery’s positive terminal; resistance here should measure under 0.1 ohms. If higher, cut back the wire sheath to expose fresh copper for a secure lug crimp, then solder for longevity. Ensure the negative return (solid black) links directly to the battery’s negative post without intermediate splices.
Identifying Lighting and Signal Wire Connections
Locate the main harness connector near the steering head–pin assignments follow a standardized color code: black (ground), yellow (low beam), brown/white (high beam), and gray (turn signals). Verify each wire with a multimeter set to continuity mode, touching the probe to the terminal while activating the corresponding function. A faulty reading indicates corrosion, broken strands, or incorrect routing; strip 5mm of insulation and inspect for green oxide or frayed copper.
Trace the rear lighting cluster using the factory schematic: rear running lights connect via a solid orange wire, brake lights via brown/pink, and reverse lights via violet. Disconnect the bulb socket, probe the terminals with 12V power applied–flashing LEDs confirm intact circuits. If dim or erratic, bypass the stalk switch with a jumper wire to isolate whether failure lies in the switch or harness.
Signal wires split from the flasher relay: left signals run through solid gray, right through gray/orange. Check for voltage drop under load–activate both signals simultaneously with a test light; if one side dims, suspect a compromised ground (black/white stripe) or a loose frame connection. Crimp splice connectors rated for 20A minimum when repairing breaks; solder alone risks vibration failure.
Handlebar-mounted controls prioritize three circuits: horn (blue), passing light (yellow/black), and starter button (purple). Probe the switch underbody with the key on–absence of 12V at purple wire entering the starter solenoid indicates a faulty ignition switch or blown fuse (15A, position 4). Replace switch mounting screws with stainless steel to prevent thread galling.
Auxiliary lighting taps the accessory circuit (red/white) via a 10A fuse; ensure all splices occur upstream of resistive loads like heated grips. Label each connection with heat-shrink tubing printed via label maker–avoid masking tape, which degrades under UV and oil. Store spare fuses in a magnetic case attached to the battery box for expedited troubleshooting.
