Complete 1996 Toyota Tacoma Radio Wiring Diagram and Installation Guide

Locate pin C12 (typically a 14-pin white connector) at the rear of the head unit harness–this carries constant 12V power (red wire), ground (black), and ignition feed (yellow). Splice the red wire directly to the fusebox terminal 1D if voltage drops below 11.8V during startup; Toyota’s OEM setup often routes current through inadequately sized traces, causing low-power resets.

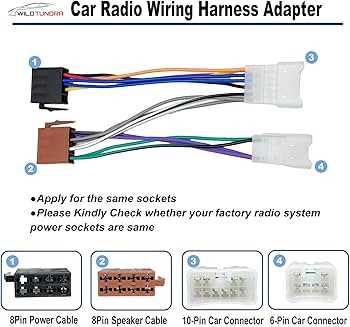

Aftermarket adapters (Metra 70-8113) require soldered connections on wires #7 (left rear +), #8 (right rear +), and #9 (common ground)–crimping risks intermittent shorts under 3+ amps load. Verify speaker impedance before wiring tweeters (measured at 3.2Ω; values below 3Ω risk overheating the stock amplifier IC).

For color-coded clarity: harness wire LG/WH (light green/white stripe) feeds antenna motor–remove the pin from connector A6 if upgrading to a fixed-mast antenna; retaining it will drain battery via the ACC relay circuit within 48 hours of disuse. Replace fuse #12 (10A) with 15A only if adding an amplifier; otherwise, maintain OEM ratings.

Trace the ILLUMINATION wire (O/W) to the dimmer switch–solder a 10Ω resistor in series if backlighting flickers during engine crank. Factory schematics omits R16, a scorch-prone 1W resistor handling dash lights; bypass it with a 2W 5% tolerance component to prevent signal degradation under dimmed headlights.

Understanding Your Pickup’s Audio System Connections

Locate the 12-pin connector behind the factory stereo unit–this is the primary interface for all harness adaptations. Pin 1 (red) delivers constant 12V power from the fuse box, while Pin 4 (yellow) provides accessory voltage triggered by the ignition. Ground connects via Pin 5 (black) to the chassis near the mounting bracket. Verify these first using a multimeter before splicing into aftermarket units.

Key Wire Functions and Color Codes

• Power (Battery): Red stripe (Pin 1) – direct 12V line requiring a 10A fuse in-line.
• Accessory Power: Yellow (Pin 4) – activates with key position “ACC” or “ON.”
• Ground: Black (Pin 5) – ensure bare metal contact; sand away paint if necessary.
• Speaker Outputs:
  • Front Left (+): Light green (Pin 6)
  • Front Left (-): Dark green (Pin 7)
  • Front Right (+): Gray (Pin 8)
  • Front Right (-): Dark gray (Pin 9)
  • Rear Left (+): Purple (Pin 10)
  • Rear Left (-): Dark purple (Pin 11)
  • Rear Right (+): White (Pin 12)
  • Rear Right (-): Dark blue (Pin 3)
• Illumination: Light brown (Pin 2) – dims with headlight activation.

Aftermarket adapters often mislabel rear speaker wires–confirm polarity by testing with a 9V battery. A brief touch to the speaker leads should push the cone outward; reverse connections if it retracts. Factory amplifiers (if equipped) use separate feeds: brown (right channel) and pink (left channel) at the amp connector.

For retained steering wheel controls, identify the gray connector near the kick panel. The data bus wire (solid blue) carries control signals–use a dedicated interface module like Metra ASWC-1 rather than splicing directly. If bypassing the amp, jumper the speaker inputs at the factory harness to prevent audio cutoff.

1. Disconnect the negative battery terminal before probing wires.
2. Tape each connection individually to prevent shorts.
3. Route wires away from moving parts or sharp edges.
4. Test all speaker outputs individually before finalizing install.

If static or popping occurs, check for poor ground connections–clean mounting surfaces with emery cloth. For noise from the alternator, add a noise filter on the power line or relocate ground points away from the engine bay. Non-OEM stereos may require a higher-amperage fuse (up to 20A) on the constant power line.

Finding the Audio System Connector in Your Mid-90s Pickup

Start by removing the lower dashboard panel beneath the stereo unit. Two screws near the ashtray secure this panel; a 10mm socket removes them quickly. Pull the panel downward and slide it toward the driver’s seat to release three hidden clips. The main harness plug sits directly behind where the factory head unit was mounted, visible once the panel drops.

Trace the multi-pin plug upward–it’s the larger rectangular connector with twelve terminals. A snap-release tab on the top edge requires gentle pressure with a small flathead screwdriver; releasing this tab allows the connector to separate from the dash bracket. Confirm the presence of color-coded wires: pink, light green, violet, gray, and solid white leads should match the labels on any aftermarket adapter.

The connector may hide behind a thin foam pad or plastic shroud; peel this back carefully to prevent tearing the wires’ insulation. If corrosion is visible on the terminals, apply electrical contact cleaner spray directly into the socket, then insert and remove the plug three times to clean oxidation. Avoid bending the delicate pins during this process.

Check the passenger-side kick panel next if the harness isn’t visible. Release a single Philips screw and swing the panel outward; some models route the harness through this cavity instead. Look for a secondary six-pin plug here, often used for amplifier triggers or antenna power. Both connectors should click securely when reconnected.

Label each wire using masking tape before disconnecting anything. Even seasoned installers misremember which lead powers the amp remote or the memory keep-alive circuit; tape labels prevent trial-and-error troubleshooting later. If the harness seems loose after reconnection, push inward firmly until the snap-release engages–partial connections cause static or intermittent audio faults.

Use a flashlight angled upward to inspect the area above the glove box. Some dual-cab variants route a short pigtail harness through this space; if present, splice directly into it rather than hunting for the main plug beneath the dash. Always disconnect the battery’s negative terminal before making any connections to prevent short circuits during installation.

Matching Harness Wire Colors to Aftermarket Audio System Connections

Start with the yellow lead–this supplies constant 12V power directly from the battery, critical for maintaining presets and clock settings when the ignition is off. Verify its voltage with a multimeter before connecting; a low reading suggests a corroded fuse or damaged line.

The red wire carries switched power, activating only when the key is in the ignition. Connect this to the aftermarket head unit’s ignition input to prevent parasitic drain. If the stereo stays on after shutting down the vehicle, confirm this lead isn’t spliced into an always-hot circuit by mistake.

Locate the black ground wire–it’s typically the thickest single-colored cable in the harness. Scrape paint or rust at the chassis attachment point to ensure a solid connection; a weak ground causes buzzing, poor bass response, or sporadic shutdowns. Avoid daisy-chaining grounds to other components.

Blue/white striped wires trigger amplifiers or power antennas. Route this through the firewall separately if installing an external amp; failure to do so risks overloading the stereo’s internal circuit. Check for 12V output when the stereo powers on–no voltage means a head unit with disabled remote features.

Speaker wires follow a consistent pattern: front left positive (gray), front left negative (gray/black stripe), front right positive (white), front right negative (white/black stripe), rear left positive (green), rear left negative (green/black stripe), rear right positive (purple), and rear right negative (purple/black stripe). Test each pair with a 9V battery–positive voltage should push the speaker cone outward. Reverse polarity causes phase cancellation, weakening soundstage and bass output.

Illumination control wires (light green in most cases) dim the display when headlights are on. Connect this to the aftermarket unit’s dimmer input–otherwise, the screen may blind nighttime drivers. If the stereo lacks adjustable brightness, cap this wire to prevent erratic behavior.

Step-by-Step Guide to Safely Removing the Stock Audio System Harness

Disable the vehicle’s battery first–locate the negative terminal, loosen the clamp with a 10mm wrench, and set the cable aside to prevent short circuits. Confirm the power is fully drained before proceeding.

Remove the dashboard trim panels surrounding the head unit. Insert a trim tool into the seam along the lower edge of the front panel, then gently pry upward while rotating the tool to release the clips. Work methodically around each side to avoid snapping plastic retainers. Store screws and clips in a labeled container to prevent loss.

Identify the harness plugs at the rear of the audio module–there are typically two primary connectors: one for power and speaker outputs, another for antenna and illumination signals. Press the release tab on each plug with your fingertip while pulling straight back; never twist or yank, as this can damage the pins inside the connectors.

Trace the harness bundle as it exits the back of the module. Look for zip ties securing it to the chassis–snip these with diagonal cutters, leaving a small tail to re-secure later if needed. Separate the wires by function: power feeds (red, yellow), ground (black), speaker leads (striped pairs), and accessory lines (illumination, dimmer). Use a multimeter to verify no residual voltage exists on any wire before handling.

Label each connector with masking tape–note the original location on the vehicle’s factory harness diagram if available. If splicing is required later, use crimp connectors or solder joints wrapped in heat-shrink tubing instead of electrical tape; this ensures long-term reliability. Avoid cutting wires unnecessarily–leave maximum length for re-installation.

When handling the antenna lead, gently remove it from its mounting grommet by rotating the plug counterclockwise while pulling outward. The coaxial cable is fragile–do not bend it sharply or allow it to kink. If the system includes a CD changer or amplifier, disconnect these components first to avoid strain on the main harness during removal.

Once all connections are free, slide the audio module forward from its mounting cage, tilting it upward to clear the dashboard. Inspect the cavity for debris or loose screws, then set the unit aside on a soft surface to prevent scratches. If reinstalling a new system, test-fit all components before finalizing any permanent connections.
