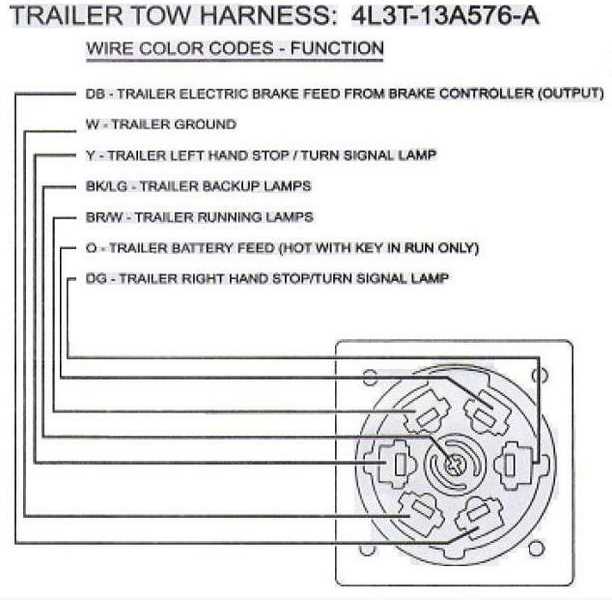

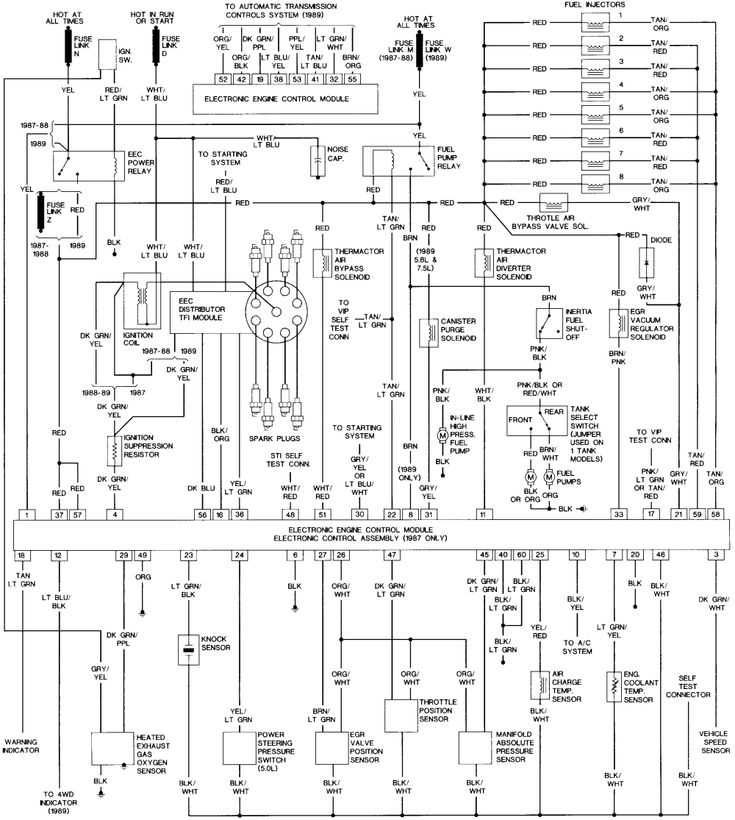

1998 Ford F150 Trailer Wiring Harness Color Code and Diagram Guide
For owners needing a reliable electrical setup, start with the factory wiring harness. The standard 4-way flat connector on these models includes circuits for running lights, brake lamps, and turn signals. Verify the pin configuration: brown (tail lamps), yellow (left turn/brake), green (right turn/brake), and white (ground). If corrosion is present, replace the connector rather than attempt repairs–factory seals prevent moisture intrusion.
Upgrading to a 7-way round adapter? Use Ford’s OEM wiring kit (part #F5TZ-14A411-A). This setup adds electric brake control and auxiliary power while maintaining compatibility with trailer brake controllers. Connect the blue wire (brake output) to the controller’s output terminal, not directly to the battery–this prevents voltage spikes from damaging sensitive components. Ground the white wire at the frame, not the bumper, to avoid signal interference.
For vehicles with aftermarket stereos or alarm systems, isolate the towing circuit using a relay (Bosch 0332014007). Signal loss often originates from insufficient current draw; relays ensure consistent power delivery to trailer lights. Test each circuit with a multimeter: target voltage is 12.6V with engine off, 14.2V running. Readings below 11.5V indicate a failing alternator or corroded ground connection.
When splicing wires, use heat-shrink butt connectors (3M 38388) instead of electrical tape. Expose only the necessary wire length–excess copper increases resistance. For trailers heavier than 2,000 lbs, install a dedicated battery isolator (ProMariner ProSport 15) to prevent parasitic drain. Avoid tapping into the factory trailer brake circuit for auxiliary loads–this overloads the 10-amp fuse and risks brake controller failure.
Common failure points include the trailer side plug and the vehicle’s grounding point near the hitch receiver. Clean corrosion with a wire brush, then apply dielectric grease (CRC 05113) before reassembly. Replace pigtail assemblies if insulation is cracked–water ingress causes intermittent light failures. For LED trailer lights, add a load resistor (Curt 58235) to each circuit to prevent hyperflashing from the low current draw.
Electrical Hookup Guide for 1997–1999 Pickup Towing Systems
Begin by locating the factory tow package connector behind the rear bumper cover–typically a black 7-pin plug with color-coded wires: white (ground), brown (tail lights), yellow (left turn/brake), green (right turn/brake), blue (electric brakes), red (auxiliary power), and black (hot lead). Use a multimeter to verify voltage on each circuit: 12V on the black wire, pulsed signals on yellow and green during activation, and constant 12V on red when the ignition is on. If replacing the harness, match wire gauge to OEM specs–14 AWG for lighting circuits, 12 AWG for brake control, and 10 AWG for battery feeds to prevent voltage drop under load. Secure all splices with heat-shrink butt connectors and dielectric grease to inhibit corrosion.
Common Faults and Diagnostics
- No brake lights/tail lights: Check the brown wire at the connector; corrosion often occurs at the license plate light splice. Replace the entire harness if resistance exceeds 3 ohms.
- Intermittent turn signals: Inspect the yellow/green wires for chafing near the spare tire hanger. Route replacement wire in split-loom tubing to prevent repeat failures.
- Brake controller inoperative: Probe the blue wire at the brake switch with the pedal depressed; voltage should spike to 12V. If absent, bypass the factory relay by connecting directly to the brake pedal stop-light switch.
- Auxiliary power failure: Test the red wire at the plug; if voltage drops below 11V under load, trace back to the fuse box (Fuse #13, 20A) or the under-dash power distribution center.
For tow packages lacking the factory connector, splice into the rear light assembly using a T-harness with 6-pin connectors. Avoid tapping into the brake light circuit for turn signals–this violates DOT regulations and risks flasher relay burnout. Always ground the harness independently at a clean chassis point, not through the taillight housing.
Finding the Original Towing Harness Plug in Your Late-Model Pickup
Check behind the rear bumper on the driver’s side–most installations position the OEM connector just left of the tow hitch receiver tube. Follow the factory loom that exits the taillight housing; it terminates in a 7-pin round plug encased in black plastic and tucked inside a snap-on dust cover. If the plug isn’t visible, remove the spare-tire carrier or any underbody trim panel secured by 8 mm bolts; the harness is often routed beneath them.
Trace the main vehicle harness from the left tail lamp assembly forward along the frame rail. Approximately 18 inches ahead of the axle housing, look for a rubber-grommeted pass-through in the frame; the OEM pigtail exits here and loops back toward the hitch area. Pull loose any zip-ties or foam insulation securing the wires to the rail–this reveals the full pigtail length and confirms its factory origin.
When the primary connector remains hidden, locate the central junction module mounted on the frame cross-member beneath the cab. Identify the multi-port plug labeled “Towing Circuit” on the module’s edge; the matching harness side snaps into this port. Unplugging the module reveals the pre-wired leads–ground, marker, stop, and turn signals–ready for immediate coupling to an aftermarket mating socket.
Verify color codes against the service schematic: yellow/white stripe carries left turn and stop signals, brown handles marker lights, green/red stripe feeds right-side circuits. Corrosion inside the connector shells is common; clean contacts with electrical cleaner and fine-grit sandpaper before attaching the new coupler.
Ensure the ignition switch is off before probing or disconnecting connector pins. Using a non-contact voltage tester at the rear lamp bulb sockets guarantees active circuits without risking fuse overloads. Match each pinout to the socket side with crimp connectors; avoid soldering directly to factory wires to preserve future diagnostic access.
Step-by-Step Guide to Installing a 4-Pin Towing Electrical Kit
Locate the factory electrical connector near the rear bumper–typically tucked beside the vehicle’s frame rail or behind a removable panel. Use a trim removal tool to pry open any plastic covers without damaging clips. For trucks with pre-existing towing provisions, this plug may already contain colored wires (brown, green, yellow, white) corresponding to taillight, brake, turn signal, and ground functions.
Separate the harness’s connector into individual wires, stripping ¼ inch of insulation from each end if splicing is required. Match the new harness’s wire colors to the truck’s existing circuit: brown (running lights), green (right turn/brake), yellow (left turn/brake), and white (ground). Secure connections with crimp connectors or solder for durability, then wrap each joint in electrical tape or heat-shrink tubing to prevent corrosion.
Route the new harness along the frame, avoiding sharp edges, exhaust components, or suspension parts that could chafe the insulation. Use zip ties every 6–8 inches to anchor the wires securely, ensuring no slack remains that could snag or drag. If the harness includes a modular plug, align it with the truck’s mating connector and snap into place–no splicing needed for plug-and-play kits.
Test each function before finalizing installation: activate running lights, brake pedal, and turn signals while observing the trailer socket’s female pins for proper illumination. Use a multimeter to verify voltage (12V ± 0.5V) at each pin when the corresponding circuit is engaged. If flickering or dim lights occur, check grounds first–clean the truck’s ground point (bare metal) and reattach the white wire with a star washer for optimal conductivity.
For trucks lacking a factory connector, mount a dedicated 4-pin socket to the bumper or hitch receiver using the provided bracket. Drill pilot holes if necessary, but avoid penetrating fuel tanks, brake lines, or wiring harnesses–use a stud finder or flashlight to inspect the mounting area beforehand. Connect the socket’s wires to the truck’s lighting circuits at the nearest taillight assembly, tapping into the correct circuits with T-taps or by soldering to the bulb holder’s contacts.
After confirmation of all circuits, seal the socket’s mounting area with dielectric grease to repel moisture, then cover the connector cap when not in use. Periodically inspect connections during towing season, especially after exposure to road salt or heavy rain, to prevent oxidation that can disrupt signals. Store spare fuses (15–20 amp) in the glovebox as a precaution against intermittent failures.
Standard Color Schemes and Pin Assignments for Pickup Connectors
Verify each circuit before splicing by testing with a multimeter set to continuity mode–grounded wires should show less than 2 ohms resistance. The seven-way connector on this model follows a consistent scheme, but aftermarket modifications or corrosion may alter coloration. Use the original harness as reference, not assumptions based on generic charts.
Below is the default pinout for the standard plug, including voltage and typical faults:
| Cavity | Color (Primary/Base) | Secondary Striping | Function | Expected Voltage (Key On) | Common Failures |
|---|---|---|---|---|---|
| 1 | White | None | Ground | 0 V | Poor connection due to road salt buildup |
| 2 | Brown | None | Marker lamps | 12 V when activated | Chafed insulation near frame rail |
| 3 | Green | White stripe | Left turn/brake | 12 V pulsed | Short to running lamp circuit |
| 4 | Yellow | None | Right turn/brake | 12 V pulsed | Intermittent open from flex fatigue |
| 5 | Black | None | Battery hot lead | 12.6 V continuous | Corroded fuse link under hood |
| 6 | Blue | White stripe | Electric brake output | 12 V modulated | Controller failure misdiagnosed as harness fault |
| 7 | Red | None | Auxiliary (reverse or +12 V) | Varies | Oxidized terminals in plug body |
Troubleshooting Corroded Connections
Disconnect the negative battery terminal before cleaning terminals to prevent accidental shorts. Scrape oxidation from metal surfaces with a small wire brush; avoid sandpaper, which can embed debris and worsen conductivity. Apply dielectric grease after reassembly–regular lithium grease attracts dirt and accelerates corrosion.
Check for stray voltage on the ground circuit by probing the white wire at the plug while the vehicle is running; if more than 0.1 V is present, trace the ground path to the chassis and clean the mounting point. On auxiliary circuits (pin 7), use a fused jumper to isolate whether the fault lies in the harness or the attached equipment.
