1998 Honda Civic Fuel Pump Wiring Diagram Guide with Color Codes
To diagnose intermittent no-start issues in this model, start by probing the relay socket terminals–specifically pins 3 (power) and 5 (ground)–with a multimeter set to DC voltage. A reading below 11.5V at pin 3 under cranking conditions confirms voltage drop from a failing ignition switch or corroded fuse contacts. Replace fuse 15 (10A) in the under-dash panel if resistance exceeds 0.5 ohms; dielectric grease on the new fuse prevents moisture ingress.
Trace the wiring loom from the rear quarter panel forward: the orange/black wire (power feed) must maintain continuity to the sender unit without splices. If splices exist, bypass them with 18-gauge automotive-grade wire and soldered joints covered in adhesive-lined heat shrink. At the pump module, verify the black/yellow wire (signal return) isn’t shorted to chassis ground–use a test light between the wire and battery negative; illumination indicates a short requiring harness replacement.
For vehicles with OBD-II port access, monitor PID 40 (fuel pump monitor) during key-on/engine-off. A sudden drop below 0.3V after 2 seconds signals a faulty pump relay or open circuit in the blue/red wire (ECU trigger). Swap the relay with an identical spare (A/C relay works as a substitute) to isolate failures. If the issue persists, back-probe the ECU connector at terminal 2B (blue/red) while cycling the ignition; inconsistent voltage spikes point to a failing ECU requiring reflash or replacement.
When replacing the delivery module, disconnect the battery negative terminal first to prevent sparks near tank vapors. Remove the rear seat cushion, then the access panel–apply penetrating oil to the retaining ring threads if corrosion is present. After installation, prime the system by turning the key to “ON” (without cranking) five times, pausing 3 seconds between cycles; listen for a 2-second whine from the tank confirming proper operation before attempting startup.
Electrical Circuit for the 1998 Compact Car’s Fuel Delivery System
Locate the main relay under the dashboard near the steering column–marked as “Box A” in service manuals. The relay’s pinout consists of 5 terminals: 30 (battery feed), 85 (ground via ECM), 86 (switched ignition), 87 (output to sender), and 87a (direct to delivery module). Disconnect the negative battery cable before probing.
- Terminal 30 receives constant 12V from fuse 13 (15A) in the under-hood box.
- Terminal 86 activates only when ignition reaches “RUN,” confirmed with a test light.
- Terminal 85 uses chassis ground at G101 behind the passenger kick panel.
- A 4-pin connector bridges the relay to the delivery module–pins color-coded: Red/Green (SG), Black/Yellow (BY), White/Blue (WB), Yellow/Blue (YB).
For resistance checks, measure across the module’s input and output while cycling ignition: 12.4–13.2Ω indicates proper operation; readings below 10Ω suggest internal shorts requiring replacement. A separate 2-pin white connector (female) links the sender to the gauge cluster–White/Red (WR) to terminal 2 and Black/Yellow (BY) to terminal 1.

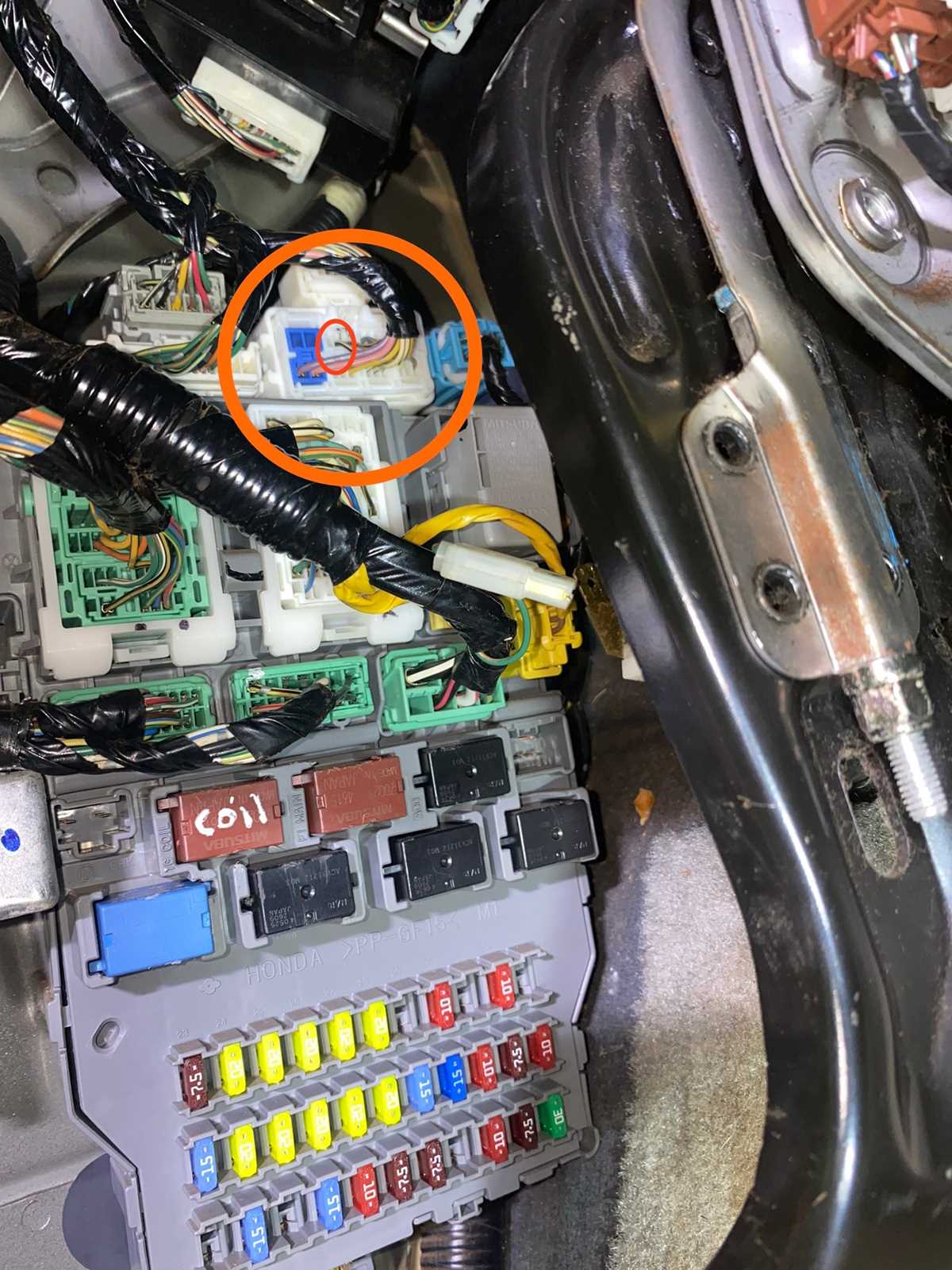

Locating the Electrical Relay and Fuel Delivery Circuit Connector
Begin by removing the lower dashboard panel beneath the steering column to access the fuse box. The control module for the injection system is housed on the driver’s side, directly adjacent to the central junction block–identify it by its square shape and four-prong layout. Pin configurations typically align as follows: terminal 1 (12V constant), terminal 2 (ground), terminal 3 (trigger signal from ECM), and terminal 4 (output to the high-pressure circuit). Disconnect the negative battery terminal before probing connections to avoid short circuits; use a multimeter set to 20V DC to verify continuity between each pin and its corresponding harness lead.
Trace the harness from the relay downward along the firewall’s inner panel, following its path toward the rear tank assembly. The inline connector is secured by a black plastic clip approximately 15 cm above the tank’s mounting flange–press the release tab before separating the halves. Inspect the pins for corrosion or bent contacts; clean with electrical cleaner if oxidation is present. Reassemble only after confirming correct voltage delivery: 11.8V minimum at the tank-side terminal under ignition-on condition, with no parasitic draw exceeding 50mA when the system is off.
Step-by-Step Color-Coded Connector Tracing
Begin with the vehicle’s electrical schematic for the energy delivery module. Locate the harnesses linking the tank sender unit to the powertrain control module (PCM). The primary feed wire is yellow/black, supplying 12V from the main relay. Verify continuity using a multimeter–probe the terminal while grounding the negative lead.
Identify the return circuit: green/white carries ground from the control unit back to the chassis. Check for corrosion at the tank-side connector–clean with a wire brush if resistance exceeds 0.5 ohms. Avoid splicing; damaged sections must be replaced with OEM-spec cables to prevent voltage drop.
Trace the blue/yellow signal line connecting the sender to the PCM. This wire transmits fuel level data–ensure it’s free of shorts by testing with a noid light (no voltage spikes should appear). If faults persist, measure resistance across the sender float (45–55 ohms when full, 250–330 ohms when empty).
Inspect the black/yellow safety circuit–this triggers the inertia switch during impact. Test by manually pressing the switch and listening for the relay click. If silent, bypass temporarily to confirm module failure before replacement.
For the feed wires (yellow/black and black/yellow), strip 5mm of insulation, crimp with gold-plated connectors, and seal with heat shrink tubing. Use a torque wrench (5–7 Nm) when reconnecting to prevent loosening under vibration. Label each connection with masking tape to avoid cross-wiring during reassembly.
Verifying Electric Supply Integrity in the Delivery System
Begin by setting the voltmeter to the 20V DC range. Probe the relay socket terminals–Pin 87 for output and Pin 85 for ground–while cycling the ignition to “ON” without starting the engine. A reading below 10V indicates a corroded connection, faulty relay coil, or severed harness segment upstream.
Next, shift the meter to continuity mode to assess paths between the control module and component terminals. Attach one lead to the module’s relay trigger wire (typically 0.8 mm² gauge) and the other to the corresponding terminal at the sender. Silence or resistance exceeding 0.5 ohms necessitates tracing the wire’s length, stripping insulation every 15 cm to inspect for hidden oxidation or pinching.
| Terminal | Expected Voltage | Acceptable Resistance | Failure Symptoms |
|---|---|---|---|
| Relay Output (87) | 12.6 – 13.8 V | < 0.2 Ω | Intermittent cutoff, slow prime |
| Ground (85) | 0.1 V max | 0 Ω | Whining noise, delayed response |
| Module Trigger | 4.5 – 5.5 V pulse | 0.1 – 0.3 Ω | No-start, stumble at idle |
If voltage is confirmed at the relay yet absent at the sender, connect the leads in parallel across the fuse holder with the ignition off. Replace any fuse showing a voltage drop above 0.2 V, as this suggests interior melting not visible through the translucent casing.
Key Signs of Compromised Electrical Connections in Fuel Delivery Systems
Check for intermittent engine stalls during acceleration–this often indicates voltage drops in the power feed to the supply relay. Probe the circuit with a multimeter while simulating load: readings below 10.5 volts at the connector suggest corroded terminals or chafed harness insulation. Inspect the ground path near the tank sender unit, as degraded connections here generate resistance that mimics lean fuel conditions.
No-start conditions with cranking may trace back to a fractured positive lead between the main fuse block and inertia switch. Locate the switch beneath the dashboard; if bypassing it restores operation, replace the damaged wire section with 14-gauge tinned copper, securing splices with adhesive-lined heat shrink. Avoid soldering near fuel vapors–crimped butt connectors with dielectric grease are safer.
Erratic gauge readings–rapid swings between empty and half-full–often point to intermittent shorts in the sender harness. Disconnect the tank unit and test continuity between each conductor and chassis ground. A reading below 100k ohms confirms insulation breakdown; replace the harness with OEM-spec wire or equivalent cross-linked polyethylene (XLPE) rated at 600V. Route new wiring away from metal edges using split loomed tubing.
Preventive Measures for System Integrity
Apply dielectric grease to all connectors during reassembly to displace moisture. Use a torque wrench on terminal screws–2-3 in-lbs prevents over-tightening that cracks solder joints. After repairs, monitor fuel trims via OBD-II: persistent long-term fuel trim (LTFT) corrections above ±10% often indicate unresolved voltage irregularities in the power delivery network.
Replace the inertia switch if actuation history exceeds 5 incidents, as its internal contacts degrade from arcing. Verify the main relay’s coil resistance (approximately 80 ohms) and diode continuity; failed components cause parasitic drain that drains the battery overnight. Substitute relays with known-good units before condemning wiring–aftermarket relays often lack the correct diode suppression, leading to false diagnoses.
