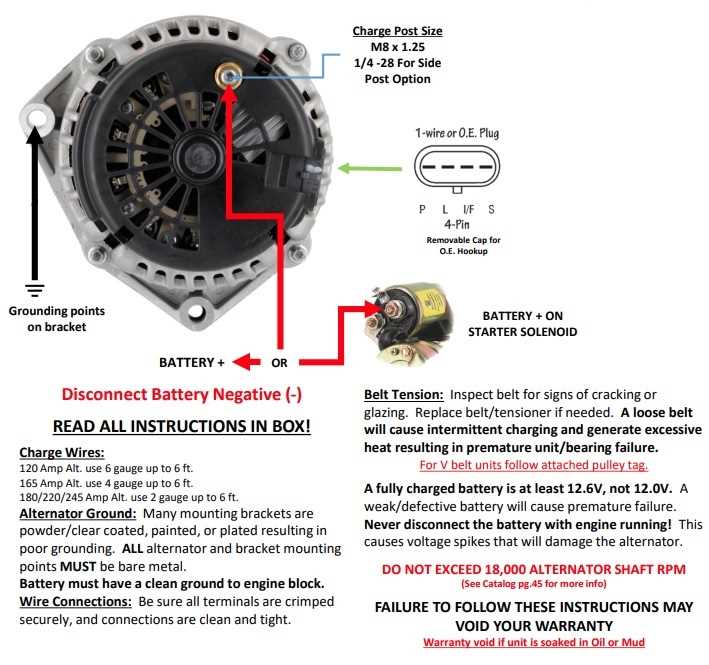

Complete Lincoln Town Car Alternator Wiring Guide 1998 Model Schematics
If your 4.6L modular V8’s voltage regulator isn’t delivering a stable 14.2–14.8V output under load, start by verifying the field excitation circuit. The single-wire excitation terminal–labeled “S” or “Field” on most OEM units–must receive a clean 12V signal from the ignition-switched power source. Locate the orange/light blue stripe wire exiting the harness plug; this is the primary excitation feed. If voltage drops below 12V at this point, trace upstream to the ignition relay or fusible link; corrosion at the junction box near the battery tray is a common failure point.
For the main power delivery, the thick yellow voltage output cable connects directly to the positive battery terminal via a 120-amp fusible link. Disconnect the link and measure resistance across the cable–values above 0.1 ohms indicate internal corrosion or a damaged crimp. Follow the braided ground strap from the case housing to the engine block; the mounting bolt must be torqued to 18–22 ft-lb and free of paint or oxidation. A weak ground here can mimic alternator failure, causing erratic charge rates despite a functional stator.
To isolate sensor-related issues, check the B13 PCM pin (gray/red wire) for a consistent 5V reference signal. Voltage fluctuations here can trigger false overvoltage codes, often misdiagnosed as a faulty regulator. For late-model revisions with integrated voltage sensing, the gray/black wire at the dashboard cluster carries the charging system status–verify continuity with the instrument panel bulb socket if the charge light remains illuminated.
Replace factory connectors if melted plastic or discolored terminals are present. Use de-ox coated terminals and marine-grade heat shrink for splices. When reassembling, route the excitation wiring away from exhaust manifolds and secure with non-conductive loom to prevent heat damage. Test the completed circuit with a carbon-pile load tester: a properly functioning system should maintain voltage above 13V at 80A draw with the engine at 2,000 RPM.
Electrical Charging System Wiring Layout for a Classic Ford Luxury Sedan
Begin by locating the battery-positive cable on the rear mounting post of the voltage regulator. This thick red wire carries the primary excitation current from the battery to the charging unit. Trace it visually to confirm it splits into two paths: one leading to the ignition-controlled relay and another directly to the output terminal of the generator. Any corrosion at these junction points will cause inconsistent voltage delivery, so clean connections with a wire brush and apply dielectric grease.
Identify the smaller blue wire running from the voltage regulator’s “S” terminal. This sensor wire monitors system voltage at the battery and adjusts the field current accordingly. If voltage readings fluctuate unusually, inspect this wire for chafing near the engine block or sharp edges near the suspension tower. Replace the wire if insulation is compromised–even minor exposure can create parasitic voltage leaks.
The yellow-striped wire connects the charging unit’s stator windings to the rectifier assembly. Verify its routing avoids moving components such as the serpentine belt or radiator fan. A pinched or abraded section here can short the stator windings, leading to rapid battery drain. Use a multimeter set to continuity mode to test the integrity of this pathway–any reading above 0.5 ohms indicates internal resistance requiring immediate attention.
Examine the fusible link integrated into the battery-positive circuit. This short, heat-resistant segment acts as a primary fail-safe against current surges. If the charging system fails entirely, test the fusible link with a 12V test light–probe both ends; if only one end illuminates, the link has burned out. Replace it with an identical gauge length, ensuring the replacement matches the original’s 8-10 gauge thickness.
Check the ground circuit’s integrity by inspecting the braided ground strap connecting the generator casing to the engine block. A poor ground manifests as dim headlights or erratic gauge readings. Scrape surface rust from the contact points and re-secure the strap using a high-torque wrench–loose connections oxidize quickly, exacerbating voltage irregularities under load.
The ignition-controlled relay governs power delivery to the regulator’s field terminal. This relay, typically black in color, receives input from the ignition switch through a purple wire. Test it by bypassing the relay momentarily with a jumper wire–if the charging unit engages, the relay is faulty. Swap it with a known-good relay from the horn or A/C circuit for verification, ensuring compatibility in amperage rating (20-30A typical for this model).
Finally, document all modifications with a labeled schematic sketch. Note wire colors, terminal numbers, and relay positions for future reference. Include measured voltage readings at key points–output terminal (13.8-14.5V under load), battery terminal (should match output within 0.3V), and sensor wire (must align with battery voltage). Store this record under the driver’s seat or in the glovebox to expedite troubleshooting during unexpected failures.
Identifying Key Conductors in the Generator Charging Circuit
Locate the main output cable–thickest wire in the harness, typically 8–10 AWG with yellow or orange insulation. This carries generated current to the battery and electrical system. Trace it directly from the rear housing terminal; absence of corrosion here is critical for uninterrupted power flow.
Identify the voltage sensing lead: a thinner (14–16 AWG) wire, often red with a white stripe, connecting to the regulator or engine control module. This wire must remain undamaged–any break causes erratic charging or overvoltage conditions. Check continuity with a multimeter set to 200 Ω range; values above 5 Ω indicate internal resistance.
The excitation circuit uses a smaller (16–18 AWG) wire, usually pink or purple, terminating at the ignition switch or a dedicated relay. Verify its function by probing voltage at the terminal while cranking the engine–readings should jump from 12V to 13.8–14.5V when the rotor spins. If voltage remains static, inspect the relay contacts or switch connections.
Ground wires–bare or green with yellow stripe–securely fasten to the chassis near the unit. Loose or corroded grounds drop system efficiency by 30% or more. Clean contact points with a wire brush and apply dielectric grease to prevent oxidation. Use a torque wrench to tighten to 12–15 ft-lbs for optimal conductivity.
| Wire Color | Gauge (AWG) | Function | Critical Check |
|---|---|---|---|
| Yellow/Orange | 8–10 | Power output | Insulation integrity, terminal corrosion |
| Red/White stripe | 14–16 | Voltage sensing | Continuity |
| Pink/Purple | 16–18 | Excitation coil | Voltage rise from 12V to 14V under load |
| Green/Yellow stripe | N/A | Ground | Clean contact, proper torque |
Connector pins require specific attention. Release the plastic retainer gently–prying with a screwdriver risks cracking it. Depress the tabs inside each terminal cavity to remove wires; tugging damages the locking mechanism. Inspect each pin for bent contacts; straighten with needle-nose pliers if misaligned. Apply contact cleaner before reassembly to ensure low-resistance connectivity.
Stator windings connect via three-phase leads–usually blue, brown, and black–bundled together inside the harness sheath. These wires must not show signs of overheating (melting, discoloration). Test resistance between each phase: values should match within 5% (typically 0.2–0.5 Ω). Higher readings indicate degraded winding insulation, necessitating replacement.
Harness routing near moving components demands protection. Secure all wires away from exhaust manifolds, pulleys, and sharp edges using nylon ties every 6 inches. Replace any cracked sheathing immediately; exposed conductors risk short circuits. For high-vibration areas, use silicone-coated wire to prevent fatigue failures.
Final verification involves a charging system test under load. Start the engine and run at 2000 RPM. Attach a voltmeter to the battery terminals–readings should stabilize between 13.8–14.5V. If voltage fluctuates or exceeds 15V, check regulator functionality or inspect the sensing wire for intermittent faults.
Step-by-Step Guide to Locating the Voltage Regulator Connection
Begin by identifying the rear section of the charging system’s housing–typically a black or dark grey plastic cover secured with two 8mm bolts. Remove these fasteners using a socket wrench, then gently pry the cover away to expose the internal components. The voltage regulator is embedded within this assembly, distinguishable by two spade connectors and a single smaller wire, often yellow or white, attached to a terminal marked “S” or “I”.
Trace the thicker red and black cables leading from the back of the unit; these correspond to the main power and ground connections. The regulator’s field wire (a thin blue or green lead) usually terminates at a plug-in harness near the top of the assembly. Check for a matching connector on the vehicle’s wiring loom–this will either be a two-pin or three-pin plug, depending on the model variant. Disconnect it by pressing the release tab while pulling straight out.
Inspect the regulator’s mounting flange for corrosion or bent pins, as these can disrupt signal integrity. Use a multimeter set to 20VDC to probe the “S” terminal while the engine is off–expect a reading between 2.5V and 3.5V, indicating a functional sensing circuit. If voltage is absent, follow the yellow/white wire back to the instrument cluster fuse box, where a 10A fuse (usually labeled “ALT SENSE”) protects this circuit.
Locate the brush holder assembly beneath the regulator cover–two carbon brushes press against the rotor’s slip rings, maintained by coiled springs. Verify their length (minimum 5mm) and clean any debris from the contact surface with 600-grit sandpaper. Reattach the brush holder with its retaining screws, ensuring alignment with the rotor’s rotation path. Misalignment here causes premature wear or erratic voltage output.
Reinstall the rear cover once connections are confirmed, torquing the 8mm bolts to 9-11 Nm. Start the engine and monitor the voltage at the battery terminals–13.8V to 14.4V at idle confirms proper regulator operation. Fluctuations outside this range suggest internal faults, requiring replacement of the entire assembly rather than individual components.
