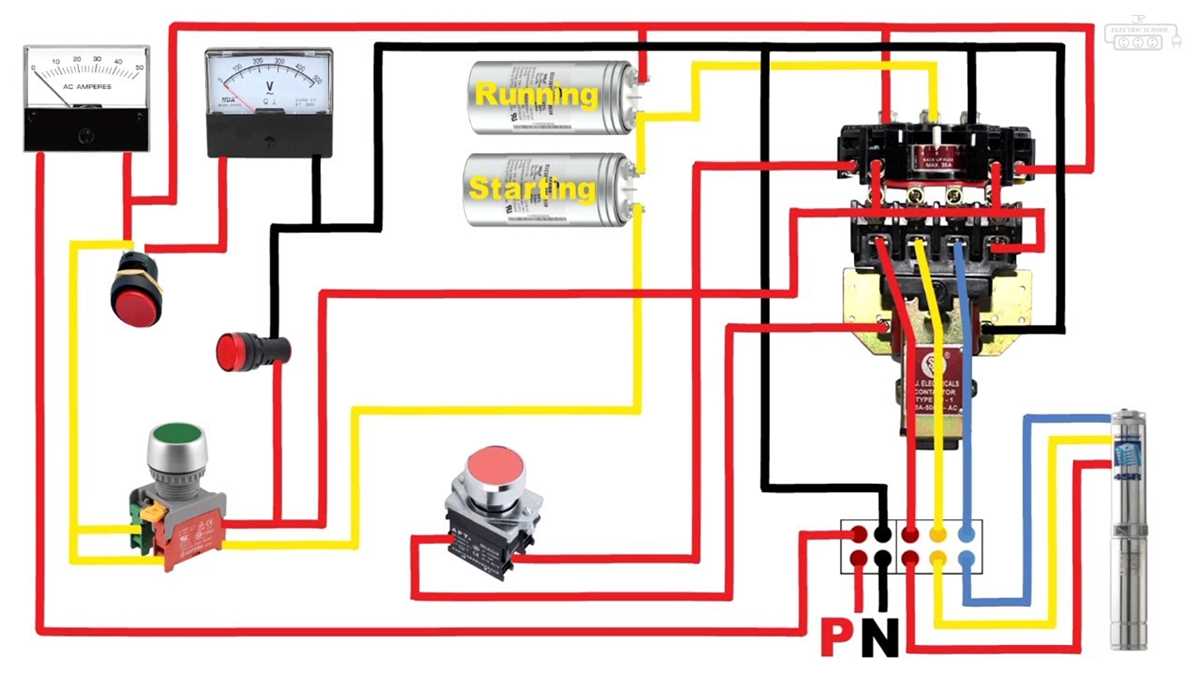

Complete Guide to Wiring a 1HP Submersible Pump Starter with Diagram
Begin by disconnecting all power sources–verify isolation with a multimeter before handling any terminals. For a single-phase, 230V system, connect the live wire (typically red or brown) to the primary terminal marked L on the overload protector. The neutral (black or blue) attaches to N, while the earth wire (green/yellow) grounds directly to the motor housing or designated earth point. Skip any intermediate switches unless voltage drop calculations confirm the need for an extra relay.
Capacitors must match the motor’s microfarad rating–check the nameplate: 50-60µF for most 0.75 kW units. Install the run capacitor between terminals R and C, ensuring leads are secured with crimp connectors to prevent vibration-induced failures. Omit the start capacitor if the motor label specifies “permanent split” design–adding one risks phase imbalance and overheating.
Use 2.5 mm² copper wire for runs under 30 meters; increase to 4 mm² for longer distances to minimize voltage loss. Insulate connections with heat-shrink tubing, not electrical tape–moisture ingress in submerged applications degrades tape adhesion within months. Connect the overload relay’s normally closed contacts in series with the control circuit; set the trip current to 1.2 times the motor’s full-load amperage (typically 4.2A for 230V, 0.75 kW models).
Test rotation direction by briefly energizing the circuit–reverse any two motor leads if rotation opposes manufacturer specifications. Pressure test the system with a hose clamp gauge: 30-40 psi confirms proper impeller alignment; deviations indicate incorrect wiring or impeller damage. Recheck all connections after 24 hours of operation–thermal cycling loosens terminals, especially in wet environments.
Connecting a Single-Phase 0.75kW Deep Well Motor Controller
Use a 16A double-pole contactor with a 24V AC coil for the main circuit protection. Wire the control terminals as follows: connect the start capacitor (250–300 µF) between the auxiliary winding terminal and the common supply line, ensuring a dedicated 10A fuse isolates the capacitor bank. Ground the motor housing directly to the well casing with 10 AWG copper wire, bypassing the controller to reduce stray voltage risks.
Overload Relay Calibration
Set the thermal overload relay to trip at 2.5× the motor’s running current (typically 6.5–7.5A for a 0.75kW unit). Place the relay between the contactor’s output and the motor’s main winding; avoid positioning it on the neutral line to prevent undetected single-phasing. Test the relay by simulating a 120% current draw–adjust the dial until cutoff occurs within 45–60 seconds.
Route the pressure switch signal through a 2A circuit breaker before reaching the contactor coil. Install a 220V neon indicator light across the coil terminals to confirm activation without disassembling the panel. If using an automatic restart feature, add a 10-second delay timer in series with the pressure switch to prevent short-cycling under transient conditions.
Cross-reference wire colors with the terminal board: red (L1 supply), black (L2 supply), blue (neutral), yellow/green (ground). Verify all connections with a 500V insulation tester before submerging–accept no less than 50 MΩ resistance between windings and ground. Keep a spare 15A thermal fuse (250V) and a 40 µF run capacitor in the maintenance kit to avoid downtime during seasonal airlocks or voltage spikes.
Critical Parts for Configuring a 0.75kW Immersed Motor Controller
Select a 40A magnetic contactor rated for 400V AC to handle inrush currents; Schneider Electric LC1D40 or Siemens 3RT2045 offer proven reliability for submerged applications. Pair it with a 32A thermal overload relay (e.g., Schneider LR2D3357) to protect against sustained overcurrent scenarios as low as 105% of full load amperage. Verify the relay’s trip class–Class 10A ensures response within 10 seconds at 600% overload, critical for preventing winding damage in submerged units.
Control Circuit Essentials
| Component | Rating | Purpose |
|---|---|---|
| Pushbutton (NC/NO) | 5A, 250V | Manual start/stop |
| Capacitor-run | 20µF, 450V AC | Phase correction for single-phase variants |
| Pressure switch | 3A SPDT | Automated operation based on reservoir levels |
Use 1.5mm² XLPE-insulated cable for control circuits and 4mm² for power feeds to minimize voltage drop below 3% over 50 meters; copper conductors outperform aluminum in submerged environments due to lower oxidation rates. Install a 63A double-pole circuit breaker upstream to isolate both live and neutral conductors–this exceeds minimum requirements but accommodates harmonic distortion common in rural grid conditions.
Fit a 4A HRC fuse in series with the control circuit to prevent short-circuit damage to auxiliary devices like liquid level sensors; BS 88 fuses respond faster than MCBs for transient faults. Include a three-light indicator panel (red/green/yellow) powered by 24V AC via a step-down transformer to monitor “power on,” “motor running,” and “fault” states–LED-based indicators consume 30% less power than neon counterparts and last 50,000 hours.
Surge Protection Measures
Deploy a Type 2 surge arrester (e.g., ABB OVR T2 440V) rated 40kA per phase at the main distribution board to clamp voltage spikes–submerged motors experience 2.5× higher transient damage risk compared to surface-mounted units due to conductive fluid exposure. Pair it with a 10Ω, 25W grounding resistor to dissipate residual surges without tripping upstream breakers; earth resistance must remain below 5Ω for reliable operation.
Step-by-Step Guide to Connecting the Activation Control for a Motorized Underground Unit
Disconnect the power supply at the circuit breaker before handling any electrical components. Verify the absence of voltage using a multimeter on the incoming terminals of the control box. Label each conductor with masking tape–mark the live (red or black), neutral (white), and ground (green or bare) wires for clarity during reassembly.
Mount the relay or contactor inside a weatherproof enclosure rated for outdoor use, ensuring it has at least IP65 protection. Secure the device to the enclosure base using stainless steel screws. Connect the incoming power cables to the upper terminals of the relay (L1, L2 for split-phase; L1, L2, L3 for three-phase). Use wire nuts or terminal blocks to join like-colored conductors, twisting them clockwise before crimping.
- Attach the motor’s load cables to the lower relay terminals (T1, T2 for split-phase or T1, T2, T3 for three-phase).
- Link the control circuit: run a 14 AWG wire from the relay’s coil terminal to the switch, then return to the neutral bus or an auxiliary contact if required.
- For overload protection, install a thermal overload relay in series with the motor windings. Adjust the trip setting to 120% of the motor’s full-load amperage (typically 8.5A for a 746W unit).
- Ground all metallic components by connecting a 10 AWG bare copper wire to the enclosure’s grounding lug and bonding it to the motor frame.
Test the setup by restoring power and pressing the switch briefly. Listen for the relay’s click; check for voltage at the motor terminals with a multimeter (230V single-phase or 400V three-phase). If the motor fails to start, inspect the overload relay reset button–press it to bypass a false trip. Secure all terminal connections with a torque screwdriver (10-12 in-lbs for 14 AWG). Seal unused knockout holes in the enclosure with waterproof grommets.
Common Electrical Errors in Water Motor Setups and Preventive Measures
Incorrect voltage matching burns out motors within hours. Check the motor’s nameplate for rated voltage (e.g., 230V single-phase or 400V three-phase) and verify against your power supply. A 5% tolerance is acceptable; anything beyond risks immediate failure. Use a multimeter to measure actual voltage at the terminal block before connection–fluctuations often occur in rural grids. If voltage drops below 220V, install a stabilizer with at least 1.2x the motor’s current rating.
Skipping overload protection leads to frequent tripping or fire hazards. Install a thermal overload relay sized for the motor’s full-load current (FLC), not the starter’s rating. For a 0.75 kW unit, FLC typically ranges 3.5–4A; select a relay with a trip class of 10 or 20. Mount it within 50cm of the motor terminals, away from direct sunlight or heat sources. Test trip settings by simulating a 120% current load–adjust the dial until the relay disengages within 10 seconds.
Loose connections corrode rapidly in damp environments. Torque terminal screws to 1.2 Nm for 2.5mm² conductors and 2.5 Nm for 4mm², using a calibrated screwdriver. Apply antioxidant paste to aluminum conductors before termination. Inspect junctions monthly for discoloration–blackened copper or white aluminum oxide indicates imminent failure. Replace any connector showing more than 1mm of burnback.
Grounding Oversights
- Connecting the ground wire to a painted surface creates a high-resistance path. Scrape paint off metal casings until bare metal is exposed.
- Using undersized ground cables (e.g., 1.5mm² for a 0.75 kW load) violates IEC 60364-5-54. Minimum required: 2.5mm² copper for up to 16A.
- Omitting a ground rod for deep-well motors buried below 30m leaves residual leakage currents. Drive a 1.5m copper-clad rod at least 3m from the wellhead, bonded with 6mm² bare copper.
Inadequate cable sizing causes voltage drops and overheating. For a 20m run, use 2.5mm² for 230V single-phase and 1.5mm² per phase for 400V three-phase. Multiply conductor cross-section by 1.5 for every 10°C above 30°C ambient. Route cables away from sharp edges; secure with UV-resistant ties every 30cm. Replace any cable showing cracks in the insulation jacket–micro-tears lead to shorts under hydrostatic pressure.
Phase Sequence Reversals
- Identify phase sequence with a rotary phase indicator before final connection. Reverse two leads at the starter if the motor spins backward.
- Avoid relying on color codes alone–verify with a multimeter set to AC voltage. Live-to-neutral should read 230V; live-to-live (three-phase) should read 400V.
- For single-phase motors, connect the run capacitor (typically 20–30µF) between the auxiliary and main winding terminals. Incorrect polarity causes arcing at the capacitor terminals.
- After any wiring change, run the unit dry for 60 seconds–listen for abnormal humming or vibrations indicating misalignment.
