How to Wire a Two Way Switch for Two Lights Step by Step Guide
Start by identifying the live feed (hot wire) entering the first terminal block–this will be the single power source supplying both appliances. Split this conductor into two branches using a chocolate block or pigtail connectors, ensuring each branch feeds a separate toggle mechanism. The neutral return from each fitting should merge into a single conductor leading back to the circuit’s neutral bar, avoiding loose splices to prevent voltage drops or overheating.
For the switching loops, run a single cable from each control’s common port to its corresponding light fixture. Use 1mm² solid core wire for lengths under 3m to maintain signal integrity, upgrading to 1.5mm² stranded for longer runs to compensate for resistance. Label all conductors with numbered sleeves at both ends–this simplifies troubleshooting if a bulb fails or a breaker trips during operation.
Before energizing the circuit, test continuity with a multimeter set to Ω mode. Probe between the neutral bar and each fixture’s terminal while toggling the controls–open circuits (infinite resistance) indicate loose screws or broken strands; short circuits (<1Ω) suggest crossed wires requiring immediate correction. Secure all terminals with a torque screwdriver (1.2Nm for brass screws) to prevent loosening from vibration.
Mount each control within 150mm of a doorway or along the main traffic axis for ergonomic access, using deep back-boxes (minimum 35mm depth) to accommodate thick insulation without compressing conductors. Daisy-chain protective earth wires from each fixture back to the main distribution board–avoid linking earths through control mechanisms, as this violates IEC 60364 safety protocols.
For LED luminaires, verify the driver’s compatibility with dimming controls if using trailing-edge models. Replace standard switches with 3-wire 250V rated toggles–cheaper 2-wire variants may cause flickering or premature failure due to reflected ripple voltage. Finally, install a 30mA RCD upstream of the entire circuit to meet BS 7671:2018+A2:2022 requirements for shock protection.

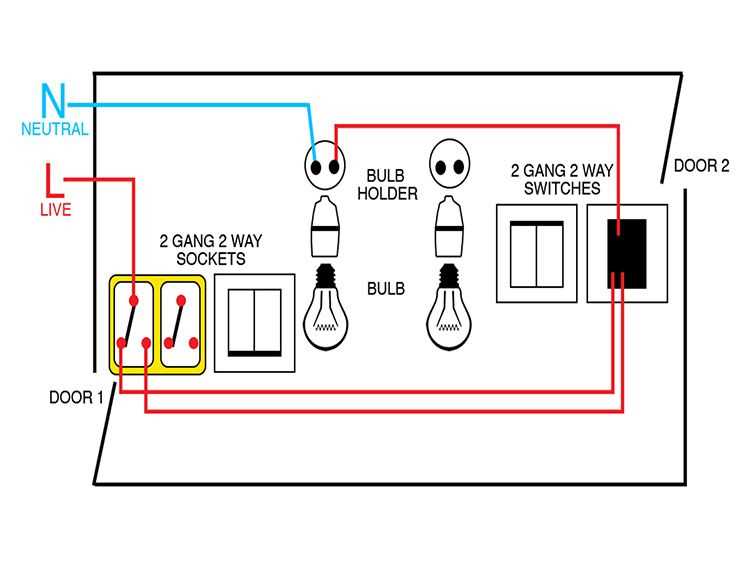

Connecting a Dual Control Panel for Two Illumination Points
Start by connecting the live feed from the mains to the common terminal of the first control on the dual panel. Use a 1.5mm² brown-sheathed cable for this connection to handle the load safely. The corresponding output terminal–marked L1–should then be wired to the first lamp using a similar gauge cable, ensuring the conductor ends are securely fastened with 0.5Nm torque on the terminal screws.
Linking the Second Illumination Source
For the second regulation point, run a short jumper cable from the live input of the first control to the common terminal of the adjacent second unit on the panel. The second lamp’s power line must originate from the L1 terminal of this secondary control, again using 1.5mm² cable. Verify polarity by matching the brown conductor to the live side and the blue to neutral on both fixtures before energizing the circuit.
A shared neutral bus can be used for both illumination points, but a separate 2.5mm² protective earth must be run to each light fitting if metallic housings are involved. Route neutrals directly to the distribution block rather than looping through the panel to prevent overheating. Test continuity with a multimeter set to 200Ω range–readings should show near-zero resistance between neutral and earth at each point.
If dimming functionality is required, replace hardwired connections with trailing cables terminated in plug-in connectors, ensuring compatibility with the chosen dimmer module’s voltage rating (typically 240V AC). Isolate the circuit at the consumer unit before making adjustments, and label all conductors at both ends to prevent misconfiguration during future maintenance.
Essential Gear and Supplies for Installing a Dual-Control Electrical Setup
Start with a non-contact voltage tester–a safety-critical tool that detects live circuits without direct contact, preventing accidental shocks. Choose one with a sensitivity range of at least 50V to 1000V, an audible alert, and a clear LED indicator. Avoid budget models lacking auto-calibration, as they may give false readings near insulation defects or magnetic fields.
Precision Instruments for Secure Connections
A wire stripper with calibrated cutting slots (18-12 AWG) ensures clean removal of insulation without damaging copper strands. Pair it with needle-nose pliers featuring fine serrated jaws for bending loops and securing terminal screws–gripping pressure should withstand torques up to 2 Nm. For deeper boxes, a flexible shaft extension (6-inch) reaches confined spaces while maintaining grip strength.
Crimping tools with dual ratcheting mechanisms (for insulated and non-insulated terminals) guarantee gas-tight splices when joining pigtails or ground wires. Select dies compatible with 22-10 AWG conductors; avoid Universal crimpers, as they often deform connectors. For soldered joints in sensitive installations, opt for a temperature-controlled iron (45W-60W, 350°C-450°C) and rosin-core solder (60/40 alloy) to prevent oxidation.
Junction boxes must comply with local codes (e.g., 4-inch square for two devices, with 21 cubic inches minimum volume) and feature knockouts sized for ½-inch or ¾-inch conduit. Use steel-clad boxes for fire-resistant environments; PVC options for wet locations require conduits with watertight fittings. Grounding clamps (zinc-plated) must bite through paint or corrosion–verify with an ohmmeter (
For circuit verification, a multimeter with True RMS capability accurately measures voltage drops under non-linear loads. Set the continuity function to emit a tone for resistance
Step-by-Step Connection of Hot and Return Conductors to the Control Mechanism
Turn off the circuit breaker supplying power to the installation point before handling any cables. Use a non-contact voltage tester to confirm the absence of current at the terminal block. Failure to verify this step increases the risk of electrical shock.
Identify the hot conductor (typically black or red insulation) and the return conductor (white or gray) at the junction box. Strip 12mm of insulation from each wire end using wire strippers calibrated for the gauge–usually 14 AWG for residential setups. If the conductors are brittle or discolored, replace them to avoid future faults.
- Insert the hot conductor into the brass-colored terminal on the control device.
- Tighten the terminal screw with a screwdriver until the wire cannot be pulled out by hand–approximately 0.8 Nm of torque for secure contact.
- For push-in connectors, ensure the stripped end is straight and fully inserted until it clicks.
The return conductor must bypass the control device and connect directly to the load. If the control mechanism has a built-in neutral terminal (common in smart or dimming variants), attach the return here instead. Verify the manufacturer’s specifications–some designs omit this terminal entirely.
For dual-load configurations, split the hot conductor into two paths using a splice connector or terminal block. Each path then connects to separate brass terminals on the control device. Label each terminal to match the corresponding load to prevent confusion during troubleshooting.
After securing all connections, fold the wires neatly into the junction box to avoid compression against the cover plate. Snap the faceplate into place and restore power. Test each position of the control device to confirm both loads activate independently without flickering or humming–indicators of poor contact.
If either load fails to respond, re-check the connections in reverse order:
- Confirm the circuit breaker is on.
- Verify the hot conductor supplies voltage to the terminal.
- Ensure the return conductor is continuous to the load.
- Check for loose screws or improperly seated wires.
Replace the control device if issues persist–internal faults are common in budget models.

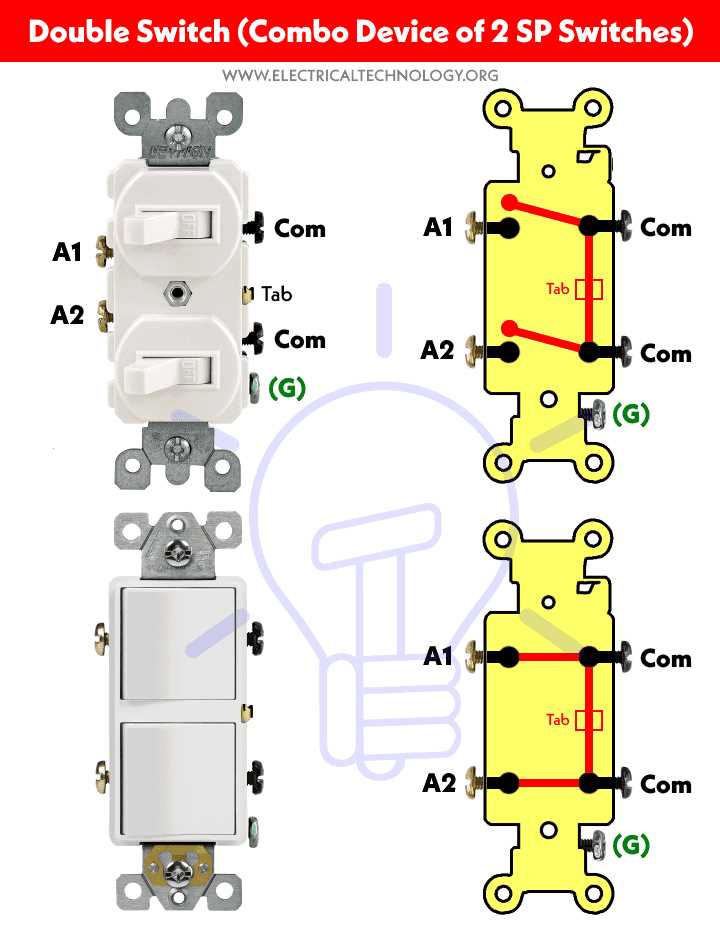

Installing Dual Control Boards for Independent Fixtures
Start by cutting power at the main breaker panel–identify the correct circuit with a non-contact voltage tester before handling any conductors. Remove the faceplate covering the existing dual-toggle mechanism; unscrew the mounting screws securing it to the electrical box. Pull the device outward carefully, exposing the connected wires without detaching them prematurely.
Label each conductor with masking tape: “Line” for the hot feed from the breaker, “Load 1” and “Load 2” for the two branches leading to the luminaries, and “Neutral” for the return path. Verify the absence of voltage on all wires using a multimeter set to AC mode–probing between the live conductor and neutral should read zero volts.
Connect the hot feed (typically black or red) to the common terminal on the first control (marked “COM” or darker than the others). Attach the branch conductors–one to each of the remaining terminals on both controls, ensuring no cross-connection exists between the two toggles. Twist bare copper ground wires together with a pigtail leading to the metal box or control device’s grounding screw; secure with a wire nut.
Neutral conductors from both fixtures and the incoming feed should be joined in a single terminal block or twist-on connector–no current flows through this path when the controls are off, but it must remain uninterrupted for safety and potential smart device compatibility. Avoid splicing neutrals from separate branches into one connector if the circuit uses a shared return; instead, bundle them loosely to prevent overheating.
Mount the reassembled control device back into the box, ensuring no wires are pinched behind the metal frame. Secure with screws, then reattach the faceplate. Restore power at the breaker and test each toggle independently–confirm both fixtures illuminate without flickering, dimming, or unexpected interactions. If one branch fails, recheck terminal connections for loose strands or reversed polarity.
For conduit or armored cable installations, ensure clamps inside the box are tightened but not overtightened–damaged sheathing can expose conductors, creating short risks. If using rotary dimmers instead of simple toggles, match wattage ratings between the component and bulbs; exceeding limits causes premature failure. LEDs require compatible dimmers designed for low-load scenarios–incandescent-rated models may not function properly.
In older homes, verify the box’s physical volume–cubic inch capacity must accommodate the combined gauge of installed wires. Upgrade to a deeper or double-capacity box if calculations reveal insufficient space; overcrowding increases fire hazards. Avoid backstab connections on toggle terminals–use side screws or clamp-style pressure plates for secure, long-term conductivity.
Document the setup with a simple line sketch showing wire colors, terminal assignments, and breaker numbers. Store inside the panel door or near the installation–future modifications require knowing which branches correspond to each toggle. If expanding the circuit later, keep fixtures on the same phase to prevent neutral imbalance; mixing phases risks overloading return paths.
