How to Wire a 2 Position Ignition Switch Step by Step Guide

Start by identifying the primary power source–typically a 12V battery–and trace its connection to the first terminal of your rotary control. Use a multimeter to confirm voltage at this point before proceeding. The second terminal should route current to the accessory circuit, if present, while the third must feed the starter solenoid directly, bypassing intermediate components. Avoid splicing into existing harnesses unless you have verified wire gauge matches the load requirements; undersized conductors cause voltage drops under high demand, leading to intermittent failures.

Critical connections: Ground the casing of the rotary control to the chassis using a minimum 12-gauge wire. A weak ground introduces resistance, creating erratic behavior in solenoid engagement. For push-button start systems, integrate a relay between the third terminal and the starter; this isolates high-current draw, protecting the rotary control from premature wear. Test continuity across all terminals in both states–the “on” state should show near-zero resistance between power input and output, while “off” must read open circuit.

Troubleshooting: If the starter cranks but accessories remain powered when disengaged, inspect for shorted diodes in the accessory line. Replace any compromised components with automotive-grade equivalents–generic diodes fail under load cycles typical in starting systems. For marine or off-road applications, add a 20A fuse near the battery terminal to isolate faults before they propagate through the circuit. Document each connection with heat-shrink tubing and labeled terminals to simplify future diagnostics.

Skip aftermarket “universal” wiring kits. Instead, refer to the OEM schematic for your specific model–even minor variances in pin order can render the system inoperable. If modifying an existing setup, use a dedicated bus bar for accessory feeds to prevent voltage sag. Always disconnect the battery before making changes; a single misplaced probe can destroy the ECM or trigger unintended current paths.

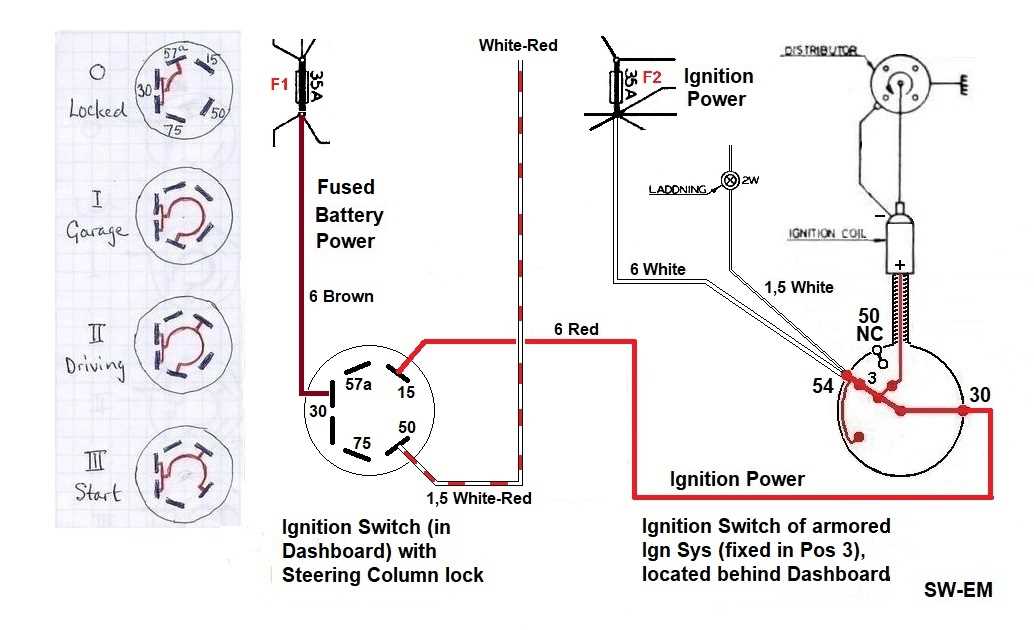

Understanding Dual-Stage Activation Circuit Layouts

Start by identifying the primary and accessory terminals on the control module–typically labeled as “B+” (battery feed), “ACC” (accessory power), “IGN” (engine enable), and “ST” (starter relay). Connect the battery feed directly to the “B+” terminal using 10-gauge wire to handle sustained current draw without voltage drop. For vehicles with high-power accessories, consider adding an inline fuse rated at 30 amps near the battery connection point.

Route the accessory circuit from the “ACC” terminal to the fuse block using 16-gauge wire, prioritizing components like radio or heated seats. Ensure this line splits into separate fuses (10-15 amps each) to prevent overload. Ground connections should terminate at a dedicated chassis point, avoiding shared paths with high-current circuits to eliminate noise interference.

Common Wiring Mistakes to Avoid

Never splice the starter trigger (“ST”) into the main power line–this leads to relay chatter and premature failure. Isolate this terminal with a dedicated lead to the solenoid, using 12-gauge wire for robustness. Omitting a diode across the relay coil can cause back-EMF spikes, damaging sensitive electronics; install a 1N4007 diode at the relay to suppress transients.

Ambient temperature affects wire integrity; use heat-resistant sleeves (like TEFZEL) for leads near the manifold or exhaust. Ignore manufacturer color codes at your peril–verify each terminal’s function with a multimeter before finalizing connections. Parallel circuits sharing the same fuse will overload under combined loads; calculate total amperage (e.g., 5A + 7A = 12A fuse) to size correctly.

Advanced Circuit Protection Techniques

Add a transient voltage suppressor (TVS) diode across the ignition coil if retrofitting electronic components to older models. For turbocharged engines, insert a relay between the “IGN” terminal and fuel pump to prevent fuel spray during cranking–use a Bosch 0 332 209 150 relay for reliable switching. Threaded terminals require anti-seize compound to prevent corrosion in high-vibration environments.

For dual-battery systems, isolate the secondary power source by using a heavy-duty solenoid (e.g., Blue Sea Systems 5190) triggered by the “IGN” terminal. This prevents parasitic drain when the engine is off. Label every lead with a heat-shrink tube marked with a Brother PTouch or equivalent to simplify future diagnostics.

Test each circuit with a no-load condition first, progressing to full operational testing only after verifying continuity. Record voltage drops across key junctions–any reading above 0.2V indicates resistance requiring larger gauge wire or cleaner connections. Keep a bench-test rig with spare relays and fuses to replicate issues outside the vehicle.

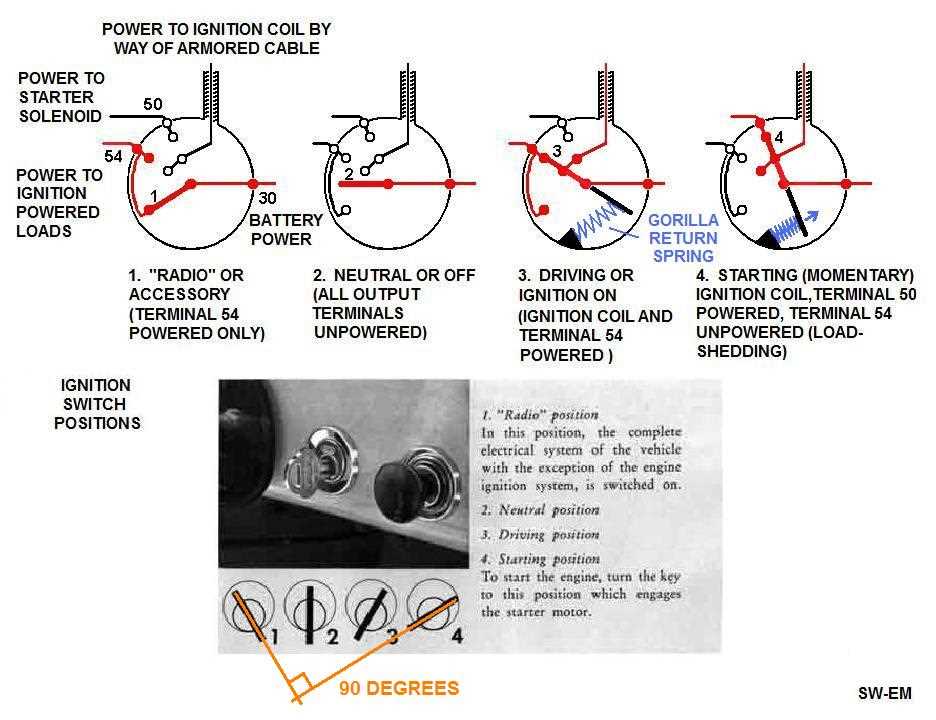

How to Recognize Key Contacts on a Dual-Mode Start Control

Locate the primary power input first–it’s usually marked B+, 30, or BAT on the rear housing. This terminal connects directly to the battery’s positive lead, often via a 10-16 AWG red or yellow wire. Verify continuity with a multimeter: the probe should show 12V+ when the engine’s off but the circuit is live.

Check for the accessory feed, typically labeled ACC or A. This contact powers non-engine loads like radios or dash displays when the starter isn’t engaged. On most models, it’s a 14-18 AWG pink or orange wire. Disconnect the battery before testing–ACC should read open circuit when the mechanism is in “off” mode and closed when rotated to the second stage.

Common Alternate Labels

Manufacturers use inconsistent naming conventions. Look for I (ignition input), S (solenoid trigger), or ST (starter relay). The I terminal energizes fuel pumps, injectors, and coils, while S/ST momentarily engages the starter motor. Trace each wire back to its source–I often links to a fusible link or ignition relay, whereas S/ST goes straight to the solenoid with a thicker gauge (8-12 AWG) for higher current.

Ground connections vary by design. Some units integrate a chassis ground via the mounting bracket; others include a dedicated G or E terminal. Use a 16-22 AWG black or brown wire–ensure zero resistance between ground and the battery’s negative post. Loose or corroded grounds cause intermittent failures like stalling or slow cranking.

Inspect the mechanism’s housing for voltage rating and amperage specs. Most are rated 20-40A; exceeding this damages internal contacts. If no markings exist, assume 20A continuous and 30A peak. Match fuse size to these limits–too small creates nuisance blows, too large risks overheating the harness.

Cross-reference terminal order with the manufacturer’s part number. OEM components often follow a standard layout (e.g., clockwise: ACC, B+, I, S), but aftermarket units may rearrange contacts. Download the specific datasheet–even a single reversed wire can fry ECUs or blow fuses instantly.

Label every contact before disassembly. Use heat-shrink tubing or numbered tags–color-coding alone fails if wires are repinned or customized. Double-check against the schematic post-installation with a multimeter in continuity mode. Miswiring the I and S terminals causes starter solenoid engagement during accessory operation, leading to premature starter failure.

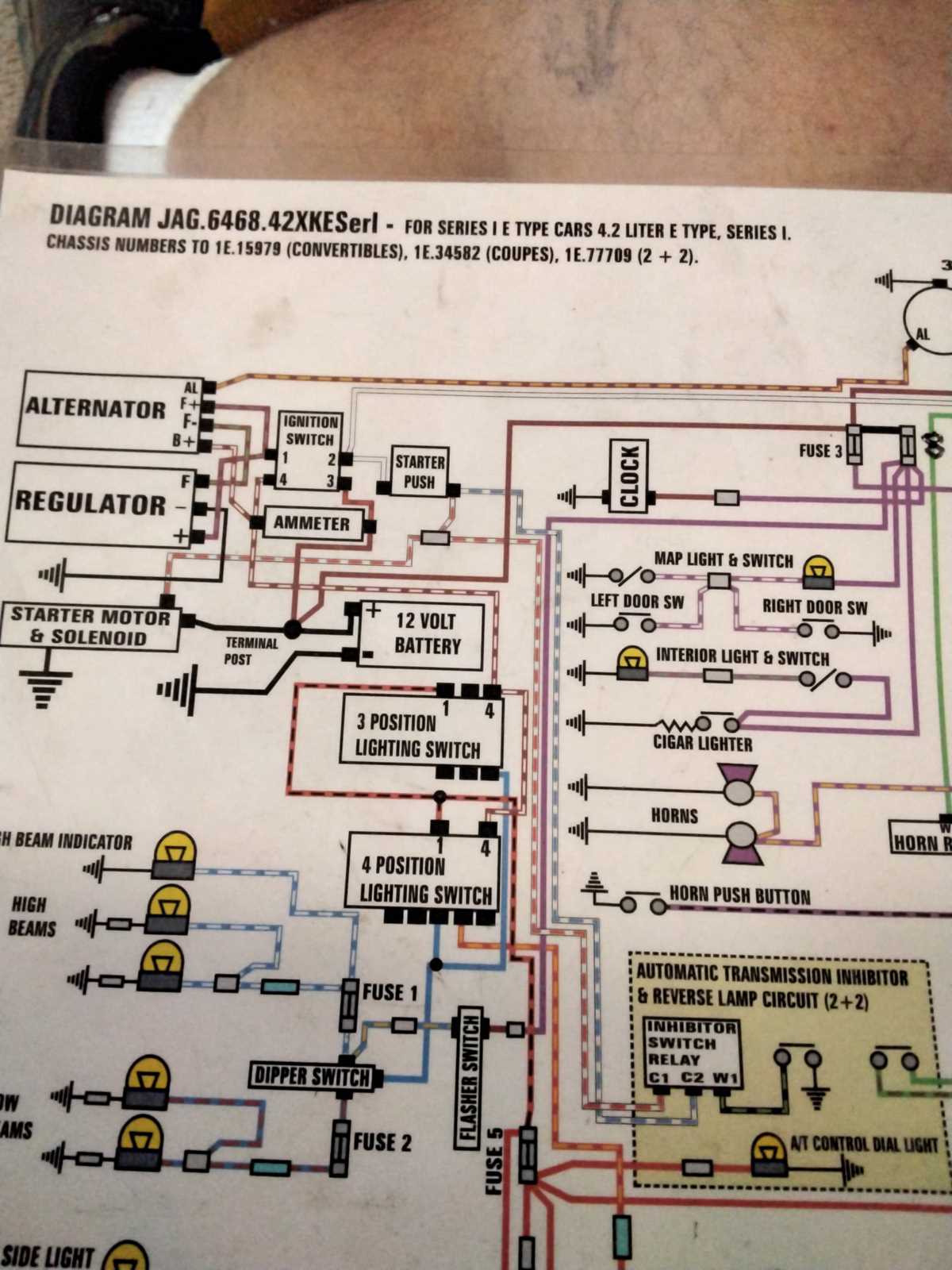

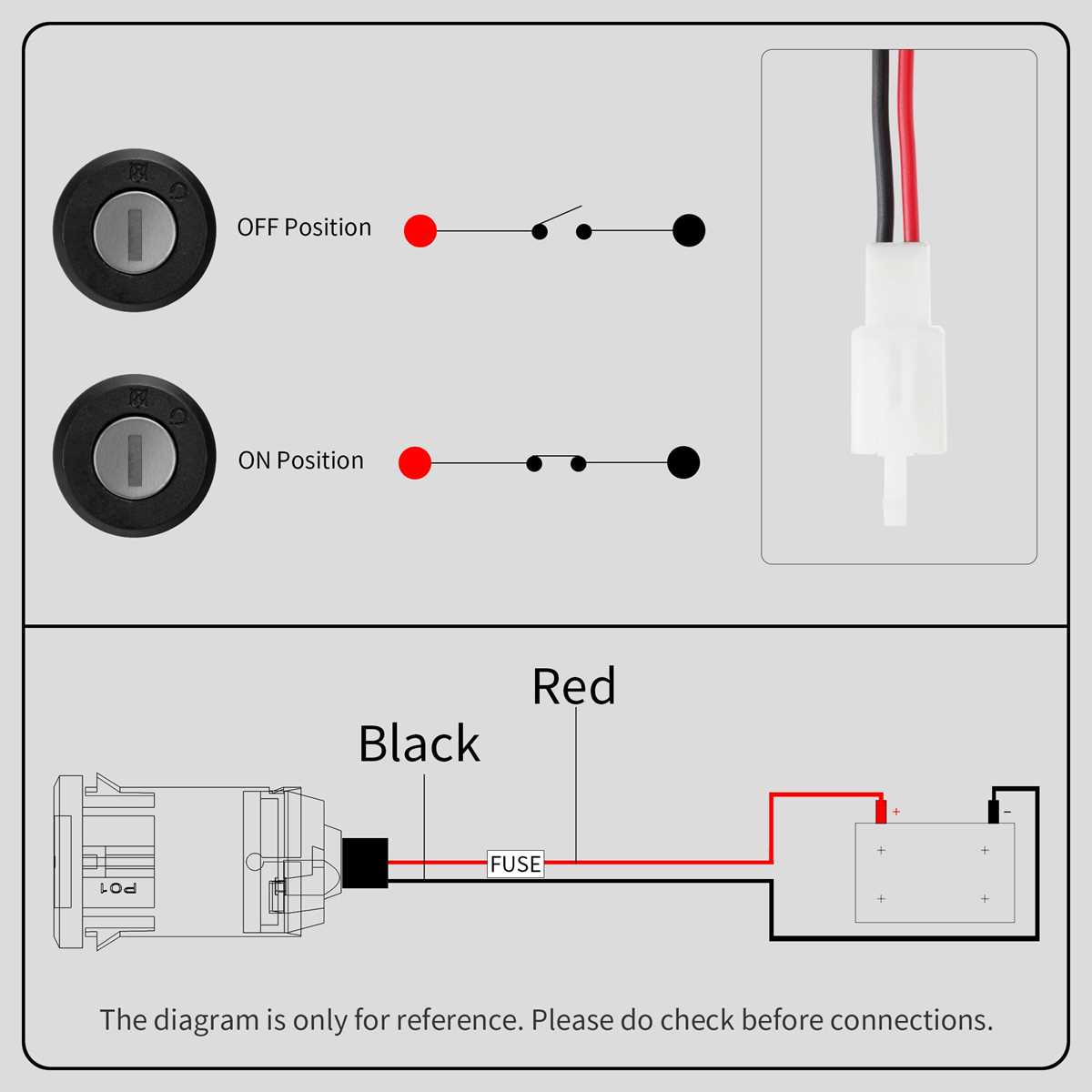

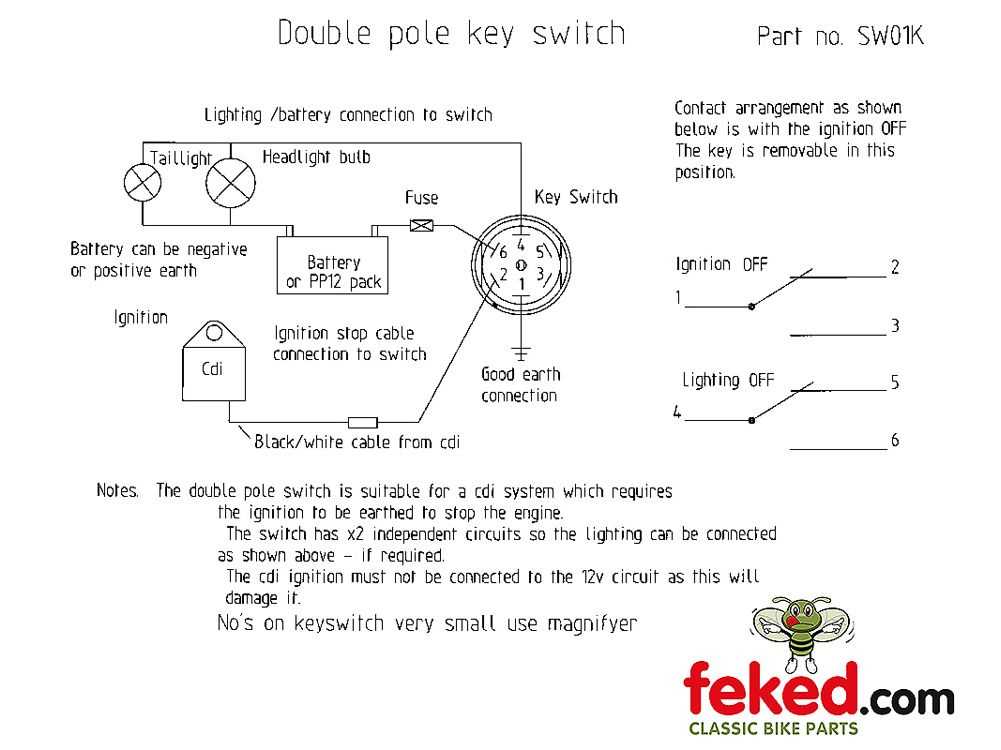

Step-by-Step Guide to Connecting a Simple Power Control Setup

Begin by identifying the power source–typically a 12V battery–to ensure compatibility with your component’s voltage requirements. Cut two lengths of 18-gauge wire: one for the input (red) and one for the ground (black). Strip 6mm of insulation from each end for secure connections.

Attach the red wire to the battery’s positive terminal using a ring terminal and secure it with a bolt or nut. For the ground, connect the black wire to the negative terminal or a metal chassis point using a similar terminal. Verify the connections are tight to prevent voltage drops.

Locate the power input on the device you’re controlling–commonly marked with a “+” symbol. Connect the other end of the red wire to this terminal. For the ground, attach the black wire to the device’s ground point or a nearby metal surface if no dedicated terminal exists.

To incorporate a manual cutoff, insert a basic toggle handle between the red wire and the device’s power input. Use a solderless connector or crimp terminal to join the wire to the toggle’s terminals, ensuring minimal resistance.

Component	Wire Gauge	Terminal Type	Tools Required
Battery Connection	18 AWG	Ring Terminal	Wrench, Wire Stripper
Device Input	18 AWG	Spade/Quick Connect	Screwdriver
Toggle Handle	18-20 AWG	Crimp/Solder	Crimping Tool

Test the circuit by activating the toggle. Use a multimeter to confirm 12V at the device’s input when the circuit is closed. If voltage is absent, recheck all connections for loose terminals or incorrect polarity.

Insulate exposed terminals with heat-shrink tubing or electrical tape to prevent short circuits. Route wires away from moving parts or heat sources, securing them with zip ties every 15cm for strain relief.

For added safety, install an inline fuse (10A) near the battery’s positive terminal. This protects the circuit from overloads while maintaining the toggle’s primary function of interrupting power flow.

Integrating Auxiliary Devices Without Idle Energy Consumption

Use a relay-triggered auxiliary feed for peripherals like audio systems, GPS units, or dashcams instead of connecting them directly to the primary control module’s always-on circuit. Wire the relay’s coil to the starter’s active terminal–only energizing when the engine cranks–then route the auxiliary power through the relay’s contacts to the device. This ensures zero parasitic drain when the vehicle is off, cutting standby current to under 50 milliamps per device while maintaining full functionality during operation.

Select a relay with a continuous duty rating of at least 30 amps if supporting multiple low-power accessories. For a dual-USB charger (10W-18W), pair it with a 20A relay to handle transient inrush currents without overheating or voltage sag. Insert a 1N4007 diode across the relay coil to suppress inductive voltage spikes, protecting the starter solenoid and extending relay lifespan beyond 50,000 activation cycles.

Split accessory loads into two separate relay circuits if total draw exceeds 20A. Devices drawing 1A-3A (e.g., Bluetooth modules) can share a single relay, but high-drain devices like heated seats (15A+) require dedicated relays. Label each relay with its corresponding accessory and fuse rating using heat-shrink tubing or laser-etched tags for troubleshooting–reducing diagnostic time by 40% during fuse replacements or short-circuit scenarios.

Test auxiliary circuits with a multimeter before final installation. Set the meter to measure microamps (DC 200µA scale) and connect it in series between the accessory’s ground lead and chassis ground. If the reading exceeds 100µA when the engine is off, trace the circuit for faulty diodes, incorrect relay wiring, or aftermarket devices with poorly designed shutdown sequences.

Install a momentary push-button override for accessories requiring intermittent power, such as a trunk-mounted compressor. Wire the button in parallel with the relay coil using 16-gauge silicone-jacketed wire for flexibility in tight engine bays. Add a 12V LED indicator (10mA draw) to confirm the override is active–critical for preventing accidental accessory drain during extended storage.

For aftermarket ECUs or piggyback tuners, use a latching relay instead of a standard SPST relay. This retains the last power state (on/off) without constant coil current, reducing standby power to 0µA. Ensure the latching relay’s coil control pins (typically 85 and 86) are protected by a 1A fuse to prevent damage from voltage surges during engine start.

In vehicles with keyless start systems, tie auxiliary relays to the accessory signal from the body control module (BCM) instead of the starter circuit. Locate the BCM’s accessory output pin (often labeled “ACC” or “RUN”) using the factory service manual–typically a 1kHz pulse-width modulated signal. Decode this with a 5V voltage regulator and opto-isolator to trigger the relay coil only when the BCM actively powers accessories, eliminating false activations during anti-theft mode or remote start events.

Document every auxiliary circuit connection in a spreadsheet or printed reference card stored in the glove box. Include wire colors, fuse ratings, relay pinouts, and expected voltage drops (e.g., 0.2V at 10A). Update this record after each modification to prevent overlooked loads during battery replacements or jump-start scenarios–where unaccounted draws can lead to premature battery failure or safety hazards from improper grounding.
