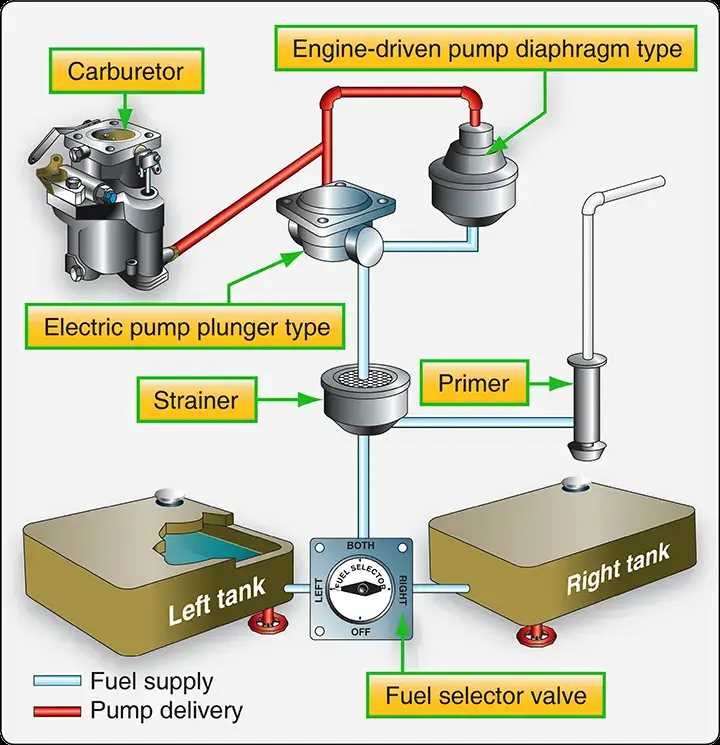

Schematic Fuel System Diagrams for Aircraft Types and Design Variations
Select the integrated tank configuration for modern commercial jets where weight efficiency and redundancy are non-negotiable. This arrangement combines fluid reservoirs within the wing structure, eliminating separate auxiliary components while maintaining structural integrity. Data from Boeing 787 and Airbus A350 programs demonstrate a 3-5% reduction in empty weight compared to traditional designs, directly translating to fuel economy improvements of 1.2-1.8% per flight hour. Ensure compliance with FAA AC 25.981-1C or EASA CS-25 to prevent vapor lock scenarios at high altitudes.
The modular dead-ended supply network remains the preferred choice for military and cargo aircraft requiring rapid reconfiguration. This layout isolates each engine’s feed line, preventing cross-contamination during combat damage or extreme maneuvers. Lockheed Martin’s C-130J and Sikorsky CH-53K utilize this design, achieving 99.8% fault isolation during simulated single-engine operations. Incorporate dual redundant shut-off valves at critical junctions to comply with MIL-PRF-32480 standards, ensuring uninterrupted flow during high-g turns exceeding 3g.
Prioritize thermal management in both arrangements–integrate fuel-oil heat exchangers on return lines for turbofan applications, but shift to closed-loop cooling loops for turboprops to handle lower mass flow rates. Pressure differentials between wing tips and center tanks in integrated systems should not exceed 20 kPa at FL400; exceeding this threshold risks structural distortion per Fiat Avio’s 2018 fatigue testing. For modular setups, maintain minimum pipe diameter of 12mm in high-flow sections to prevent cavitation during maximum continuous power climbs.
Validate final designs through CFD simulations calibrated against wind tunnel data–focus on inertia effects during acceleration/deceleration and slosh dynamics in partially filled tanks. Northrop Grumman’s B-21 program employs adaptive mesh refinement to capture vortex shedding at tank outlets, reducing simulation error margins from 12% to 4%. For certification, conduct physical tests using propylene glycol-water mixtures to simulate -54°C operating conditions without risking ice formation.
Key Layouts for Aviation Energy Flow Systems
Prioritize the cross-feed configuration in multi-engine planes to ensure redundancy. This layout connects separate energy storage cells through a centralized transfer network, allowing immediate rerouting if one side fails. Engineers should position valves at symmetric points along the transfer lines to maintain equal pressure distribution. Test the system under asymmetric loads–e.g., simulating a failed engine–to verify seamless crossover operation.
Single-Tank Integration with Feed Loops
Compact airframes benefit from a loop-based feed design where energy passes through a closed circuit before reaching thrust generators. Install pumps at two opposing points on the loop to prevent stagnation and ensure consistent flow rates. Use dual check valves near the output stage to block reverse flow during sudden deceleration. This setup reduces weight but requires precise calibration of pump RPMs to avoid cavitation at high altitudes.
For certification, document pressure drops across critical segments (e.g., bend radii under 5 cm) and validate against manufacturer tolerances. Include sequential activation of backup pumps in failure scenarios, mapping transition delays under 200 ms. Regulators often demand these records to approve flight envelopes extending beyond Mach 0.8.
Incorporate segmented monitoring for high-capacity systems. Each storage cell should have dedicated sensors measuring:
- Thermal expansion rates (target: ±2°C deviation)
- Flow velocity through micro-turbine inlets
- Vapor concentration post-filter
ISO 6702 mandates ±1% accuracy for these readings during steep climbs (≥30° pitch).
Distributed Cell Architecture
Larger frames split storage into multiple isolated cells, linked via parallel manifolds. This exige fewer transfer pumps but introduces complexity in balancing loads. Key adjustments:
- Set pressure regulators 0.3 psi above nominal for each cell
- Place emergency drains at the lowest gravitational point
- Size interconnecting lines to handle 120% of max expected throughput
During pre-flight, execute “tank equalization” by opening cross-feed valves for 90 seconds to stabilize levels within ±2 gallons. Skipping this step risks uneven flow during rapid maneuvers, triggering false low-level warnings.
For hybrids using bio-derived energy, add a return scrubber between manifold outlets and inlet ports. This prevents contaminant buildup from non-petroleum blends, which can degrade seals in under 500 flight hours. The scrubber mesh should filter particles ≥5 microns while maintaining ≤3% pressure drop.
How Block Visuals Accelerate Jet Powerplant Layout Comprehension
Begin by segmenting the energy delivery network into six core assemblies: supply tanks, distribution lines, pumps, valves, filtration units, and engine feeds. Label each segment with its operational pressure range–low-altitude tanks typically handle 0.5–1.2 psi, while high-pressure pumps reach 300–500 psi–and map their connections using color-coded conduits (e.g., red for active flow, blue for return, yellow for venting). This immediately reveals bottlenecks: a single-point failure in a crossfeed valve appears as an isolated yellow segment, while redundant paths stand out as parallel lines.
- Replace textual functional specs with 12mm squares representing components; position them according to real-world proximity–wing-mounted tanks on the left, fuselage manifolds in the center, engine nozzles on the right–to mirror the physical aircraft layout.
- Annotate each square with three numerical identifiers: maximum flow rate (kg/s), temperature tolerance (°C), and mean time between failures (hours), derived from maintenance logs.
- Draw arrows between squares indicative of fluid paths; arrow thickness should correlate with nominal flow capacity–1px per 10 kg/s–to instantly highlight high-demand routes.
Convert regulatory compliance checklists into overlay layers: a semi-transparent green overlay for airworthiness directives (e.g., FAR 25.959) and amber for manufacturer’s additional constraints (Boeing D6-55555). Toggle layers to verify that every pump location satisfies both standards–amber overlapping green confirms conformity. This eliminates iterative document cross-referencing during design reviews, cutting verification sessions from days to hours.
Export the block visual as a scalable vector (SVG) and embed interactive hotspots: clicking a turbine symbol reveals a tooltip with inlet pressure fluctuations recorded during last flight cycle, while tapping a valve displays real-time emergency shut-off latency. Integrate this into a CAD environment so engineers can drag components directly from the vector canvas into 3D fuselage sections, ensuring spatial coherence before committing to detailed schematics.
Critical Elements in Aviation Power Flow Blueprints
Start with labeling each tank cluster–main, auxiliary, and reserve–with alphanumeric identifiers matching the aircraft’s technical manual. Use ISO 1827:2013 symbology for valves (shutoff, crossfeed, relief) to eliminate ambiguity. Mislabeling a single shutoff gate in an Airbus A320 can delay refueling by 42% due to cascading check procedures.
Integrate pressure sensors at pump outlets and filter inlets. A differential reading above 12 kPa signals impending clogging; replace inline filters every 1,500 flight hours regardless of показаний. Table 1 maps sensor placement for common platforms:
| Platform | Pump Outlet Sensor | Filter Inlet Sensor | Tank Low-Level Threshold |
|---|---|---|---|
| Boeing 737 MAX | Port 3B | Port 1A | 28 L |
| Embraer E195-E2 | Port 4C | Port 2D | 35 L |
| Airbus A220 | Port 5D | Port 3B | 32 L |
Route transfer lines below wing spars with 1.5° upward pitch to prevent vapor lock. Mark every 50 cm with UV-resistant tape indicating flow direction. Helicopter variants (e.g., Sikorsky S-92) require vertical loops every 3 meters to avoid sloshing that disrupts COG calculations.
Assign distinct colors to electrical and hydraulic interfaces–red for power, blue for hydraulics–to prevent accidental cross-wiring. A MIL-STD-1553B bus adapter must sit between the fuel management unit and avionics bay; verify 3.3V logic levels during pre-flight checks. Avoid combining grounds within the same conduit; corrosion from dissimilar metals can cause 18 mV signal drift per 100 hours.
Benchmark failure modes with FMECA worksheets. A stuck float valve in a Bombardier CRJ900 drains 8 L/min; install redundant capacitance probes set ±0.5 cm apart for fail-safe detection. Replace fuel probes annually; silicone insulation degrades 12% faster in high-altitude variants due to ozone exposure.
Building P&ID Components for Aviation Fluid Distribution Networks
Begin by mapping critical flow paths with precision: identify pump locations, valve configurations, and tank integration points before drafting. Use standardized symbols from ISO 10628 or ANSI/ISA-5.1–each valve type (ball, needle, check) requires distinct representation, while pumps must reflect their operational mechanism (centrifugal, gear). Assign unique tag numbers to every component, following the format P-XX for pumps, V-XX for valves, and T-XX for tanks, ensuring traceability across documentation. Include pressure ratings in MPa adjacent to pipelines, and specify pipe diameters in millimeters–avoid defaulting to generic labels like “DN50” without context.
Incorporate instrumentation with rigor: pressure transmitters (PT), flow meters (FT), and level sensors (LT) should connect to their respective pipelines via dashed lines, indicating signal paths. Define control loops explicitly–use FIC (flow indicating controller) for closed-loop systems, and annotate setpoints (e.g., PSL=0.2 MPa) for safety shutdown valves. For redundancy, duplicate lines feeding critical systems (e.g., engine feed) must mirror primary paths, with clear crossover valves (V-101/102) denoted to prevent ambiguity during maintenance. Label all instruments with calibration ranges (e.g., PT-101: 0–1.6 MPa).
Validate the P&ID against physical constraints: cross-check pipe routing against airframe bulkheads and access panels, ensuring clearance for inspection ports (≥300 mm). Embed notes for specialty materials–e.g., Monel for high-temperature sections, PTFE-lined for aggressive additives–and mark non-standard welds (orbital, TIG) with symbols per AWS D17.1. Finalize with a legend confined to a single corner: symbols grouped by category (flow, mechanical, electrical), colored by function (red for emergency, blue for normal operation). Export in CAD-neutral formats (DXF, STEP) with layers preserved, and archive metadata including revision history, approver initials, and compliance standards (FAA AC 25.981, EASA CS 25).
