How to Build a Two Way Light Switch Circuit Step by Step Guide

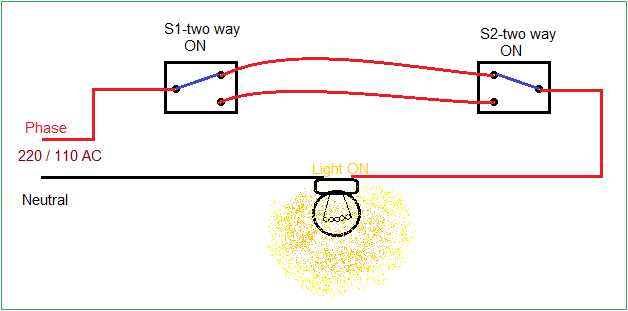

Install a two-point control setup using three-core cable between the switches and a standard 230V power source. Connect the live wire (brown) to the common terminal of the first switch, then run the return conductors (grey and black) to the corresponding traveler terminals on both devices. The common terminal of the second switch links directly to the load–either a lamp or appliance–while the neutral (blue) bypasses the switches entirely and connects straight to the load. Always test continuity with a multimeter before energizing the line.

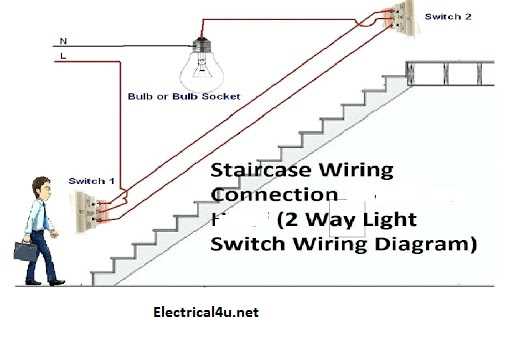

For locations where toggle devices span long distances–such as stairwells or large rooms–opt for junction boxes at each switch point rather than daisy-chaining conductors. Use 1.5 mm² solid copper core for residential applications, ensuring terminals are tightened to 1.2 Nm to prevent arcing. If incorporating LED indicators, wire them in parallel with the control contacts; they draw negligible current but provide instant visual feedback when the path is complete.
Replace outdated mechanical units with momentary push-button variants for higher reliability in high-cycle environments. These eliminate wear on spring mechanisms typically found in lever-based designs. Verify compatibility with dimmable loads: most modern push-button relays support 0–10V analog dimming, but confirm the manufacturer’s specifications before integration. Label every conductor clearly at both ends–“L1,” “L2,” and “COM”–to simplify future troubleshooting.
Encode the layout digitally using SVG or Fritzing schematics for precise replication. Document wire colors per regional standards: in continental Europe, brown (live), blue (neutral), and black/grey (return); in North America, follow black (hot), white (neutral), and red/blue (traveler). Adhere to local codes–most require RCD protection for all lighting circuits rated above 6A.
Dual-Control Electrical Connection Layout
Install two SPST (single-pole, single-throw) toggle mechanisms at opposite ends of the corridor or stairwell with a shared neutral return path. Wire each control point in parallel: the live feed connects to the common terminal of the first device, while its NO (normally open) terminal links to the NC (normally closed) terminal of the second via a 1.5 mm² twin-core cable. The second device’s common terminal completes the loop by returning the current to the load–this configuration eliminates the need for a dedicated “common” wire, reducing installation complexity in retrofit scenarios.
Critical Wiring Specifications
Ensure the phase conductor between control points is rated for 10A–undersized wiring generates heat at junctions, risking insulation failure. For 230V AC systems, maintain a 3mm clearance between live terminals and any grounded metal enclosures to prevent arcing. When terminating stranded wire, crimp a 6.3mm ring terminal rather than tinning with solder; soldered joints degrade under thermal cycling, increasing resistance over time. Label each conductor at both endpoints to avoid miswiring during maintenance–red for live, blue for neutral, and yellow/green for earth if applicable.
Test polarity before energizing: use a multimeter in continuity mode to verify that toggling either mechanism reverses the load state without intermediate flickering–intermittent contact indicates loose terminations or corroded copper. For outdoor installations, seal all junction boxes with IP66-rated glands and apply dielectric grease to terminals to prevent oxidation. If integrating with a smart home system, replace one SPST with a latching relay; this preserves the dual-control functionality while allowing remote activation via a 12V DC control signal.
For three-point control (e.g., adding a hallway device between two stairwells), substitute one SPST with a DPDT (double-pole, double-throw) unit and rewire as follows: connect the live feed to the DPDT’s common, link its first NO terminal to the remote SPST’s NO, and tie the second NO to the return path from the load. This variant requires an additional conductor but enables full redundancy–failure of any single control point does not disable the entire sequence, an advantage in commercial lighting retrofit projects.
Key Elements of a Dual-Control Light System
Install SPDT (single pole, double throw) toggles at both control points. These devices must have three terminals: common (C), normally open (NO), and normally closed (NC). Connect the live feed to the first toggle’s common terminal, then wire the NO terminal of each toggle to the NC terminal of the other. This crossover configuration enables alternating current paths. Always match terminal labels–some manufacturers reverse NO/NC designations.
Use 1.5 mm² (16 AWG) solid copper wire for all fixed connections, except the earth conductor (2.5 mm²). Twist stranded conductors under screw terminals to prevent loosening; pre-tin solder joints in high-vibration environments. Secure wires with nylon clamps every 30 cm inside conduits–avoid adhesive clips on insulated sleeves. Polarity-sensitive bulbs (LEDs, halogens) demand consistent supply orientation; mark the neutral wire at splice points.
| Component | Minimum Rating | Material Standard |
|---|---|---|
| Toggle actuator | 10 A, 250 V AC | IEC 60669-1, polycarbonate body |
| Load conductor | 16 A, 90 °C | BS 6004, PVC-insulated |
| Terminal block | 20 A, 500 V | UL 1059, tin-plated brass |
Trace continuity with a multimeter before energizing. Set the meter to diode-test mode; toggle each actuator individually–expect zero resistance between C and either NO or NC for the active path, and open circuit on the alternate path. If readings deviate (±5 Ω), re-check terminal tightness and wire integrity. Replace any toggle showing intermittent contact during manual actuation tests.
Vital Safety Checks
Isolate the panel before splicing. Verify absence of voltage with a non-contact tester on both toggles and the load. Cap unused conductors with heat-shrink sleeves; never leave bare ends exposed. Ground the metal actuator housing–bond to the earth busbar using 4 mm² flexible green/yellow wire. After energizing, measure line voltage at each toggle’s common terminal–fluctuations (±10 V) indicate potential series arcing; replace suspect toggles immediately.
Step-by-Step Wiring Instructions for a Dual-Control Installation
Before handling any electrical components, cut power at the breaker panel. Verify the circuit is dead using a non-contact voltage tester on both terminals of the existing toggle mechanism and exposed wires. Confirm the cables entering the junction boxes include: a live feed (red or black), neutral (white), ground (bare copper or green), and a traveler wire (commonly red or blue). If wiring colors differ, label each conductor with masking tape to avoid confusion during assembly.
Preparing the First Connection Point
- Remove the wall plate and detach the old mechanism, leaving wires connected temporarily.
- Identify the live feed wire–this connects to the common terminal (often marked brass or labeled “COM”) on the new dual-toggle replacement.
- Strip 1/2 inch of insulation from each wire end using wire strippers. Twist strands clockwise if frayed.
- Attach the live feed to the COM terminal screw, bending the wire into a U-shape around the screw before tightening with a screwdriver.
- Connect the traveler wires to the remaining two terminals–order doesn’t matter, but ensure secure attachment by tugging gently on each wire.
- Fold wires neatly into the junction box, then mount the replacement flush against the wall. Secure with provided screws.
Configuring the Second Junction Box
Repeat the process at the second location:
- Route the traveler wires from the first box into the second junction box (typically via the same conduit or cable).
- Locate the separate live feed wire at this box–this connects to the COM terminal here. Verify it matches the voltage reading on your tester against ground.
- Attach each traveler wire to the remaining two screws, maintaining consistency with the first box’s wiring.
- If the setup includes a neutral wire (not always needed for simple dual-toggle setups), cap it with a wire nut and tuck it aside–do not connect it unless required by smart devices or future upgrades.
- Push excess wire back into the box, ensuring no bare conductors touch the metal enclosure. Fasten the second replacement into place.
Restore power at the breaker panel. Test functionality by toggling both mechanisms–each press should change the light’s state without delay or flickering. If flickering occurs, recheck traveler wire connections for loose screws or crossed conductors. For LED or CFL bulbs, use dimmer-compatible replacements if needed. Label the breaker panel with the new control points for future reference.
Critical Errors in Dual-Control Installation
Using the wrong cable type between connection points leads to voltage drop or overheating. Standard 1.5mm² conductors suffice for 10A loads, but anything beyond requires 2.5mm² minimum. Verify insulation rating–PVC handles 70°C, but XLPE withstands 90°C for prolonged use. Incorrect gauge choices risk fire hazards.
Ignoring terminal labeling causes miswired phases. Upper terminals typically connect to the supply, while lower ones link to fixtures. Swapping these disrupts polarity, creating dead zones in the system. Always double-check manufacturer diagrams, as terminal layouts vary across brands.
Bypassing junction boxes reduces safety and violates electrical codes. Exposed splices corrode over time, especially in humid or outdoor environments. Use IP-rated enclosures for outdoor setups–IP44 for general protection, IP66 for heavy exposure. Loose connections spark and arc, degrading performance.
Assuming neutral wires are unnecessary in older setups complicates modern appliance compatibility. Many smart devices or dimmers require a neutral return path. Retrofitting existing wiring demands a separate neutral run; improvising with ground wires risks tripping circuit breakers.
Improper Grounding Practices
Linking ground wires to nearby metal pipes or using undersized conductors invites electric shock risks. Ground paths must terminate at the main panel with proper bonding. Resistance should stay below 0.1 ohms–higher values signal corrosion or loose connections, requiring immediate correction.
Overloading a single conductor with multiple functions violates basic splits. Traveler wires should serve only as intermediary links, not share roles with live or return lines. Mixing functions creates unpredictable behavior–lights may flicker, switches may partial-activate, or overloads develop silently.
Skipping continuity tests after installation leaves faults undetected. Use a multimeter to confirm zero resistance between traveler terminals in both positions. A reading above 0.5 ohms indicates poor contact, demanding termination rework or wire replacement before finalizing covers.
Neglecting labeling obscures future troubleshooting. Mark cables at both endpoints–”Traveler A,” “Live In,” “Neutral”–using heat-shrink tubing or permanent tags. Clear identification saves hours during repairs, especially in multi-story buildings where wiring runs become complex.
