Step-by-Step Guide to Wiring a 2 Wire Actuator with Diagram
Connect the motor’s two leads directly to a bipolar DC power source–no intermediary components are required. Use 18 AWG copper strands for runs under 3 meters; switch to 16 AWG if the distance exceeds that length to prevent voltage sag. Verify polarity first: the red terminal accepts +12 VDC or +24 VDC depending on the drive’s rating, while the black terminal grounds the circuit. Confirm compatibility with a multimeter before energizing; reverse polarity will permanently damage the coil assembly.

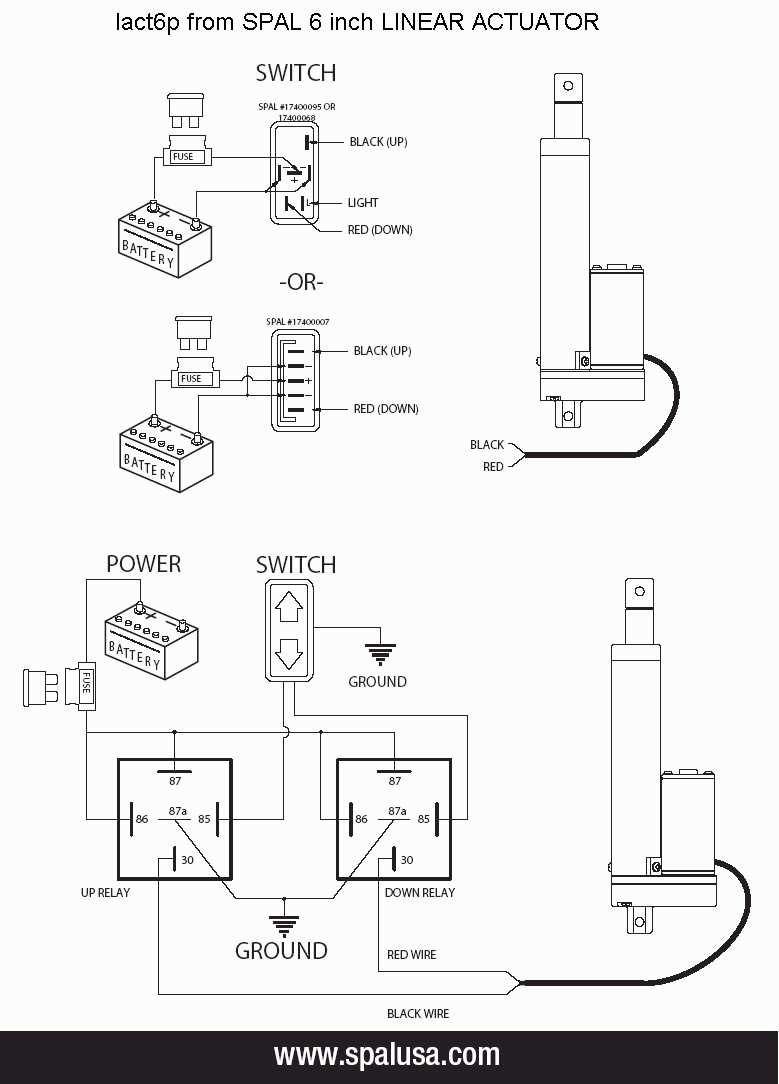

For basic control, insert a single-pole double-throw (SPDT) switch between the supply and the motor. This allows manual extension and retraction by toggling between the live terminal and ground. If synchronized movement across multiple units is needed, pair each drive with a dedicated relay module rated for 10 A continuous current. Wire the relay coils in parallel and trigger them from a single control signal to ensure uniform operation.
Protect the circuit with a 2 A slow-blow fuse placed immediately downstream of the power source. Omit diodes; intrinsic back-EMF suppression is built into the drive’s design. Tighten terminal screws to 3 Nm torque–loose connections create resistive heat that degrades contact integrity over time. When routing cables, avoid sharp conduits and keep separation from AC lines to prevent induced noise.
Test travel limits at 25% stroke before full deployment. Observe amperage draw: 0.8 A nominal at 12 V, 0.4 A at 24 V. Spikes above 1.5 A indicate binding or misaligned linkage–halt immediately and inspect for physical obstructions. Document the final setup with a labeled sketch showing terminal designations, switch positions, and disconnect points for future maintenance.
Connecting a Dual-Lead Drive System: Key Steps
Begin by identifying the polarity of the motor terminals before making connections. Most 2-lead setups rely on reversing voltage to change direction, so confirm the positive and negative ends using a multimeter. Apply 5-12V DC to test rotation; the shaft should move in one direction when polarity is straight and reverse when swapped.
Use a single-pole double-throw (SPDT) switch to control direction manually. Connect the common terminal of the switch to the power source, then route the two outer terminals to each lead of the drive mechanism. This eliminates the need for relays in low-power applications, simplifying the layout.
For automated control, pair the setup with an H-bridge module like L298N or DRV8871. These boards handle current up to 2A and 3A respectively, making them suitable for small linear or rotary drives. Ensure the module’s logic voltage matches your microcontroller–commonly 3.3V or 5V–to prevent damage.
When integrating with a microcontroller, use pulse-width modulation (PWM) for speed regulation. A 1kHz frequency works for most applications; adjust the duty cycle from 0% (stopped) to 100% (full speed). Avoid sudden polarity reversals at high speeds to prevent back EMF spikes, which can damage the electronics.
Shield sensitive signal paths from power cables using twisted pairs or separate channels. High-current drives can induce noise in adjacent circuits, causing erratic behavior. If the system operates near inductive loads like solenoids or relays, add flyback diodes to absorb voltage spikes.
Solder connectors directly to the mechanism’s terminals for permanent installations, but use crimp connectors or terminal blocks for prototyping. Stranded copper conductors (22-18 AWG) offer flexibility and durability; avoid solid core cables, which can fatigue and break under vibration.
Test the setup incrementally: verify direction control first, then add speed modulation, and finally integrate sensors or limit switches if needed. For position feedback, mount a potentiometer or use optical encoders–ensure the feedback resolution aligns with the application’s precision requirements (e.g., 10-bit for 0.1° accuracy).
In high-current systems (>5A), replace the H-bridge with a relay module or MOSFET pair. Use heat sinks and thermal paste for semiconductors exceeding 2W dissipation. For 24V or 48V systems, opt for isolated drivers to protect low-voltage control circuits from voltage transients.
Identifying Polarity in Two-Lead Motion Devices
Check the device’s datasheet first–manufacturers often label one lead as “+” and the other as “–”. If markings are absent, use a multimeter in DC voltage mode: apply a low control signal (3–12 V) and note which terminal reads positive. Swapping connections reverses motion direction, confirming polarity.

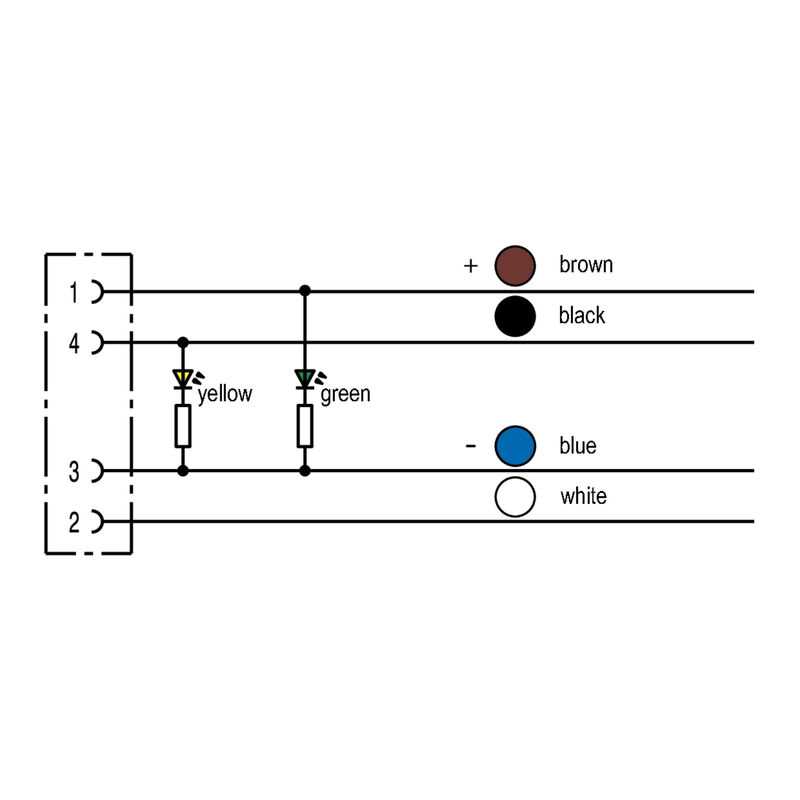

Color codes vary, but common schemes exist:
| Manufacturer | Positive Lead | Negative Lead |
|---|---|---|
| Firgelli | Red stripe | Black stripe |
| Progressive Automations | Solid red | Solid black |
| Thomson | White stripe | Blue stripe |
Avoid assumptions–always verify with a meter.
For push-type devices, positive voltage extends the rod; pulling units retract it. If the mechanism moves opposite to expectations, reverse the connections. Some models include built-in diodes, limiting current flow to one direction–damage risks arise if polarity is ignored.
When testing, use a benchtop power supply with current limiting (start at 100 mA). Observe behavior under load: jerky motion or stalling indicates incorrect polarity or insufficient voltage (common ranges: 6–24 VDC). Note audibles–hissing or clicking often signals reversed leads.
Permanent installations require soldered or crimped connectors; twist-on wire nuts fail under vibration. Label both conductors at the source–mislabeled circuits cause irreversible errors during maintenance. Store spare units with leads protected by heat-shrink tubing to prevent shorts.
Step-by-Step Connection Guide for Dual-Conductor Linear Motion Devices
Verify the power supply matches the motor’s voltage requirements before making any connections–most compact drive units require 12V or 24V DC, with a current rating no less than 2A for reliable operation.
Connect the positive lead of the power source directly to one terminal of the switch, then route the other switch terminal to the corresponding input on the device. Repeat this for the negative lead, ensuring polarity aligns with the manufacturer’s markings–reversing polarity risks damaging the internal circuitry or causing erratic movement.

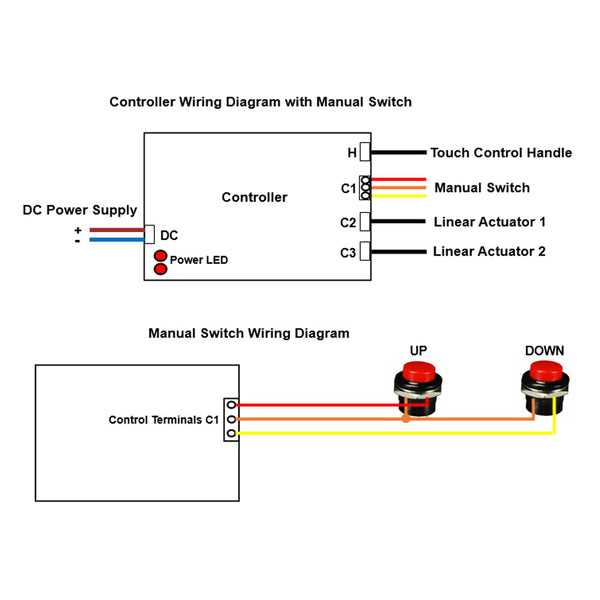

Choosing the Right Control Mechanism
Limit switches simplify automation: attach one normally closed switch at each stroke endpoint to cut power when triggered. For momentary control, a double-pole double-throw (DPDT) switch allows direction reversal without a separate relay, provided the switch current rating exceeds the motor’s peak draw–typically 5A for standard units.
For prolonged installations, integrate a fuse holder inline with the positive conductor, selecting a fuse 1.5 times the motor’s continuous current to prevent overheating without nuisance trips. Avoid using solid-state relays for high-load applications; opt for mechanical relays rated for inductive loads to handle voltage spikes during direction changes.
Secure all joints with solder or crimped connectors, then insulate with heat-shrink tubing–exposed connections corrode or short over time, especially in outdoor environments. Test the setup with brief pulses first, monitoring for smooth extension and retraction; jerky motion indicates insufficient current or binding in the mechanical assembly.
Final Safety Measures
Ground the metallic housing if the housing is exposed to touch–even low-voltage units can induce static buildup. For AC-powered setups, use a UL-listed power adapter to convert mains voltage, ensuring the adapter’s output matches the motor’s DC requirements without exceeding its wattage rating.
Common Mistakes When Setting Up Linear Motion Devices
Reversing polarity during installation is one of the most frequent errors, leading to immediate mechanical failure. Most compact electric drives operate on 12V or 24V DC, where positive and negative terminals dictate direction. Ignoring the manufacturer’s pinout–often labeled on the casing–causes the rod to retract when extension is intended. Always verify terminal markings with a multimeter before securing connections, especially in low-voltage systems where polarity isn’t visually apparent.
Overlooking current draw specifications results in overheating or premature burnout. A typical 100mm stroke unit with a 100N load rating may require 2–5A under normal operation. Exceeding this threshold, even briefly–for example, by using undersized cables (e.g., 22 AWG instead of 16 AWG)–increases resistance, generating heat that melts insulation or damages internal gears. Refer to the datasheet for:
- Peak current rating (usually 2x nominal)
- Duty cycle (e.g., 25% at 20°C ambient)
- Cable cross-section (minimum 1.5mm² for 3m runs)
Skip this step, and the device may stall or shut down under load.
Avoid Mechanical Binding
Forcing the rod beyond its stroke limits–often due to misaligned mounting brackets–damages the spindle or motor. A common oversight is installing the unit without accounting for its fully extended length; a 300mm device may require 400mm clearance once end stops are included. Another pitfall is rigid coupling: use swivel eyes or ball joints at both ends to prevent lateral stress. Failing to check for obstructions along the travel path can jam the mechanism mid-operation, stripping gears in the process.
- Position brackets parallel (±1°) to the movement axis.
- Leave 5–10mm buffer at stroke extremes.
- Test motion manually before applying power.
Neglecting environmental factors, such as dust or moisture ingress, accelerates wear. IP43-rated units tolerate light splashes but fail under direct water jets or in submerged applications. Dust accumulation, particularly in outdoor or industrial settings, clogs vents, overheating the motor. Apply conformal coating to circuit boards if deploying in high-humidity areas, and ensure vents are unobstructed in dusty environments.
