Step-by-Step 200 Amp Electrical Meter Connection Guide with Wiring Diagram
Install a dual-range shunt rated at 150/200% of the maximum load to account for transient spikes. Position the shunt on the negative return path to prevent ground-loop errors that skew readings. Use 2/0 AWG (or thicker) copper cables, terminating with tin-plated lugs crimped with a hydraulic press; compression fittings reduce voltage drop below 50 mV even at peak current.
Mount the display unit within 3 meters of the shunt, connected via shielded twisted pair (STP) cable to reject EMI from adjacent motor starters. Ground the shield at one end–the shunt side–to avoid ground loops. For remote monitoring, splice in a 4–20 mA transmitter; verify loop resistance stays below 500 Ω at 24 VDC supply.
Calibrate peak readings against a fluke 87V in min/max mode. Align the scale factor on the display panel: divide the shunt’s milli-volt drop (typically 75 mV at full scale) by the ADC reference voltage (usually 5 V), rounding to three decimal places. Check zero drift every 50 °C shift–compensate with a software offset or adjust the trim pot on the back of the panel meter.
Secure all connections with heat-shrink tubing over crimps and apply dielectric grease at terminals exposed to vibration. Fuse the positive feed with a 30 A class-T time-lag fuse; size it at 1.25 × continuous current rating. Label both ends of every conductor with wire tags matching the schematic, using dymo embossed or laser-printed polyester labels rated for 90 °C minimum temperature.
Connecting a High-Current Service Panel: Key Electrical Setup Guidelines
Start by positioning the main breaker enclosure adjacent to the utility’s disconnect switch, with a minimum clearance of 36 inches on all sides for safe access during maintenance or emergencies. Use 4/0 AWG copper conductors for the service entrance cables–this gauge handles sustained loads up to 230 A with minimal voltage drop over a 50-foot run. Secure cables to non-combustible surfaces with insulated clamps spaced every 18 inches to prevent sagging or abrasion against structural elements.
Neutral and grounding conductors must bond only at the primary service panel. Run a single #2 AWG bare copper wire from the panel’s neutral bus to an 8-foot ground rod driven at least 6 feet deep, ensuring it’s positioned outside the foundation’s drainage perimeter. Avoid aluminum grounding rods; their corrosion resistance degrades faster than copper in acidic or moist soils.
Label every conductor at both termination points. Mark service cables “LINE” and load-side wires “LOAD” with heat-shrink tubing or permanent ink labels. Secondary circuits feeding subpanels require separate grounding conductors sized per NEC Table 250.122–never splice these outside approved junction boxes.
Install surge suppression devices directly on the bus bars. Choose models rated for 40 kA per mode, with replaceable modules and visual indicators for fault status. Avoid MOVs with lower clamping voltages; these fail prematurely under transient spikes over 1,500 V. Mount suppressors vertically to prevent moisture accumulation in enclosures exposed to outdoor conditions.
Verify torque specifications for all terminal connections–panels rated for 250 A typically require 55-70 inch-pounds for lugs. Use a calibrated torque screwdriver; undertightening causes overheating, while overtightening strips threads. Recheck connections annually if the installation serves variable loads like EV chargers or welders.
Route conduit runs in straight segments with 90-degree sweeps instead of sharp elbows to reduce conductor strain. EMT conduit requires set-screw or compression fittings outside; PVC Schedule 80 is mandatory for underground runs due to its impact-resistant properties. Seal all conduit penetrations with fire-rated caulk where they pass through firewall assemblies.

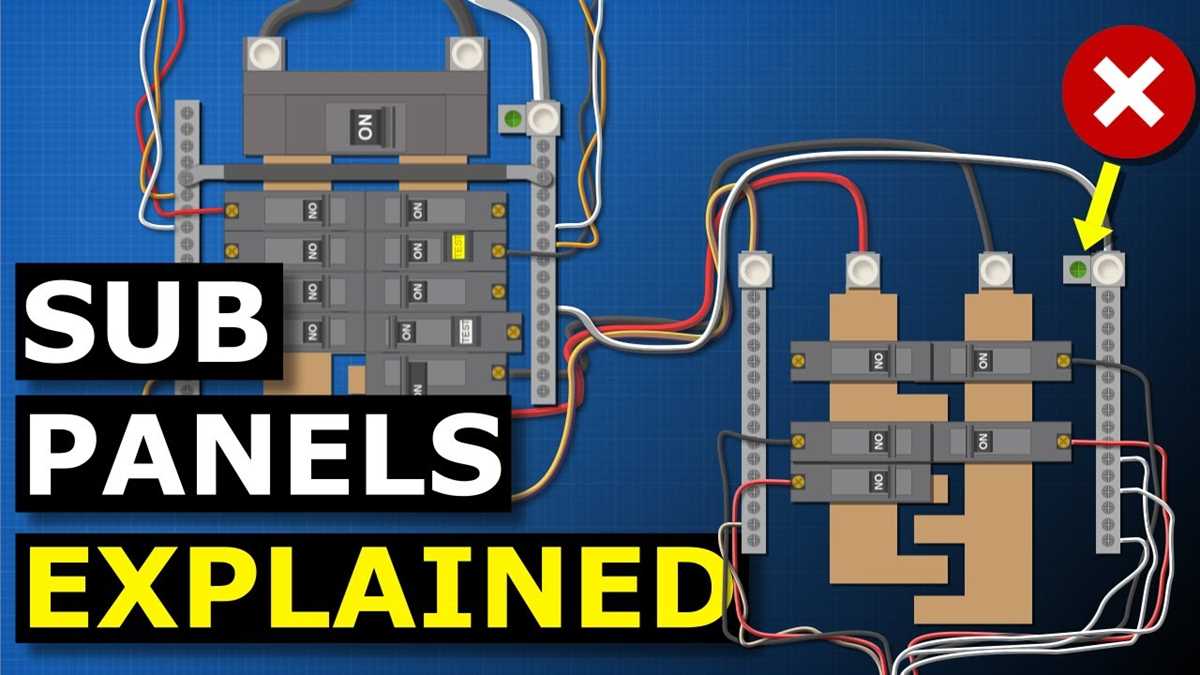

Subpanel installations demand a four-wire feed: two hot, one neutral, and one dedicated ground. Isolate neutral and ground buses in subpanels–bonding them violates NEC 250.30(A) and creates parallel return paths, which can induce circulating currents in metallic framing. Size subpanel conductors based on actual load calculations; derating factors apply for bundled cables exceeding four per conduit.
For multi-structure setups, bury feeder cables in rigid conduit at 24-inch depths under driveways, 18 inches elsewhere. Use direct burial cable only if manufacturer specifications permit; otherwise, enclose it in Schedule 80 PVC. Backfill with compacted sand beneath the conduit to prevent rock penetration, then overlay with yellow caution tape 12 inches below grade.
Choosing Suitable Hardware for a High-Current Service Panel Foundation
Install a copper-rated primary disconnect switch with a minimum four-inch jaw span to prevent thermal expansion gaps in lugs over long-term heavy loads–aluminum alloys risk oxidation at contact points, increasing resistance by up to 12% under sustained 195-plus draw cycles. Pair with a class 200-rated enclosure featuring a gasket-sealed door and flame-retardant polyester backplate; NEMA 3R units corrode within 18 months in coastal zones unless upgraded to NEMA 4X stainless steel construction.
Specify double-thick tinned copper busbars–no less than 0.25 inches–to handle surge transients without deformation; cheaper plated brass components lose conductivity after 5,000 operation cycles. Mount arrestors directly onto the incoming terminals using tapered-thread connectors to avoid micro-gaps that cause corona discharge under voltage spikes exceeding 1.5x nominal.
Step-by-Step Installation Guide for High-Capacity Electrical Entry
Shut off the main breaker at the utility pole or disconnect switch before handling any conductors. Verify zero voltage using a non-contact tester on both incoming service lines and neutral. Install a compatible main panel with a 225–250 A bus rating, ensuring it includes a dedicated ground bar isolated from the neutral bar. Run 4/0 AWG copper or 250 kcmil aluminum conductors from the weatherhead to the panel, leaving 18 inches of extra length at the entrance for future adjustments. Strip 1/2 inch of insulation from each conductor end, then secure them to the lugs using a torque wrench set to manufacturer specifications–typically 75 in-lbs for copper and 90 in-lbs for aluminum.
Critical Connections and Compliance Checks
| Component | Wire Gauge (Minimum) | Torque (in-lbs) | Inspection Point |
|---|---|---|---|
| Main lugs | 4/0 CU or 250 AL | 75 (CU), 90 (AL) | Lug tightness, no insulation under clamp |
| Neutral bus | 2 AWG CU | 55 | Separation from ground bus, no corrosion |
| Grounding electrode conductor | 6 AWG CU | 40 | Direct burial connections, no splices |
| Bonding jumper | 4 AWG CU | 50 | Continuity to water pipe, no paint or rust |
Connect the neutral to the isolated bus first, then attach the grounding electrode conductor to a driven rod or concrete-encased electrode, burying it at least 8 feet deep. Bond the neutral to the ground bar only at the service disconnect, never downstream. Install arc-fault circuit interrupters (AFCIs) on all branch circuits per NEC 210.12, and use GFCI protection for outlets in damp locations. Label each breaker clearly with its corresponding circuit and load rating. After energizing, measure voltage across the main lugs–240V phase-to-phase and 120V phase-to-neutral–to confirm correct polarity. Recheck all connections with an infrared thermometer after 24 hours for hot spots.
Connecting the Primary Cutoff Switch and Grounding Strip in a High-Current Service Box
Start by securing the main cutoff switch to the designated mounting bracket inside the enclosure. Ensure the breaker aligns precisely with the bus bars–misalignment can cause arcing or overheating. Use a torque screwdriver to tighten terminal screws to the manufacturer’s specified value, typically between 25–35 inch-pounds for copper conductors. Verify the switch is in the OFF position before proceeding to avoid accidental energization.
Route the service entrance conductors from the utility lateral to the main cutoff switch. The phase conductors (black, red, or marked per local code) must terminate on the upper lugs of the switch. Strip insulation back 0.75 inches, insert fully, and secure with the provided clamping mechanism. The grounded conductor (neutral) should bypass the switch entirely–it connects directly to the grounding strip below. Measure conductor length generously to account for bends and future adjustments, leaving a minimum 6-inch tail beyond the terminal.
Identify the grounding strip–usually a tinned copper bar with multiple mounting holes–and position it adjacent to the neutral terminal block. Bond the strip to the enclosure’s back wall using the supplied green grounding screw or a listed lay-in lug. Remove any paint or coating from the mounting surface to ensure a clean electrical connection. A multimeter set to continuity mode should confirm zero resistance between the strip and the panel chassis.
- Use at least #4 AWG bare or green-insulated copper for grounding electrode conductors.
- Avoid mixing neutral and grounding terminations–code mandates separate paths except at the service disconnect.
- Torque all connections, including bonding jumpers, to prevent loosening under fault currents.
- Label the neutral bus explicitly if multiple strips are present to prevent misapplication.
After securing the main conductors, install a bonding jumper between the neutral bus and the grounding strip. This jumper must be sized per NEC Table 250.102(C)(1), matching the largest service conductor. For 3/0 AWG copper service wires, a minimum #4 AWG jumper suffices, though #2 AWG is often stocked for larger panels. Compress the connection with an approved crimping tool, then cover with insulating tape rated for 600 volts.
Final checks require isolating the panel from all power sources. Probe the neutral bus with a megohmmeter–readings should exceed 1 megaohm to ground. Recheck all terminations for exposed strands or insulation creep, particularly at bends near sharp edges. Energize only after securing the deadfront cover and verifying no tools or debris remain inside the enclosure.
