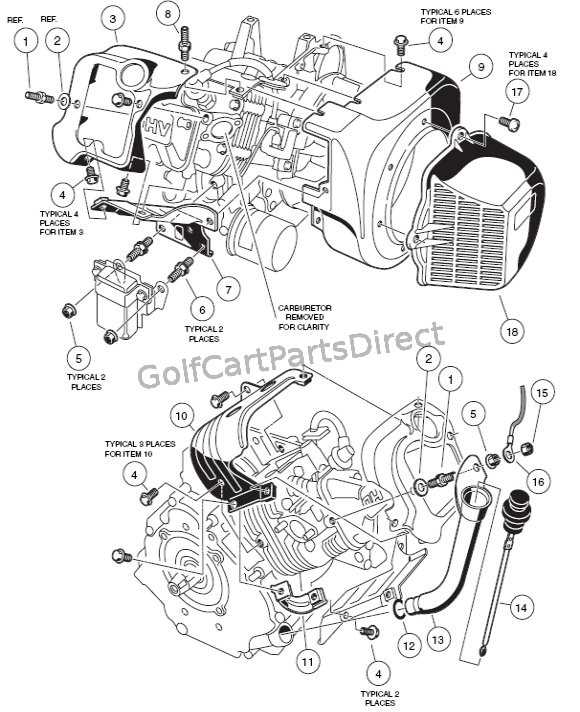

Complete EZGO TXT RXV Wiring Diagram Guide 2000 Model for Golf Carts

Start with the battery pack. Locate the primary power cables–thick red (positive) and black (ground)–connected to the main solenoid. Verify these lines first; corrosion or loose terminals here disrupts the entire system. Use a multimeter set to DC voltage (20V range) to check voltage across the solenoid’s large terminals while activating the ignition. A reading below 36V indicates a weak battery bank or internal resistance issues.

Trace the red wire from the solenoid to the controller. Most pre-2001 models use a 48-volt Curtis 1206 or similar unit. Look for three key connectors: throttle input (small white/blue), direction switch (black/orange), and main power feed (thick red). Disconnect and inspect these terminals for heat damage or oxidation–replace the connector block if plastic is warped.

Examine the fuse links in the circuit. Early carts often embed 40-amp fuses directly in the wiring harness, near the solenoid. Use a continuity tester to confirm they’re intact; a blown fuse suggests a short in the motor or controller. Replace with a ANL-type fuse rated 50% above factory specs for safety.

Identify the reversing solenoid–usually a compact relay near the motor. Its coil draws power from the key switch (thin purple wire). Test coil resistance (50–100 ohms typical); values outside this range mean coil failure. Swap the relay if necessary, ensuring replacement matches the original terminal layout.

The charger port circuit splits into two paths: main charge (thick green) and 12V accessory (thin blue). Follow the green wire to the charger receptacle–resistance should read near 0 ohms. High resistance here points to a defective diode or melted connector. For the 12V line, check the voltage reg module (mounted near the controller) with a multimeter; expect 13.5–14.2V output.

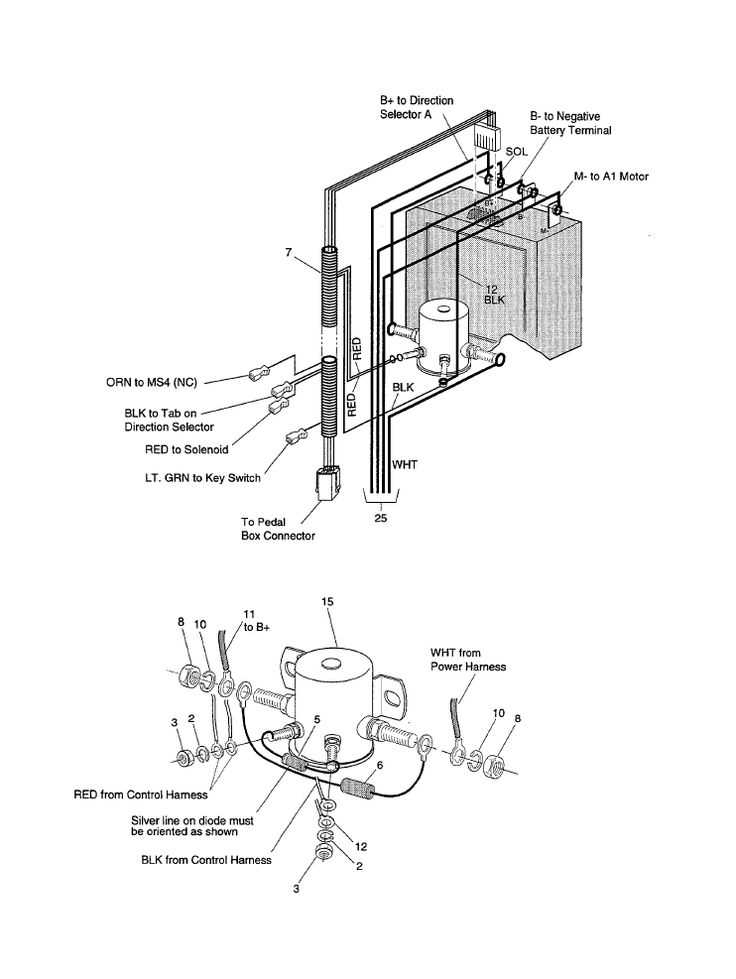

Download the OEM solenoid activation schematics from the manufacturer’s archive–third-party scans often mislabel wires. Cross-reference colors against your cart’s harness; deviations (e.g., brown vs. tan) indicate aftermarket modifications. Label each wire with heat-shrink tubing before disconnecting connectors to avoid confusion during reassembly.

For intermittent faults, use a non-contact voltage probe to scan the harness while wiggling connections. Listen for audible clicks–these pinpoint broken strands or internal corrosion. Prioritize replacing the entire harness section if damage spans beyond a single terminal.

Mastering Your TXT Golf Cart Electrical Blueprint

Locate the solenoid first–it’s the rectangular component near the battery tray with two large terminals and two smaller ones. Trace the red cable from the positive battery post to the first large terminal, then follow the second large terminal to the motor’s starter relay. Disconnect the battery before probing: use a multimeter set to 20V DC to verify 36V across the main terminals when the key is turned. If voltage drops below 34V, inspect the battery pack for sulfated cells or corroded interconnects. Clean terminals with a wire brush and baking soda solution, then retighten to 10-12 Nm torque.

Troubleshooting Common Circuit Issues

Flickering headlights often stem from a faulty voltage regulator–replace the 31500-G01 module if input exceeds 42V under load. For intermittent stalling, check the micro-switch under the accelerator pedal: adjust its plunger gap to 2-3mm using a feeler gauge. Inspect the run/tow switch wiring harness for frayed insulation–secure loose wires with heat-shrink tubing. When diagnosing the F&R switch, ensure continuity only in one direction at a time; cross-wiring will blow the 30A fuse. Always splice wires using crimp connectors and solder, never twist-and-tape joints.

Locating the Genuine TXT Utility Vehicle Electrical Schematic

Start with the manufacturer’s authorized portal. The official site for these vehicles (EZGO corporate domain) maintains a dedicated support section hosting technical documents. Filter searches by model year, selecting the appropriate series–commonly identified by its serial prefix (e.g., “TXT” or “RXV”). Registration may be required, but access is granted without charge for current owners. Verify the file extension matches “.pdf” to ensure compatibility with standard readers.

• Service bulletins often supersede initial manuals; cross-reference the document date with the latest release.
• Part-numbered schematics occasionally appear in dealer-only archives–request through a licensed service center if unavailable publicly.
• Check the header or footer for revision markings (“Rev A,” “B,” etc.) to confirm the most updated version.

Third-party maintenance forums aggregate user-uploaded resources, though official sources remain the sole reliable benchmark. Sites like Buggies Gone Wild and Golf Cart Forums host searchable libraries where enthusiasts share scans. Exercise caution–mismatched or altered diagrams proliferate in these spaces. Validate against OEM specifications before application.

Physical dealerships retain printed copies within their repair literature inventory. Contact a local distributor to request a digital transmission or on-site inspection. Provide the exact model designation (visible on the vehicle’s identification plate) to expedite retrieval. Many shops outsource complex repairs to certified technicians, who typically consult these materials as part of diagnostic protocols.

Critical Circuit Elements and Pathways in the 2000 Model Golf Cart Electrical Blueprint

Begin troubleshooting by verifying the solenoid’s engagement during startup. The component must emit a distinct click when the ignition key turns; absence of this sound indicates either a failed solenoid, weak battery voltage below 36V, or corroded terminals at the starter generator. Clean contact points with a wire brush and apply dielectric grease to prevent future oxidation. Replace the solenoid if resistance exceeds 0.5 ohms or if voltage drop across its terminals exceeds 0.3V during operation.

Trace the main harness from the controller to the accelerator microswitch using a multimeter. The switch should close at 1-2mm pedal depression, sending a 12V signal to the control module. Adjust the plunger screw if the switch activates too early or late–misalignment causes erratic acceleration or failure to engage. If the switch tests faulty, ensure the replacement matches the 20A current rating and normally-open configuration. Avoid splicing wires; use crimped connectors with heat-shrink tubing for reliability.

Component	Voltage (Idle/Active)	Resistance Range	Failure Symptoms
Motor Brushes	0V / 36-48V	2-5 ohms	Sparking, loss of power, intermittent cutoff
Direction Switch	0V / 12V	Infinite (open)	No forward/reverse, grinding noise
Key Switch	12V / 0V	0.2-0.8 ohms	No power, dashboard lights dim
Battery Pack	36-48V	Below 0.1 ohms per cell	Slow cranking, voltage sag under load

Inspect the speed sensor wire harness for frayed insulation near the rear axle. The sensor generates a pulsed signal proportional to wheel rotation; damage here triggers false speed limiter activation or jerking motions. Secure loose wires with zip ties and route them away from rotating parts. Replace the sensor if the signal amplitude drops below 2V peak-to-peak or if pulse width exceeds 50ms. Calibration requires a scan tool to reset the electronic governor; bypassing this step voids performance settings.

Check the fuse block for overloaded circuits–each fuse should match the amperage labeled on the cover. A blown 50A “MAIN” fuse often signals a short in the charger port or accessory wiring. Probe suspect circuits with a continuity tester; any reading below 5 ohms between hot and ground wires warrants immediate repairs. Replace burned traces on the PCB with equivalent gauge wire and solder connections. For persistent issues, isolate segments by disconnecting loads one at a time until the faulty path is identified.

Step-by-Step Troubleshooting for Common Golf Cart Electrical Problems

Check the battery connections first. Corrosion or loose terminals cause over 60% of electrical failures. Use a wire brush to clean posts and tighten clamps to 10-12 inch-pounds. Verify voltage at the pack with a multimeter–readings below 36V for a 36-volt system indicate a weak or failing unit.

Inspect the solenoid if the cart fails to engage. Locate the component near the controller and listen for a distinct click when activating the accelerator. No click suggests a faulty solenoid; test continuity across its terminals with a multimeter. A reading above 0.5 ohms warrants replacement. Confirm the coil resistance falls between 20-70 ohms for 36-volt models.

Examine the speed controller’s fuse next. A blown fuse trips the entire system. Remove the cover under the seat to access the fuse holder. Replace the fuse only with the manufacturer-specified amperage–typically 200A for gas-equivalent models. If the new fuse blows immediately, suspect a short in the motor or wiring harness.

Motor and Wiring Checks

Trace the main harness from the battery to the motor. Look for chafed insulation or bare wires touching metal–both create dangerous shorts. Use dielectric grease on connectors to prevent moisture ingress. Test motor brushes by removing the access cover; brushes shorter than 0.25 inches require replacement to avoid arcing and controller damage.

Reset the neutral safety switch if the cart moves unexpectedly. This switch, mounted near the transmission, prevents engagement in gear. Press firmly to ensure proper seating; misalignment causes erratic behavior. Test continuity with the multimeter–no reading means a broken switch needing adjustment or replacement.

Verify the charger’s operation if batteries fail to hold charge. Check the DC output with the multimeter–it should match the charger’s label (typically 2-4V above battery pack voltage). Clean the charger’s AC plug and outlet contacts if readings fluctuate. Internal charger issues often require professional service due to high-voltage components.

Test the forward/reverse switch last. Incorrect engagement creates grinding noises or failure to move. Disconnect the switch and check for continuity in both positions. Faulty switches often stick; replace rather than repair to avoid recurrent issues. Lubricate moving parts with silicone spray to extend lifespan.
