Complete Wiring Diagram Guide for 2000 Harley Davidson Models
Start with tracing the main harness from the battery terminal–both positive (red) and ground (black)–before inspecting any secondary connections. The 30-amp ignition fuse (labeled F1) serves as the primary gateway for all downstream circuits; verify its integrity first. Use a multimeter set to 20VDC and probe the terminals directly at the fuse holder–any reading below 12.6V suggests corrosion in the cable lug or starter relay failure.
Locate the turn signal module (TSM) adjacent to the battery box–its 12-pin connector (black, rectangular) distributes power to lighting, hazard, and instrumentation feeds. Pin 5 (white/yellow stripe) carries the brake light switch input; disconnect and test for continuity under brake lever depression. If resistance exceeds 0.5 ohms, replace the brake switch before proceeding further. Avoid probing live circuits–use a fused jumper wire (20-gauge, 10A max) to simulate ground paths during diagnostics.
Examine the voltage regulator (silver, finned) mounted near the oil cooler–its two-wire plug (yellow and gray) regulates stator output. Back-probe the connector while running at 2000 RPM; readings should stabilize between 13.8V–14.5V. Deviations indicate stator failure (open windings) or regulator burnout–both require removal of the primary cover for full inspection. Refer to connector C1002 (22-pin, elliptical) for stator output wires (yellow) before disassembly.
Inspect the front cylinder sensor (CPS) wiring (two thin purple wires) where it exits the right engine case. These terminate in a small two-pin connector near the oil pump; intermittent connection here triggers random stalls. Secure the harness with tie wraps every 8 inches along its path across the frame downtube–vibration-induced fatigue causes shorts at stress points.
For Harley-Dyna models, note the speedometer sensor piggyback connector (gray, three-pin) behind the license plate bracket–its yellow/red stripe wire feeds VSS data to both ECU and speedometer. Clean the magnetic pickup with 220-grit emery cloth and re-gap to 0.030” before reassembly. If speedometer fluctuations persist, verify ECU grounds clustered beneath the seat–each should measure 0.0 ohms to chassis ground.
Electrical Schematic for Twin Cam Models: Hands-On Troubleshooting
Locate the main fuse block under the left side cover–it houses primary protection for the ignition, lighting, and charging circuits. The 30-amp fuse labeled “MAIN” must be intact; corrosion here mimics turning the key to silence. Replace oxidized terminals with gold-plated spades to prevent future voltage drop.
Trace the violet wire from the turn signal module to the handlebar switch cluster. A intermittent left blinker often stems from a fractured wire inside the throttle cable conduit; splice in a temporary jumper and flex the bars to identify the break before installing a permanent heat-shrink repair.
Inspect the stator plug connections at the rear of the alternator. Black oxide on the three yellow wires indicates thermal failure; clean with electronic contact cleaner, apply dielectric grease, and torque the retaining bolts to 8 ft-lbs to avoid casing distortion that misaligns pickup coils.
Verify the voltage regulator’s ground attachment. A loose single bolt behind the battery tray creates phantom charging issues. Scrape paint off the frame contact point, install a star washer, and tighten to 12 ft-lbs; a multi-meter reading below 13.8VDC at 2,000 RPM confirms resolution.
Lighting Circuit Quick Fixes
Swap the headlamp relay if the high beam burns only on low setting. The relay sits beneath the instrument cluster, secured by a single Torx T20 screw; relocate it to the rear fuse block if vibration-induced failures recur.
Examine the running lamp filaments through the amber lens. A dim front marker usually results from a corroded bullet connector under the front fender; crimp a new terminal with marine-grade heat-shrink tubing to withstand road splash.
Test the neutral safety switch continuity with the transmission in gear. A reading below 10 ohms suggests internal wear; bypass with a momentary push-button mounted on the handlebar to prevent false starter engagement during diagnostic rides.
Check the ignition coil primary resistance–should measure between 0.5 and 0.7 ohms on the black/white leg. A higher reading points to internal breakdown; swapping coils left-to-right isolates the faulty unit when the misfire persists on the opposite cylinder.

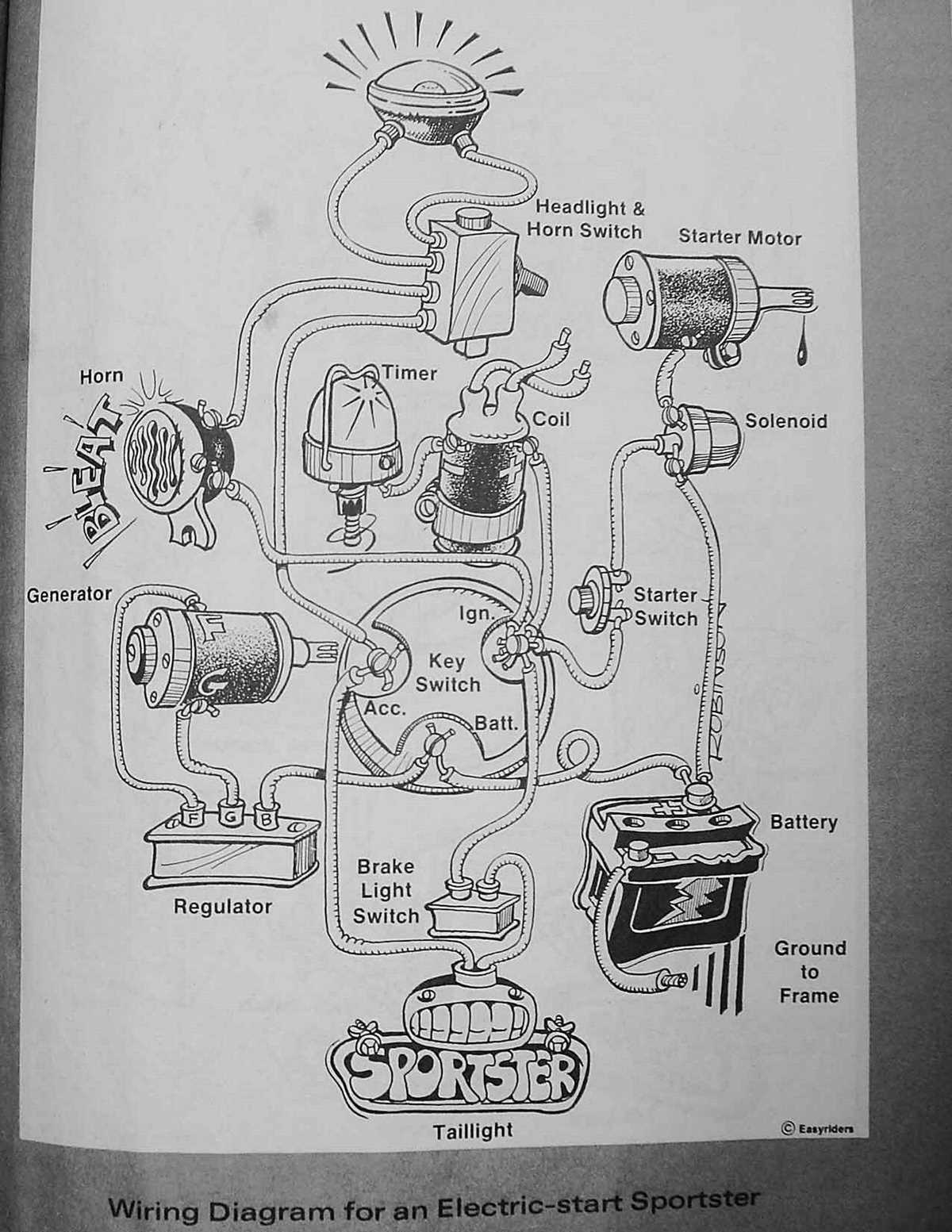

Pinpointing Primary Electrical Bundle Links on a 2000 Sportster
Start beneath the fuel tank by removing the seat and side panels to expose the central electrical bundle. Trace the harness from the ignition switch toward the front of the frame–three key connectors lie adjacent to the voltage regulator: a 12-pin circular plug (yellow wires), a 4-pin rectangular block (red/black leads), and a single white modular clip for the fuel injection module. The yellow 12-way connector handles lighting circuits; disconnect it first to prevent accidental shorts when testing resistance.
Rear and Chassis Junctions
Check behind the left air filter cover–two bullet connectors join the stator leads to the main harness. Near the rear fender, locate the taillight’s two-pin socket and the turn signal’s six-way cluster; both attach via locking tabs that snap apart with a flat-blade screwdriver. Label each coupling before separation to avoid cross-wiring spark plug coils or fuel pump relays.
Identifying Color-Coded Conductors for Ignition Fault Diagnosis
Trace the violet (+) and black/orange (-) leads from the ignition coil to the engine control module (ECM) first. Disconnect the 10-pin connector at the ECM and probe these terminals with a multimeter set to 200Ω–expected resistance: 2.5–4.5Ω primary, 6,000–12,000Ω secondary. A reading outside this range signals coil degradation or a short between windings, requiring coil replacement. Verify continuity on the violet lead back to pin 37 (ECM) and on the black/orange lead to pin 40; absence confirms an open circuit, often caused by chafed insulation near the frame rail junction.
Check the pink/black sensor wire from the crank position sensor (CPS); it must show 200–1,500Ω across its two pins. Insert a paper clip into the harness-side connector and measure here–open circuits point to internal wire failure or corroded terminal contacts. Compare against the CPS voltage signal: crank the engine and expect a fluctuation between 0.5V and 4.5V AC on an oscilloscope; a flat line identifies sensor failure or a severed pink/black feed, while erratic spikes suggest a loose ground splice near the front cylinder.
Step-by-Step Guide to Testing Voltage at Key Electrical Components
Begin by disconnecting the battery’s negative terminal to prevent short circuits. Use a digital multimeter set to DC voltage (20V range) for accuracy. Probe the positive battery post and a clean ground–readings should stabilize between 12.6V (fully charged) and 12.2V (acceptable). If below 12V, test the charging system before proceeding.
Module and Sensor Checks
For the ignition control module, access the connector behind the right side cover. Backprobe the power feed wire (typically orange with a yellow stripe) while the key is on–voltage must match battery levels. If absent, trace the wire to the main fuse block (30A ignition fuse) or the ignition switch. For the ECM, locate the 12V reference wire (pink) at the harness; deviations indicate a faulty relay or corroded terminal.
| Component | Wire Color (Common) | Expected Voltage (Key ON) | Failure Indications |
|---|---|---|---|
| Battery | Red (+), Black (-) | 12.6V–12.2V | Below 12V, sulfation |
| Stator | Yellow | 13.5V–14.5V (AC) | No reading, open circuit |
| Voltage Regulator | Yellow (input), Blue/White (output) | 14.2V–14.8V (DC) | Over/under voltage |
| Fuel Pump | Gray/Black | 12V (momentary) | No hum, burnt relay |
To test the stator, leave the multimeter on AC voltage. With the engine running at 2,000 RPM, probe any two yellow wires–readings should rise to 18V–25V AC. Lower values signal a failing stator; zero indicates a broken coil. For the voltage regulator, switch to DC: probe the blue/white wire while running–the output must hold steady at 14.2V–14.8V. Fluctuations or drops reveal a faulty regulator.
Troubleshooting Switches and Relays
For turn signal switches, remove the handlebar fairing and probe the light blue (left) and orange (right) wires at the turn signal relay. With the switch engaged, voltage should toggle between 0V and 12V. If constant, the switch contacts are welded. For the starter relay, jump the large terminals with a screwdriver–if the motor spins, the relay is defective. Always verify ground continuity at the frame; resistance above 0.5 ohms requires cleaning or replacement of the ground strap.
Common Faults in the Charging System and Their Electrical Schematic Clues
Begin by testing the stator’s AC voltage output at 3,000 RPM with the engine running–values below 30V per phase indicate insulation breakdown or open windings. Use a multimeter on the 200V AC scale; readings should match manufacturer specs within ±5%. Discrepancies here often trace back to faulty rotor magnets or corroded connectors near the alternator cover.
- Voltage regulator failure: If system voltage exceeds 15.5V or drops below 13.5V, inspect the solid-state regulator’s heat sink for scorching. Replace if diode tests show resistance above 1kΩ in either direction.
- Battery drain: With ignition off, measure parasitic draw–anything over 0.1A suggests a shorted diode in the rectifier pack. Check the main fuse block for melted solder joints on the 30A circuit.
- Intermittent charging: Wiggle the stator-to-regulator harness while monitoring voltage–sudden drops reveal frayed wires, often near the swingarm pivot or frame grommets.
Corrosion on the battery ground cable’s mounting bolt is a frequent culprit for poor charging. Sand the contact surfaces to bare metal, then apply dielectric grease before reassembly. Ensure the ground strap between the engine and frame registers under 0.2Ω; higher resistance leads to voltage drop across critical components.
- Trace the main power feed from the battery: inspect the 40A fuse for hairline cracks under magnification. Replace if thermal cycling has degraded the ceramic element.
- Examine the alternator output wire (typically yellow/red) for chafing against the primary chaincase. Even minor insulation wear can ground the circuit under vibration.
- Check the field coil resistance between the regulator’s F terminal and ground–values below 2.5Ω or above 5Ω necessitate rotor replacement.
For models with integrated circuits in the voltage regulator, desolder and test each diode individually. Reverse-bias readings should exceed 10MΩ; lower values confirm internal semiconductor failure. Rebuild kits are available, but OEM regulators often outlast aftermarket units by 20-30%. Always verify the charging system’s max amperage output (typically 40-50A) using a carbon pile load tester–any deviation points to stator or rectifier issues.
