Complete 2000 GMC Yukon Radio Wiring Diagram Guide with Color Codes
Begin by securing a factory service manual for the 2000 GMC Denali, as it contains verified electrical layouts for all onboard systems. Identify the audio head unit section, typically labeled under “Entertainment” or “Integrated Audio.” Cross-reference the wiring color codes–yellow for constant 12V power, red for accessory power, and black for ground–with the vehicle’s fusebox diagram to avoid misconnections.
Use a multimeter to verify current flow if discrepancies arise. The schematic will list connectors by pin numbers; match these to the back of the unit’s harness. For aftermarket installations, isolate the factory amplifier wires (often purple or gray stripes) to prevent signal loss. Avoid splicing into speaker wires without confirmation–incorrect pairing (e.g., bridging left and right channels) can damage the stock system.
Refer to the Chassis Electrical section for power distribution details if retrofitting USB or auxiliary inputs. Trace wires from the radio’s plug to the vehicle’s main harness, noting any intermediary modules (like anti-theft or data link connectors). Keep a backup of the original harness layout before modifications–this simplifies troubleshooting if factory functionality needs restoration.
For persistent issues, consult a wiring decoder specific to GM full-size SUVs, as model-year variations exist. Prioritize testing with the ignition in ACC mode to confirm accessory power activation. Ground faults typically manifest as static or intermittent audio–check all termination points for corrosion or loose connections.
GMC Denali Audio System Connection Blueprint: Full Breakdown

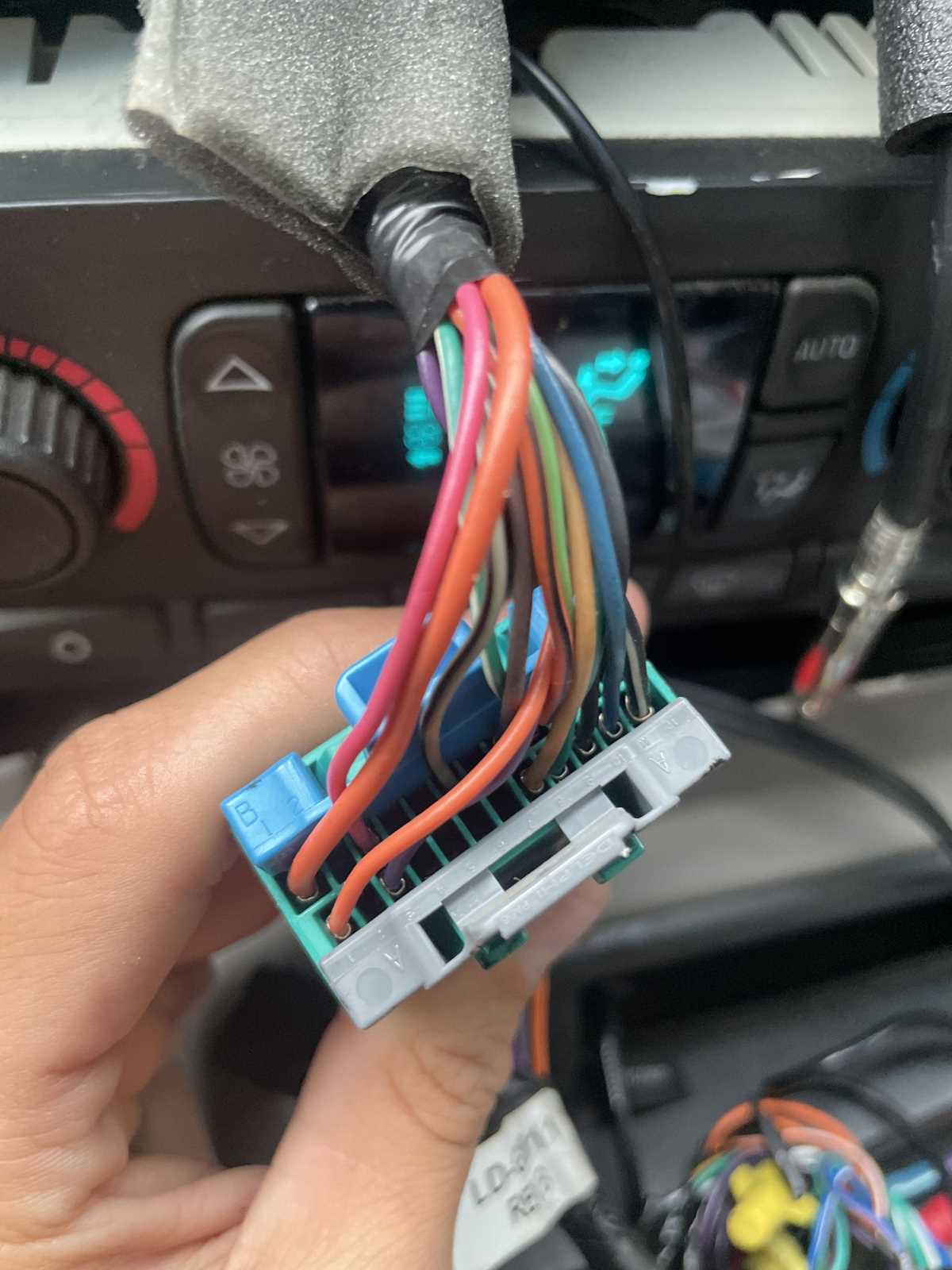

Locate the 12-pin connector behind the factory stereo unit–pins 1, 3, and 5 handle left front, right front, and ground speaker outputs respectively. Use a multimeter to verify voltages: pin 2 (constant 12V), pin 4 (illumination), pin 6 (accessory), and pin 8 (antenna trigger) should read 11.5–14.2V when the ignition is on. Cross-reference with GM’s harness standard C200/C201 for deviations; miswired harnesses risk blowing the 10A fuse linked to pin 6, cutting power to the entire dash.
Aftermarket Integration Wiring Matches

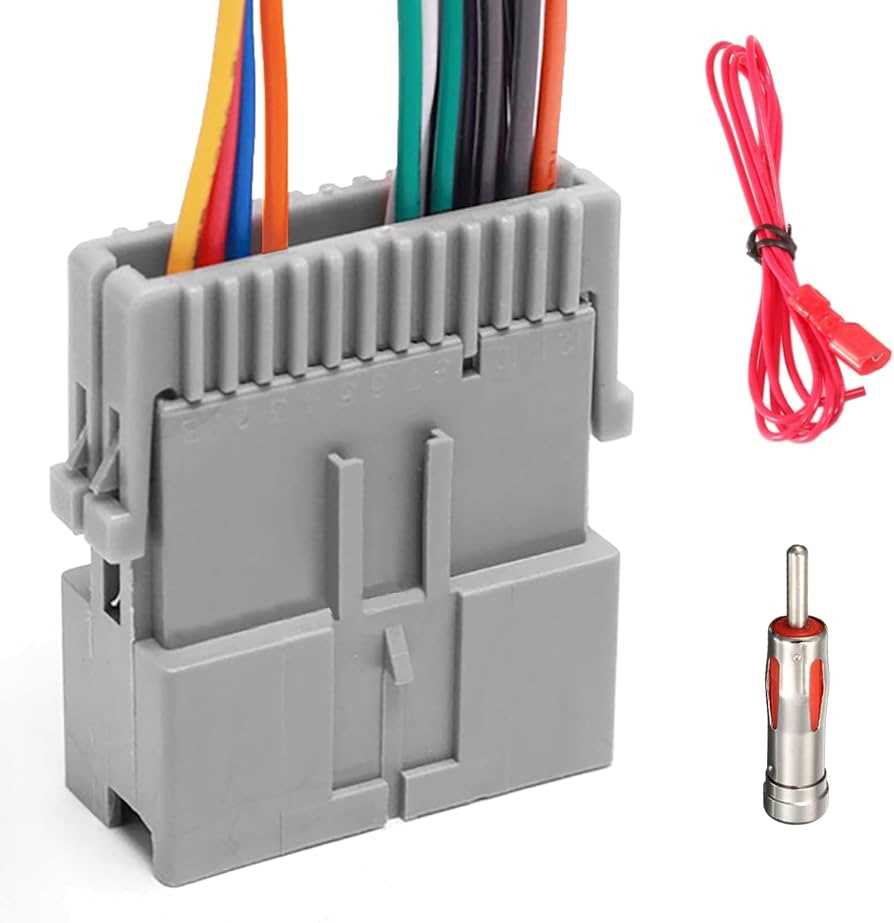

Adapter harnesses like Metra 70-1858 or Axxess AX-ADGM24 require soldered connections for six channels: front/rear left/right (+/-), subwoofer (+/-), and remote turn-on (blue/white). Strip ½ inch of insulation, twist strands clockwise, and apply heat-shrink tubing before crimping with 16–18 AWG butt connectors. Test impedance with a 2Ω load–factory speakers (4Ω) paired with aftermarket amps (2Ω stable) need bridging only if the amp’s RMS rating exceeds 50W per channel. Avoid cheap wiring kits; copper-clad aluminum corrodes within 18 months.
For OEM amplifier retention, splice into the fiber-optic loop via T-harness (GM part #88986118). The MOST bus data line (purple/white) carries 256 kbps; interrupts cause CD changer errors. If upgrading to a double-DIN head unit, bypass the factory chime module by rerouting pin 9 (brown) directly to the new stereo’s parking brake wire–this prevents false “door ajar” alerts. Always disconnect the negative battery terminal before splicing to avoid short-circuiting the BCM.
Locating the Factory Harness Junctions Behind the Instrument Panel
Begin by removing the lower dashboard cover on the driver’s side–it is secured with three 7mm screws, one hidden behind a small access panel near the hood release. Once detached, tilt the cover downward to expose the steering column and adjacent wire bundles. The primary connectors for audio and climate systems are clustered along the left firewall brace, typically bundled in a black plastic loom held by zip ties.
- Look for a white multi-pin harness junction approximately 6 inches above the brake pedal assembly; this interfaces with the vehicle’s entertainment module.
- A secondary harness with six wires (red, black, yellow, green, blue, and purple) terminates near the left air vent duct–trace it backward to locate its connection point.
- The main power connector is often tucked behind the fuse block; use a flashlight to identify the orange and dark green wires entering a square plug.
Identifying Hidden Fasteners and Obstructions
The kick panel on the passenger side must also be removed–two Torx T-20 screws hold it in place, along with plastic clips along the upper edge. Behind this panel, a vertical brace runs from the glovebox to the floor; beneath it lies a 12-pin harness that mates to the climate control actuator. Disconnect the negative battery terminal before probing any connections to avoid short circuits.
- Gently pry the instrument cluster bezel loose–it snaps into place with four clips–and set it aside to access the rear of the gauge assembly.
- Behind the speedometer, a rectangular 16-pin connector links to the vehicle’s onboard computer; this is distinct from audio-related harnesses but shares a grounding wire.
- For vehicles with auxiliary inputs, a smaller 4-pin harness may be tucked behind the ash tray housing–this routes through a grommet in the firewall to the engine bay.
Testing Connections Without Schematic Dependency
Use a multimeter to verify continuity across suspected wires–set it to 200 ohms and probe each terminal while cycling the ignition. The constant power wire (typically fused at 10A) will register ~12V with the key off; accessory circuits drop to 0V when the key is removed. Ground wires should show minimal resistance to the chassis; any reading above 0.5 ohms indicates corrosion or a loose connection.
Label each disconnect with masking tape to prevent misrouting during reassembly. Pay special attention to the antenna lead–it is often mistaken for a power wire due to its hefty coaxial shielding. If modifications are planned, splice into harnesses using crimp connectors rated for at least 18AWG; avoid twisting wires together, as automotive vibrations will weaken the joint over time.
Decoding Electrical Circuit Colors in the GMC SUV Audio System
Begin by locating the constant 12V power lead–typically a solid yellow or orange wire–before disconnecting the factory harness. This line maintains memory settings and must never be spliced directly into switched sources, as it draws continuous current even when the ignition is off. Verify voltage with a multimeter to confirm it reads 10–14V unloaded; readings outside this range indicate corroded terminals or a failing fuse (check the 10A “MEM” fuse in the under-dash panel).
The ground connection is almost always a black or brown wire, but don’t assume–test for zero ohms between this lead and the chassis using continuity mode. If resistance exceeds 0.5 ohms, clean both the wire terminal and the grounding point with a wire brush; surface rust on the chassis bolt is a common culprit behind intermittent audio dropouts or static. Twist the wire clockwise around the bolt for maximum contact, then secure with a star washer and tightened nut.
Speaker outputs follow a consistent but not universal scheme across trim levels. Factory schematics label front left positive as light blue/black stripe, front right positive as dark green/black stripe, rear left positive as tan/black stripe, and rear right positive as gray/black stripe. Negative leads mirror the same base color with a white or cream stripe–never connect these to chassis ground, as it will cause phase cancellation and weak bass response. For aftermarket units, map each wire with a 1.5V AA battery to confirm polarity before final connections.
| Speaker Location | Positive Wire | Negative Wire | Typical Cross-Section (AWG) |
|---|---|---|---|
| Front Left | Light Blue/Black Stripe | Light Blue/White Stripe | 18 |
| Front Right | Dark Green/Black Stripe | Dark Green/White Stripe | 18 |
| Rear Left | Tan/Black Stripe | Tan/White Stripe | 20 |
| Rear Right | Gray/Black Stripe | Gray/White Stripe | 20 |
The dimmer/illumination circuit is pink in most builds, though some late-production models use a pink/white tracer. This wire reduces voltage to the display when headlights are on, preventing glare at night. If retrofitting a modern unit, ensure it accepts a 0–12V dimming signal; aftermarket harness adapters often omit this wire, leading to overly bright screens. Test by toggling the headlight switch while measuring voltage at the harness pin–expected range is 12V (lights off) to ~6V (lights on).
Accessory power–usually red or red/white–only energizes after the ignition is turned to “ACC” or “RUN.” Unlike the constant power lead, this wire can handle higher transient loads (up to 10A) during amplifier turn-on, so avoid substituting it for the yellow/orange memory wire. If the audio system loses presets or clock settings when cranking the engine, inspect this wire for voltage drops caused by undersized aftermarket wiring or loose relay contacts.
Antenna trigger signals are often overlooked: look for a solid blue or blue/white wire at the rear of the factory harness. This lead sends 12V to power motorized antennas or signal boosters when the audio system is turned on. If an aftermarket antenna fails to extend or retract, probe this wire with the ignition on–absence of voltage suggests a blown fuse (typically shared with the instrument cluster) or a severed trace in the junction block behind the glovebox.

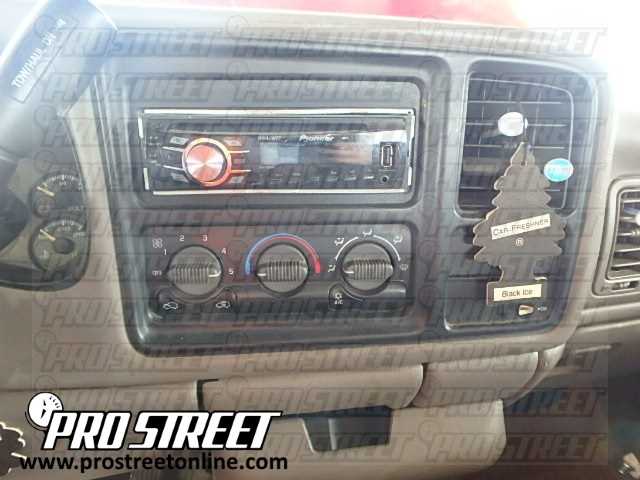

Step-by-Step Guide to Safely Extracting the Factory Audio Unit
Begin by disconnecting the vehicle’s negative battery terminal to prevent short circuits or accidental power surges. Use a 10mm wrench to loosen the clamp, then set the cable aside where it won’t reconnect. This step eliminates the risk of electrical damage to the unit or connected components during removal.
Locate the trim panel surrounding the audio system’s faceplate. Most models use concealed clips rather than visible screws–insert a flat plastic pry tool at the bottom edge, carefully popping the panel upward. Work gradually along the sides to avoid cracking the trim. If resistance is felt, check for hidden screws near the climate controls or ashtray.
Once the trim is removed, unscrew the mounting bolts securing the audio unit’s chassis. Typically, there are four 7mm bolts–two at the top and two at the bottom. Keep these bolts in a magnetic tray to prevent loss. If the unit has a anti-theft code feature, note the code or keep the key in the ignition to avoid triggering a lockout.
- For units with a detachable faceplate, press the release tabs on the sides to separate it before proceeding.
- If the chassis is stuck, gently wiggle it while pulling–never force it, as this can bend internal brackets.
Slide the unit outward until the rear connectors are accessible. Squeeze the release tabs on each harness plug and pull straight out to avoid damaging the pins. Some connectors may have secondary locks; press the tab while pulling to disengage. Label each plug with masking tape if reinstalling a different system later.
Inspect the wiring harness for brittle insulation or loose pins before setting the unit aside. Use a multimeter to test for residual voltage if uncertain about the battery disconnection. Probe the wires with the ignition off–any reading above 0.1V indicates a potential issue requiring further inspection of fuse panels or relays.
- Reattach the trim panel by aligning the top clips first, then pressing inward until all edges snap into place.
- Reconnect the battery terminal, tightening the clamp securely to prevent corrosion.
- Test all vehicle functions–lights, turn signals, and HVAC–to confirm no fuses were blown during removal.
Troubleshooting Common Issues
If the unit doesn’t release smoothly, check for additional screws behind the cupholder assembly or under the dash cover. Some vehicles have a secondary bracket securing the lower portion of the chassis. If wires appear frayed, wrap them with electrical tape or use heat-shrink tubing for long-term protection.
For models with integrated amplifier circuits, avoid touching the exposed circuit board to prevent static discharge. Store the unit in an anti-static bag if retaining it for future use. If skipping reinstallation, cap all exposed connectors with dielectric grease to prevent moisture ingress.
