Complete 2002 Acura TL Stereo Wiring Color Codes and Connector Guide
Before attempting repairs or upgrades, locate the fuse box under the dashboard on the driver’s side. Remove fuse #13 (10A) to disable power to the factory head unit–this prevents accidental shorts while handling connections. The sedan’s harness adapter (Metra 70-1819) simplifies integration with aftermarket stereos; verify compatibility with the vehicle’s 18-pin connector before purchase.
Pinouts for the OEM wiring loom follow a strict color-coded system:
- Constant 12V power: Yellow (A1, 3A connector)
- Switched 12V: Red (A2)
- Ground: Black (A7)
- Front left speaker (+): Gray w/ black stripe (B1)
- Front right speaker (+): Violet w/ black stripe (B3)
- Rear left speaker (+): Green w/ black stripe (B5)
- Rear right speaker (+): Blue w/ black stripe (B7)
Neutralize speaker wires by pairing each positive lead with its corresponding negative (stripe-free) counterpart. Avoid connecting solid wires directly to chassis ground–this causes blown fuses or amplifier damage. For subwoofer installations, the brown/white wire (A10) carries the amplified signal; splice it to a line-output converter if retaining the stock amplifier.
Miswired installations often trigger the security LED (flashing red on the head unit). Reset by disconnecting the battery for 10 minutes or entering the radio code (found on a white card in the owner’s manual). If the code is lost, retrieve it via the vehicle’s VIN at an authorized service center–third-party unlocking tools void warranties and risk permanent lockout.
For those upgrading to a double-DIN unit, the dash kit (Scosche TL03B or equivalent) requires modification: remove the upper support bracket and trim the lower mounting tabs by 2mm to accommodate the new stereo’s depth. The sedan’s climate controls share the factory harness–damage to their wiring (notably the orange/black illumination wire) causes erratic HVAC behavior.
Verify all connections with a multimeter before reapplying power. A common oversight is reversed polarity on speaker wires, leading to phase cancellation–audible as weak bass and muffled vocals. If static persists, inspect the antenna lead (pink, A6) for corrosion; replacing the mast may require removing the rear parcel shelf panel for access.
Acura TL 2002 Audio System Connection Guide

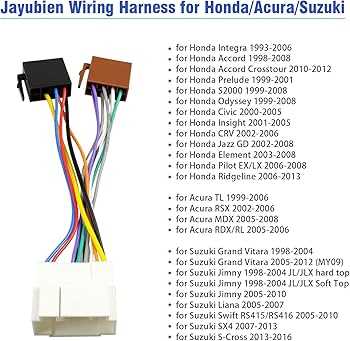

Begin by locating the factory harness behind the dash panel–remove the climate control trim for access. Use a T-harness adapter (Metra 70-1761 or equivalent) to bridge the OEM connectors with aftermarket units without cutting wires. Match pinouts precisely: the TL’s 12-pin white plug carries power, ground, and speaker leads; the 10-pin gray plug handles illumination, antenna, and mute functions.
Power feeds require attention–constant 12V (yellow wire) draws directly from the battery via a 10A fuse, while switched 12V (red) activates with the ignition. Ground (black) must terminate to bare metal; solder and heat-shrink all splices to prevent corrosion. Speaker outputs (front/rear pairs) are polarity-sensitive–miswiring causes phase cancellation and muffled audio.
| Wire Color (OEM) | Function | Connector Pin |
|---|---|---|
| Yellow | Battery constant | White 1 |
| Red | Ignition switched | White 2 |
| Black | Chassis ground | White 3 |
| White/Black | Left front (+) | White 5 |
| White/Blue | Left front (-) | White 4 |
| Gray/Red | Right front (+) | White 7 |
| Gray/Black | Right front (-) | White 6 |
| Green/Yellow | Antenna trigger | Gray 8 |
Illumination control (orange/white) dims the head unit with dashboard lights–preserve this wire for factory-like integration. The pink/black lead (gray connector pin 10) mutes audio during phone calls if equipped with hands-free; tap into it only if retaining OEM functionality. Verify all connections with a multimeter before powering up–shorts can fry the amplifier or fuse box.
Steering wheel controls require a separate interface (ASWC-1 module). Connect it inline between the adder harness and the head unit’s control wire (typically blue/yellow). Program the module using the TL’s specific codes–incorrect settings result in non-responsive buttons or erratic behavior.
Install a 20A inline fuse on the constant power lead to protect the circuit. Mount the head unit securely to avoid rattles; use the factory mounting brackets for a seamless fit. After installation, test all audio channels at low volume first–distorted signals indicate reversed polarity or poor ground.
For premium sound systems (e.g., Acura/Bose), retain the factory amplifier (behind the glove box). Bridge its 18-pin connector to the aftermarket harness using a bypass adapter (Metra AX-ADCT2). Ensure the subwoofer output (purple/green) is directed to the corresponding input on external amplifiers if upgrading.
Finding the Audio System Harness Plug in Your Early 2000s TL Sedan
Begin by removing the center console trim panel below the climate controls. Use a trim removal tool to pry the panel starting at the lower corners–apply steady outward pressure to avoid snapping retaining clips. The panel hinges outward and downward, revealing a rectangular housing behind it.
Look for a rectangular black connector with 16 pins arranged in two rows of eight. This harness plug interfaces directly with the factory sound processor–its mate will have colored leads corresponding to power, ground, speaker outputs, and illumination signals.
Trace the harness upward approximately 12 inches; it routes behind the HVAC housing before terminating at the rear of the infotainment unit. If the connector isn’t visible, check for a secondary plug nearby–earlier production runs may include an adapter harness bridging the main interface to subwoofer outputs.
Confirm the connector’s orientation by locating the small notch on its upper edge–this ensures correct alignment when reconnecting. Misalignment risks damaging the delicate internal pins during reinstallation.
Caution: The adjacent yellow airbag diagnostic lead resembles the audio harness but carries higher voltage–never probe or disconnect it without first disabling the supplemental restraint system via the vehicle’s fuse box.
Identifying Key Circuits Without Schematic Reference
Inspect the individual wires exiting the harness. The lead terminating in a solid red sleeve delivers constant 12V power; a thinner red/white stripe indicates switched accessory voltage. Ground wires are either solid black or black with a thin yellow tracer.
Front speaker outputs follow a consistent pattern: solid green for left positive, green/black stripe for left negative; purple for right positive, purple/black stripe for right negative. Rear channels mirror this logic with gray and white leads replacing green and purple.
For models equipped with satellite tuner prep, an additional four-pin mini connector lies adjacent to the main harness–its violet, tan, and orange wires manage data communication and power-on signals to the optional premium amplifier.
Pinpointing Cable Hues and Roles for OEM Audio System Upgrades
Locate the 12-pin harness connector behind the factory unit–solid yellow leads deliver constant 12V power regardless of ignition state, while thinner red wires switch on with the key. Ground straps terminate in black sleeves, often paired with a bare braided shield; secure these directly to chassis metal using M6 bolts torqued to 12 Nm. Orange-striped pairs (illumination) dim inversely to headlights; splice them through a 100 Ω resistor to prevent flicker in aftermarket head units. Blue/white striped remote leads trigger amplifiers–tap these to activate external crossovers without feeding unwanted voltage back into the OEM harness.
Decoding Switched Circuits and Data Lines
Avoid splicing purple/green CAN bus wires–these carry speed sensor and A/C data; disruption risks throwing fault codes. For steering wheel controls, match the gray/white serial output to a PAC RP4-CH11 interface module, setting the input protocol to KWP2000 at 9600 baud. If adding a subwoofer, route the purple speaker lead through a 50W choke to filter turn-on thump before connecting to a mono amplifier bridged at 4 Ω. Always probe each pin with a multimeter set to DC 20V–expected readings: 14.2V hot, 0V ground, 5V signal wires.
Step-by-Step Guide to Connecting Power Leads to the TL Audio Head Unit
Disconnect the negative terminal of the vehicle’s battery before touching any electrical connections. Use a 10mm socket to loosen the clamp on the post, then lift the cable away–this prevents short circuits while working inside the dash.
Locate the factory harness behind the center console. The bundle contains color-coded wires:
- Solid yellow – constant 12V supply, connects directly to the battery
- Red with white stripe – ignition-switched lead, only energized in ACC or ON position
- Black with white stripe – ground, terminate to bare metal chassis point
- Orange with green stripe – illumination, adjusts brightness with headlight switch
Strip ¼ inch of insulation from each wire using a precision stripper, twist strands tightly, then crimp with ¼-inch butt connectors.
Match the aftermarket head unit’s harness colors to the vehicle-side wires using a test light. Probe the yellow lead first–verify constant voltage with the key off. Next, check the red/white lead: voltage should appear only when the ignition is turned to ACC or ON. The black/white wire must show continuity to ground when touched with the multimeter’s negative probe.
Insert the butted wires into the corresponding slots of the adapter plug. Push connectors fully until they click–loose connections cause intermittent power faults. Secure the bundle with small nylon ties to prevent vibration damage behind the dash.
Final Power-On Sequence
- Reattach the battery negative cable
- Turn the ignition to ACC
- Press the power button on the new unit–listen for relay engagement
- Verify display brightness adjusts when headlights are toggled
- Set clock time and test all audio sources
If the display remains dark, recheck ground integrity–poor chassis contact often mimics dead unit symptoms.
Route excess wiring behind the climate control module, avoiding sharp metal edges. Use foam-backed adhesive strips to affix the adapter plug to the back of the mounting sleeve–this prevents harness sag from loosening connections over time. Reassemble plastic trim panels in reverse order, ensuring no wires are pinched under any clips.
