Complete Wiring Guide for 2002 Chevy 1500 Trailer Plug Connection

Begin by locating the factory-installed connector under the rear bumper–typically a seven-pin plug with color-coded leads corresponding to brake lights, turn signals, and ground. Verify each wire’s function using a multimeter before splicing: white (ground), brown (running lights), yellow (left turn/brake), green (right turn/brake), and blue (electric brakes). If your setup lacks auxiliary circuits (e.g., reverse lights or 12V power), skip non-essential pins to avoid signal interference.

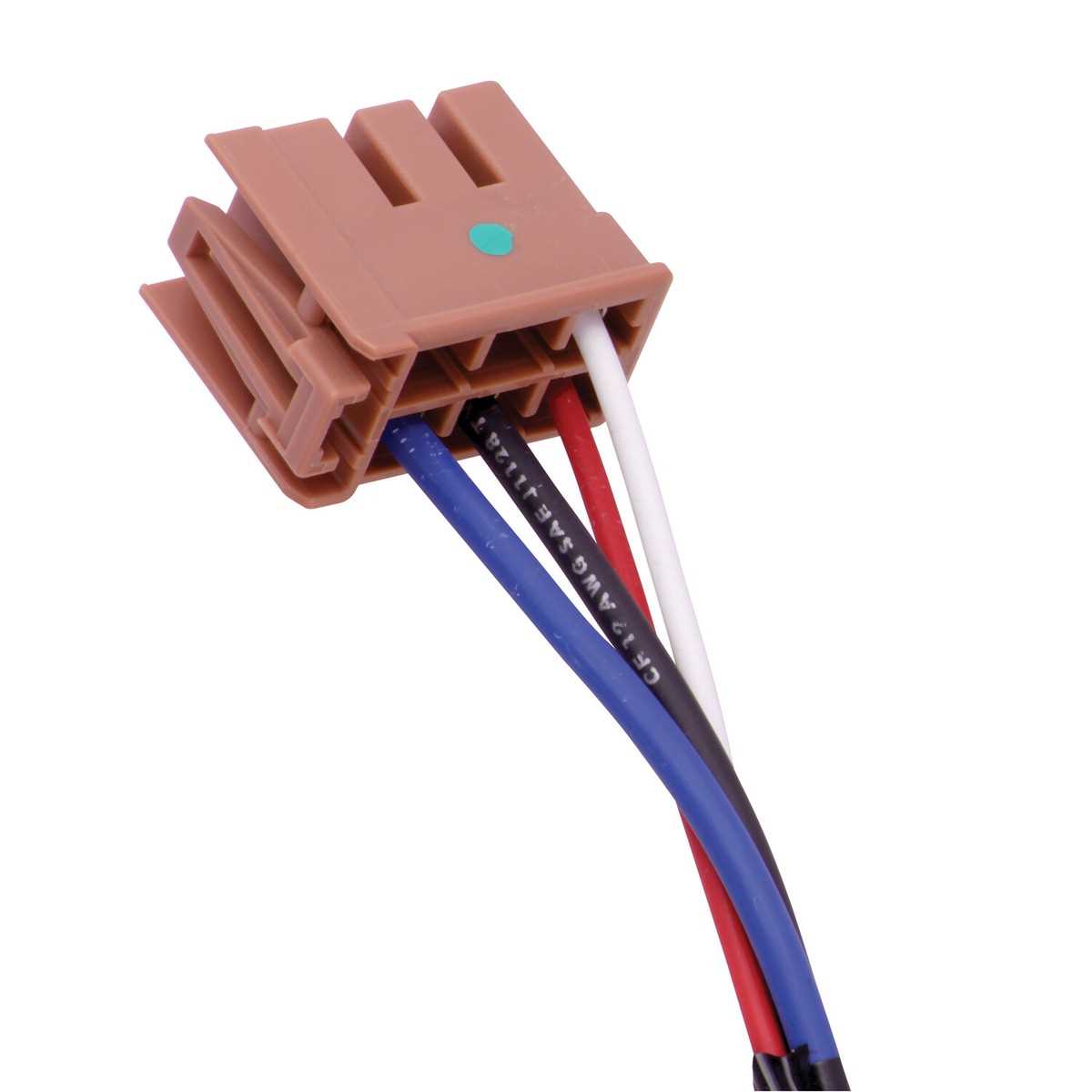

Use heat-shrink tubing over all splices to prevent corrosion–exposed copper invites resistance, especially in humid climates or after repeated exposure to road salt. For models with integrated brake controllers, tap into the existing harness behind the dash, not the trailer socket itself. The correct source is the brake switch circuit (usually a thin pink wire), ensuring proportional braking without overloading the fuse block.

Avoid “universal” adapters unless explicitly compatibility-tested; the pinout on this platform differs from Ford or Dodge standards. For aftermarket upgrades, prioritize OEM-grade components–cheap relays can fail under load, risking taillight burnout or blown fuses. Test all functions before backing onto a trailer: active brake lights with engine off, steady voltage to the trailer battery (if applicable), and no flickering in the running lights during engine revs.

Guide to Electrical Connections for Your Silverado Pickup Towing Setup

Start by locating the vehicle’s factory harness behind the rear bumper on the driver’s side–it’s a seven-way round connector labeled for brake controllers and auxiliary power. Use a multimeter to verify pin assignments: pin 1 supplies 12V constant power for accessories, pin 4 handles stop lamps, pin 5 handles left turn/brake signals, and pin 6 manages right turn/brake signals. If voltage readings are absent, trace the wiring to the fuse block under the dashboard and check fuses 11 (15A) and 29 (20A).

For aftermarket controllers, splice into the blue wire exiting the seven-way plug–this wire carries the brake output signal. Route it through a 12-gauge fused wire directly to the controller, avoiding interference with other circuits. Ground the controller to a bare metal point on the chassis near the rear axle, using a star washer to ensure solid contact. Avoid grounding to painted or coated surfaces, as oxidation will cause intermittent faults.

Common Faults and Testing Procedures

If turn signals flash erratically, disconnect the trailer harness and test each circuit individually with a known-good test light. A rapid flash typically indicates a missing ground on the towed unit or a faulty bulb; verify by swapping bulbs between left and right sides. For dim or flickering lights, inspect the ground wire (typically white) at the hitch plug–clean corrosion with sandpaper and refasten tightly. Check for voltage drop across connectors by probing with the multimeter while activating each function.

Brake controller adjustments require benchmarking: set the gain to 5.0 initially, then engage the manual override. If the trailer brakes lock prematurely, reduce gain incrementally until skidding stops. Conversely, if braking feels weak, increase gain until wheels chirp slightly during a 20 mph test stop. For proportional models, confirm the sensor’s orientation is level–an angled controller causes delayed or harsh braking.

Install a circuit breaker rated at 40A upstream of the seven-way connector to protect against shorts. Position it within 18 inches of the battery terminal, using a weatherproof holder. Replace any frayed or melted wires with marine-grade tinned copper wire in 10- or 12-gauge, depending on the load. Secure splices with heat-shrink tubing and crimp connectors–never twist-and-tape, as moisture ingress will corrode connections within weeks.

Diagram-Free Troubleshooting Shortcuts

Label each wire at both ends before disconnecting during repairs–use masking tape and a marker to note functions (e.g., “LT BRK” for left brake). When splicing, match wire colors exactly: green for right turn/brake, yellow for left turn/brake, brown for tail/marker lights. For vehicles with integrated brake controllers, access the factory module behind the driver’s side kick panel–reset it by unplugging the harness for 30 seconds if error codes persist.

Avoid using butt connectors for wires thicker than 12-gauge–they don’t handle vibration well. Instead, solder joints after crimping for long-term reliability. Wrap each joint with adhesive-lined heat-shrink tubing, ensuring full coverage to prevent moisture penetration. For trailers with electric drum brakes, test continuity on the magnet coils–each should read 3.2–4.5 ohms; values outside this range indicate a faulty magnet requiring replacement.

Inspect the vehicle-side connector monthly: spray dielectric grease into the seven-way socket to prevent corrosion, and clean male pins with a wire brush if green oxide appears. For towed units exceeding 5,000 lbs, verify the weight-distribution system’s spring bars aren’t compressing the wiring harness–route wires through protective loom to prevent chafing. If the vehicle’s computer logs trailer-related faults (e.g., “Trailer Brake Module Communication Error”), reset the ECM by disconnecting the negative battery terminal for 10 minutes.

Finding the Tow Hitch Electrical Plug on Your Silverado Pickup

The factory-installed harness connector is bolted directly beneath the rear bumper, concealed behind a rectangular plastic splash guard on the driver’s side. Peel back the guard–held by two 10 mm nuts–and you’ll see a seven-pin socket encased in a plastic shroud; this is the main feed that carries brake lights, turn signals, and backup power. Verify the socket’s orientation before attempting any connections–pins labeled “LT” (left turn) and “RT” (right turn) must align with the matching terminals on your accessory’s harness to prevent shorting.

If the plug isn’t visible after removing the guard, trace the black plastic conduit that runs from the rear tail lamp housing toward the center of the vehicle. Follow the conduit–usually zip-tied to the frame rail–until you reach a junction where two wires (brown for running lamps, green for right turn) converge into the seven-pin assembly. Mark this spot with a paint pen or white zip tie; it serves as a reliable landmark during fuse checks or troubleshooting.

Should corrosion or debris block access, detach the shroud with T20 Torx screws and flush the contacts with electrical cleaner. Replace any blown fuse–labeled “TRN” on the under-dash box–before testing; this 20 A fuse protects the entire circuit from overload when hitching heavier loads.

Color Matching Guide for Light-Duty Pickup Electrical Hookups

Locate the factory tow connector behind the rear bumper–it’s a seven-pin round socket. Trace each pin back to the corresponding vehicle harness wire: brown (pin C) feeds clearance lights; yellow (pin E) handles left turn and brake signals.

Verify ground paths first. Connect the white wire (pin G) directly to the truck’s frame using a 12-gauge ring terminal crimped and heat-shrunk, never soldered. Test continuity with a multimeter; resistance should read under 0.5 ohms.

Run a continuity check between the truck’s yellow wire and the left taillight bulb socket. If readings exceed 2 ohms, strip corrosion from the plug contacts using 400-grit sandpaper. Apply dielectric grease sparingly to prevent future oxidation.

For auxiliary circuits, splice the blue wire (pin F, auxiliary power) to a fused 12V tap rated at 20 amps minimum. Route this wire along the chassis rail, securing every 12 inches with nylon zip ties to avoid abrasion against sharp edges.

Validate brake engagement on the right side using the green wire (pin D); if pulses are weak, bypass the factory resistor module by re-routing through a dedicated brake controller. Adjust gain levels in 0.5-volt increments until stop lamps illuminate evenly without flicker.

Seal all splices with adhesive-lined heat-shrink tubing ½ inch longer than the exposed wire length. Heat with a propane torch until adhesive oozes evenly around both ends–this prevents water ingress that causes intermittent faults in wet conditions.

Essential Gear for Diagnosing and Fixing Lighting Connections on Your Full-Size Pickup

Start with a multimeter set to 12V DC. Probe the connector’s pinout by grounding the black lead to the vehicle’s frame and touching each terminal with the red lead. A functional harness will read 10.5V–14.5V; anything below 9V indicates corrosion, a faulty relay, or a broken wire. Skip generic testers–inexpensive digital units lack the precision needed for side-marker or reverse light circuits. For connectors with weather-pack seals, pierce the wire insulation 1/4″ behind the terminal to avoid damaging the pin.

Stock up on heat-shrink butt splices in three gauges: 18AWG for turn signals, 16AWG for brake lights, and 14AWG for the auxiliary circuit. Avoid crimp-style connectors; they loosen under vibration. Use a butane-powered heat gun instead of an open flame–consistent 250°F shrinks tubing evenly without melting the PVC jacket. Pre-tin both wire ends with 60/40 rosin-core solder before joining; this prevents cold joints that fail after 500 miles. Label each splice with a permanent marker–yellow for left turn, green for right, red for brake–to eliminate guesswork during reassembly.

Tool	Type/Model	Why It Matters
Ton Craver TF-300	Auto-ranging digital multimeter	Accurate 0.1V resolution; detects voltage drop in trailer-side circuits
Ideal 61-065	Wire stripper with 12–22AWG slots	Clean cuts, no nicks; critical for trailer-side connectors prone to oxidation
Techspray 1671	Electrical contact cleaner	Removes corrosion without leaving residue; safe for ABS plastic harness connectors

Add a pin-out adapter between the truck’s harness and the towed unit’s plug. This adapter lets you verify each circuit without back-probing, which risks bending the delicate terminals. For models with a 7-way round socket, use a dedicated LED circuit tester–it mimics the trailer’s load and confirms signals without needing to connect the actual load. If the adapter shows no voltage but the fuse checks out, inspect the body control module under the dash; corroded traces there cause intermittent failures in the park-light and brake-light outputs.
