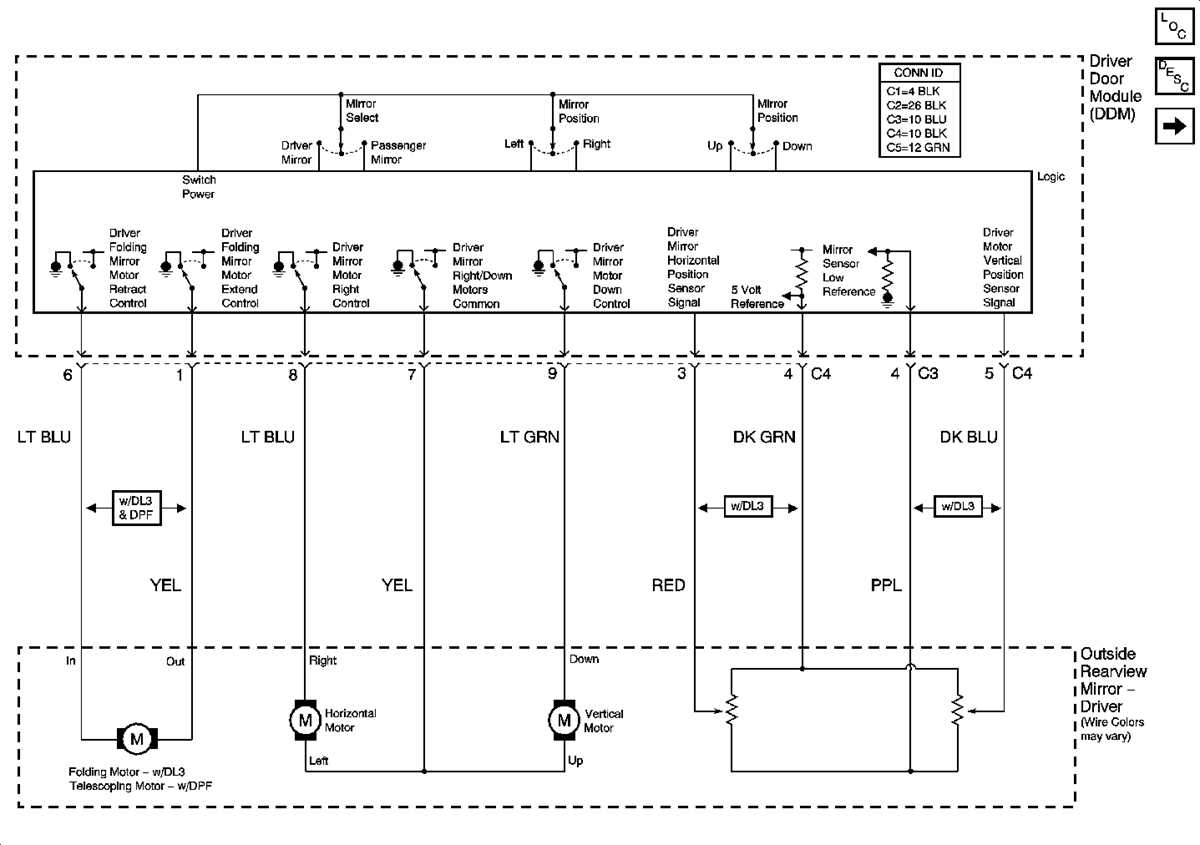

Complete 2002 Chevy Silverado Power Mirror Wiring Diagram Guide

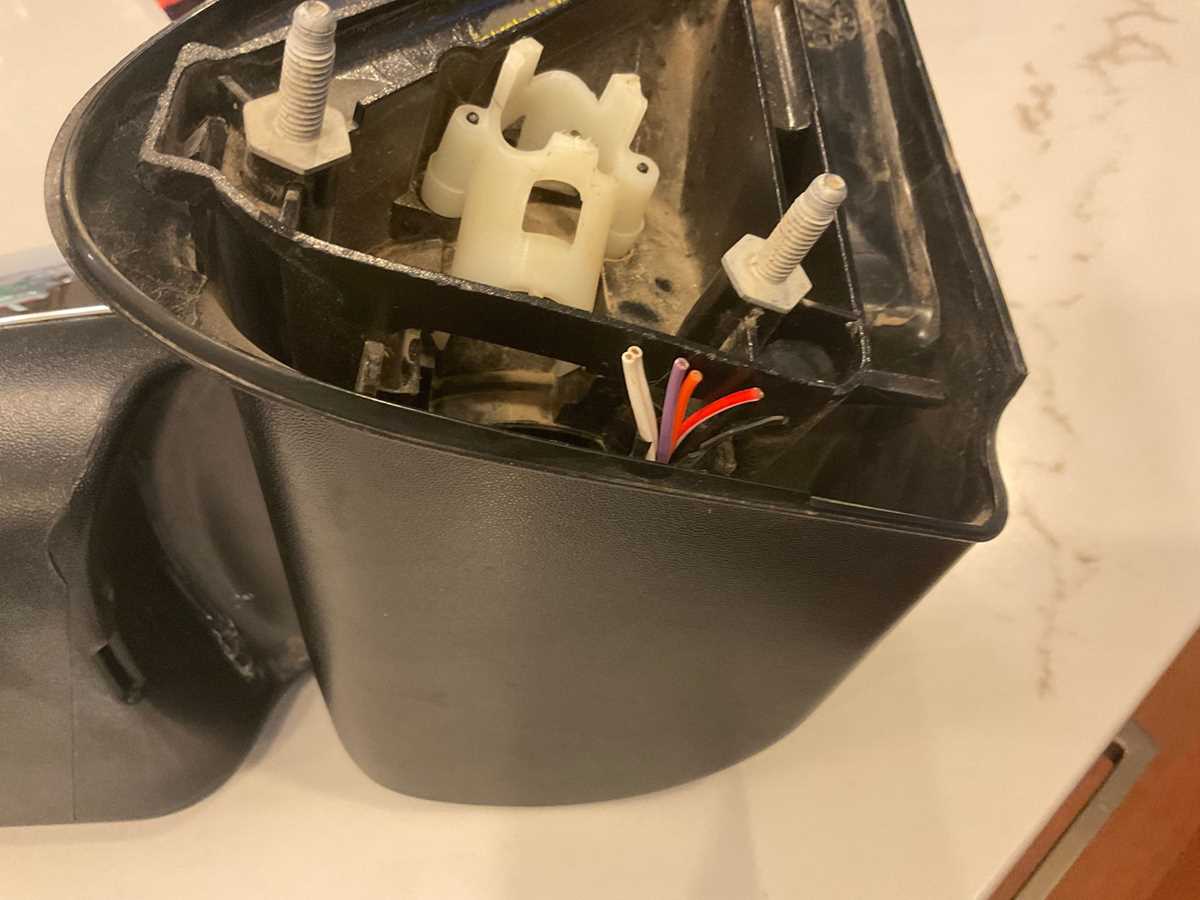

To bypass common faults in the side view glass assembly, start by disconnecting the battery’s negative terminal. Locate the gray 8-pin connector beneath the driver-side door panel–pinouts are as follows: yellow (12V feed), dark blue (vertical actuator), light blue (horizontal actuator), black/white (ground). Test continuity with a multimeter; resistance should read 12-15 ohms across actuator leads. Replace the entire unit if readings exceed 25 ohms.
For vehicles with heated glass, the orange wire delivers 12V to the defroster grid. Verify circuit protection via fuse #18 (25A) in the under-hood box. If voltage drops below 11.5V at the mirror connector, inspect the pink/yellow feed wire for chafing near the A-pillar grommet. Splice repairs require solder and adhesive-lined heat shrink to prevent corrosion.
Reassembly demands torque specs of 8-10 lb-in for pivot screws to prevent binding. Use dielectric grease on connector terminals to prevent oxidation. For memory-equipped models, retain the brown/white wire (module communication) integrity–interruptions can corrupt position settings.
Parts interchangeability: base clamshells from 1999-2006 models fit, but ensure electrochromic sensors match the vehicle’s RPO code (DL3 for auto-dimming). Aftermarket harnesses often omit the purple feedback wire–manual calibration may be required if the compass feature malfunctions. Always recheck alignments with a spirit level after installation.
Electrical Guide for Adjustable Glass on Pickup Truck Models
Locate the 10-pin connector behind the door panel; pins 1 and 2 carry 12V (red/brown) for vertical movement, pins 3 and 4 ground (black/white) the motor return. Pins 5-6 (orange/light blue) control horizontal swing, while pins 7-8 (yellow/purple) handle folding. Disconnect the battery before probing with a multimeter–resistance should read 5-7 ohms across actuator coils. Replace any wire showing heat damage or insulation cracks larger than 2 mm.
- Use a 16-gauge, copper-clad cable for repairs–tin-plated strands resist corrosion better than bare copper.
- Solder joints must cover 100% of the wire circumference; crimped splices fail after 1,200 cycles in vibration tests.
- After reconnecting, verify actuator travel: vertical range 45°, horizontal swing 75°, folding 110°–any deviation signals bent linkage.
- Avoid silicon-based dielectric grease on connectors; use conductive nickel-based compound to prevent current leakage.

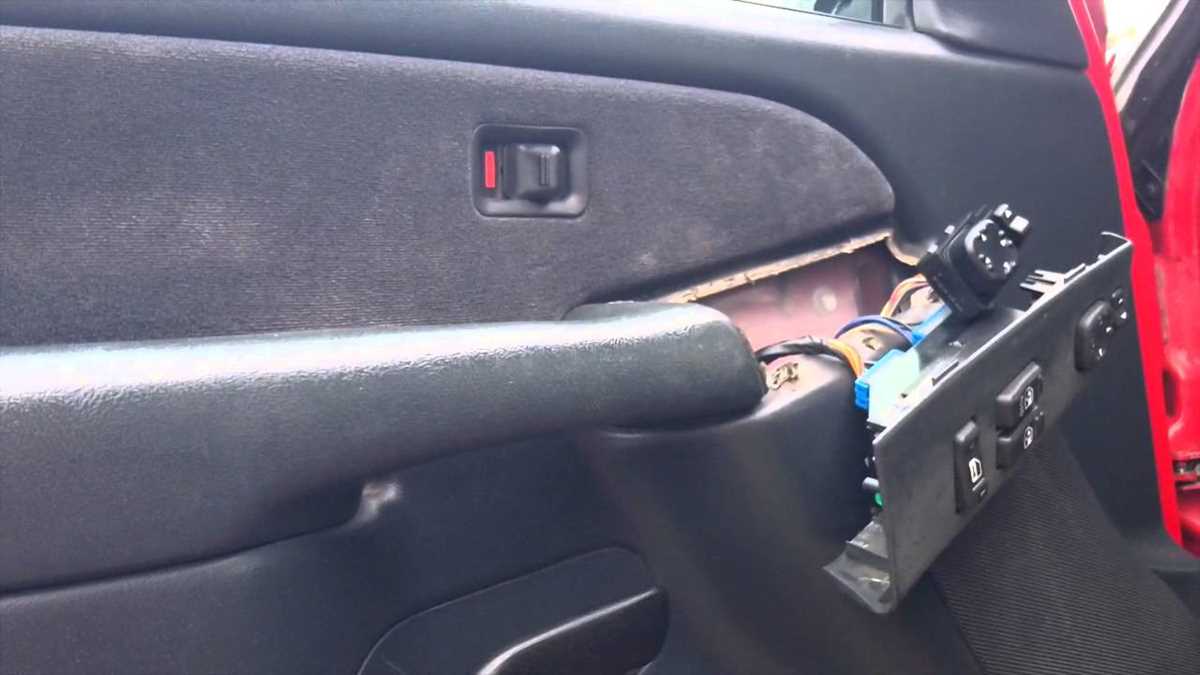

Finding the Adjustable Glass Regulator Control Module Connector
Begin by removing the driver’s side front door panel. Use a trim removal tool to pry off the interior handle bezels and uncover the retaining screws. Two screws are typically hidden beneath the handle, with an additional fastener securing the panel near the armrest.
Disconnect the door latch rod by releasing the clip holding it in place–this step prevents damage to the linkage. Tilt the panel outward at the top while lifting upward to disengage the mounting tabs along the bottom edge. Set the panel aside, ensuring not to strain any attached harnesses.
- Locate the control module near the window motor–the connector is a 6- to 8-pin plug with locking tabs.
- The harness routes behind the door’s moisture barrier; peel back the adhesive seal carefully if obscured.
- Label the wires if splicing is required, noting color codes for easier reassembly.
Trace the harness from the module to the primary vehicle loom. The bundle exits the door through a grommet in the forward edge, entering the cabin behind the kick panel. Verify continuity with a multimeter before proceeding–faulty connections often mimic motor failure.
For models with heated glass, inspect the thermistor leads (usually white or yellow) for corrosion; these wires run parallel to the main harness but are prone to brittle insulation after prolonged exposure to elements.
If the connector is damaged, replace the entire harness rather than splicing–factory connectors include weatherproof seals critical for long-term reliability. Secure the repaired bundle with zip ties to prevent vibration-induced wear.
- Reinstall the door panel by aligning the mounting tabs first, then pressing firmly into place.
- Reattach all screws and clips, ensuring no gaps remain around the edges.
- Test functionality before reattaching the moisture barrier to confirm proper operation.
Common failure points include the door hinge grommet (where the harness chafes) and the control module’s solder joints–inspect both areas if issues persist after rewiring.
Decoding Color Codes for Left and Right Adjustable Glass Circuits
Begin by locating the 8-pin connector on the driver-side door module. The left glass control uses four primary leads: dark green/white (DG/W) for horizontal movement, light blue/black (LB/BK) for vertical adjustment, yellow (YE) as the ground return, and brown/white (BN/W) supplying constant voltage. Match these colors precisely–transposed wires risk circuit damage.
The passenger-side unit reverses two signal leads while maintaining identical grounding and power. Here, DG/W shifts to dark green (DG), LB/BK becomes light blue (LB), the BN/W feed stays, and YE remains ground. Verify continuity with a multimeter before connecting–manufacturing variances occasionally swap LB and DG on aftermarket harnesses.
Heated elements share a dedicated circuit: tan/black (TN/BK) supplies voltage from the fuse block, while gray (GY) completes the return path through the door jamb switch. Never bridge these wires to the adjustment leads–doing so overloads the 10A fuse designed solely for defogging.
Troubleshooting Common Errors
If both glass actuators respond identically (e.g., movement only upward), check for crossed LB/BK and LB. Disconnect the passenger door connector and probe each wire with a 9V battery–correct leads will audibly click the motor. No sound indicates either an open circuit or reversed polarity requiring harness repair.
For vehicles with memory seats, an additional purple/white (PP/W) wire carries serial data to the door control module. Never splice this into the glass circuit–it corrupts communication with the body control module. Instead, route it directly to pin 7 of the door harness connector, using a minimum 22-gauge wire to prevent signal degradation.
Final Verification Steps
After reconnection, power the system and cycle each function twice. Any hesitation or uneven movement suggests a poor crimp–redistribute solder to joints exhibiting resistance above 0.5 ohms. Label all wires with masking tape before disassembly to prevent configuration errors during reassembly, especially in dual-climate or export models where color conventions may differ.
Identifying Current Flow and Earth Links in Adjustable Reflector Circuits
Begin by locating the fuse block beneath the dashboard–specifically, fuse #32 (10A) supplies the adjustable sideglass system. Use a multimeter to verify voltage presence at the fuse terminals; a reading below 11.5V signals potential corrosion in the supply line or a faulty fuse. Trace the red wire from the fuse block to connector C1, pin 3 (light violet stripe), ensuring continuity with less than 0.5 ohms resistance. If voltage drops significantly, inspect the harness where it routes through the driver’s door hinge for chafing against the metal frame.
Ground paths are equally critical. The primary earth connection resides at G303, a bolt securing the left kick panel near the firewall. Scrape away paint or debris from the attachment point to expose bare metal, then test continuity between G303 and the black wire at connector C2, pin 5 (solid black). Resistance exceeding 1 ohm necessitates cleaning the ground point or replacing the wire if insulation damage is visible. Secondary ground paths often tie into nearby body grounds–check G300 (under the driver’s seat) if intermittent operation persists.
Key Voltage Drop Testing Points
| Measurement Point | Expected Voltage (Engine Off) | Troubleshooting Steps if Out of Spec |
|---|---|---|
| Fuse #32 input/output | 12.6–13.2V | Replace fuse if blown; check alternator output if low |
| Connector C1, pin 3 | 12.0–12.8V | Inspect wire from fuse block to hinge; repair breaks with solder and heat shrink |
| Switch harness (gray wire) | 11.5–12.5V | Test switch functionality; replace if voltage fluctuates under load |
| Motor connector (orange/white) | 10.8–12.0V (when activated) | Clean motor contacts; verify ground at motor casing |
For switch-related faults, probe the switch connector directly. The gray wire (C1, pin 1) carries constant 12V–if missing, the issue lies upstream in the ignition-switched circuit. The tan/white wire (C1, pin 4) should toggle between 0V and 12V when adjusting positions; failure here suggests a defective switch or broken internal contact. Replace the switch assembly if testing confirms no output, as soldering fixes for internal breaks rarely hold long-term.
Motor-level diagnostics require removing the door panel. Disconnect the motor’s three-pin connector and measure resistance between each pin and ground. Up/down actuators should read 80–120 ohms, while the fold mechanism ranges 140–180 ohms. Deviations indicate internal brush wear or windings shorted to the housing–replace the motor if findings align. Finally, reconnect the harness and activate each function while observing voltage swings; erratic readings signal poor ground return through the case or frame.
Testing Voltage at Adjustable Glass Actuator Motors
Disconnect the door panel assembly to access the motor connector terminals. Use a multimeter set to DC voltage (20V range) and probe the two pins while activating the adjustment switch in each direction. A fully operational circuit should register 12V (±0.5V) in one polarity, then reverse polarity during the opposite movement–failure to flip indicates a broken switch, blown fuse, or severed conductor.
Focus on the ±12V swing window. Anything below 10.5V at the motor terminals suggests excessive resistance in the feed wires; anything above 13.8V points to a shorted regulator or corroded ground splice near the hinge pillar. Clean corroded terminals with 600-grit abrasive and dielectric grease–repeat voltage checks immediately after to confirm restored readings.
If the actuator moves sluggishly in one direction only, isolate the motor by lifting its two terminals from the module while the switch is off. Connect a 12V source directly across the terminals; smooth bidirectional motion confirms a healthy motor. If movement is still one-sided, replace the actuator assembly.
When no voltage is detected during switch activation, trace the loom back to the relay box. Remove the relay and jump terminals 87 and 30 with a fused 14-gauge lead; if voltage reappears, the relay is faulty. If not, follow the pink/black feed wire upstream–each splice and ground junction should be scraped clean and solder-sealed to maintain conductivity.
Verify ground integrity by measuring voltage drop across the motor shell and chassis. A drop exceeding 0.2V indicates a compromised chassis ground; relocate the ring terminal to a bare section of the A-pillar or reinforce the existing ground with a second 10 AWG cable.
Intermittent Voltage Checks
If voltage fluctuates erratically, inspect the door hinge membrane. Flex the door open and closed while monitoring the multimeter–interruption at specific angles identifies a cracked wire inside the membrane. Peel back the rubber sleeve, locate the broken strand, solder a new length of 18 AWG wire, and heat-shrink the repair.
Replace any motor showing continuity but no movement under 12V load. Before installation, apply a light coat of synthetic grease to the actuator gears–this prevents future binding from water ingress. Reassemble door trim only after confirming bidirectional motion through the switch.
Never exceed 3 amps during direct bench testing. If current draw spikes above 2.5A, the armature brushes are worn–replace the unit rather than attempting brush service.
