Complete Wiring Guide for 2002 Ford Escape Radio Installation

Start by identifying the factory speaker connectors behind the head unit: four primary harnesses–front left/right (FL/FR) and rear left/right (RL/RR)–each ending in a 2-pin Molex plug. These carry low-level signals (2.5–4.5V RMS) directly from the amplifier, not the battery. Cutting them voids noise suppression unless you reroute through resistor-capacitor networks (1kΩ resistor + 47µF cap in series) between each positive wire and chassis ground.

The illumination circuit–a single 18-gauge violet wire–feeds the display dimmer. Tap it with a voltage divider (two 10kΩ resistors in series) if retrofitting LED backlighting; factory incandescent bulbs pull ~120mA, while LEDs require

Power distribution splits into three critical paths: constant 12V (yellow, 20-gauge), switched ignition (red, same gauge), and accessory (orange, 14-gauge). The yellow line must be spliced through a 40A blade fuse (use ATO/ATC fuse holder with 6-inch leads) before interfacing with aftermarket amplifiers; the stock fuse box lacks spare slots for this load. The orange wire, active only with key-in-ACC or RUN, should bypass the anti-theft module (black box behind glovebox) via a relay (SPST, 30A coil) to prevent parasitic draw.

Grounding requires direct chassis attachment within 12 inches of the head unit’s mounting location. Scrape paint off attachment points using a die grinder (36-grit wheel) for bare metal contact; apply star washer or tooth lock washer between the ring terminal and chassis. The main ground wire (black, 12-gauge) from the amplifier must terminate here, not the factory bolt (which serves only the radio’s logic circuit).

For steering wheel controls, locate the 6-pin gray connector behind the instrument cluster. Pins 2 (gray/red) and 5 (brown/white) carry ±5V data packets. Use a resistance ladder decoder (available as PAC SWI-RC or Metra ASWC-1) to convert these analog resistances into CAN-BUS signals for aftermarket decks; bypassing this step bricks the climate control interface.

How to Connect Your Vehicle’s Audio System: A Detailed Guide

Locate the factory harness behind the stereo unit–it’s a 12-pin plug with color-coded wires. Match each lead to the replacement receiver’s connector using this breakdown:

• Yellow: Constant 12V power (fused at 10A)
• Red: Switched 12V (ignition-controlled)
• Black: Ground (attach to chassis near unit)
• Blue/White: Power antenna or amplifier trigger
• Gray: Front right speaker (+)
• Gray/Black: Front right speaker (-)
• White: Front left speaker (+)
• White/Black: Front left speaker (-)
• Purple: Rear right speaker (+)
• Purple/Black: Rear right speaker (-)
• Green: Rear left speaker (+)
• Green/Black: Rear left speaker (-)

Use a multimeter to verify voltages before connecting. Yellow should read 12V with the key off; red should drop to 0V when the ignition is off.

Common Pitfalls During Installation

Avoid these mistakes to prevent system failures:

1. Skipping the fuse on the yellow wire–this can cause a fire risk if shorted.
2. Mixing up speaker polarity–swap green and purple wires and left/right channels will reverse.
3. Ignoring the amplifier trigger–some aftermarket units require the blue/white wire to activate external amps.
4. Grounding to painted metal–use a bare chassis point to prevent interference.

Check resistance between speaker wires–it should read 4 ohms for factory units. Anything above 6 ohms suggests damaged wiring or faulty speakers.

If the stereo powers on but produces no sound, probe the red wire with the multimeter while turning the key. A voltage drop below 11V indicates a weak battery or poor connection. Test speaker wires for continuity–broken leads often hide behind the dashboard insulation.

For vehicles with automatic climate control, disconnect the negative battery terminal before wiring to avoid losing preset configurations. Reconnect after installation to reset the system.

Adapting Aftermarket Units

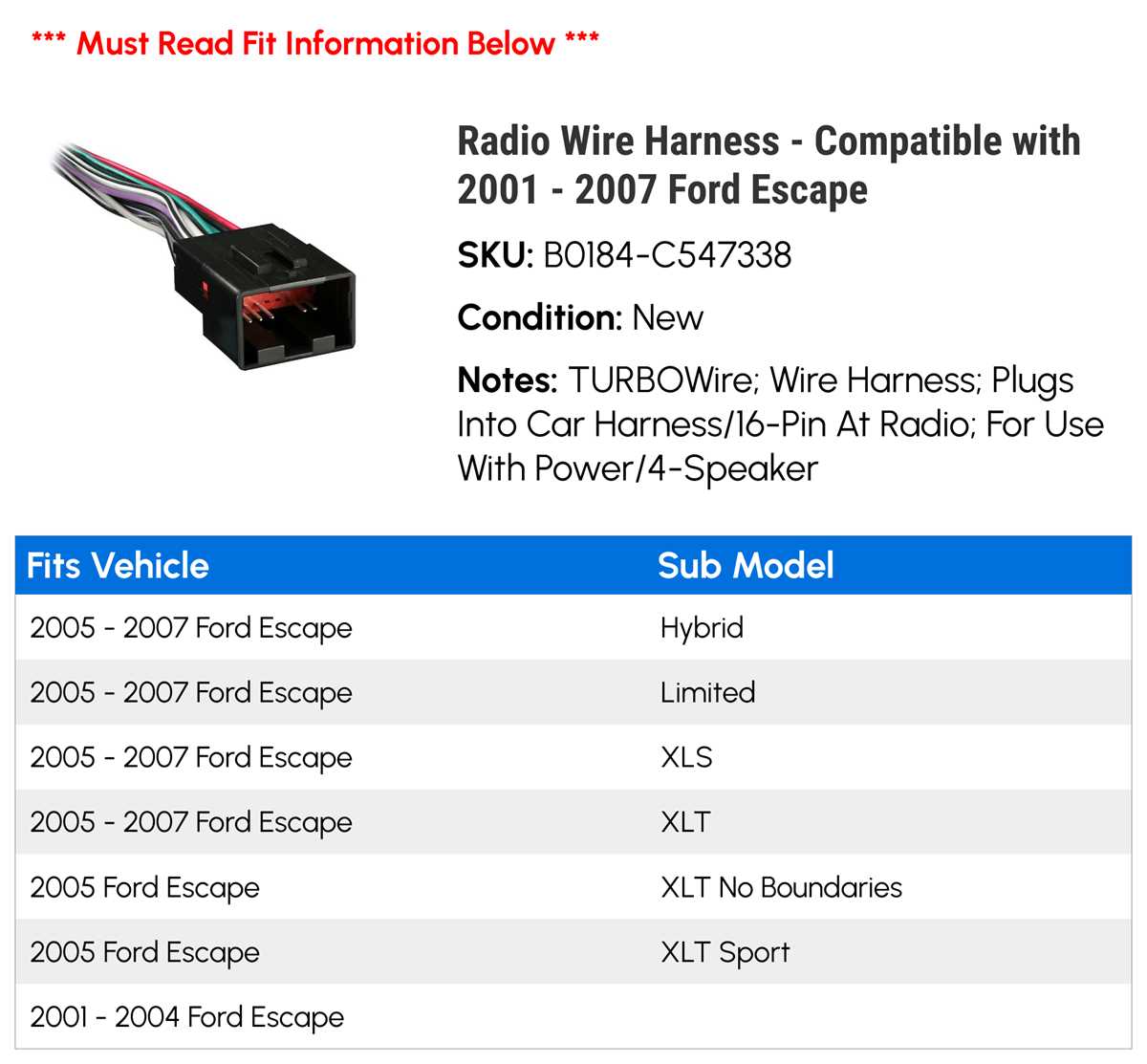

Most universal stereos use a different pinout. Purchase an adapter harness (Metra 70-1774 or Scosche SU03B) to bridge the gap. Solder connections instead of using crimp connectors for better conductivity. Apply heat-shrink tubing to exposed joints to prevent corrosion.

For amplified systems, the blue/white wire must connect to the factory amp’s remote lead. If absent, the audio system won’t function. Some models require a line output converter–install it between the speaker wires and the new unit to manage signal levels.

Use dielectric grease on connections prone to moisture, like the antenna plug. Secure wires with zip ties to prevent rattling–loose leads can short against moving components under the dash.

If static or engine noise interferes, verify the ground connection. Add a secondary ground wire from the stereo chassis to a clean metal surface if needed. Avoid routing power wires near ignition coils or fuel injectors to reduce electrical interference.

Finding the Electrical Linkage Behind the Factory Sound System

Begin by removing the center dash panel using a trim tool–pry carefully along the lower edge near the climate controls. The factory harness connectors sit directly behind the unit, secured in a black plastic bracket. Two primary plugs are visible: a 14-pin upper connector (typically gray) and an 8-pin lower connector (often white or beige). Disconnect the battery negative terminal first to prevent shorting any circuits during handling.

Identifying Key Connections

The gray 14-pin plug carries constant power (yellow wire), switched ignition feed (red), ground (black), and speaker outputs (left front: green/white; right front: purple/white; rear pairs vary). The smaller white/beige connector usually handles illumination (orange/light blue), antenna power (blue), and auxiliary inputs if equipped. Label each wire with masking tape before unplugging to avoid confusion during reinstallation.

For vehicles with manual climate controls, the harness may sit slightly higher–adjust the trim removal accordingly. If the connectors do not release easily, depress the small plastic tabs on the sides of each plug using a flathead screwdriver. Avoid forcing the connection, as the pins can bend or break. Verify wire colors against the service manual, as variations exist between trim levels.

Troubleshooting Obscured Access

If the connectors are obstructed by a factory bracket, remove the two Phillips screws securing the bracket to the chassis. Some models include a secondary grounding strap attached to the lower screw–note its position for reassembly. For aftermarket installations, ensure the new unit’s harness matches the pin configuration; adapters may be required for non-OEM setups.

Inspect the plugs for corrosion or frayed wiring before reconnecting. Clean contacts with electrical contact cleaner if necessary. Reattach the dashboard trim by aligning the clips and pressing firmly until they snap into place. Reconnect the battery and test all functions, including speaker outputs, power antenna (if applicable), and steering wheel controls.

Matching Wire Hues to Electrical Roles in Audio System Upgrades

Locate the constant 12V supply line by tracing the yellow wire–this maintains preset memory and clock functions when ignition is off. Pair it with a 20-amp fuse within 18 inches of the battery terminal to prevent voltage drop. For switched power, identify the red or pink wire; this activates the unit when the key is turned, pulling 5-7 amps under load. Verify with a multimeter–absence of voltage indicates a blown fuse or ignition relay failure.

• Black (Ground): Secure to unpainted chassis metal; scrape paint for bare contact. Use a 10-gauge ring terminal crimped and soldered for corrosion resistance. Test continuity–resistance above 0.2 ohms signals poor connection, causing pops or audio distortion.
• Dark Blue/White Stripe (Antenna Trigger): Sends 12V when the unit powers on, extending motorized antennas. If static persists, jump this wire to the yellow memory wire as a temporary fix–permanent solutions require a 10-amp fuse to avoid shorting.
• Illumination (Orange or Orange/White): Dim dash lights when headlights activate. Attach to the vehicle’s dimmer circuit; miswiring results in full brightness or dead dash lights.

Speaker outputs follow a consistent two-wire per channel scheme. Use a polarity tester or AA battery to confirm positive/negative–positive wires briefly push cones outward when connected. Front left channels usually pair gray (positive) and gray/black stripe; front right uses white and white/black stripe. Rear speakers swap gray/white for green (positive) and green/black stripe (left) and purple and purple/black stripe (right). Twist mismatched polarities cause phase cancellation, reducing bass response.

Troubleshooting Mismatched Colors

1. Consult the harness adapter’s documentation–aftermarket units often remap colors. Sony typically uses solid blue for left rear positive, unlike OEM green.
2. Probe wires with a digital multimeter in AC mode–active speakers register 2-5V when playing audio at moderate volume.
3. If colors deviate, strip a small section of each wire and compare copper strand count–thicker wires indicate higher current (power/ground), thinner for signals.

Amplifier remote turn-on taps the blue or blue/white wire, drawing 0.5-1A to trigger external amps. Route this wire directly to the amp’s remote input without splicing through factory circuits, as voltage drop can delay turn-on. For speaker-level inputs, splice into the green/purple pairs before the factory harness–use high-quality butt connectors and heat shrink to prevent shorts.

Aftermarket harnesses occasionally bundle unused wires–clip and cap light blue, brown, or solid black/white with non-conductive tape. Label each connection with masking tape during installation; photograph the setup before securing dash panels. Test all functions (volume, balance, fader) with key in ACC position before final assembly to avoid rework.
