Ford Explorer 2002 Radio Wiring Harness Color Codes and Connection Guide
Locate the central fuse box under the dashboard on the driver’s side–remove the lower panel by unscrewing two 7mm bolts. Inside, identify the pink wire (labeled “Radio B+”) and the yellow wire (“Memory Keep-Alive”) from the vehicle’s 10-pin connector. Splice these into the aftermarket head unit’s red and yellow power leads using crimp connectors, not solder alone. Verify continuity with a multimeter before reassembly to prevent fuse overload.
For speaker outputs, trace the factory amplifier behind the rear left quarter panel–remove the cargo cover to access it. The amplifier’s outputs use male spade terminals: front left (white/light blue), front right (gray/red), rear left (green/orange), rear right (purple/green). Match these to the new unit’s wiring by polarity–reversing leads will invert audio phase, causing muddy midrange.
Ground the system via the chassis bolt behind the driver’s seat kick panel. Sand the paint to bare metal for a solid connection. If static persists, add a 10-gauge inline fuse between the ground wire and the bolt–cheap wiring kits often omit this, risking short circuits. Test each channel individually with a 50Hz sine wave before finalizing trim installation.
Label all splices with heat-shrink tubing (not electrical tape) to prevent corrosion from moisture in the door jambs. For vehicles with premium sound systems, the factory amp requires a bypass module–connect it inline with the speaker wires or low-level RCA outputs will fail. Double-check pinch points behind the glovebox where wires route to the A-pillar.
Electrical Connection Guide for the 2002 Explorer’s Audio System
Locate the factory audio connector behind the dash panel on the driver’s side. The 12-pin plug–typically black or gray–houses all signal and power leads. Pin 1 (yellow) delivers constant 12V power, while Pin 2 (red) provides switched ignition voltage. Ground is handled by Pin 4 (black) or Pin 6 (brown), depending on trim level. Always verify continuity with a multimeter before connecting aftermarket components.
Pinout Specifics and Compatibility
Aftermarket adapters must align with these pin assignments: Pin 5 (blue/white) carries amplifier trigger at 500mA; Pin 7 (purple) handles left rear speaker positive; Pin 8 (purple/white) delivers left rear negative. Swapping polarity risks damaging the OEM amplifier. Use a crimp tool for secure connections–avoid soldering near plastic retainers, which can warp under heat. Confirm speaker impedance matches the stock system (4 ohms for base models, 2 ohms for premium setups).
Illumination control wires–Pin 9 (orange) and Pin 10 (orange/white)–adjust brightness via the dash dimmer. These must be spliced correctly to prevent dash error codes. For vehicles equipped with a factory navigation unit, Pin 11 (gray) transmits reverse signal for rear camera activation; improper handling here disables parking sensors. Always disconnect the battery’s negative terminal before probing live circuits to avoid shorting the fuse box.
Color codes deviate slightly between model years; a 2001 layout may reverse orange and gray wires. Cross-reference with a factory service manual for exact schematics–third-party diagrams often omit critical details like fuse ratings (typically 10A for audio circuits). If installing a double-DIN head unit, check for clearance behind the dash; some trims require removing the climate control housing to avoid interference with the new faceplate.
Common Pitfalls and Solutions
Bluetooth integration modules often fail because of improper pairing with the vehicle’s CAN bus. Bypass generic adapters and use a Ford-specific interface (e.g., Metra ASWC-1) to retain steering wheel controls. If static persists after installation, inspect the ground connection at the chassis; corroded mounting points introduce noise. Subwoofer installations demand a relay for the remote turn-on lead–directly tapping the blue wire overloads the factory amplifier.
Backup cameras require a separate 6V power feed from the reverse light circuit; splicing into the radio’s rear output can fry the module. For vehicles with factory subwoofers, the amplified output wires (pins 13–16) are not present–these must be pulled from the amplifier under the driver’s seat. Use a torx screwdriver (T20) to remove the seat bracket safely. Always test new connections with the engine off to isolate ground loops.
Retain the original antenna adapter; aftermarket replacements often struggle with weak signal reception. If upgrading to a touchscreen unit, ensure the dash kit includes provisions for climate control relocation–the 2002’s HVAC resistors can overheat if airflow is obstructed. Final step: recheck all connections before reassembly to avoid troubleshooting after reinstalling panels.
Matching the Precise Audio System Plug for Your Mid-2000s Sport Utility Vehicle
Locate the original stereo connector behind the dashboard panel–usually a 12-pin rectangular plug with color-coded leads. The OEM connector for this model features distinct wire pairs: solid yellow (constant 12V), red (switched 12V), black (ground), and striped orange (illumination). Verify the pin layout against a factory service manual to avoid misalignment, as aftermarket adapters often omit critical illumination or memory retention circuits.

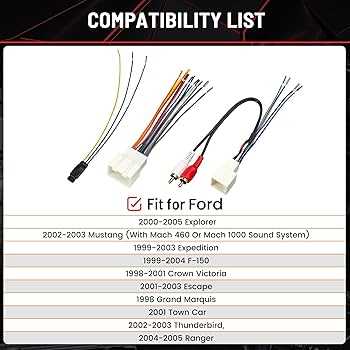

Examine the vehicle’s fuse box under the driver’s side dash for the stereo-specific fuse (typically 15A). Remove it temporarily to confirm the connector’s power status; absence of voltage at the yellow lead indicates a blown fuse or severed wire, requiring a multimeter test at the harness junction. Third-party units may use ISO-style plugs, but this SUV’s native harness demands a proprietary format–adapters labeled “Metra 70-1770” or “Scosche FO01B” maintain original functionality without cutting factory wires.
Check the rear of the head unit for a secondary 8-pin plug if the primary connector appears intact yet fails to power on. This auxiliary interface handles amplifier triggers (purple/white) and antenna motor control (dark blue). Aftermarket navigation systems often require bridging this plug to the main harness, but improper splicing disrupts theft-deterrent features or subwoofer outputs. Use a crimp connector with heat shrink tubing for permanent repairs to prevent corrosion.
Label all disconnected wires before testing continuity with a probe–factory schematics assign specific resistance values (e.g., 2.2kΩ for steering wheel controls). If replacing the unit, ensure the new harness includes a data bus (green/white) for SYNC compatibility; generic adapters ignore this lead, causing Bluetooth or voice command failures. For vehicles with rear entertainment, a separate 10-pin harness beneath the front seats must align with the main connector to maintain dual-zone audio.

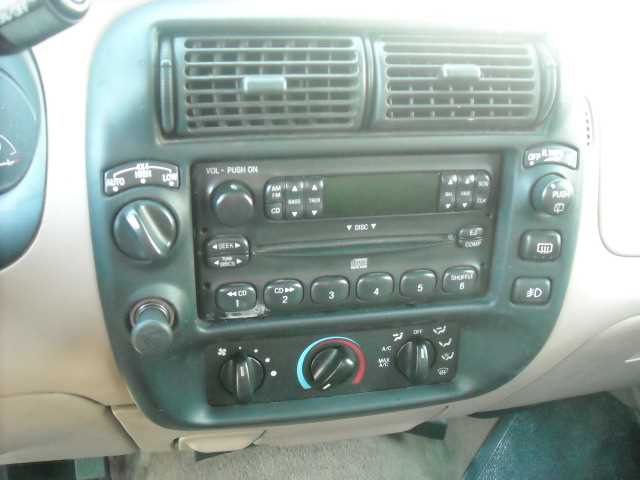

Step-by-Step Guide to Finding the Audio System Connector Behind the Dashboard
Disconnect the vehicle’s negative battery terminal first–this prevents short circuits while handling electrical components. A 10mm wrench works for most terminals. Wait at least 10 minutes to allow capacitors in the power supply circuits to discharge fully.
Remove the center console trim panel by prying carefully with a plastic trim tool. Start at the bottom corners and work upward. The panel is held by six clips: two at the base, two near the vents, and two on the sides. Label each clip position with masking tape for reassembly.
Next, detach the climate control bezel. It snaps into place but may require gentle pressure from behind to release. Use the trim tool at the top edge where it meets the dash. Once free, set it aside–no screws hold it in place.
The audio unit is secured by four screws: two 7mm bolts at the top and two 8mm bolts at the bottom. A magnetic screwdriver prevents dropped fasteners. After removal, tilt the unit forward and locate the main plug at the rear–it’s a 16-pin rectangular connector with a release tab on the upper edge.
Trace the bundle of wires from the connector downward. The harness exits through a rubber grommet near the left kick panel. If the connector isn’t visible, reach behind the dash frame–feel for a loom wrapped in cloth tape or corrugated conduit. Tugging gently reveals its path.
Check for secondary plugs if the primary connector doesn’t match your aftermarket device. Some models include a separate 4-pin amplifier link (white plastic housing) and a single-wire antenna lead (coaxial, typically blue). Both are adjacent to the main bundle.
- Not all connectors share the same color coding–verify wire functions with a multimeter before splicing.
- Factory insulation wraps may conceal additional splices; split the loom to inspect thoroughly.
- If corrosion is present, clean terminals with electrical contact cleaner and a brass brush.
Reinstall all components in reverse order, ensuring no wires are pinched. Test power delivery before fully securing the dash–momentary activation confirms correct reconnection.
Color-Coded Wire Functions and Their Corresponding Audio System Connections
Identify the yellow wire as the primary 12V constant power lead–connect it directly to the vehicle’s battery positive terminal using a 10-amp fuse within 6 inches of the connection point to prevent shorts. Failure to fuse this line risks damaging the amplifier or head unit during voltage spikes.
Match the red wire to the ignition-controlled power source; splice it into the accessory circuit (e.g., fuse box tap) to ensure the entertainment system powers on only when the key is in the “ACC” or “RUN” position. Avoid attaching it to the starter wire, as this can drain the battery during cranking.
| Wire Color | Function | Connection Target | Critical Notes |
|---|---|---|---|
| Black | Ground | Chassis bolt or dedicated ground block | Scrape paint/oxide from contact point; use 14-gauge or thicker wire |
| Blue/White | Amplifier remote turn-on | Aftermarket amp’s remote terminal | Add a 1A inline fuse if running long distances (>12 ft) |
| Orange | Illumination/dimmer control | Vehicle’s dimmer switch or +12V lighting circuit | Test polarity–some systems invert illumination voltage |
| Gray/Purple | Right-front speaker (+/-) | Door tweeter or midrange driver | Polarity must match factory harness to avoid phase cancellation |
| White/Green | Left-front speaker (+/-) | Sound system’s front-left channel | Use twisted pair wiring for lengths over 8 ft to reduce interference |
Use a multimeter to confirm the gray wire carries positive current and the gray/black wire serves as the negative return for the right-front speaker–reverse polarity will distort audio output, especially at high volumes. Test continuity before finalizing connections to avoid grounding loops.
For aftermarket subwoofer installations, splice the purple wire (rear right speaker positive) and purple/black wire (negative) into a line-level converter if the amplifier lacks high-level inputs. Set the converter’s gain to match the OEM signal strength–typically 2-4V RMS–to prevent clipping.
Troubleshooting Inconsistent Power
If the unit powers on intermittently, inspect the orange wire for intermittent voltage drops–some models route this through the lighting relay, causing flickering displays. Bypass the relay and connect directly to the dimmer circuit if necessary.
Advanced Tips for Signal Integrity
Route RCA cables away from power wires (minimum 6-inch separation) and avoid bundling them with the blue/white remote turn-on lead. For systems with noise, add a ground loop isolator between the head unit and amplifier–capacitors alone won’t resolve A/C interference in most cases.
